Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight

ST537000-A-2.5

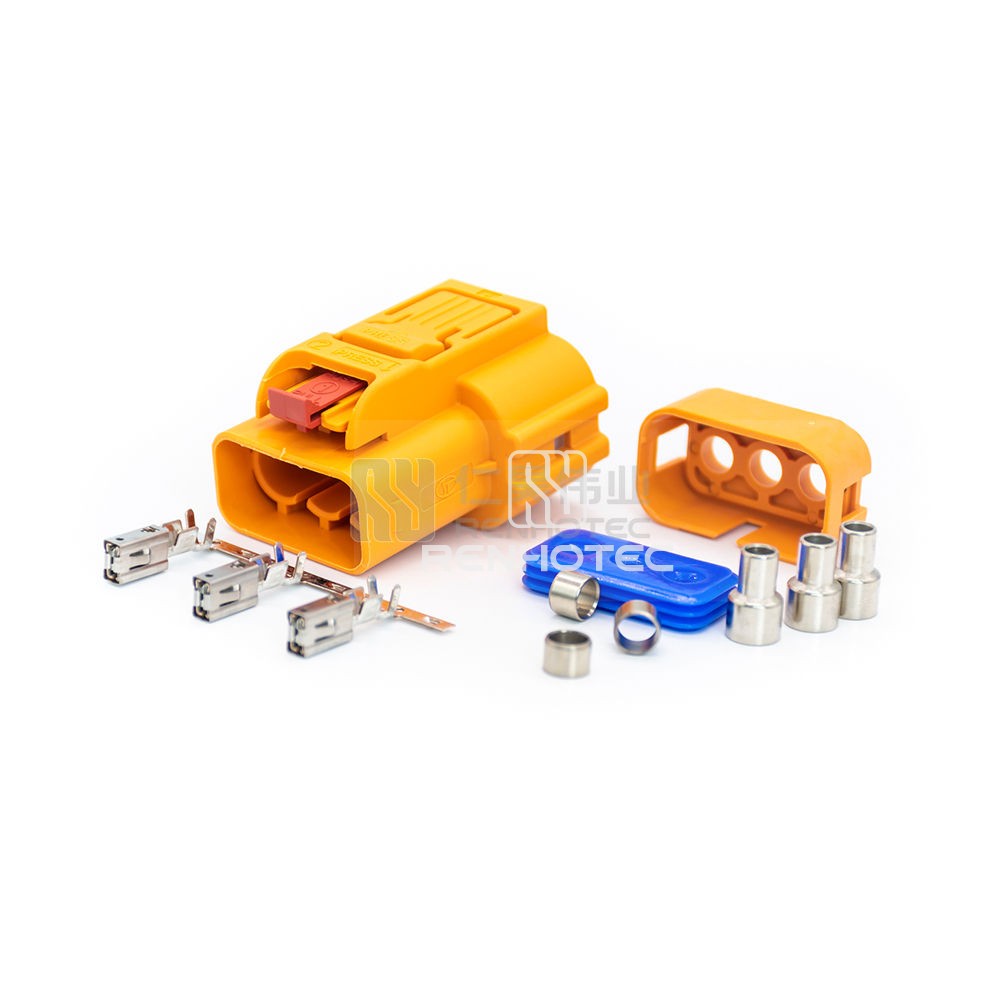

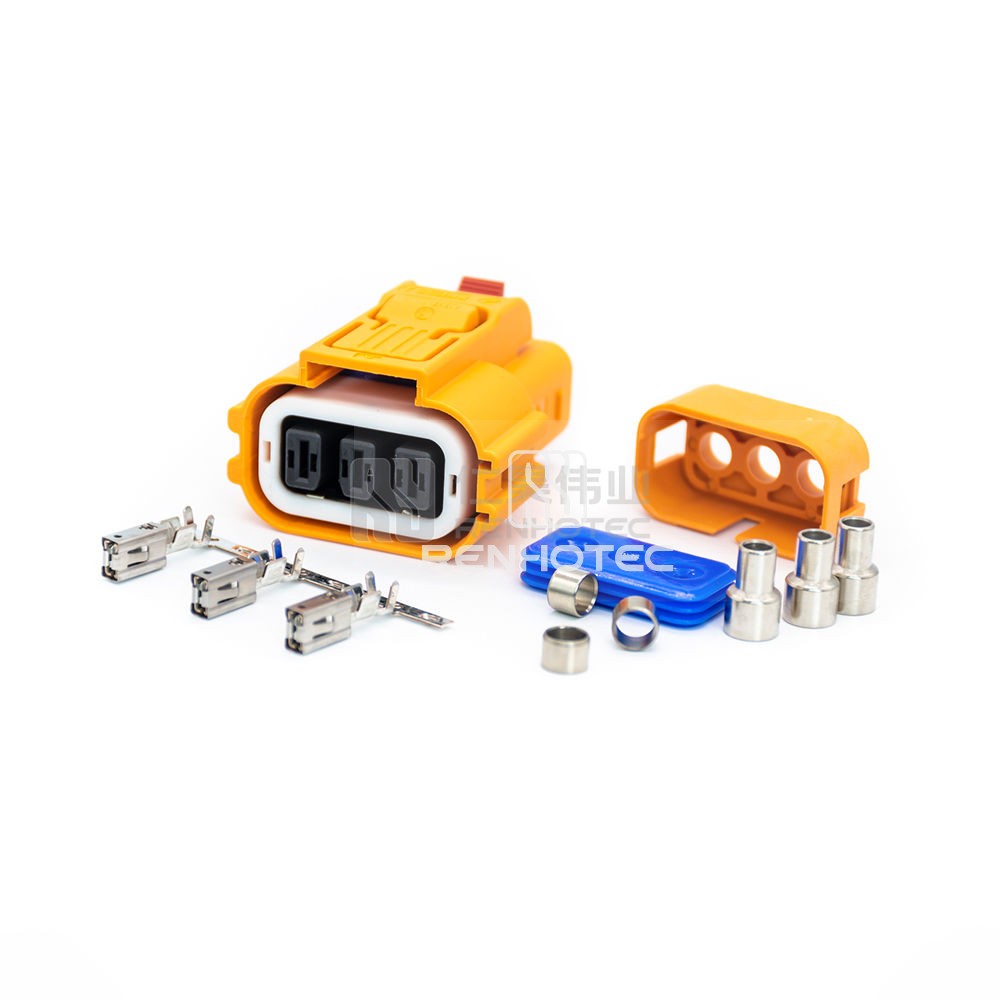

3 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-power electric vehicle cable plug features 3 POS design, 20A capacity, and shielded 2.5mm² cable with a straight A Key configuration. Ideal for electric vehicle charging applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions3
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current20A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
