Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable Y Key Straight
- Overview
- Technical data
- Catalog
- Certificate
Product certification

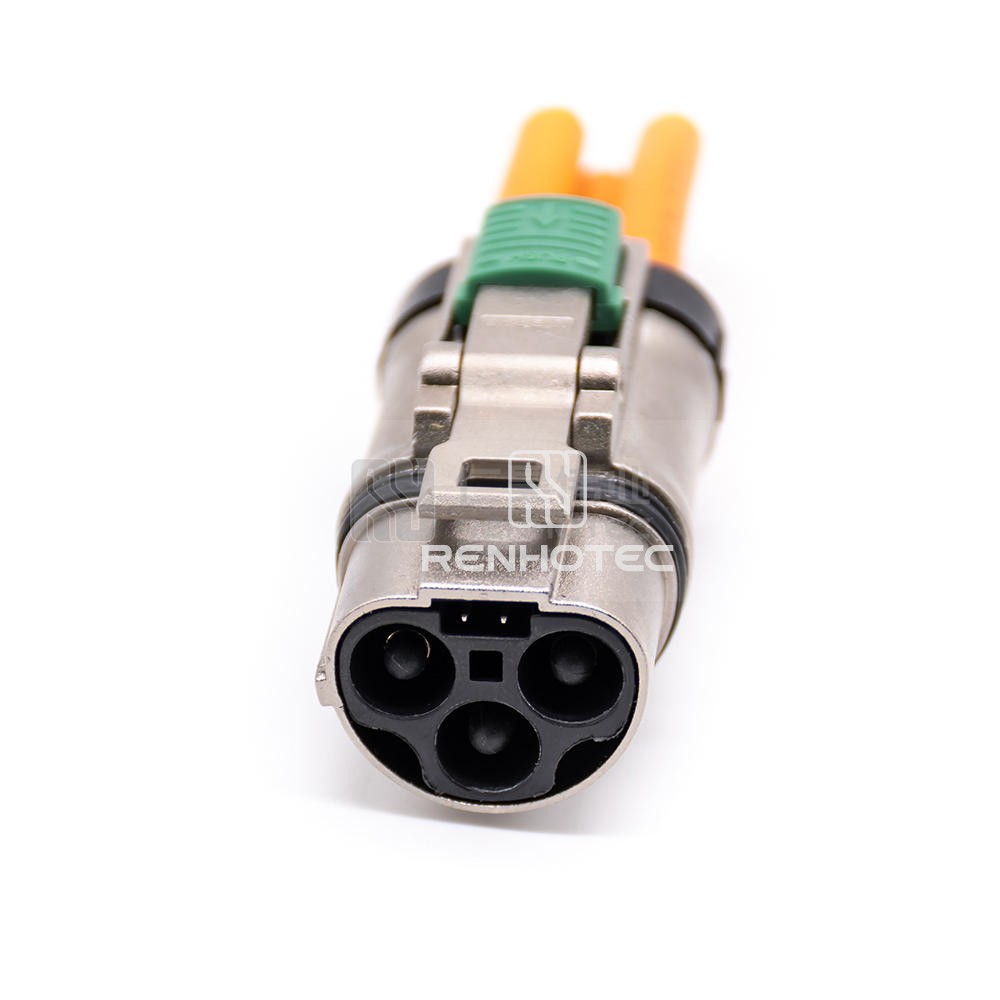

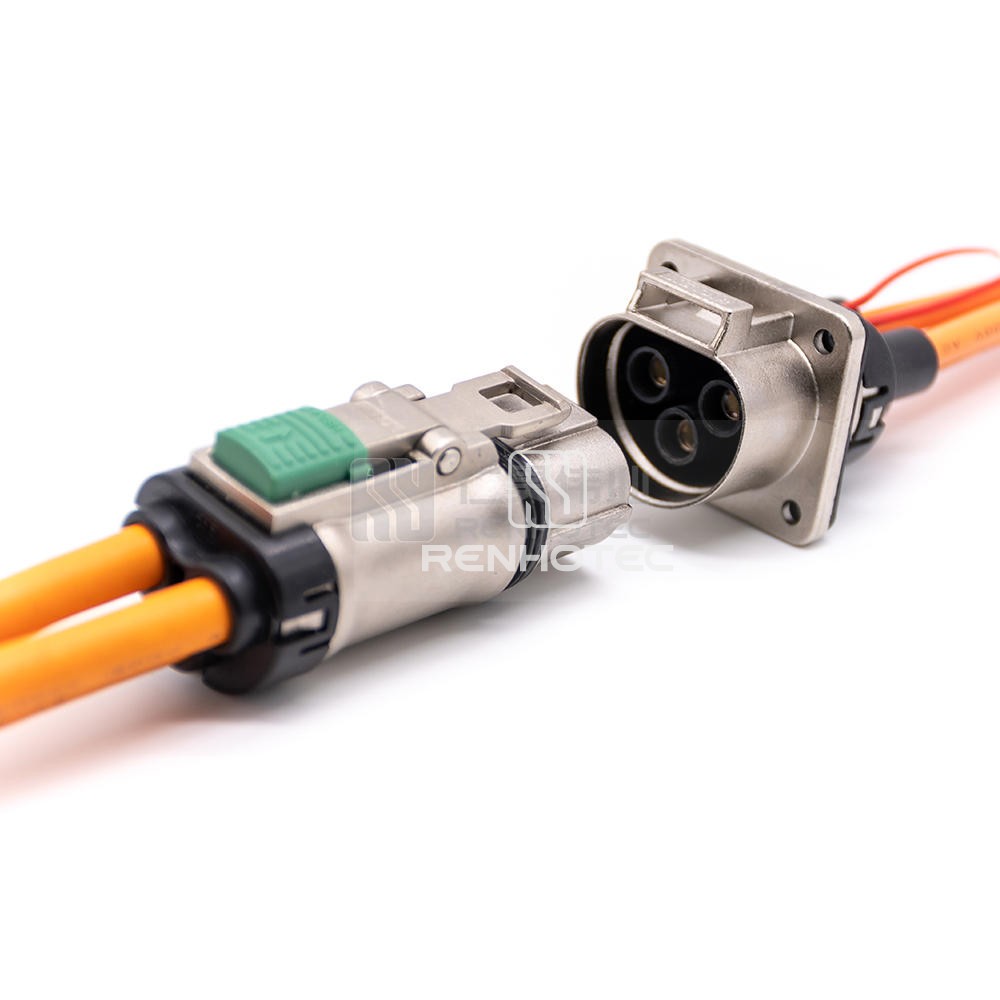

This high power electric vehicle cable plug features 3 POS connections with a 23A capacity and 4mm² shielded cable. Its Y key straight design ensures secure connections, making it ideal for electric vehicle charging applications.
General
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 3 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | Y |
Color | Silver |
Features | Integrated Internal HVIL |
Electrical
Rated Voltage | 800V |
Rated Current | 23A |
Shielding | Shielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 4mm² |
Material
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
