Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Straight

ST525000-A-50
3 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

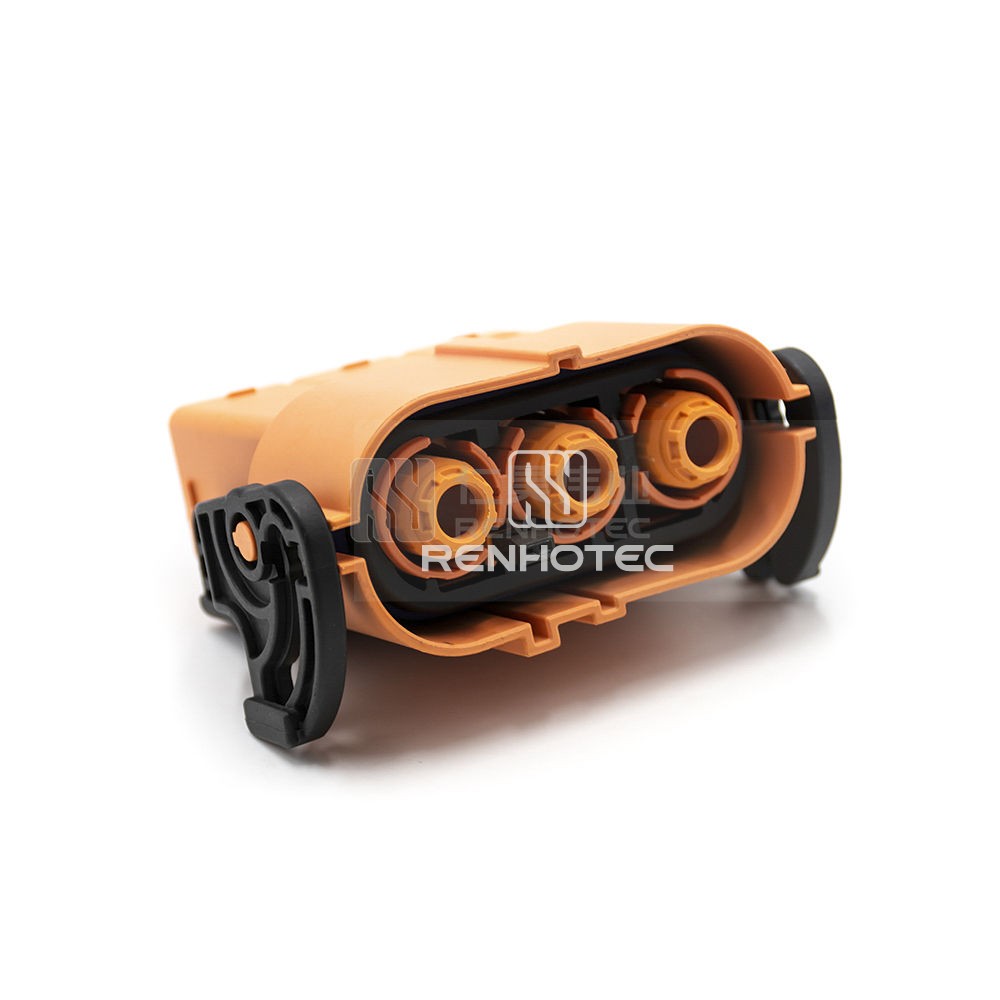

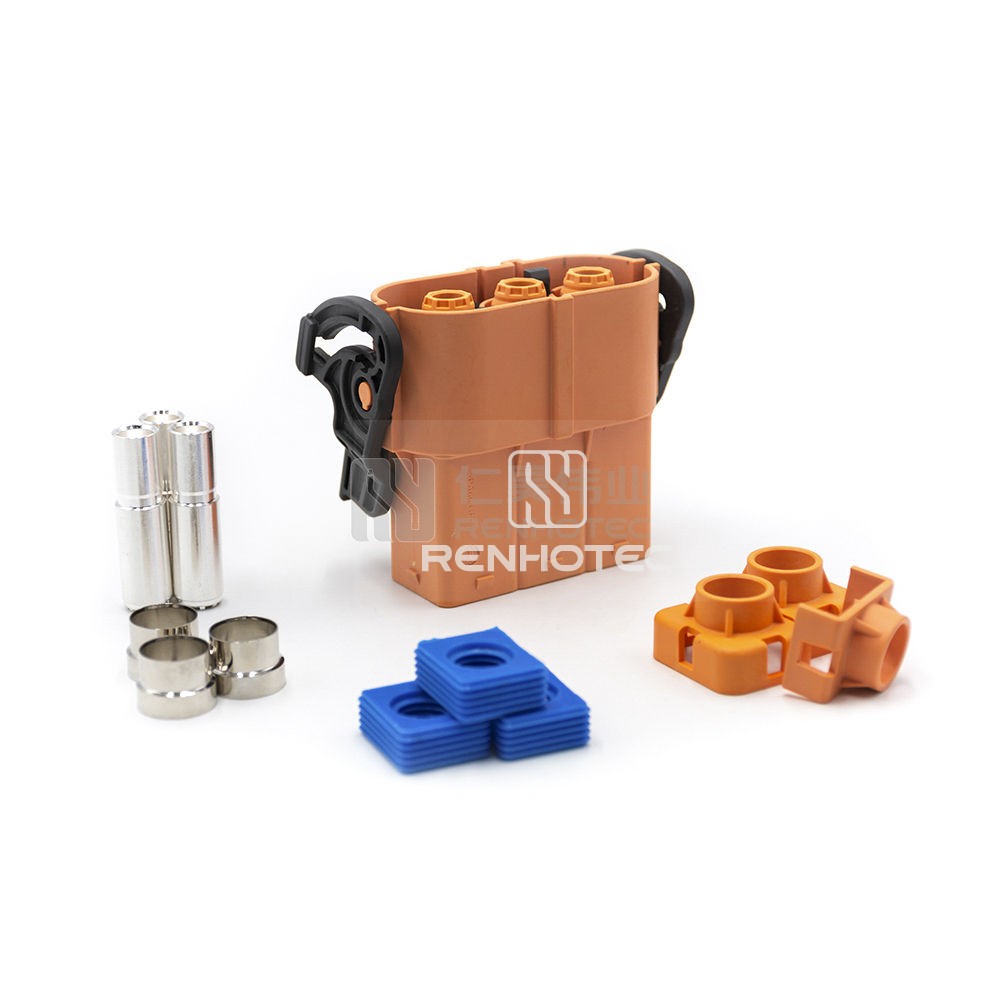

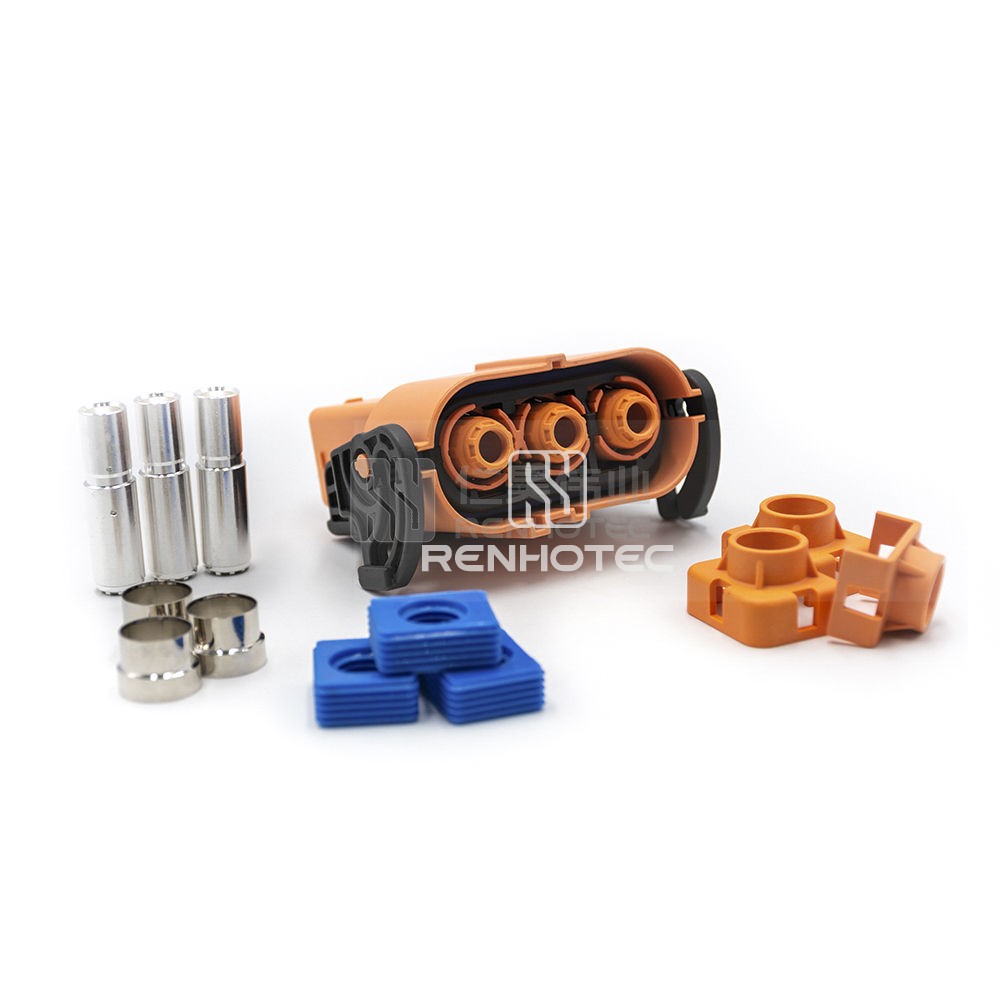

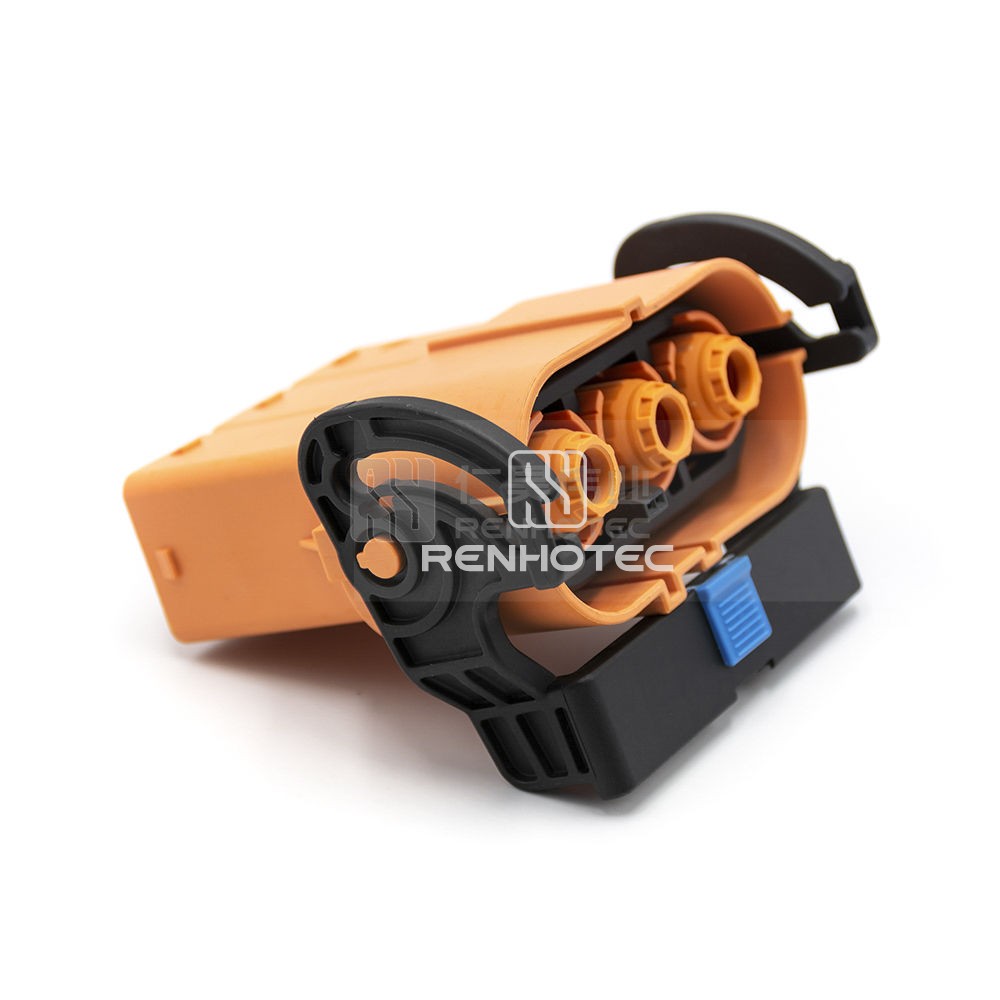

    This electric vehicle cable plug features 3 POS, high power capacity of 250A and 50mm² shielded cable. Designed with a waterproof Touch Proof feature, this cable plug provides reliable and secure connections for your electric vehicle needs.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions3
    Contact Size8mm
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current250A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
