Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 35A 6mm2 Shielded Cable A Key Straight

NI1-1-S036-3AYN-C05

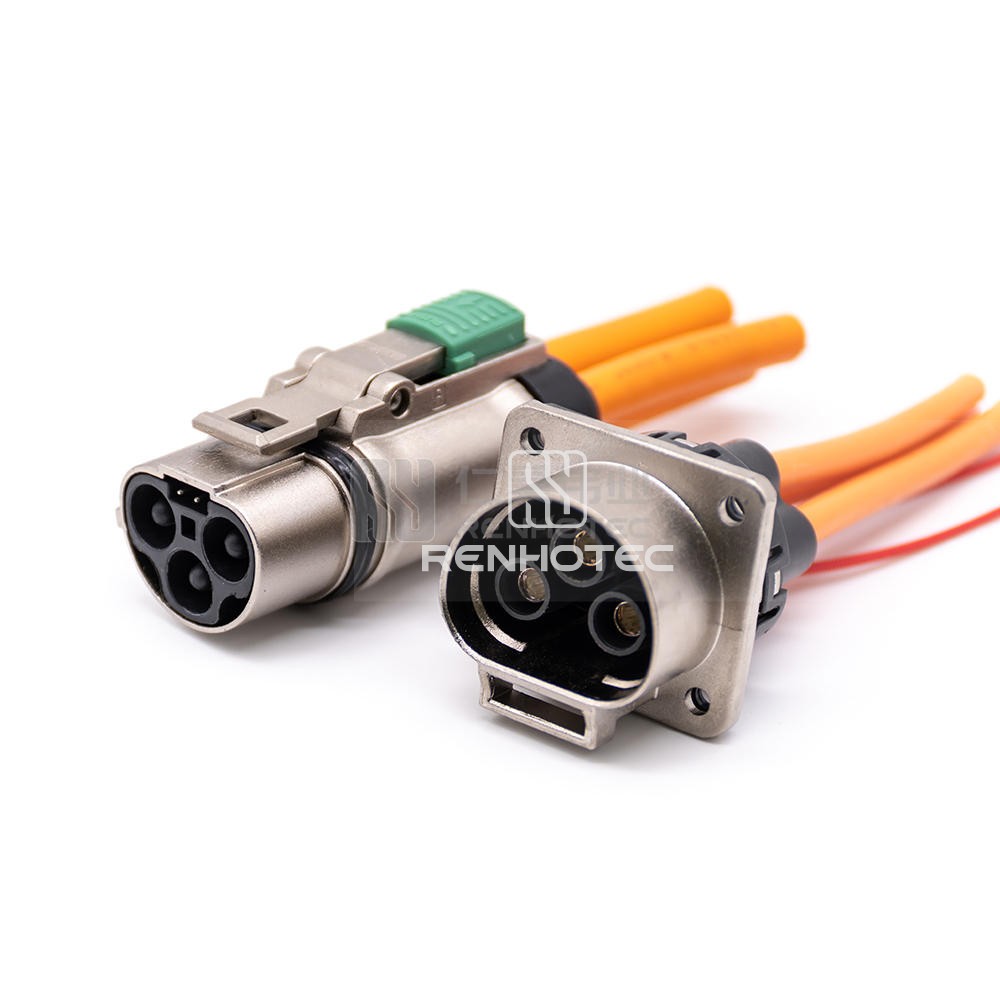

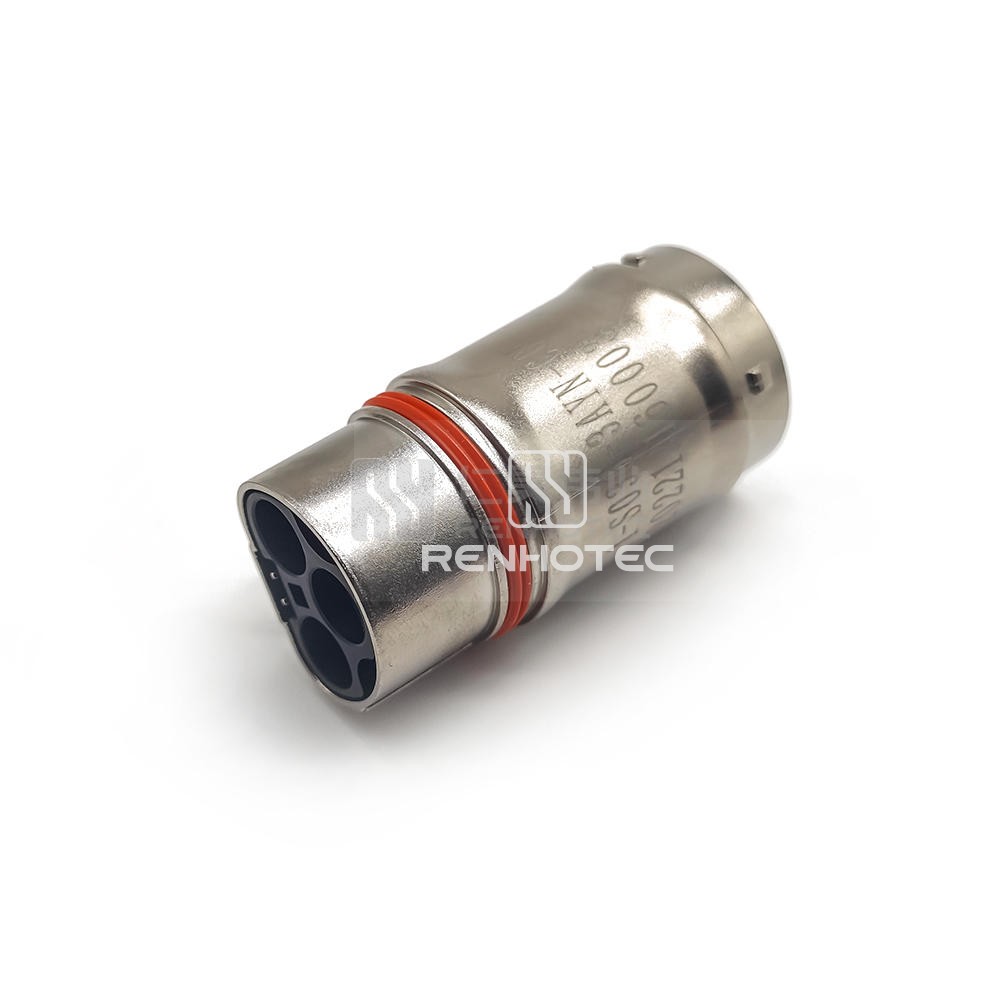

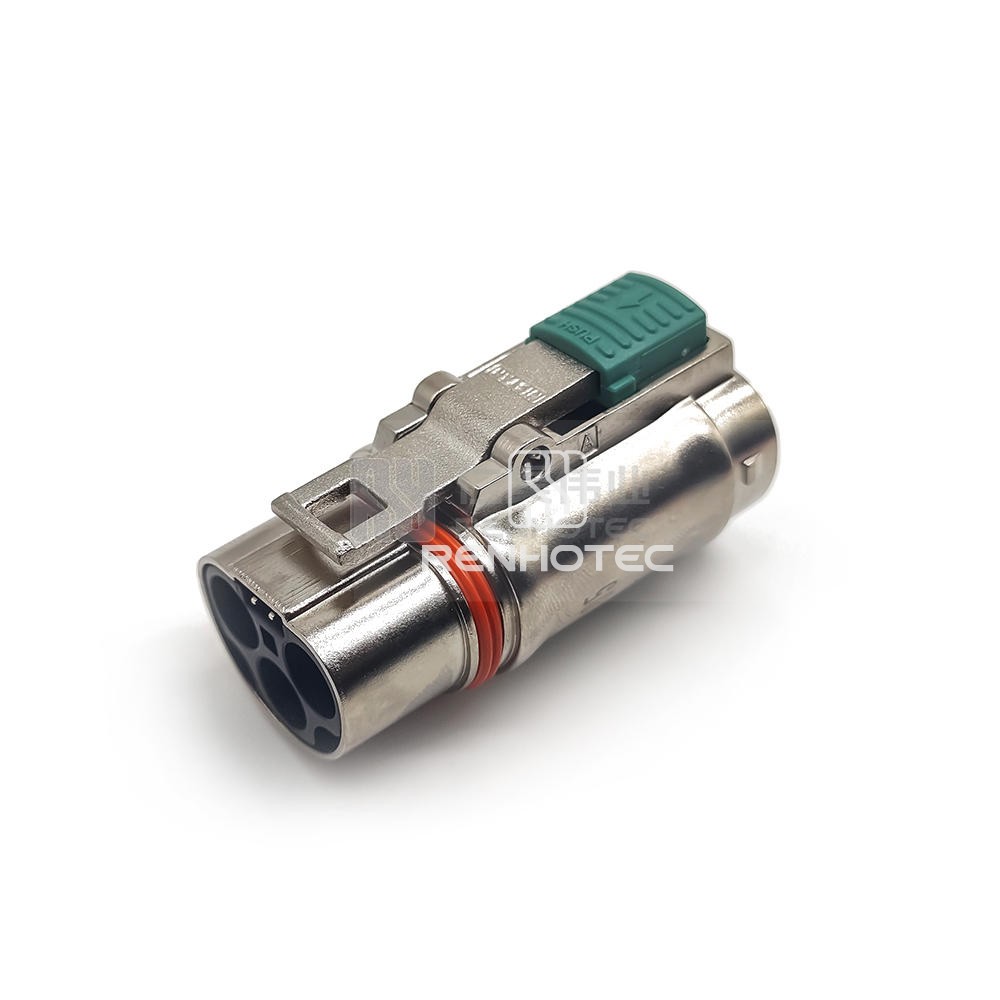

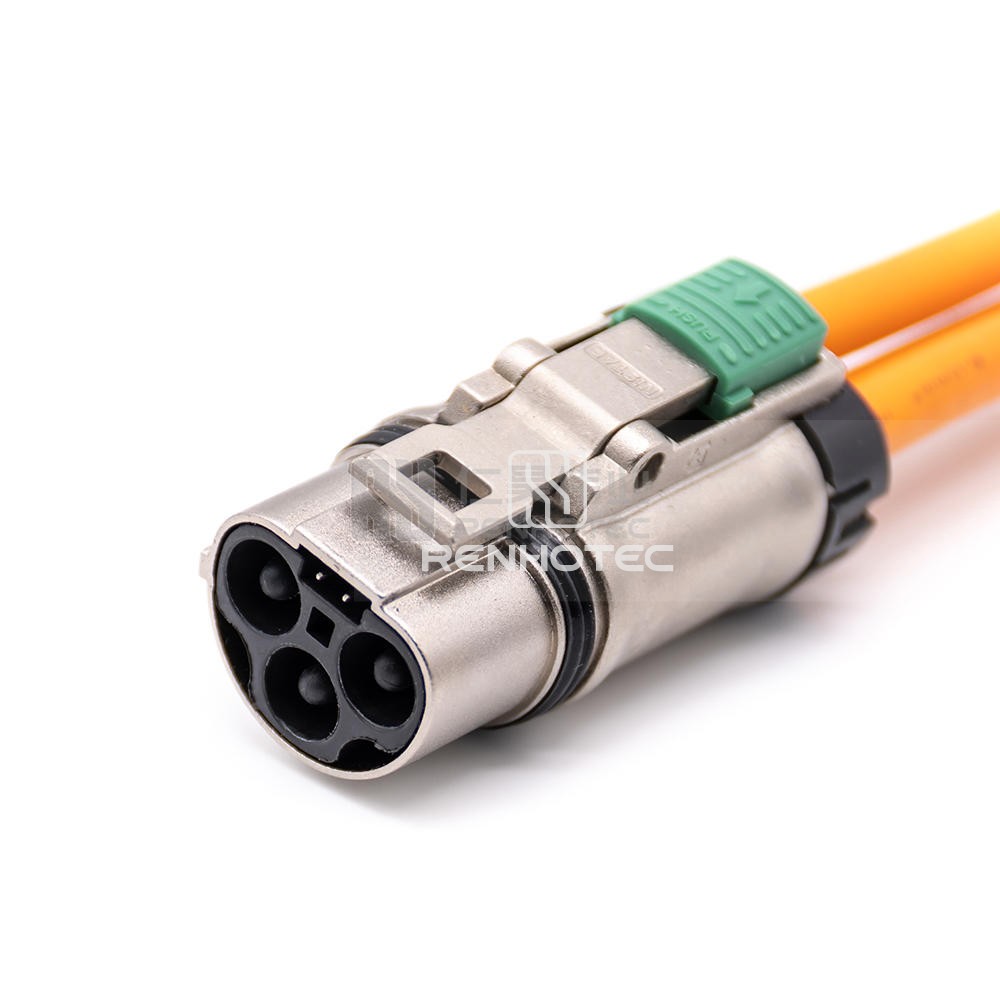

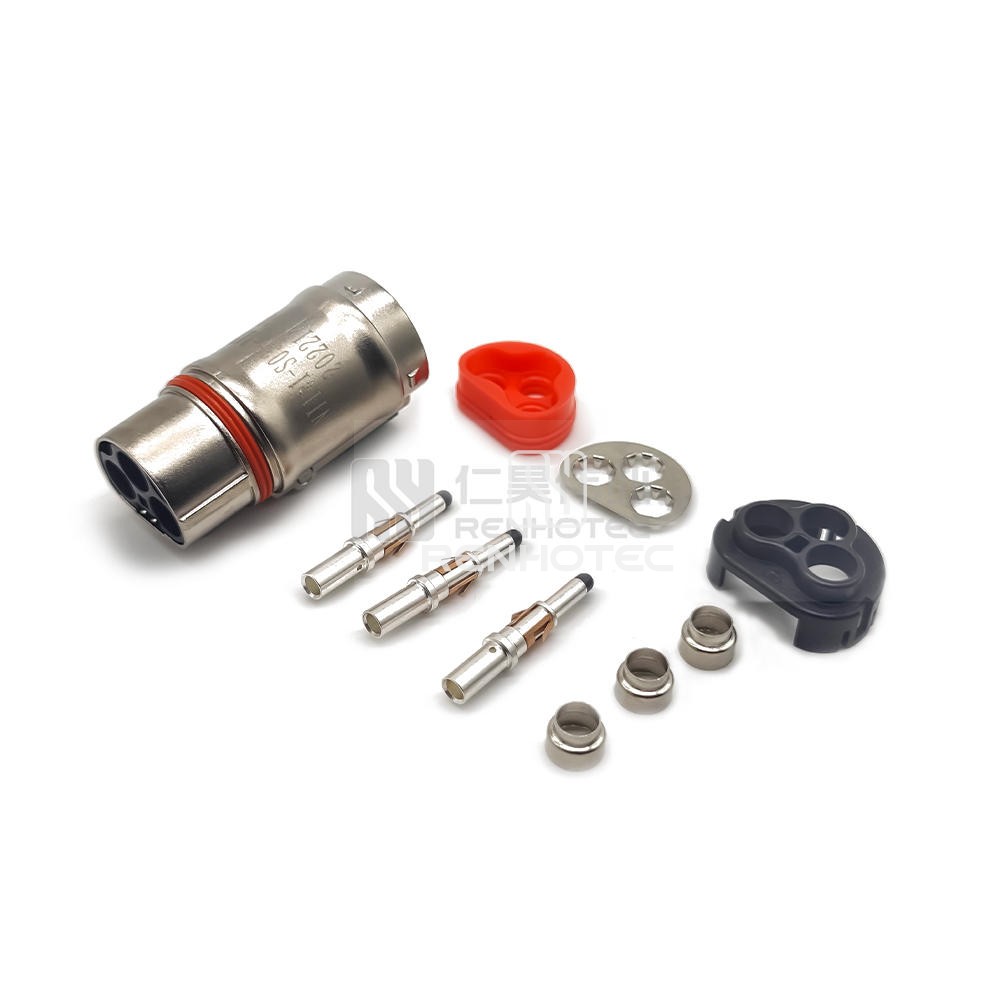

3 POS High Power Electric vehicle Cable Plug 35A 6mm2 Shielded Cable A Key Straight

This 3 POS High Power Electric Vehicle Cable Plug features a 35A rating, a 6mm² shielded cable, and a waterproof Touch Proof design. Ideal for electric vehicles, this A Key Straight connector ensures safe and reliable power transfer.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions3
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current35A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range6mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
