NI1-1-H036-3AYN-C04

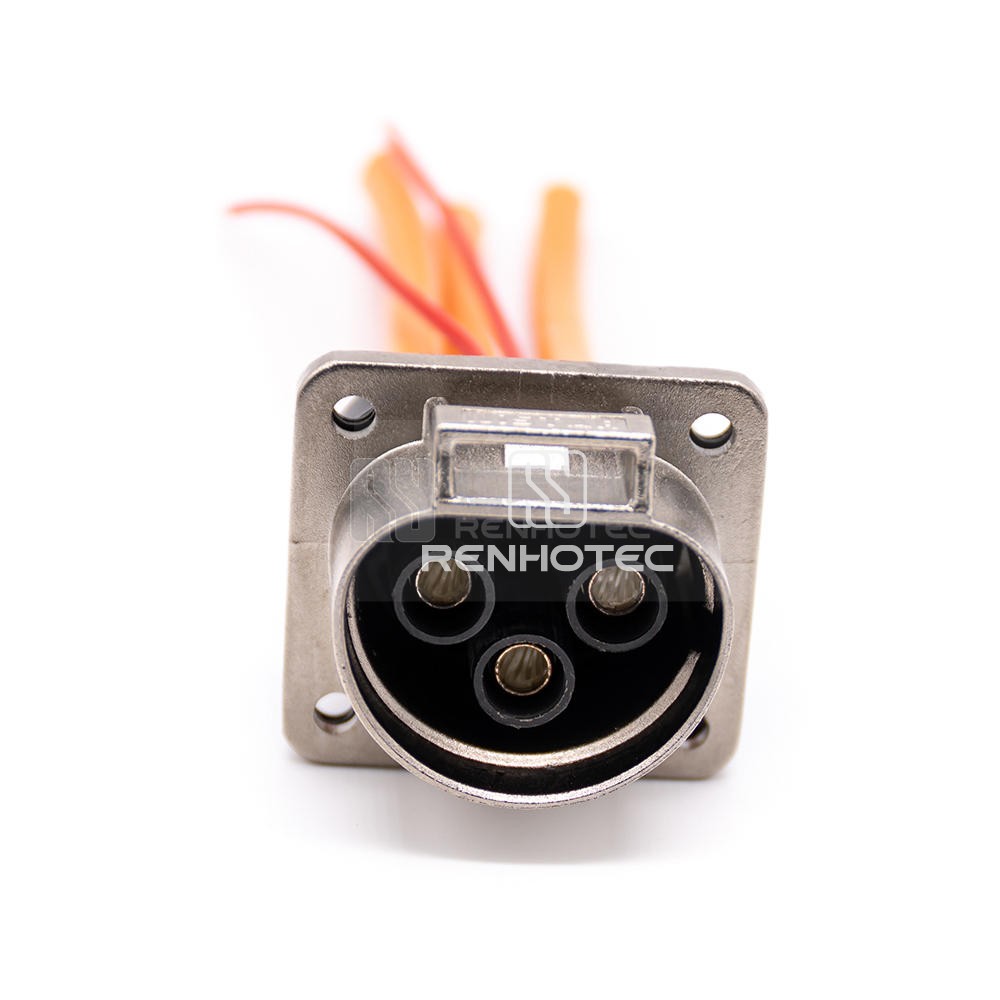

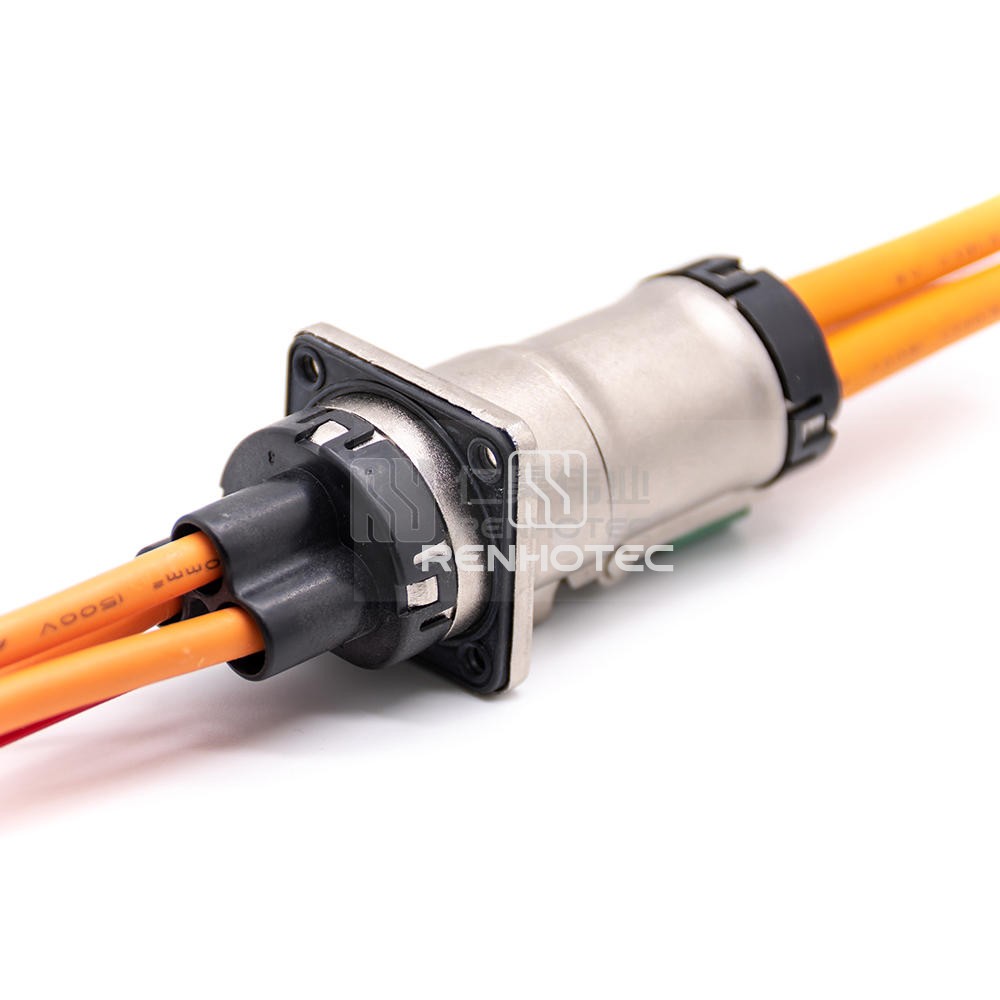

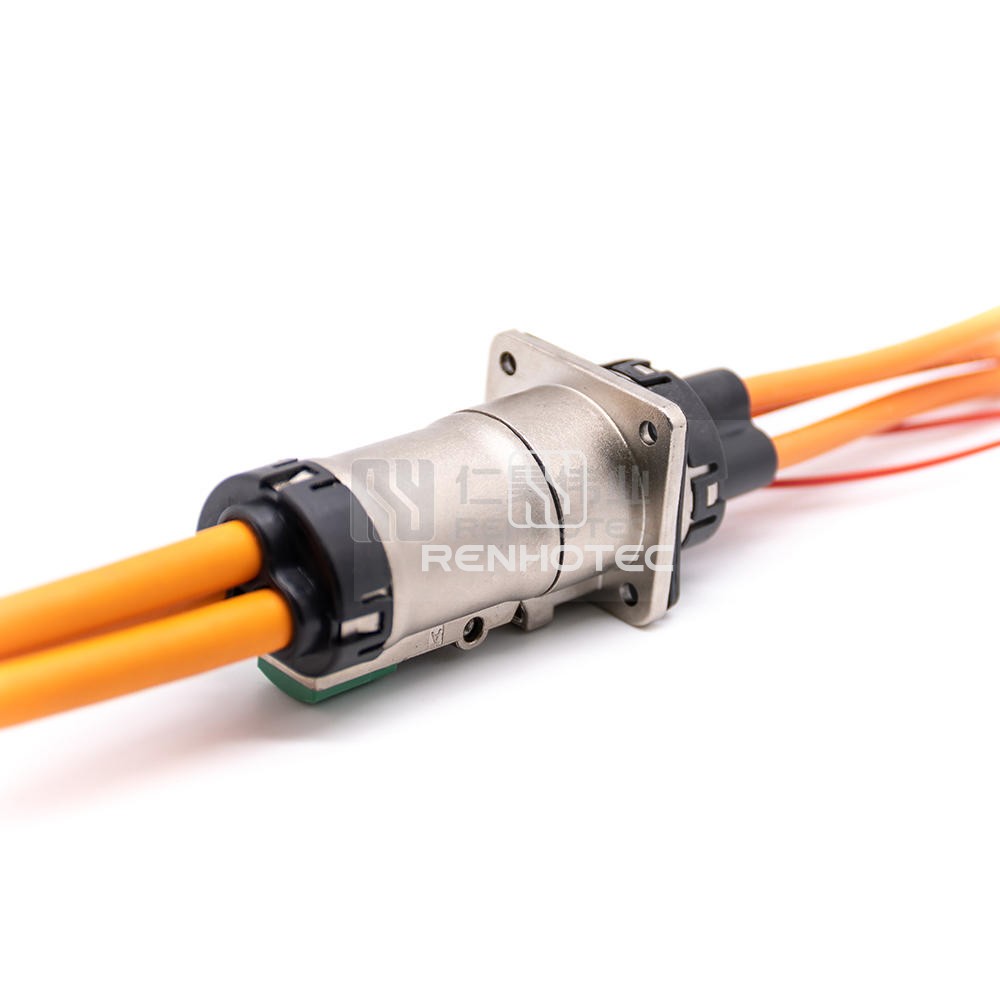

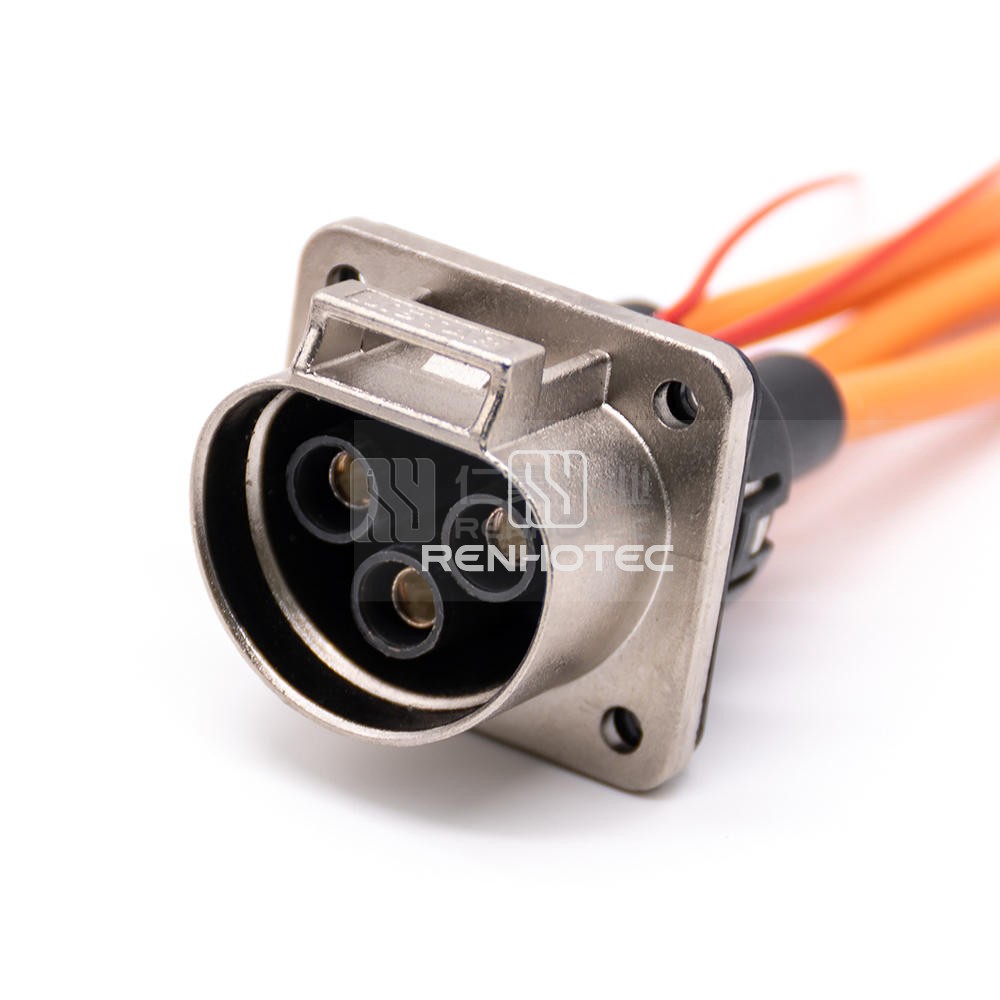

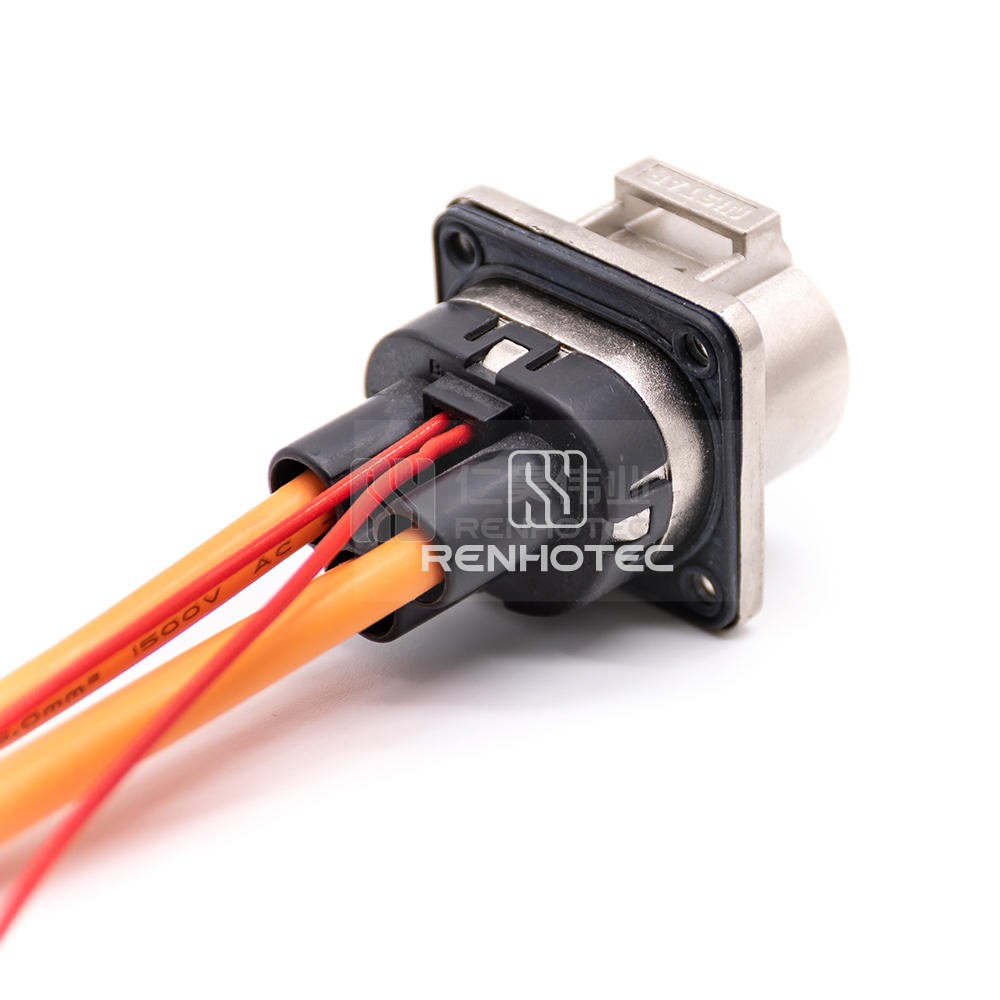

3 POS High Power Electric vehicle connector Socket 23A 4mm2 Unsheilded Cable A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 3 POS High Power Electric vehicle connector Socket is designed with a 23A capacity and 4mm² cable for efficient power transmission. The A Key Box Mount provides secure mounting options. Ideal for electric vehicle charging applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions3
    Contact Size3.6mm
    Contact TerminationCrimp
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current23A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Range4mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
