Products > HVIL Series Connector > 3 POS High Power Electric vehicle connector Socket 23A 4mm2 Unsheilded Cable Y Key Box Mount

NI1-1-H036-3YYN-C04

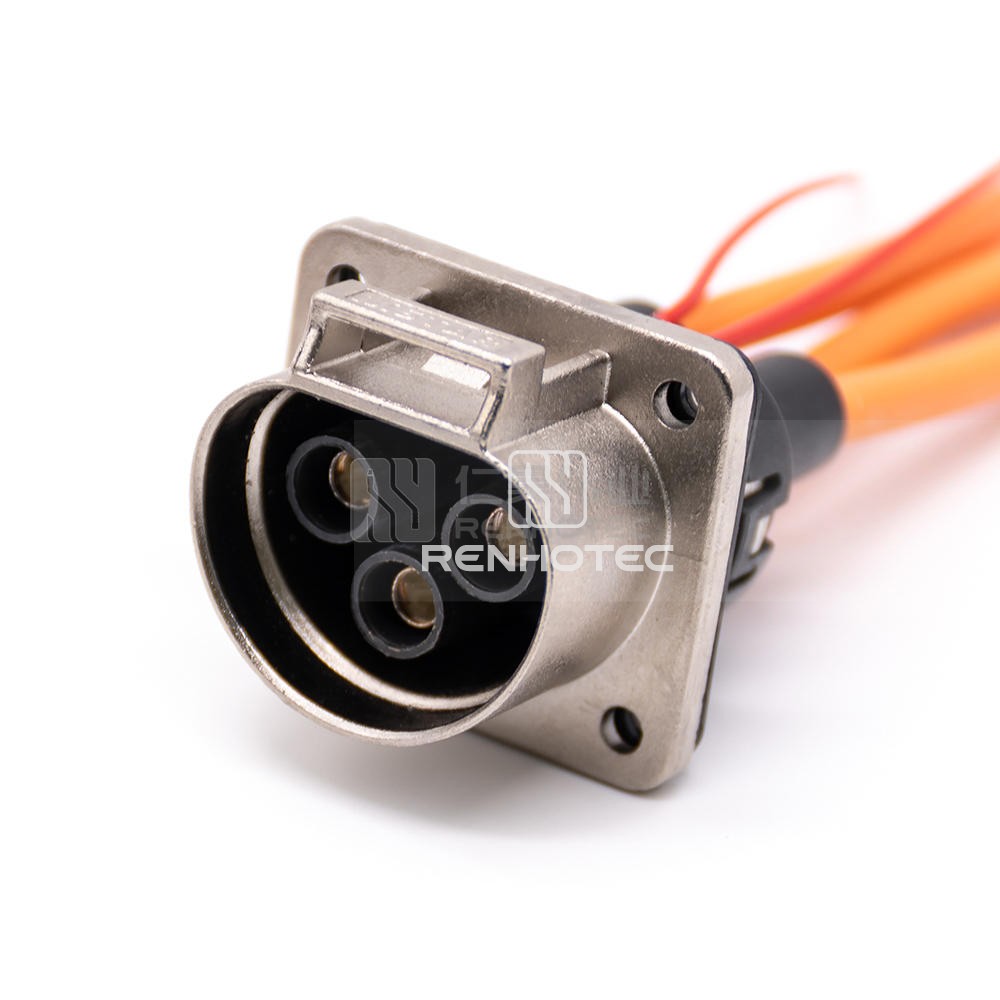

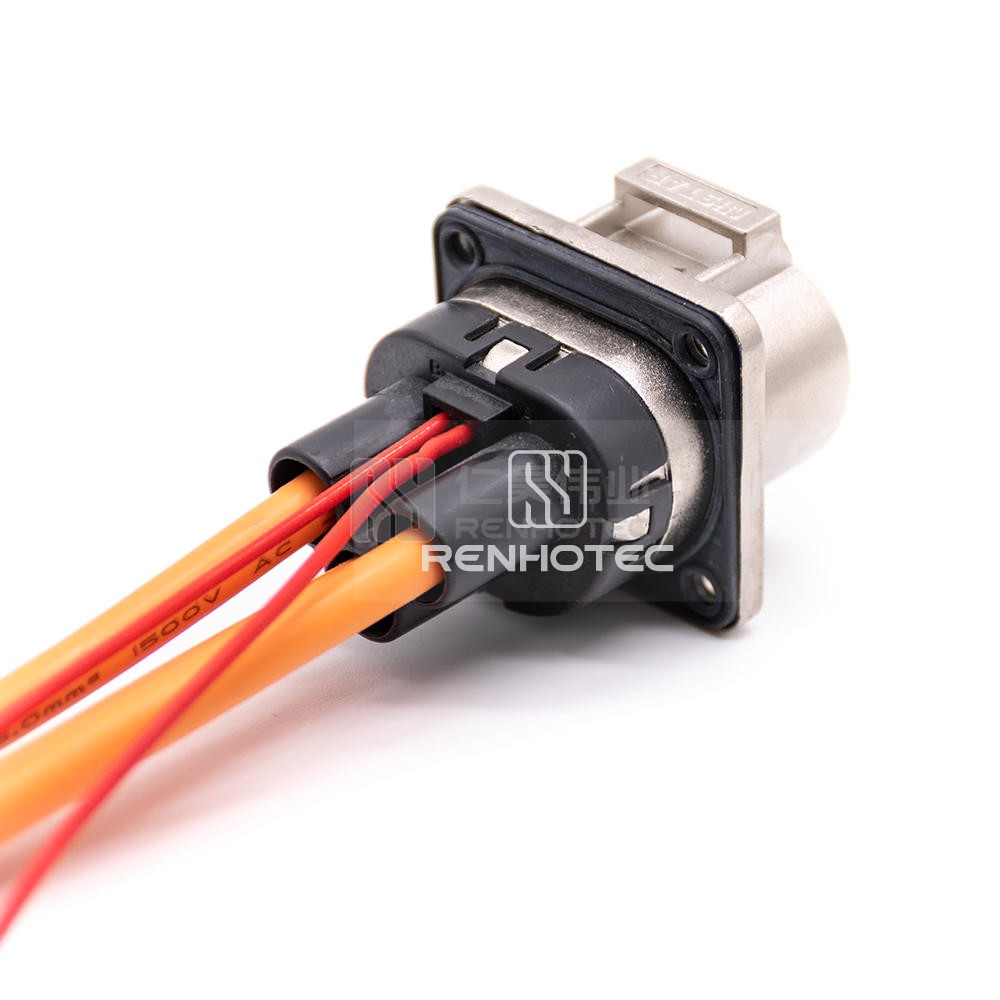

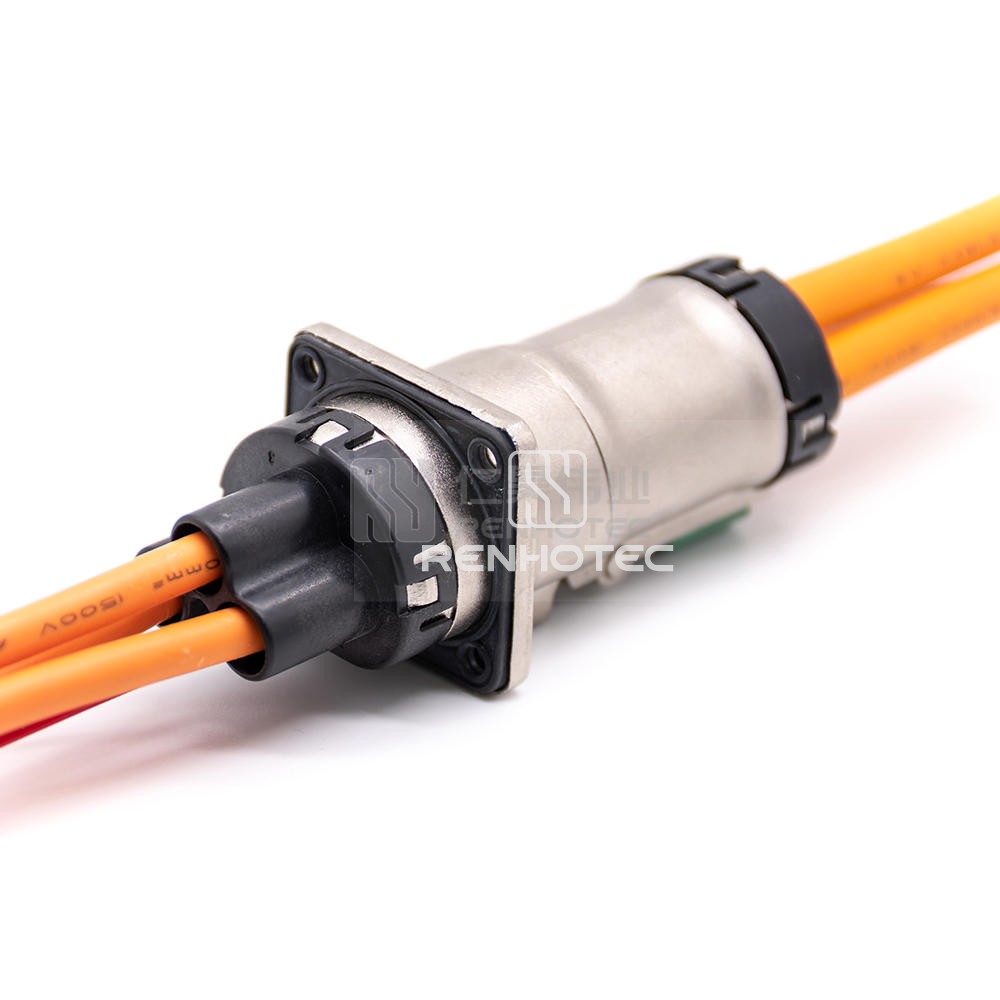

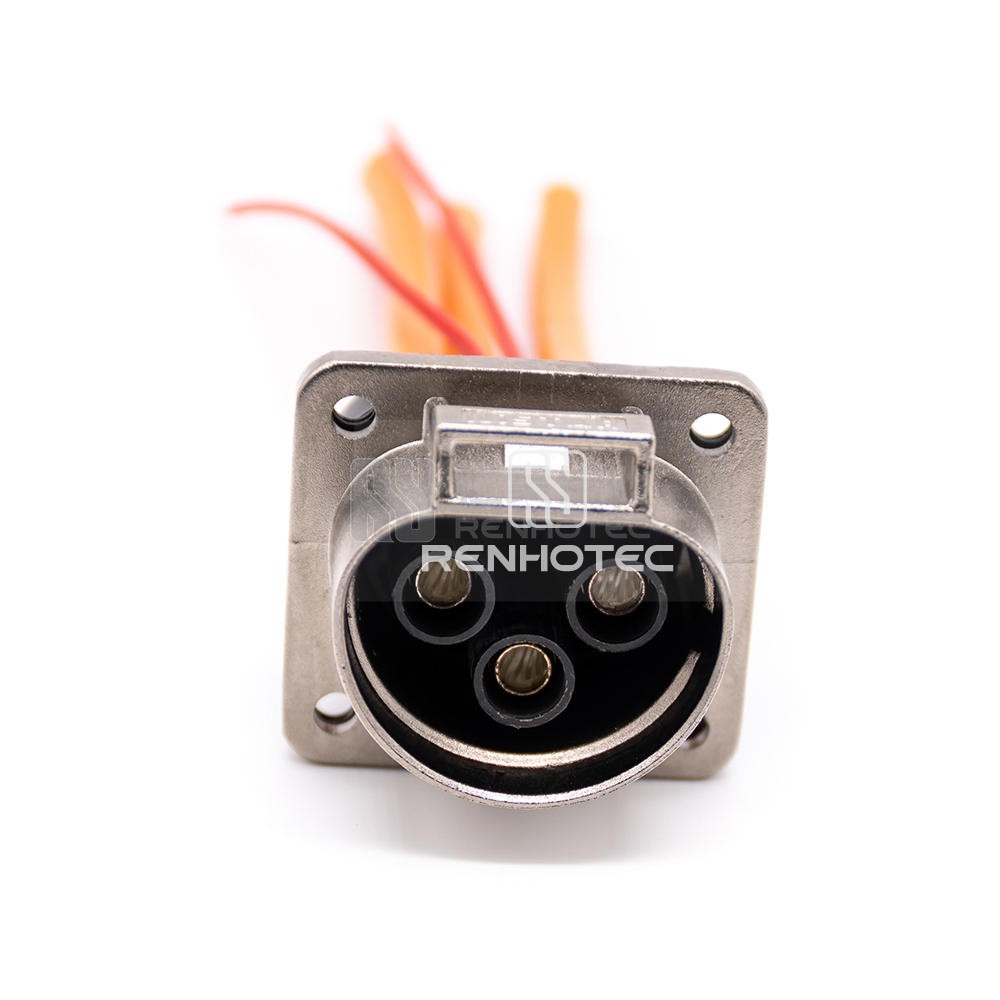

3 POS High Power Electric vehicle connector Socket 23A 4mm2 Unsheilded Cable Y Key Box Mount

This electric vehicle connector socket is designed for high power applications, with a 23A rating and 4mm² unsheilded cable. Featuring a Y key box mount design, it offers secure and reliable connection for electric vehicles. Ideal for charging stations and EV infrastructure.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions3
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    KeyY
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current23A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range4mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
