Products > HVIL Series Connector > 3 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

ST520000-A

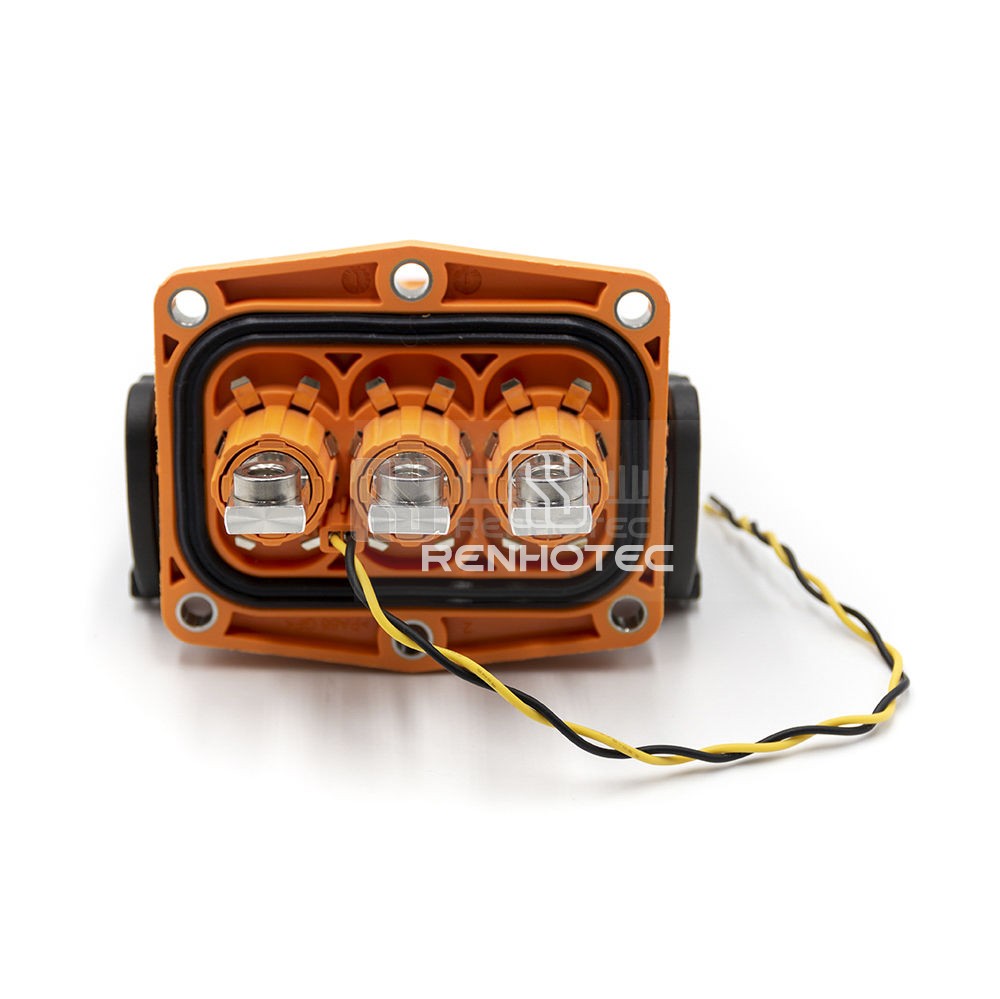

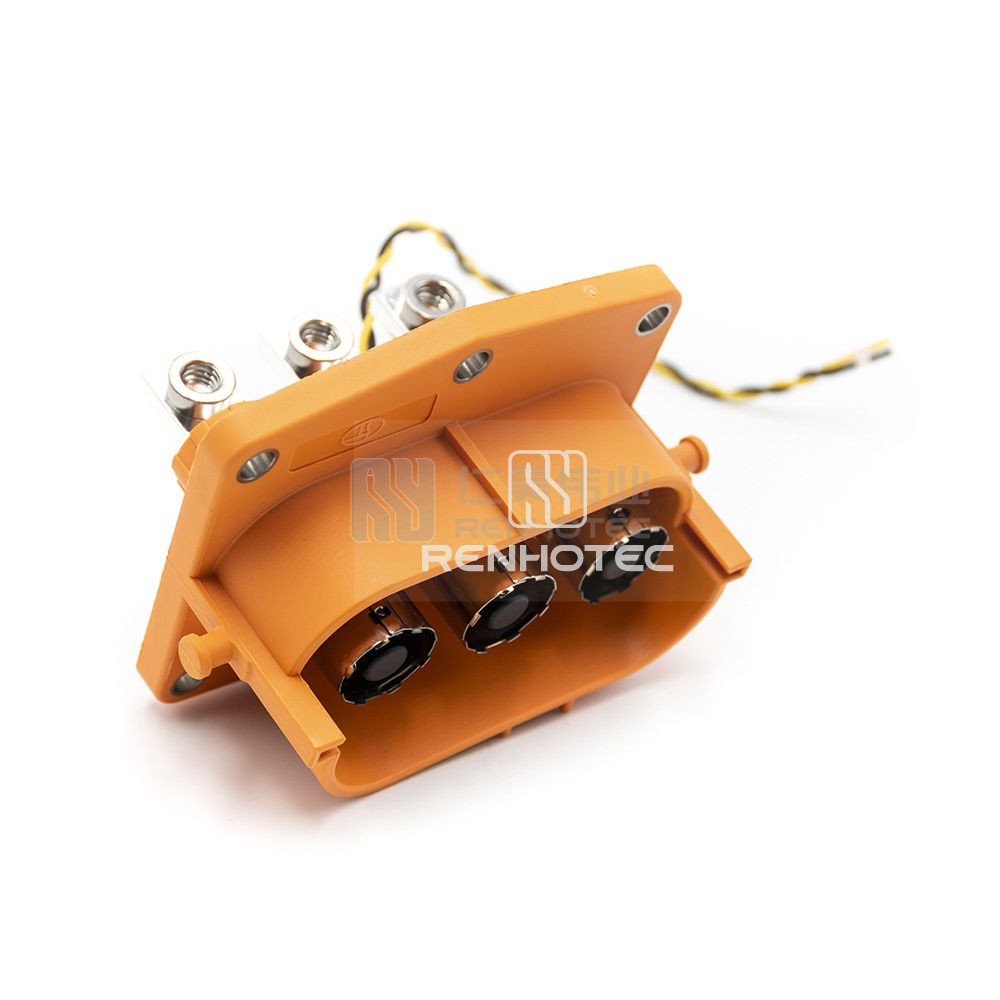

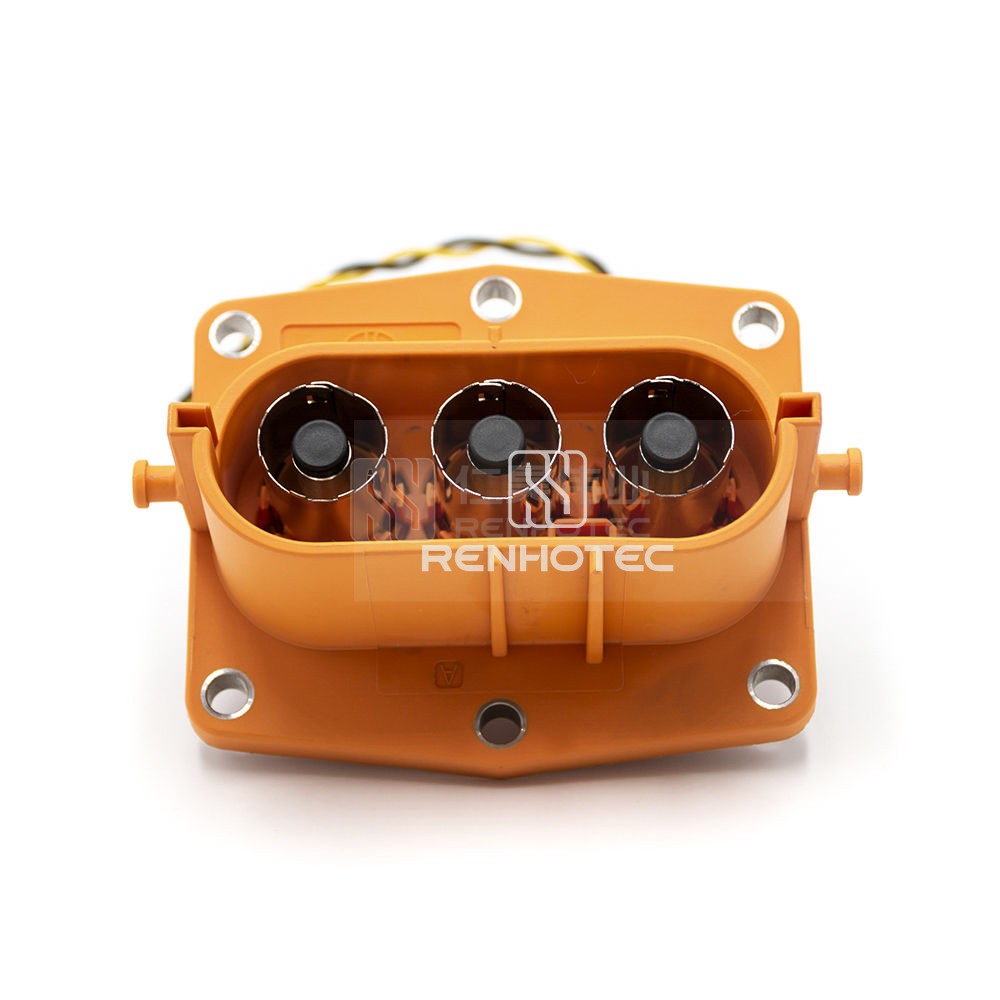

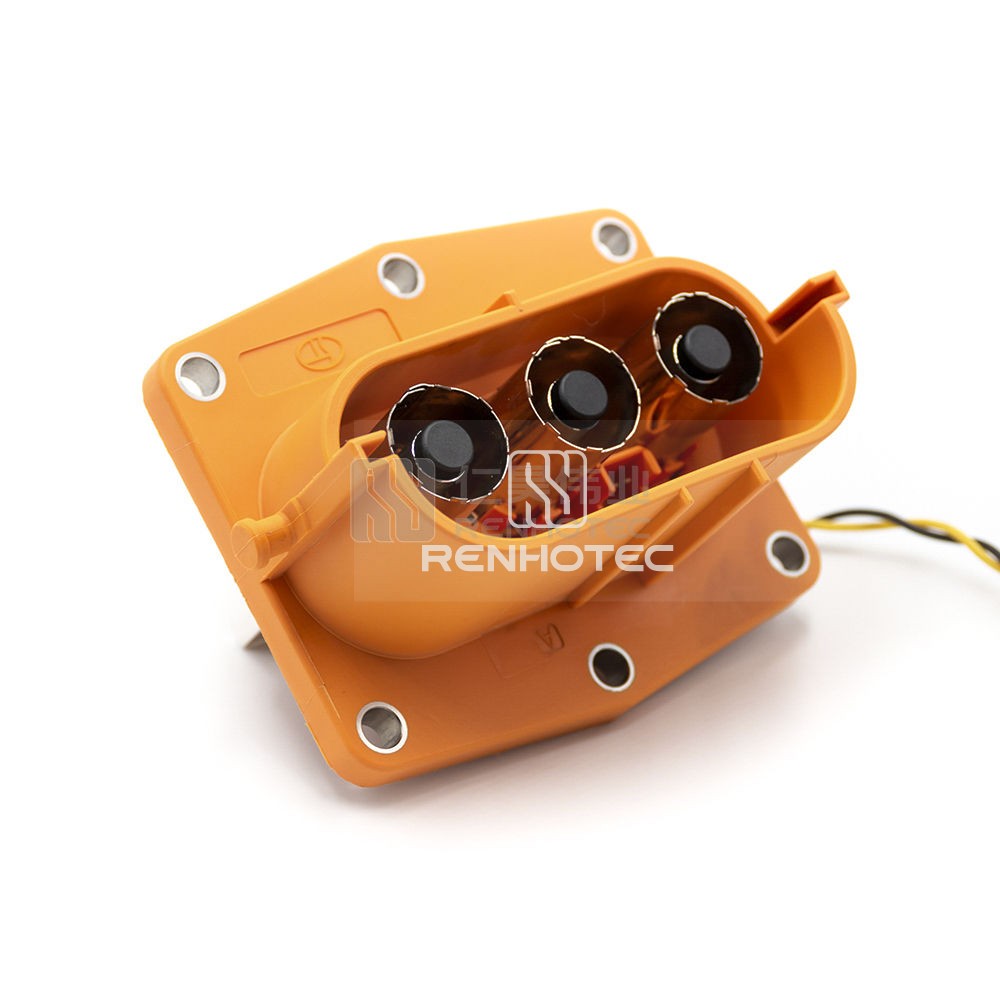

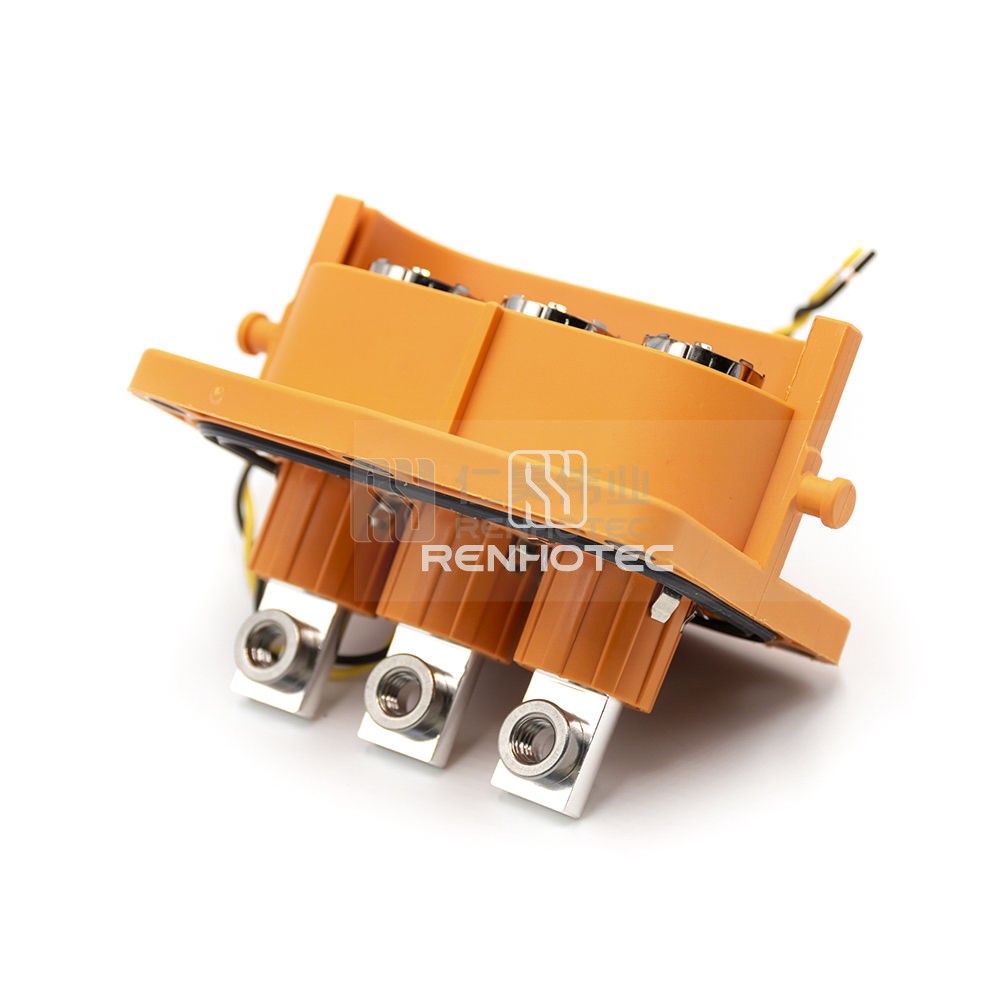

3 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Efficiently connect electric vehicles with this high-power 3 POS connector socket capable of 250A. The busbar lug and key box mount ensure secure and convenient usage. Ideal for electric vehicle charging stations and industrial applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions3
    Contact Size8mm
    Contact TerminationBusbar
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current250A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
