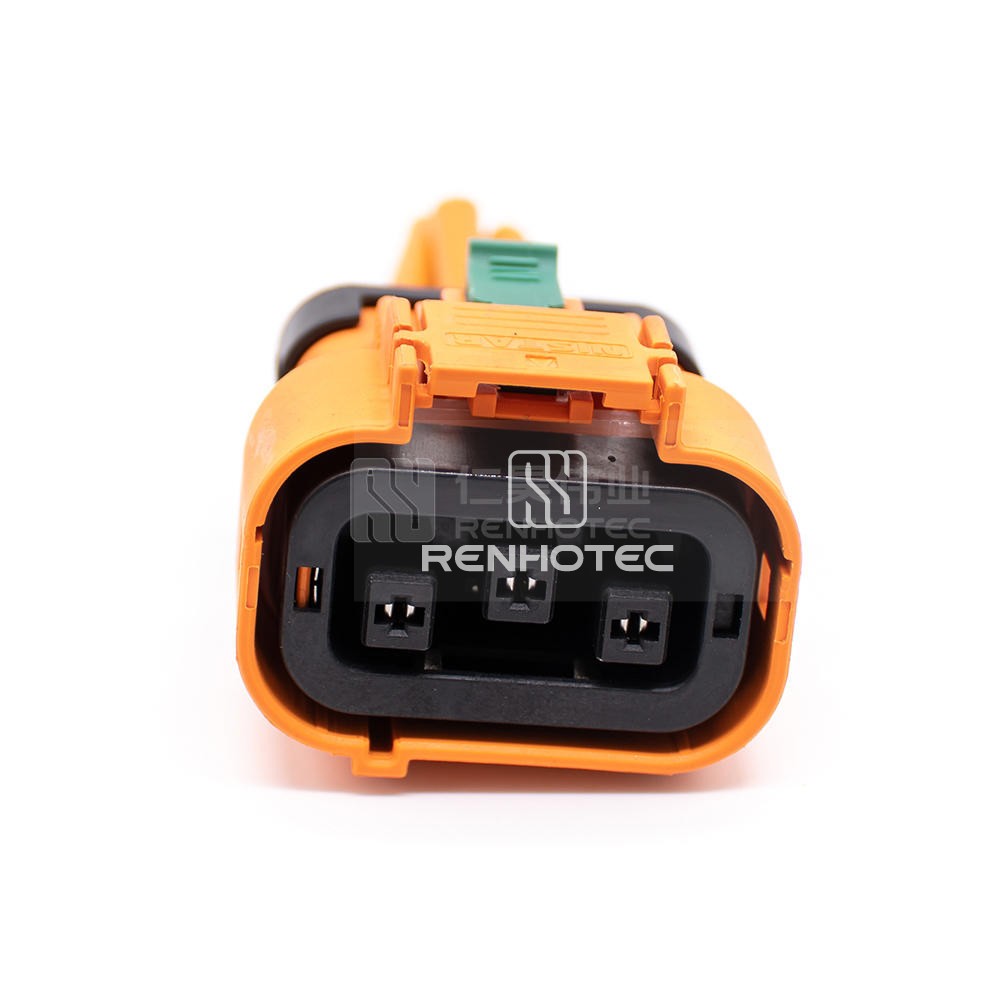

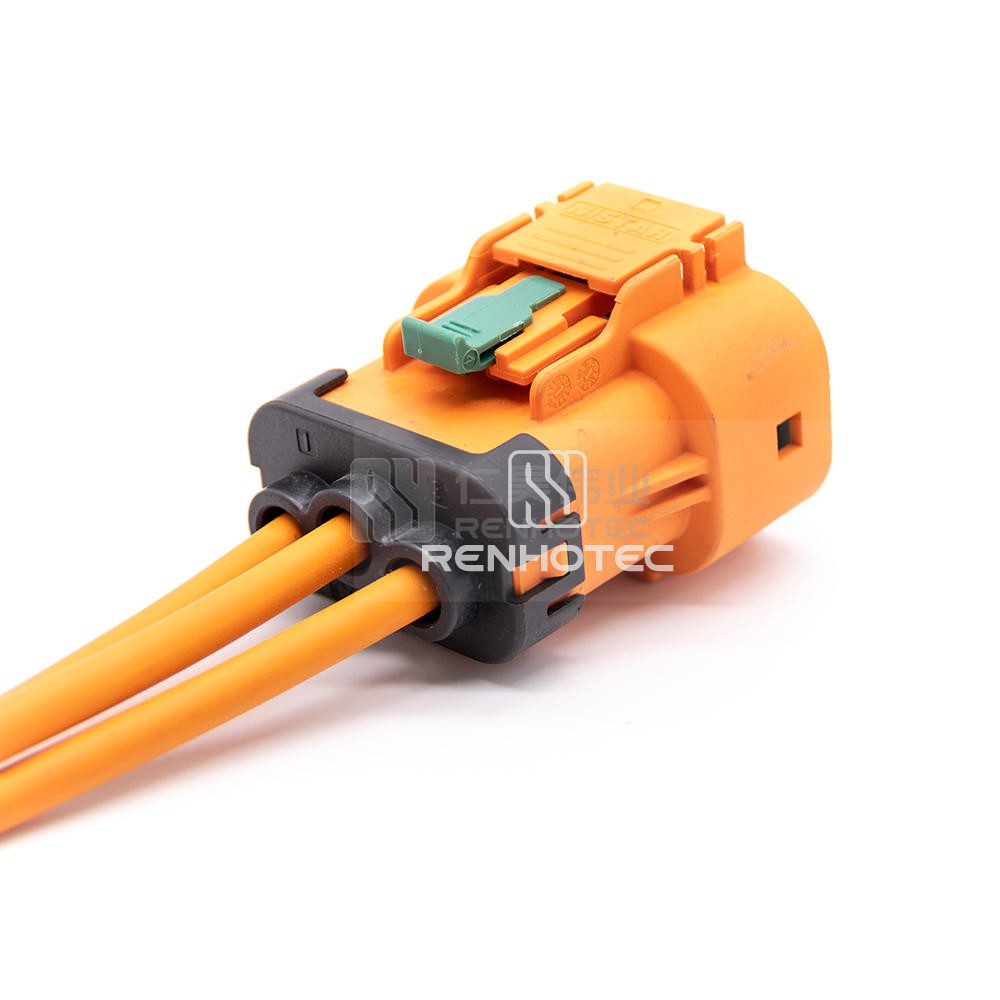

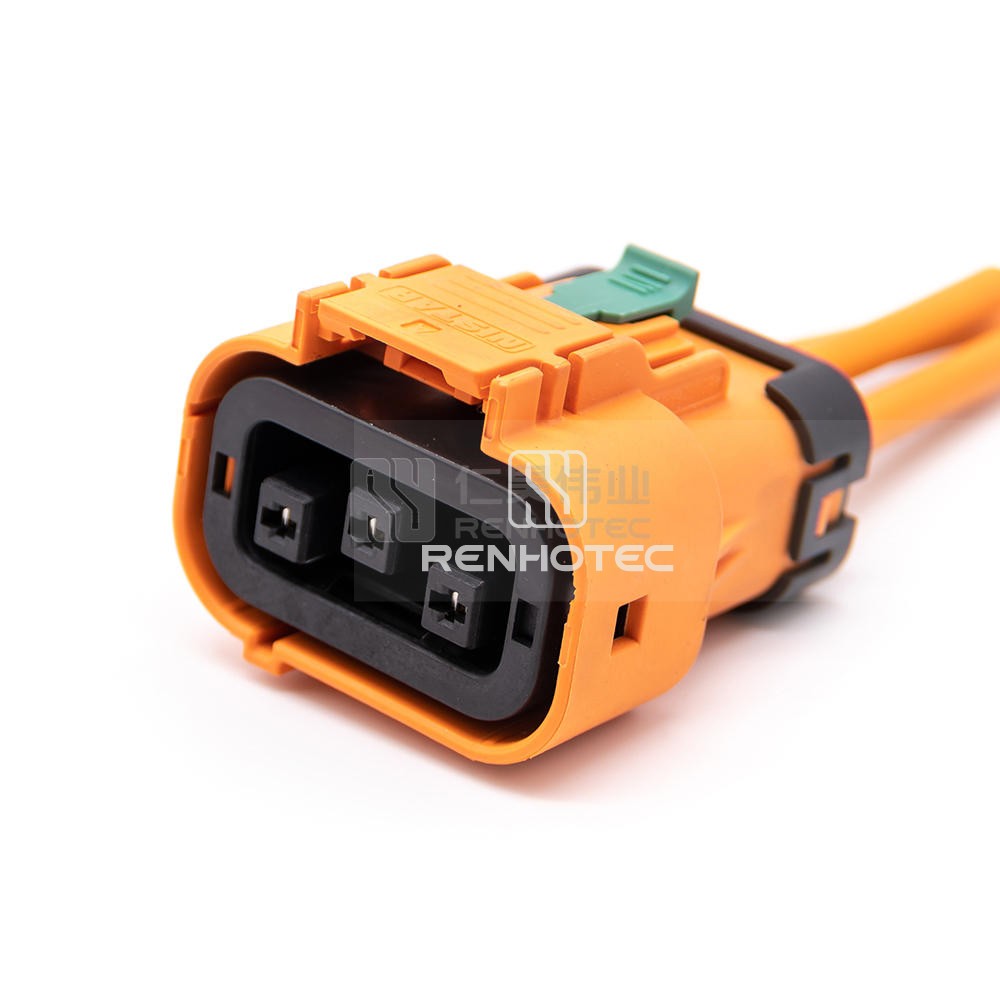

This high-quality 3 POS high voltage interlock connector features a plastic plug with a 23A capacity, compatible with 4mm² shielded cables. The A Key straight design ensures a secure connection for various applications, making it a reliable choice for industrial use.
General
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 3 |
Contact Size | 2.8mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical
Rated Voltage | 800V |
Rated Current | 23A |
Shielding | Shielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 4mm² |
Material
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
