NI2-1-H280-3AYA-C03

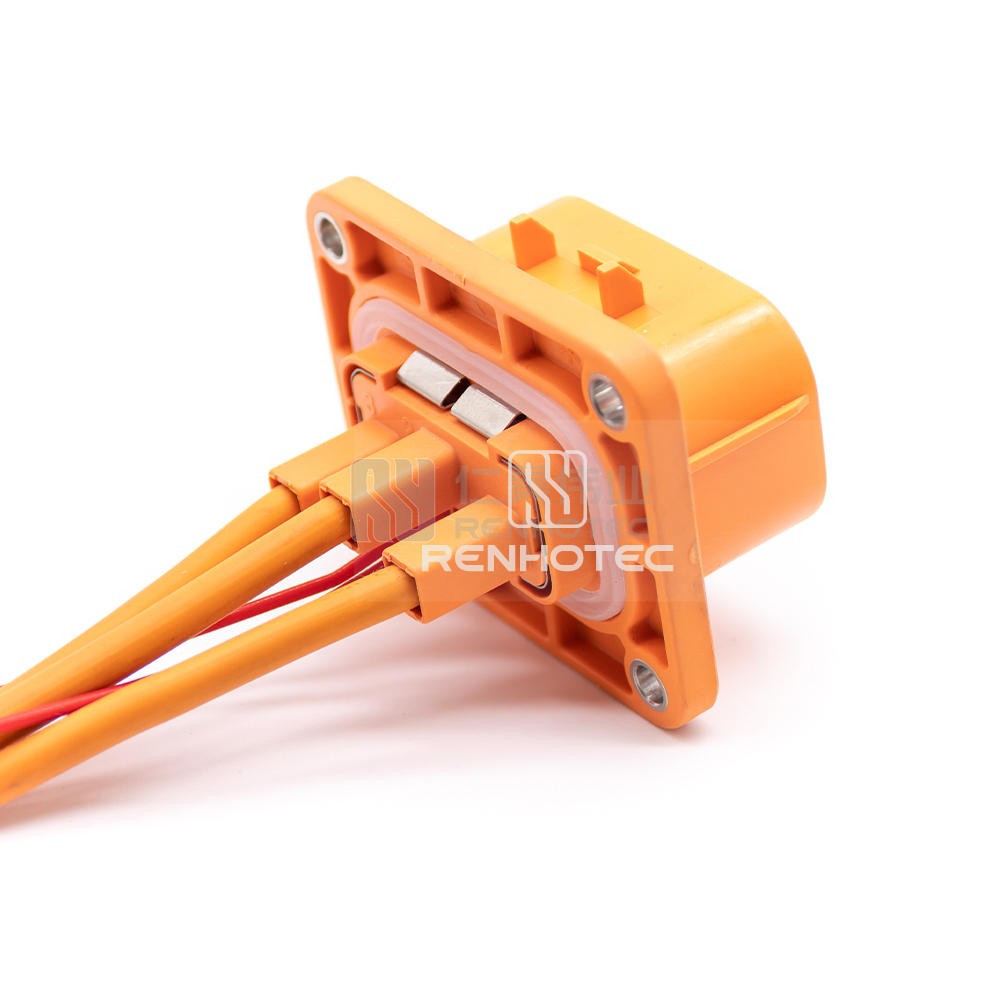

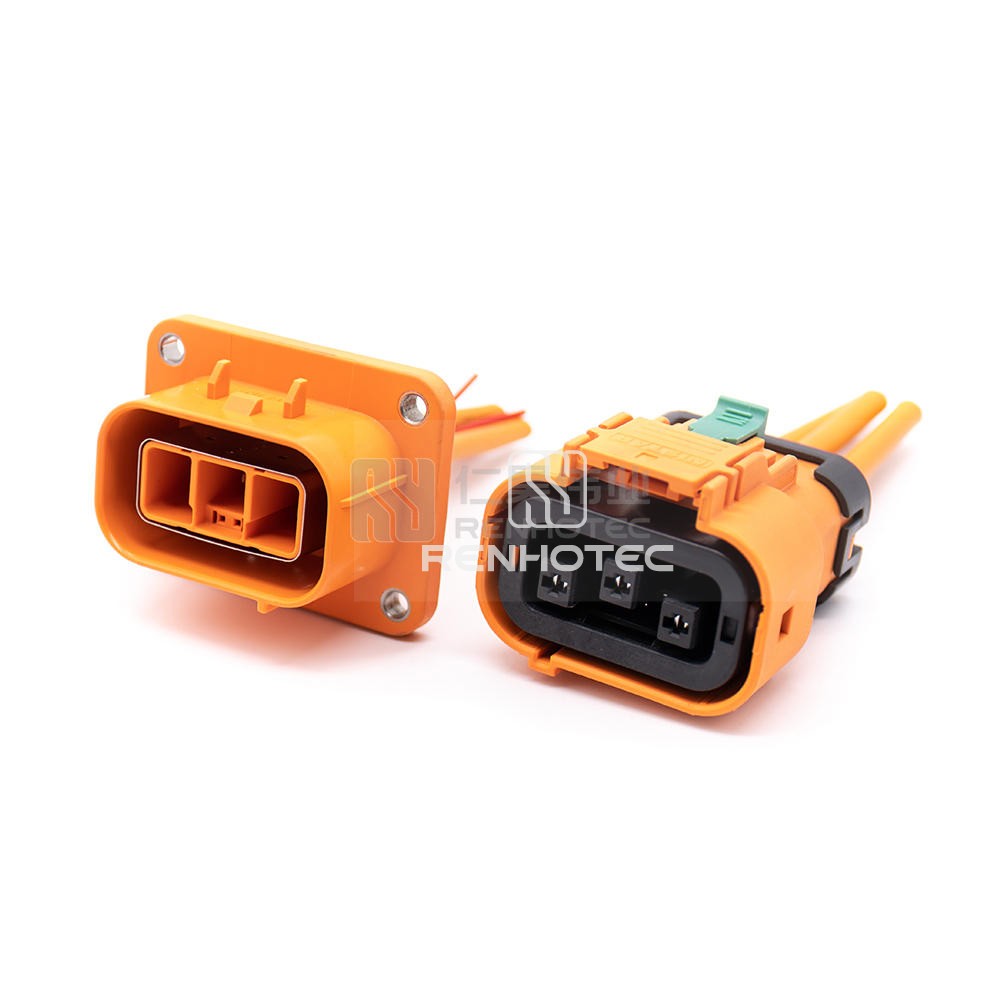

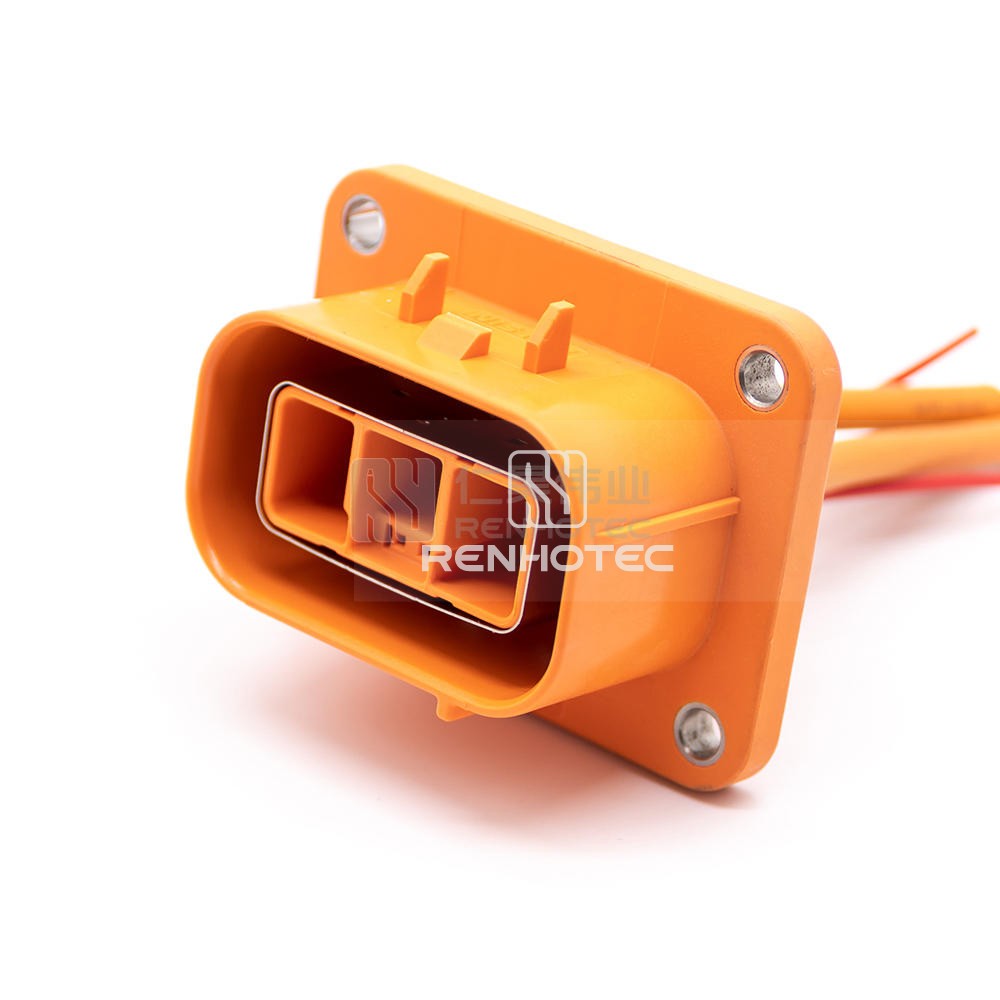

3 POS High Voltage Interlock Connector Plastic Receptacle 16A 2.5mm2 Shielded Cable A Key

This 3 POS High Voltage Interlock Connector Plastic Receptacle is designed for 16A 2.5mm² Shielded Cable applications. Securely connect your high voltage equipment with ease using the convenient A Key feature.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions3
    Contact Size2.8mm
    Contact TerminationCrimp
    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    KeyA
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
