Products > HVIL Series Connector > 4 POS High Power Electric Vehicle Cable Plug 30A 4mm² Shielded Cable A Key Straight

ST531000-A-4

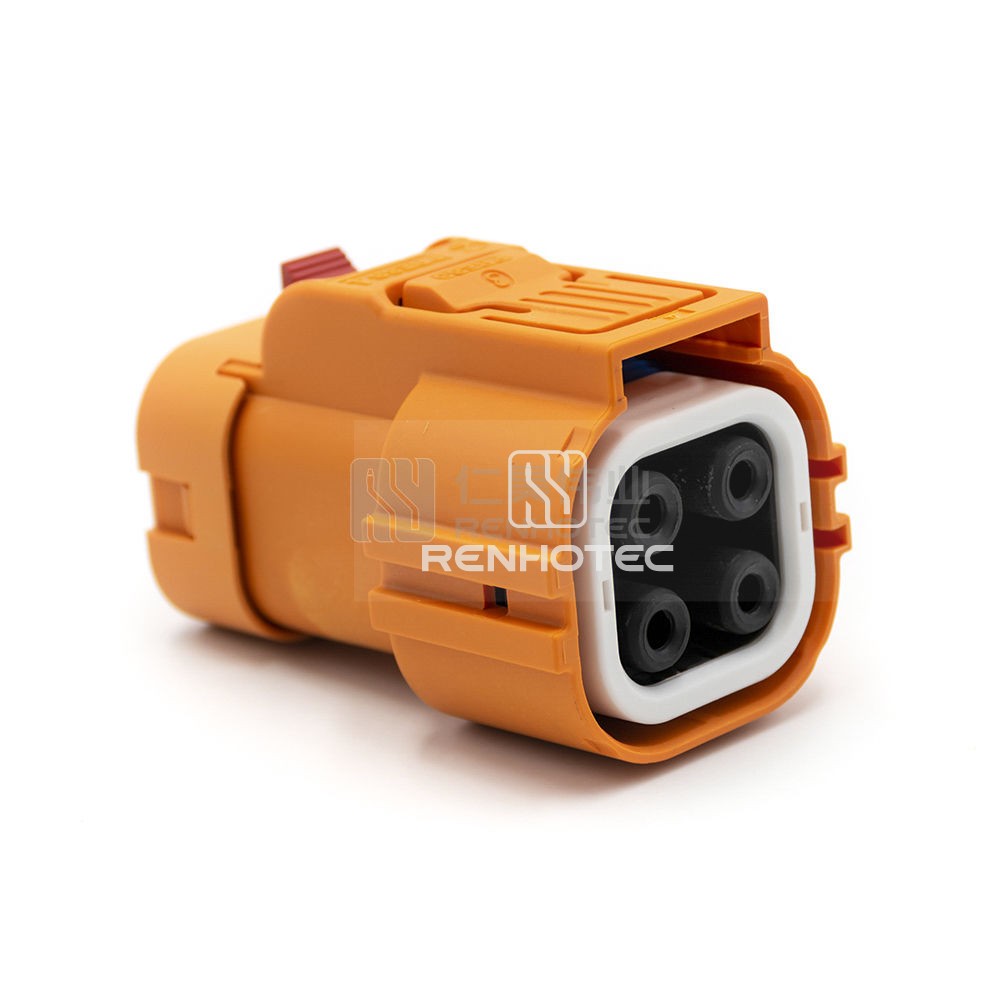

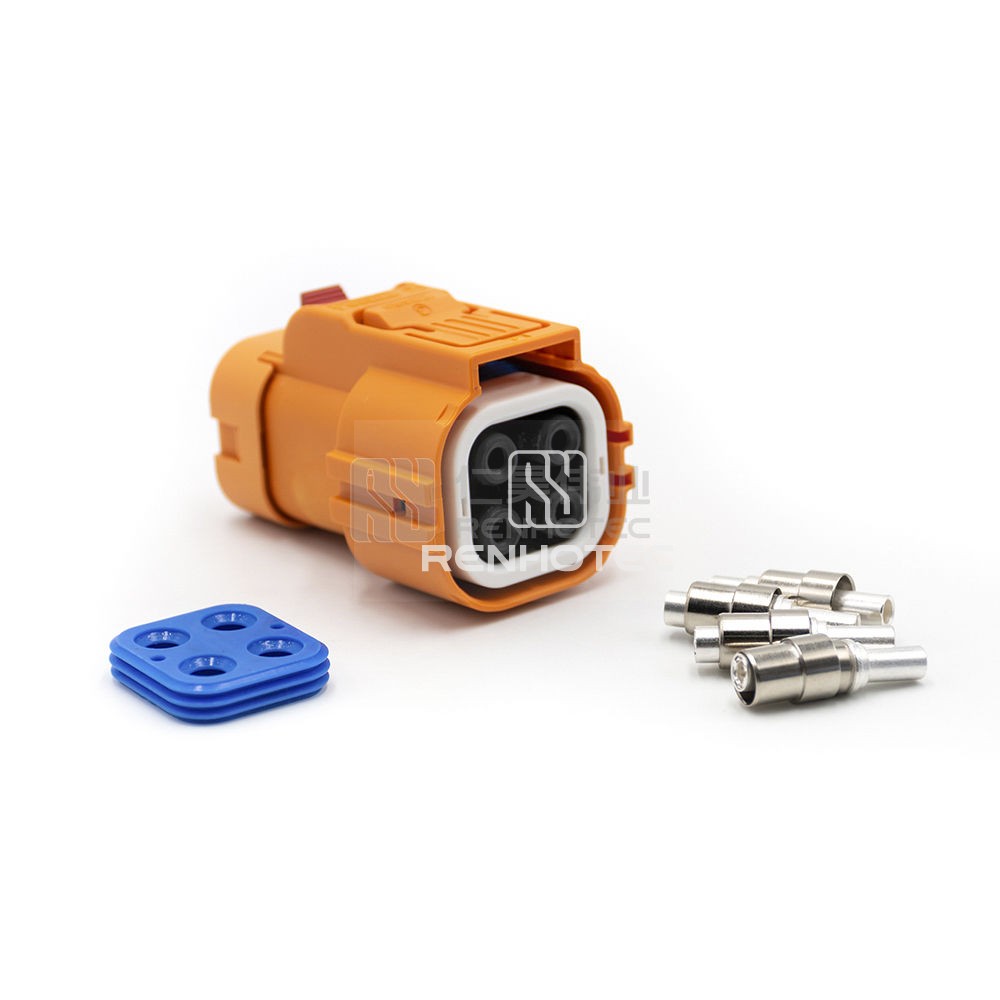

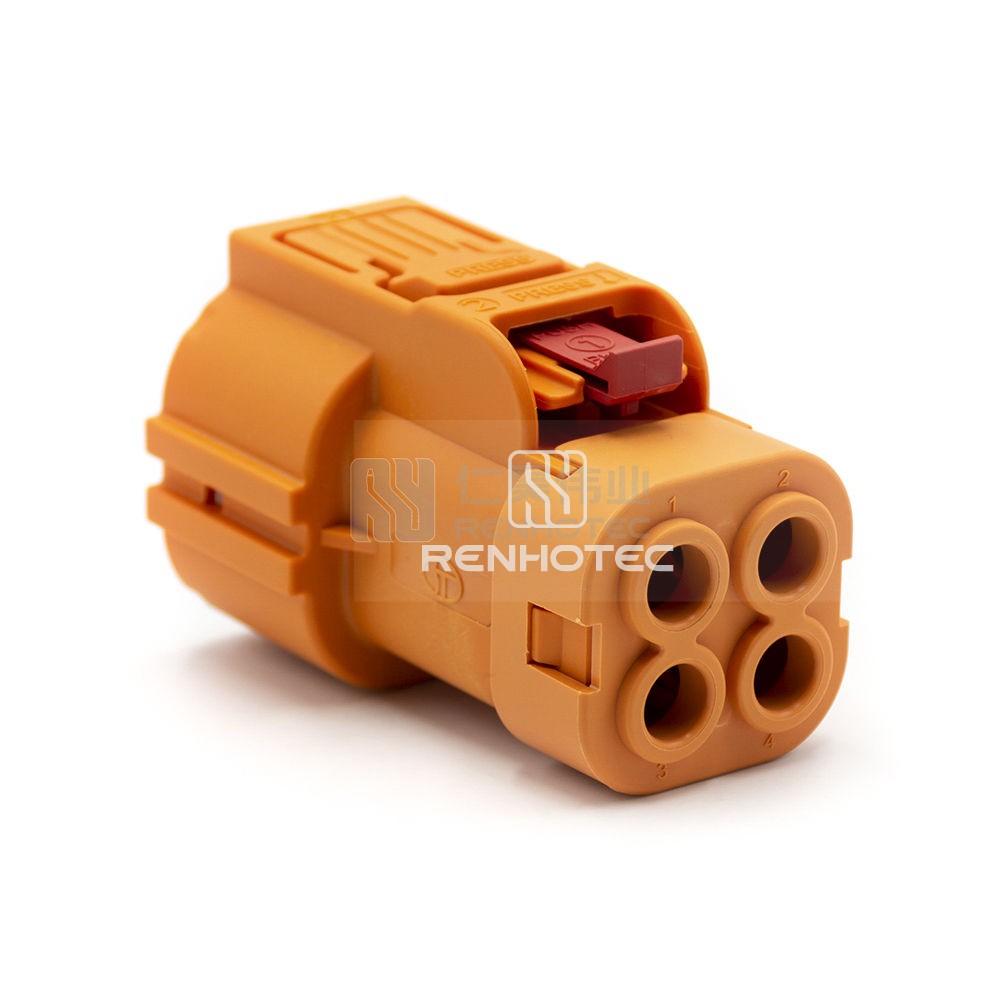

4 POS High Power Electric Vehicle Cable Plug 30A 4mm² Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 4 POS cable plug is designed for electric vehicles, featuring high power capacity of 30A, 4mm² shielded cable, and a key straight design. Ideal for efficient and secure charging of electric vehicles.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions4
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current30A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range4mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
