Products > HVIL Series Connector > 4 POS High Power Electric vehicle Cable Plug 46A 6mm2 Shielded Cable A Key Straight

ST531000-A-6

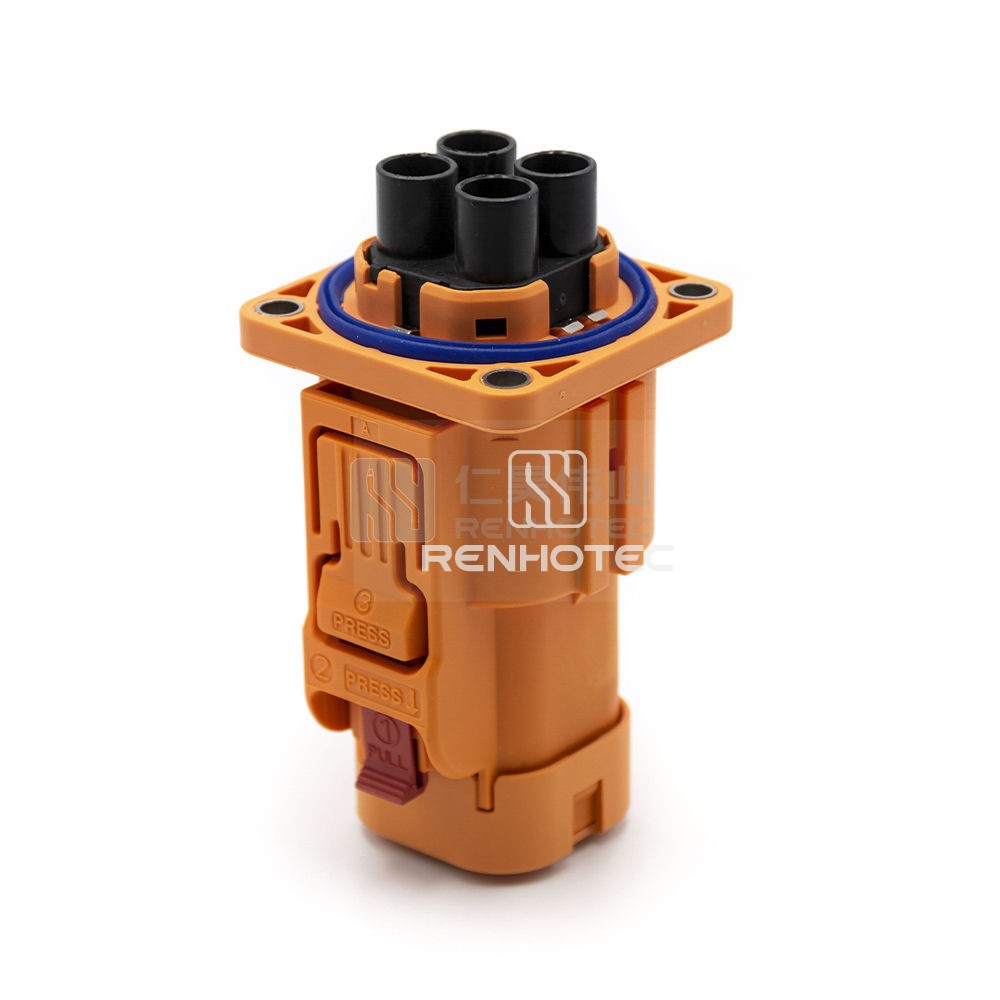

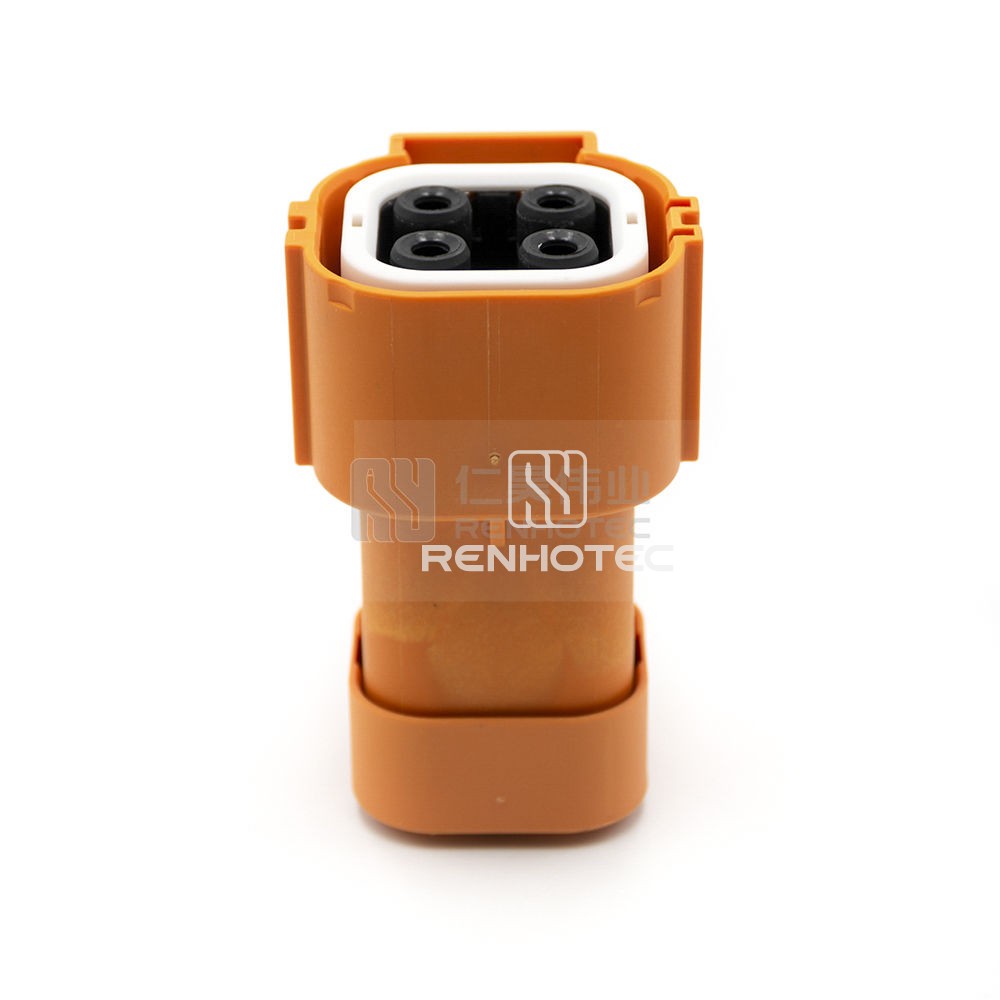

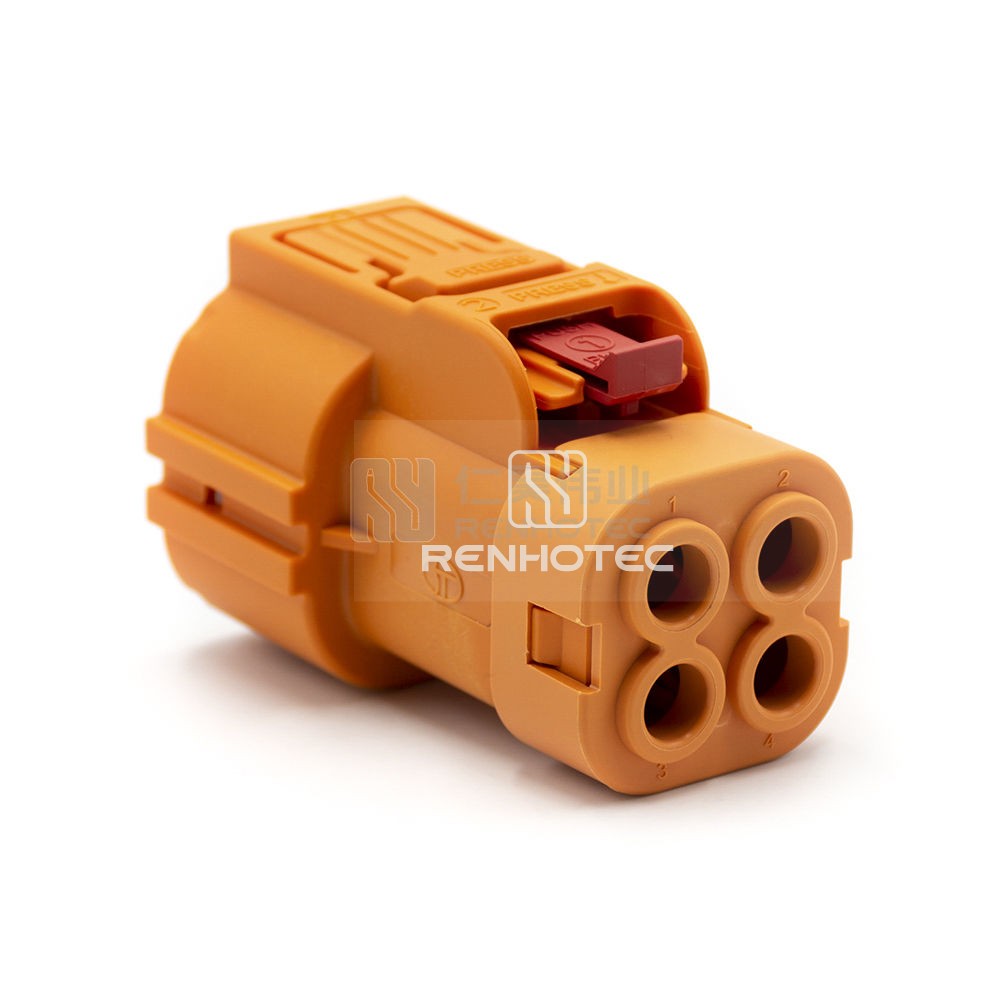

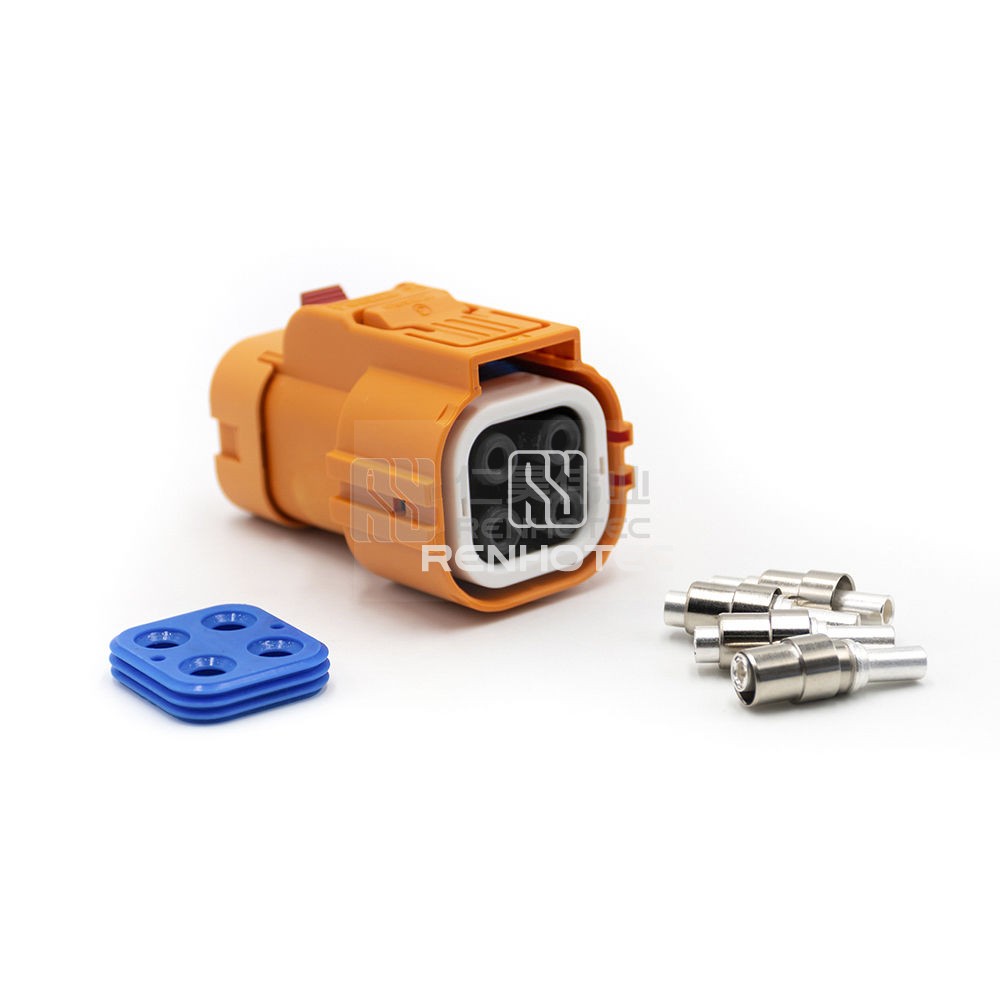

4 POS High Power Electric vehicle Cable Plug 46A 6mm2 Shielded Cable A Key Straight

This waterproof Touch Proof cable plug is designed for high power electric vehicles, featuring 4 POS configuration, 46A capacity, and shielded 6mm² cable for efficient and secure charging.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions4
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current46A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range6mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
