Products > HVIL Series Connector > 4 POS High Power Electric vehicle connector Socket 40A 6mm2 Shielded Cable A Key

ST530000-A

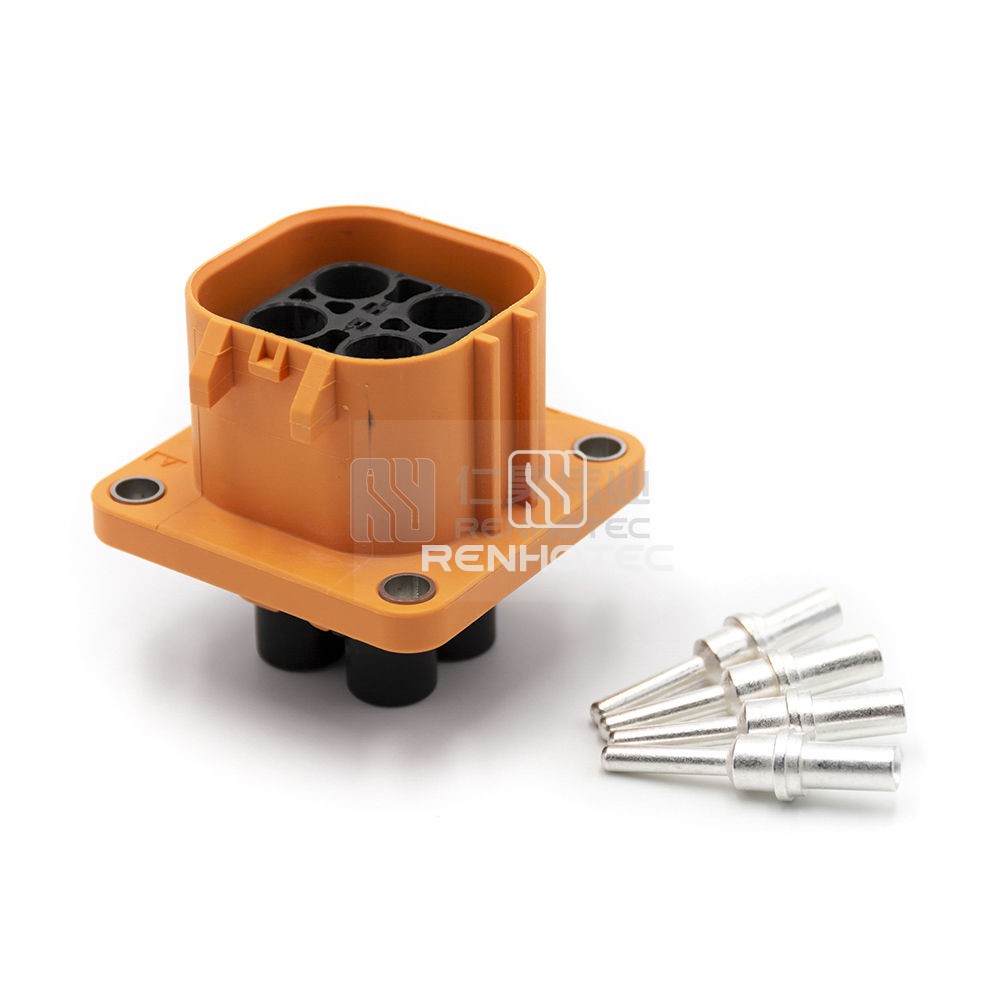

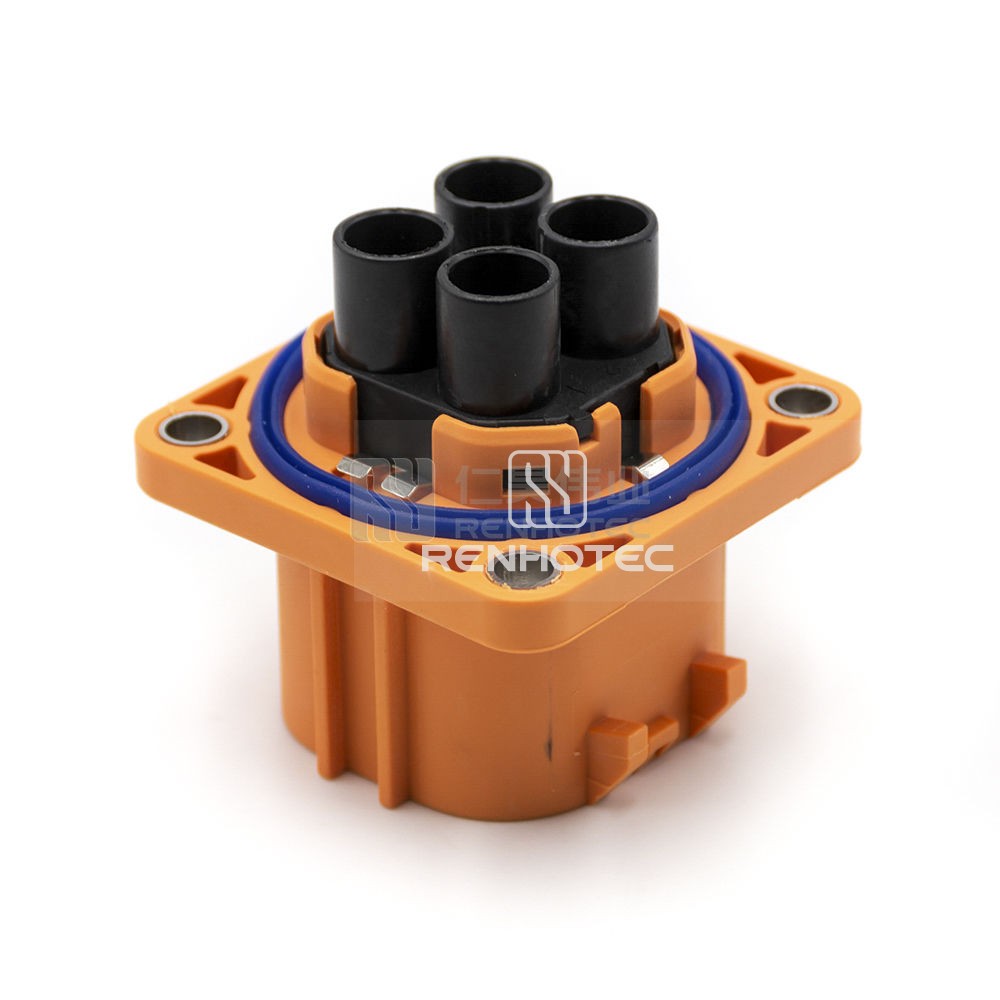

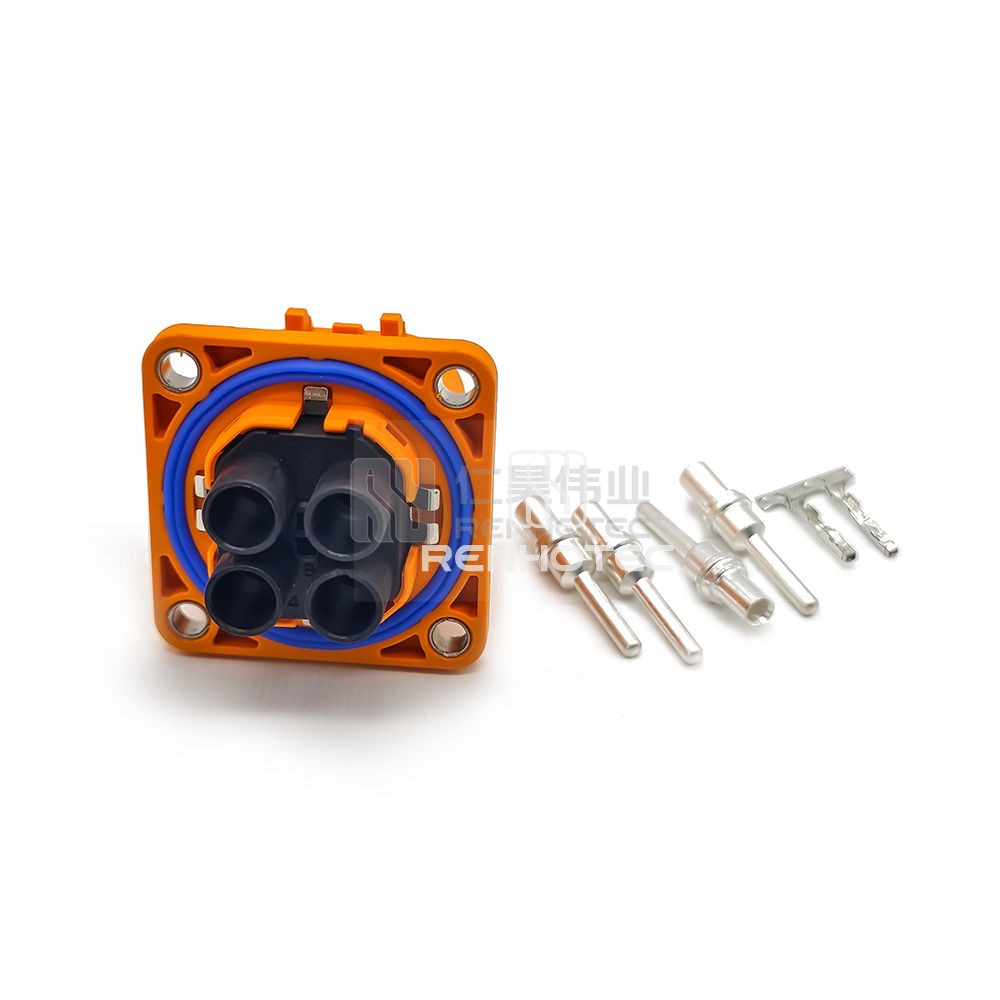

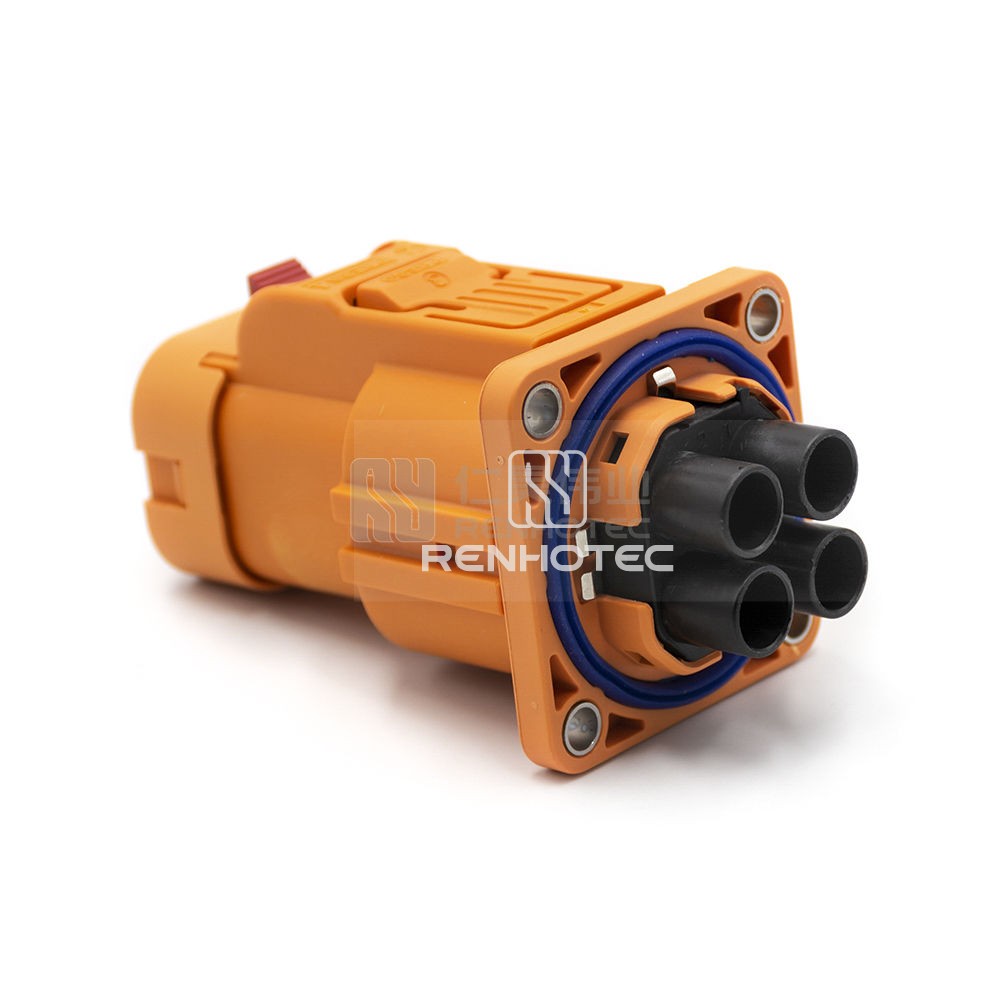

4 POS High Power Electric vehicle connector Socket 40A 6mm2 Shielded Cable A Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This electric vehicle cable plug features 4 POS, high power capacity of 40A and 6mm² shielded cable. Designed with a waterproof Touch Proof feature, this cable plug provides reliable and secure connections for your electric vehicle needs.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions4
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current40A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Range6mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
