Products > HVIL Series Connector > 4 POS High Power Electric Vehicle connector Socket 70A 10mm² Shielded Cable N Key

FHV201436TN-10S01

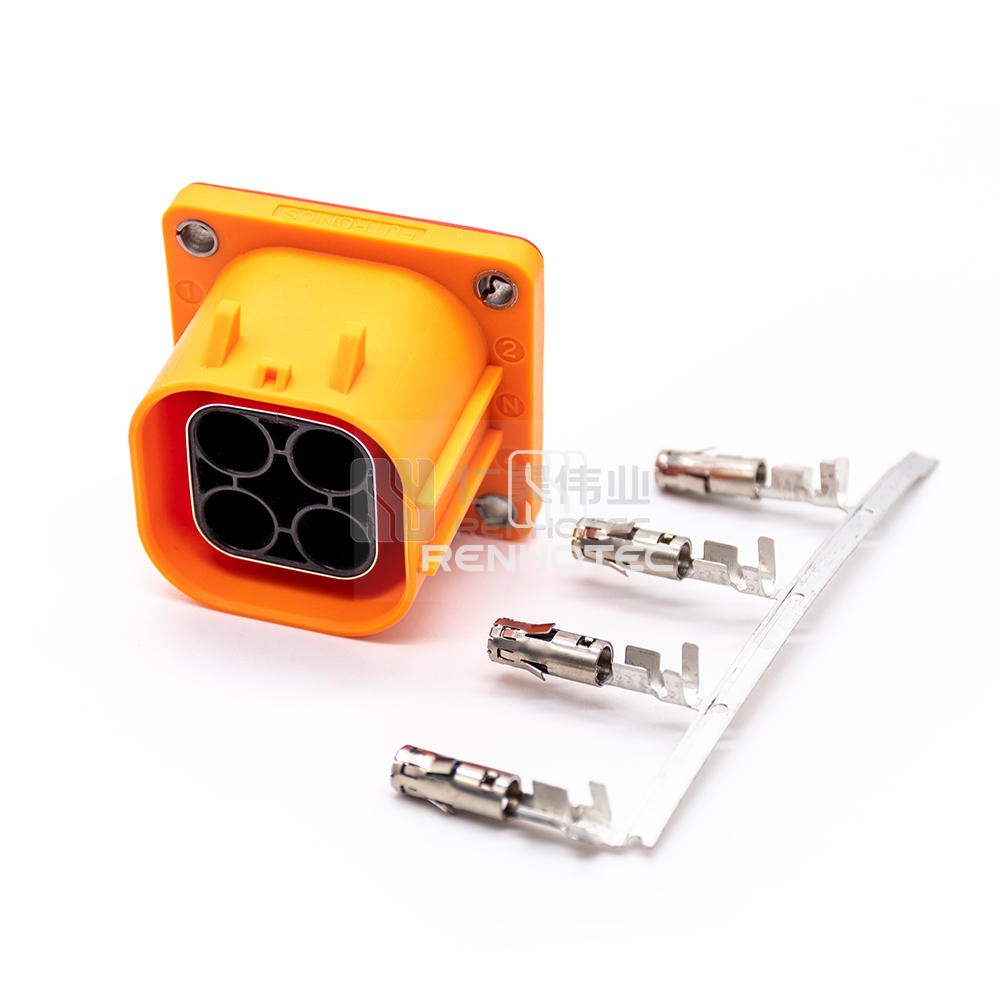

4 POS High Power Electric Vehicle connector Socket 70A 10mm² Shielded Cable N Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 70A electric vehicle connector socket with shielded cable and N key is designed for connecting high power electric vehicles, providing easy and secure charging options for EV owners.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions4
    Contact TerminationCrimp
    KeyN
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current70A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Range10mm²

    Material

    Shell MaterialPA66
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
