Products > HVIL Series Connector > 5 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight

ST533000-A-2.5
5 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

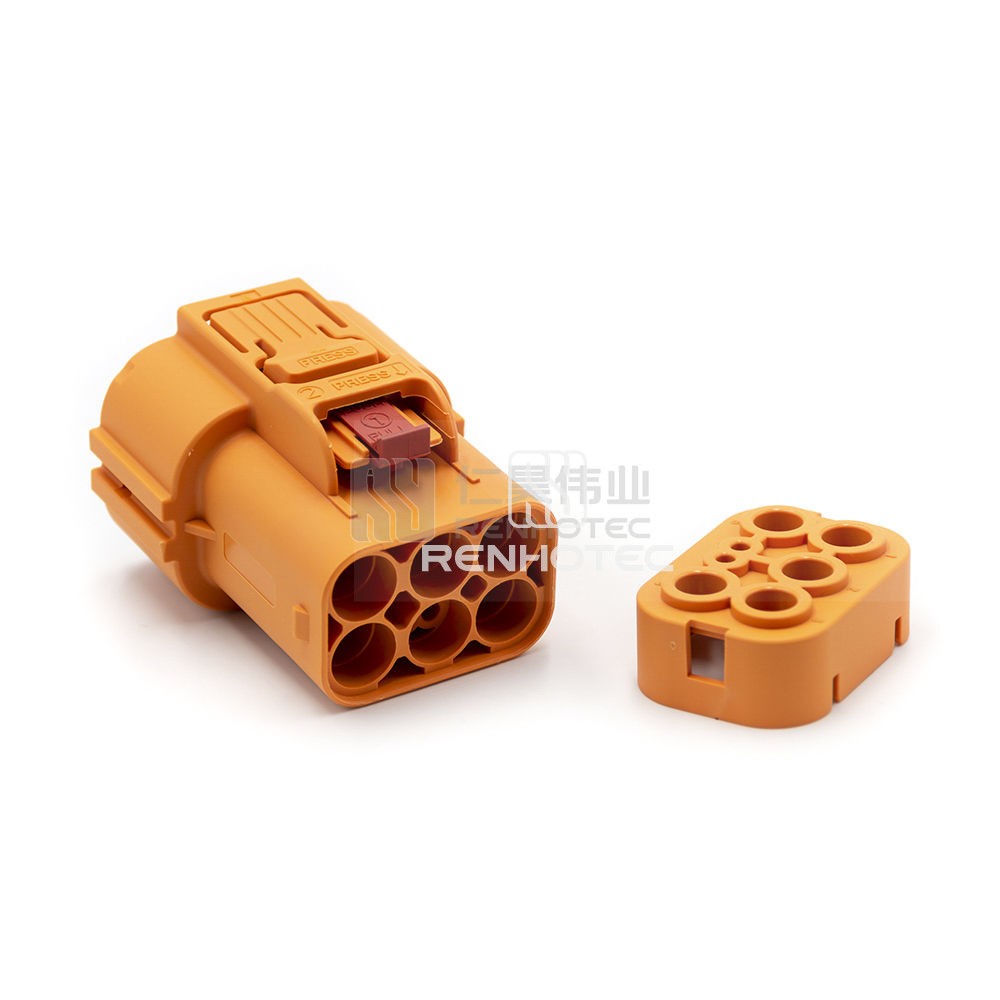

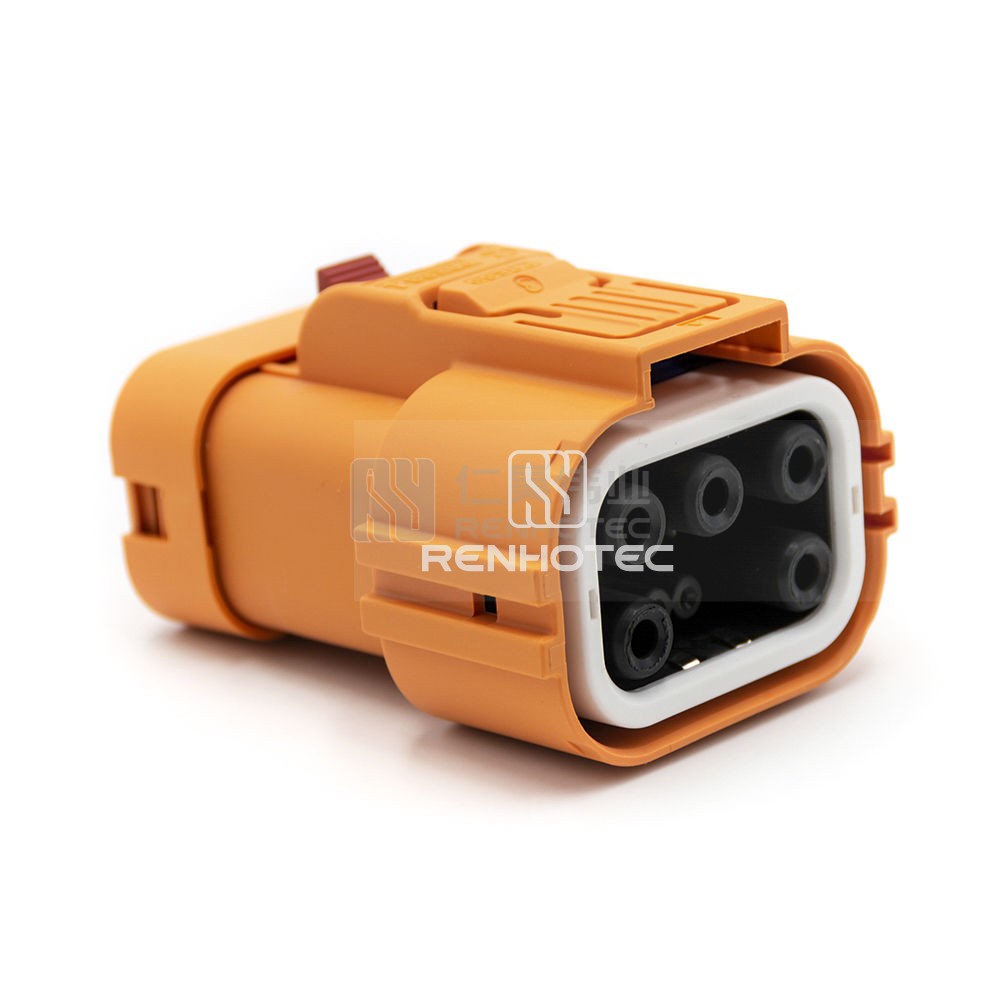

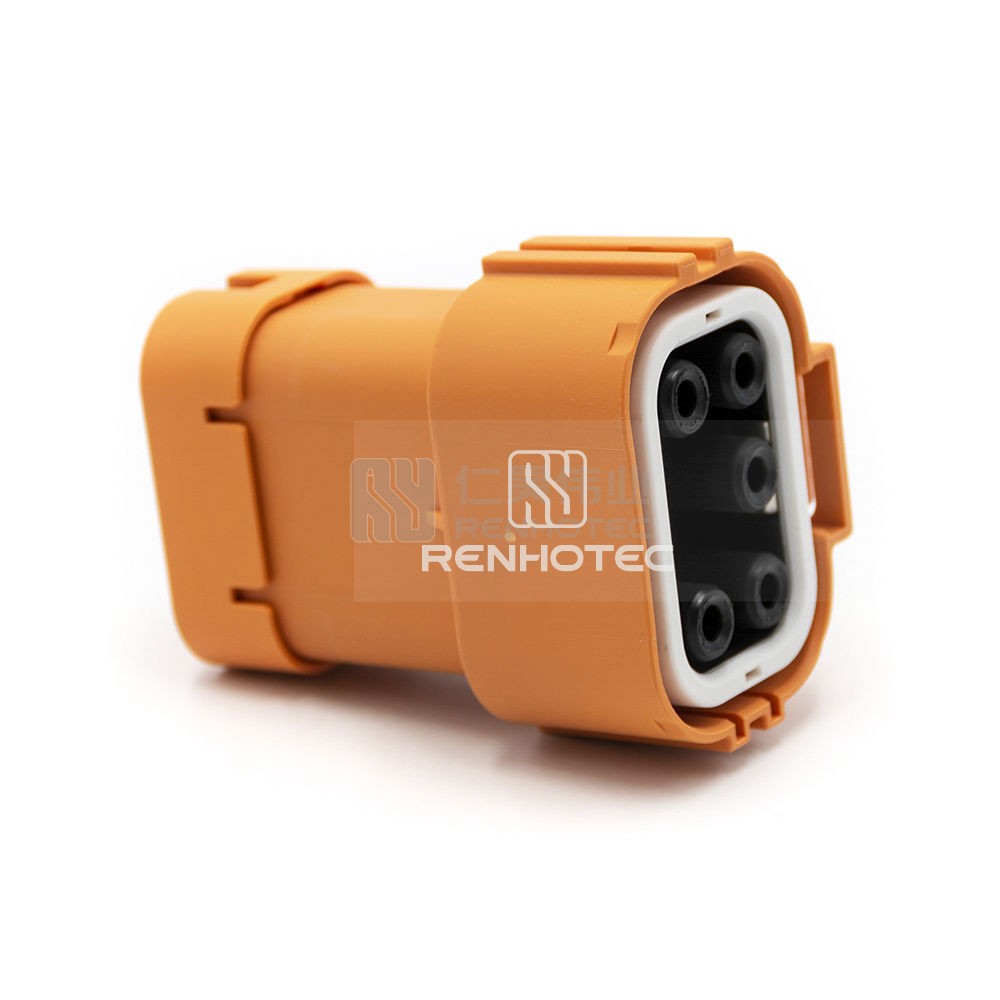

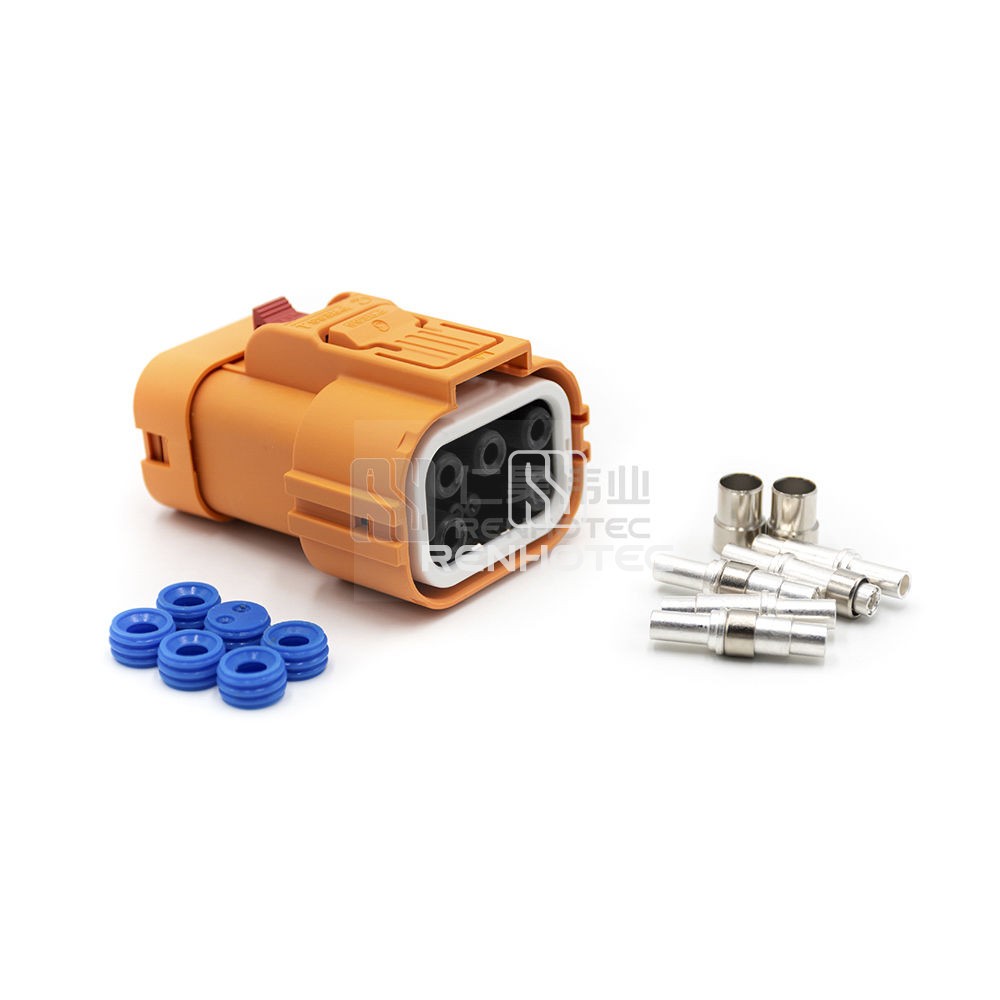

    This high-power electric vehicle cable plug features a 2.5mm² shielded cable with a key straight design. Ideal for high-power applications, this 20A plug ensures secure and reliable connections for electric vehicles.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions5
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current20A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
