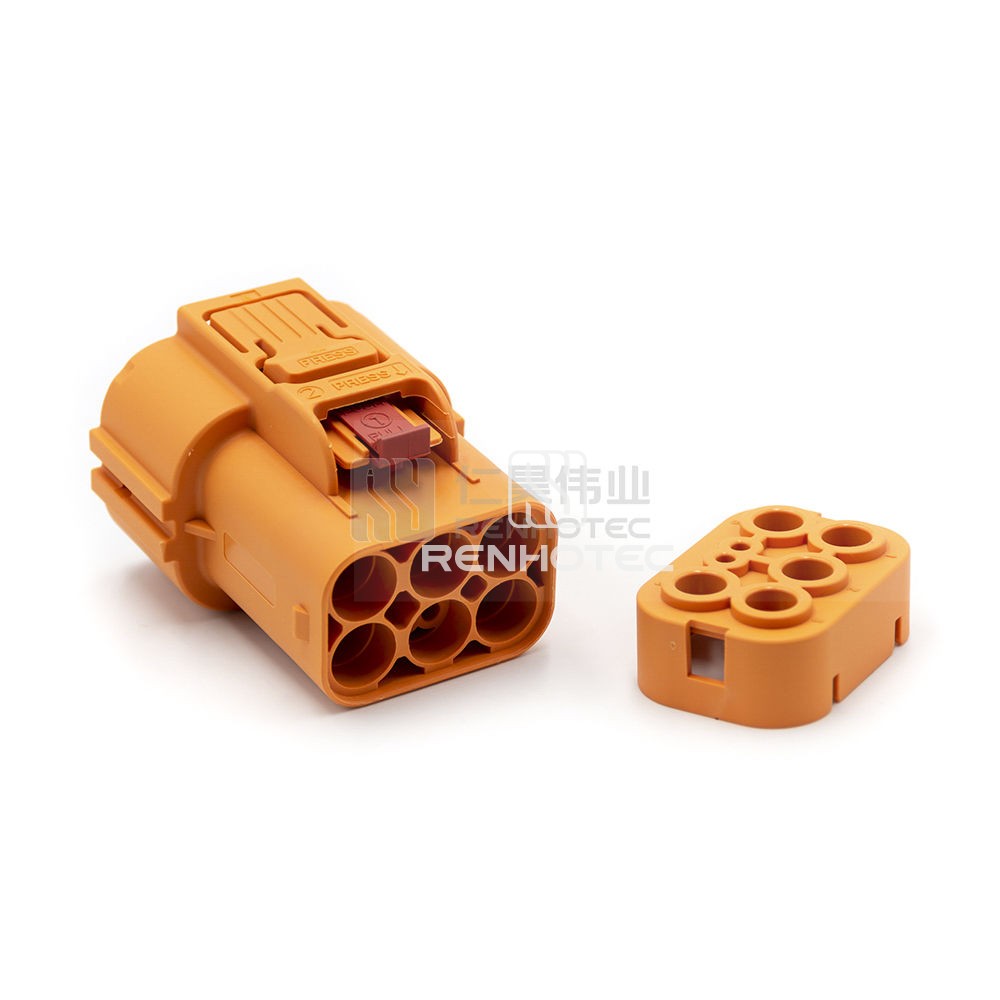

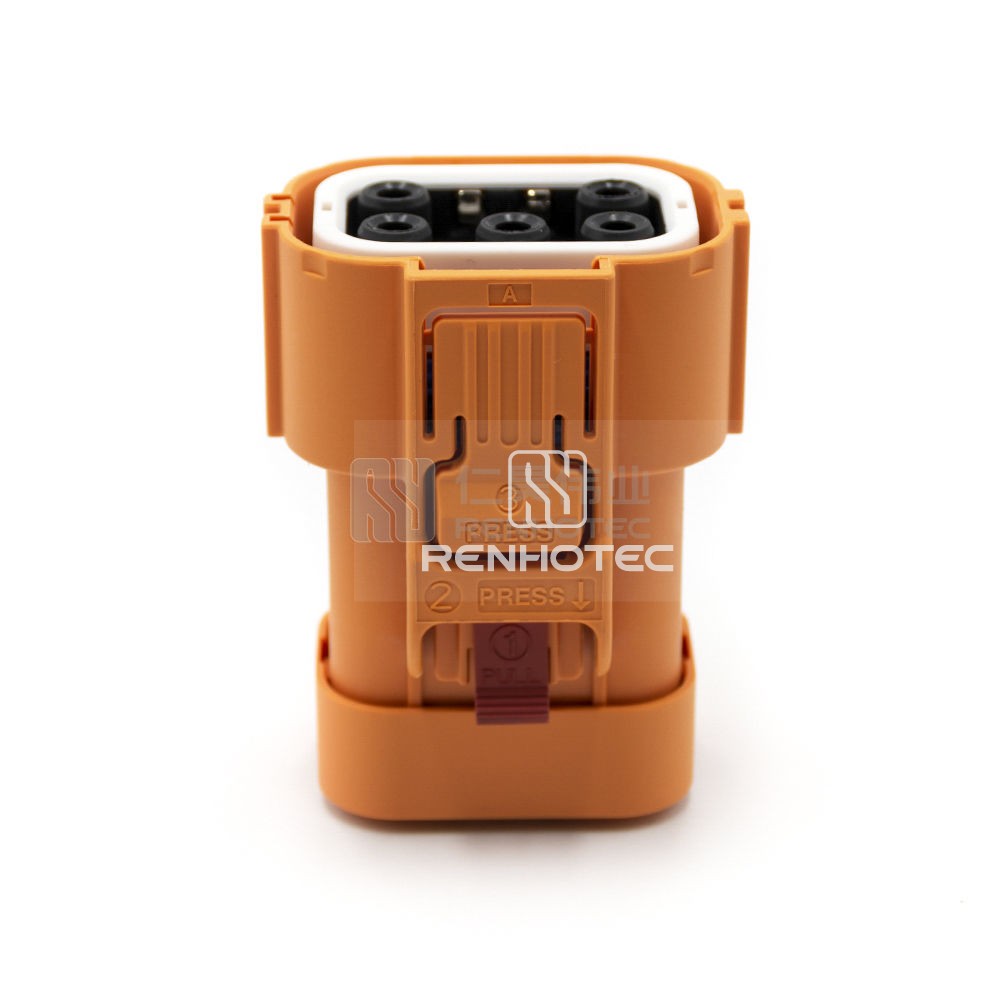

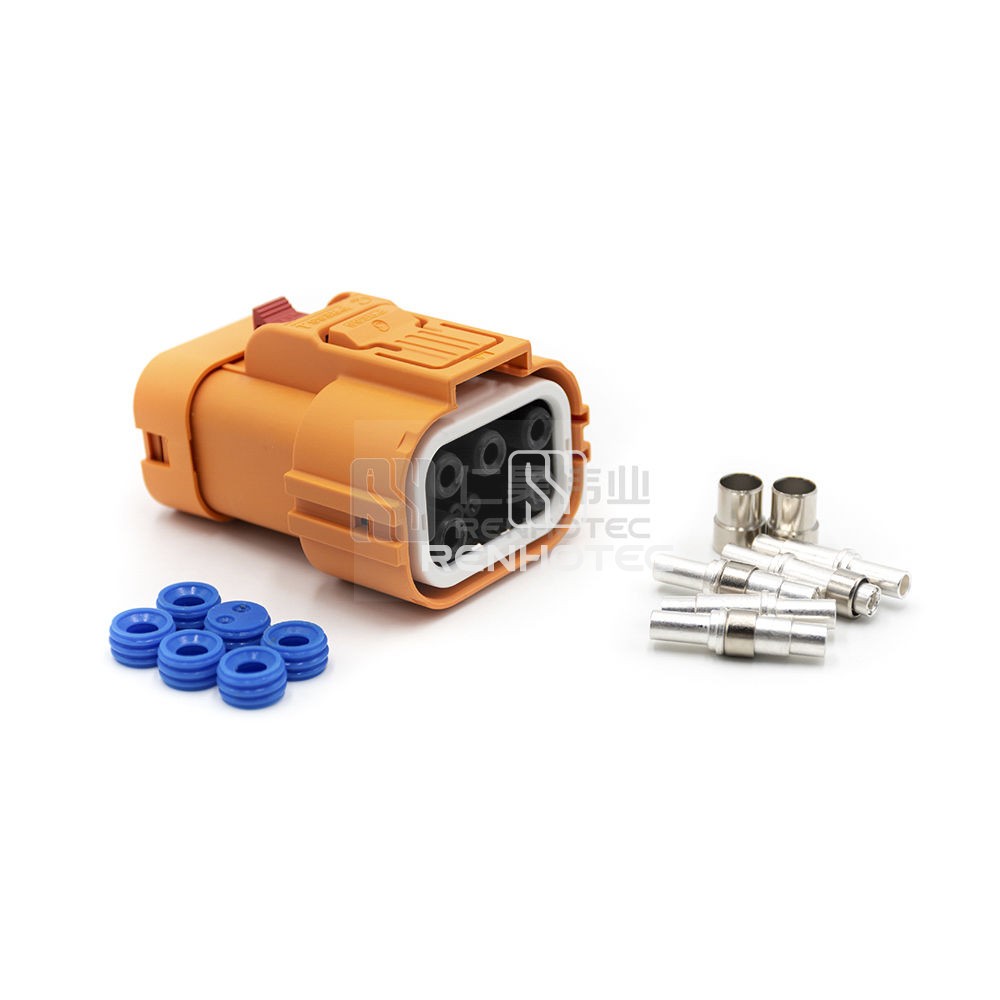

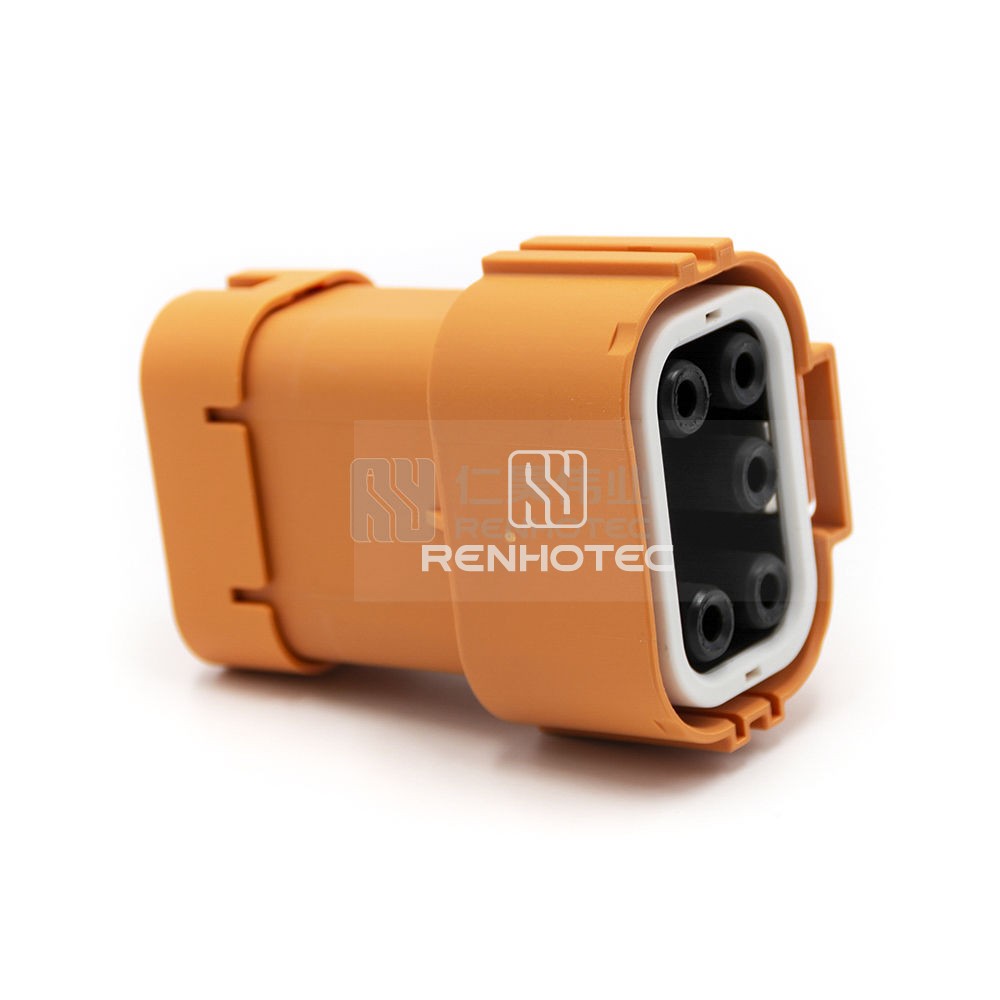

Products > HVIL Series Connector > 5 POS High Power Electric vehicle Cable Plug 40A 6mm2 Shielded Cable A Key Straight
- Overview
- Technical data
- Catalog
- Certificate
Product certification
Ideal for high voltage power distribution, battery pack connections, motor controllers, electric air conditioning, and electric heater applications. This robust cable plug with a 40A capacity and shielded 6mm² cable ensures reliable performance for demanding electric vehicle systems.
General
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 5 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical
Rated Voltage | 800V |
Rated Current | 40A |
Shielding | Shielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 6mm² |
Material
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
