Products > Energy Storage Connector > 6.0mm Power Entry Connector 100A Cable Plug Right angled 16mm² Black

RHT-P006-C16-BK

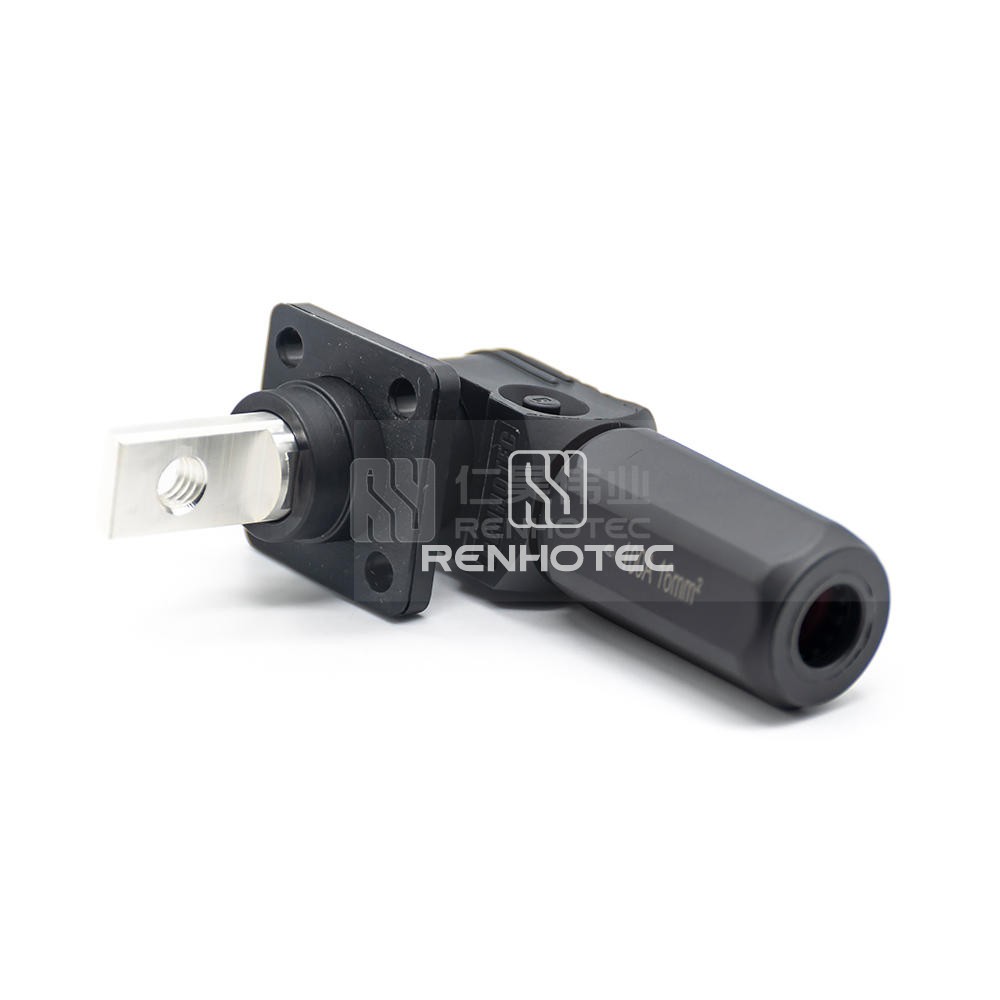

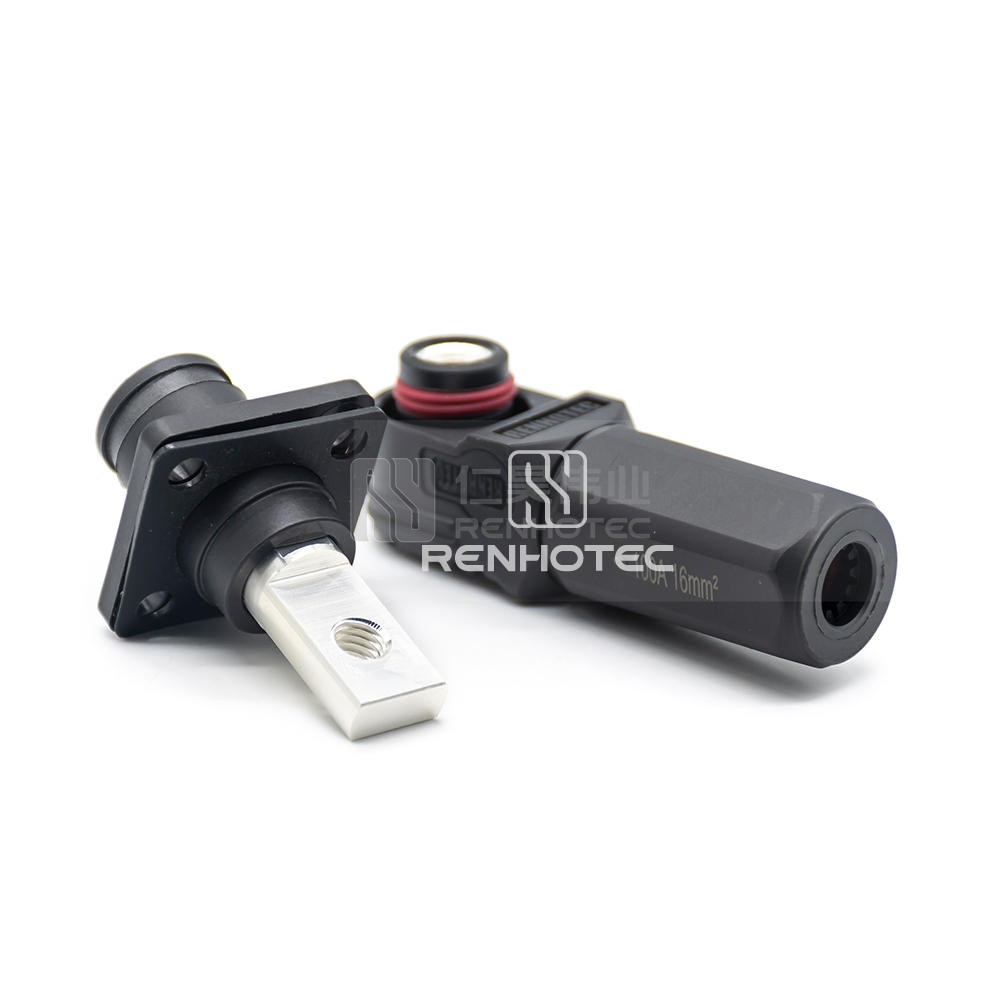

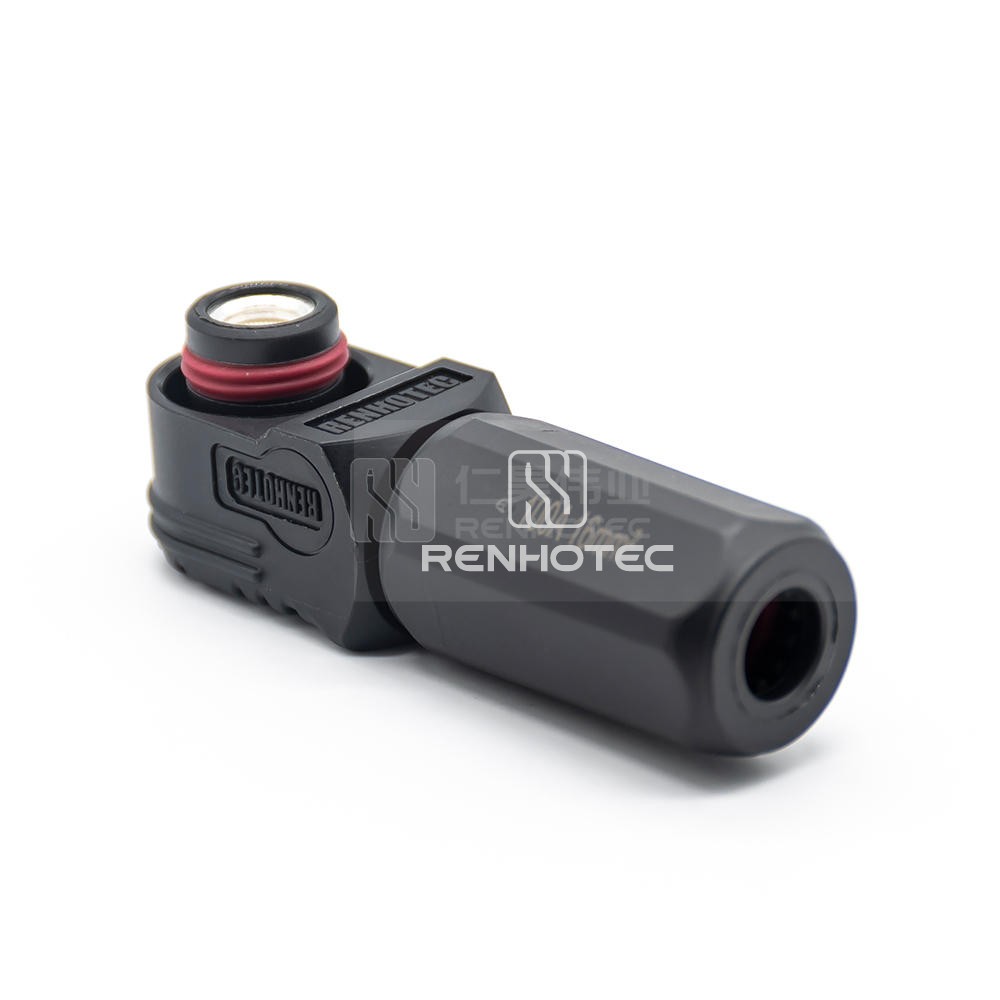

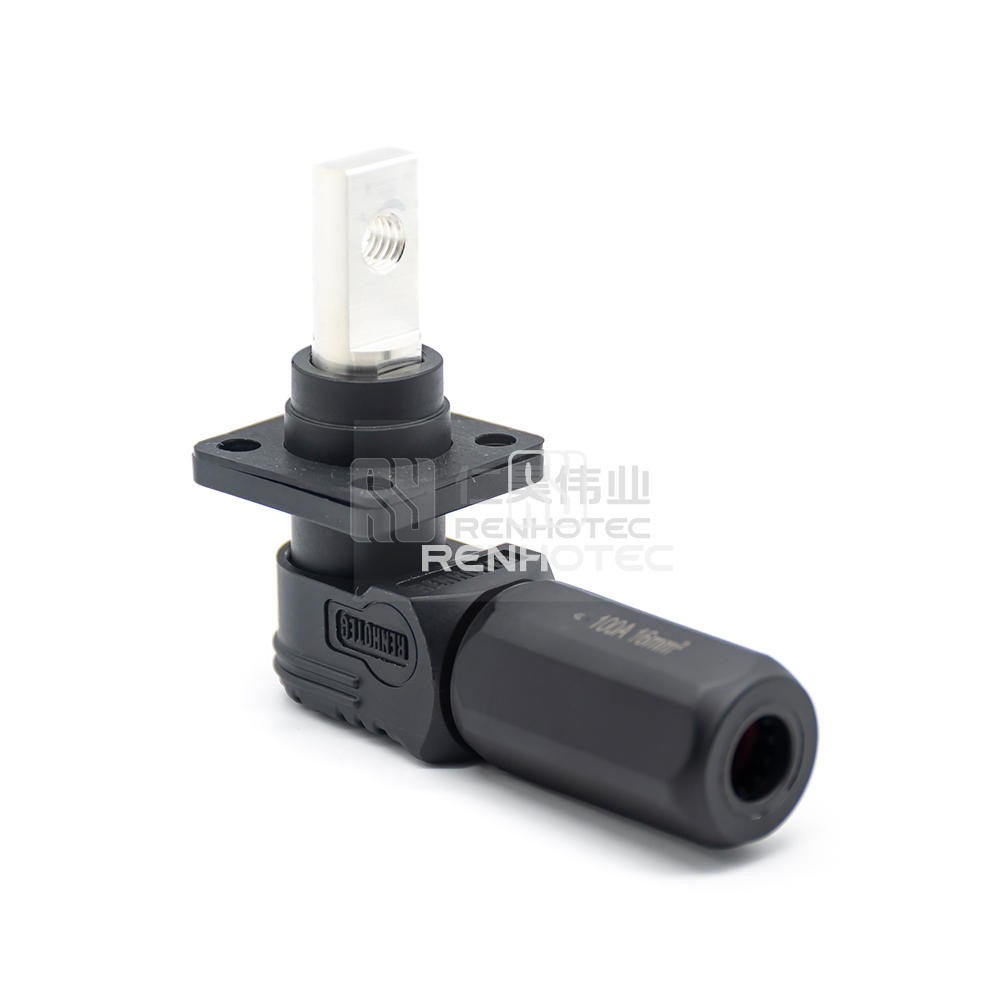

6.0mm Power Entry Connector 100A Cable Plug Right angled 16mm² Black

Find high-quality 6.0mm Power Entry Connector with a 100A capacity for heavy-duty applications. Right-angled design and 16mm² cable plug provide efficient and reliable power connections. Finished in sleek black for a professional look.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
