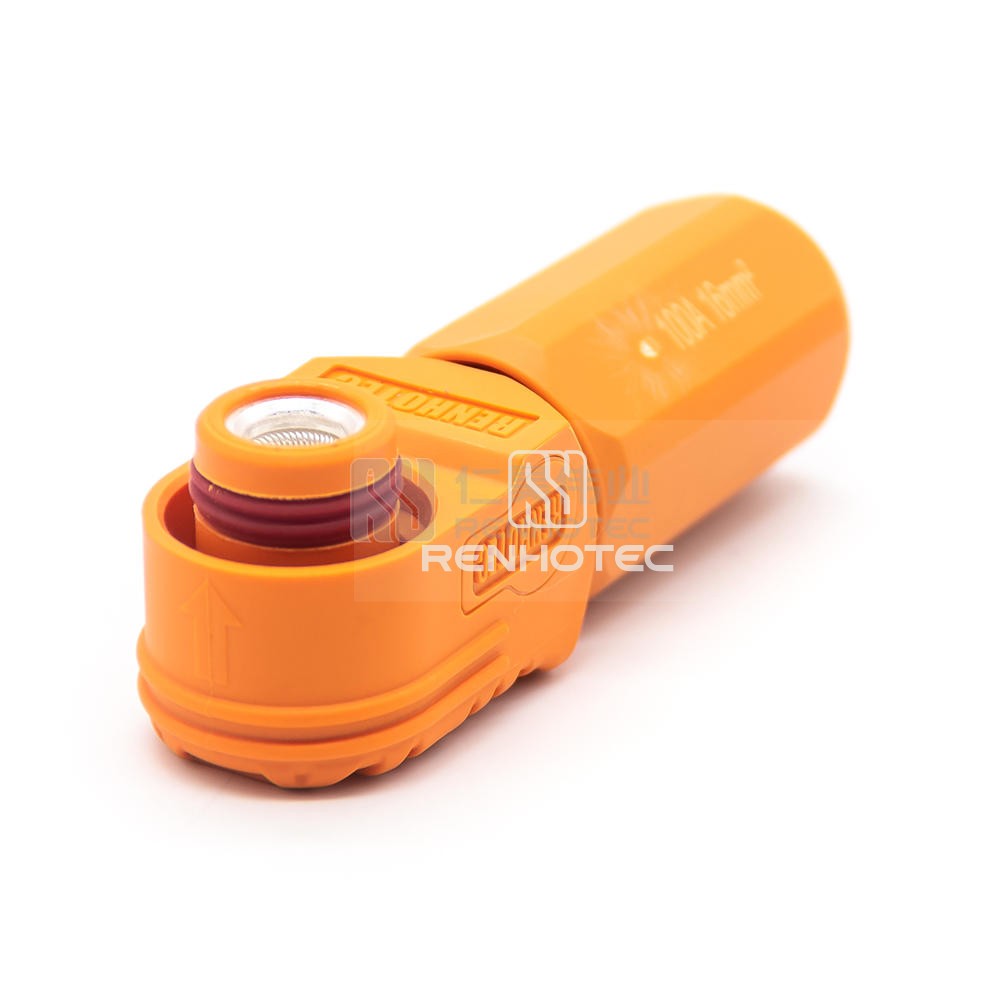

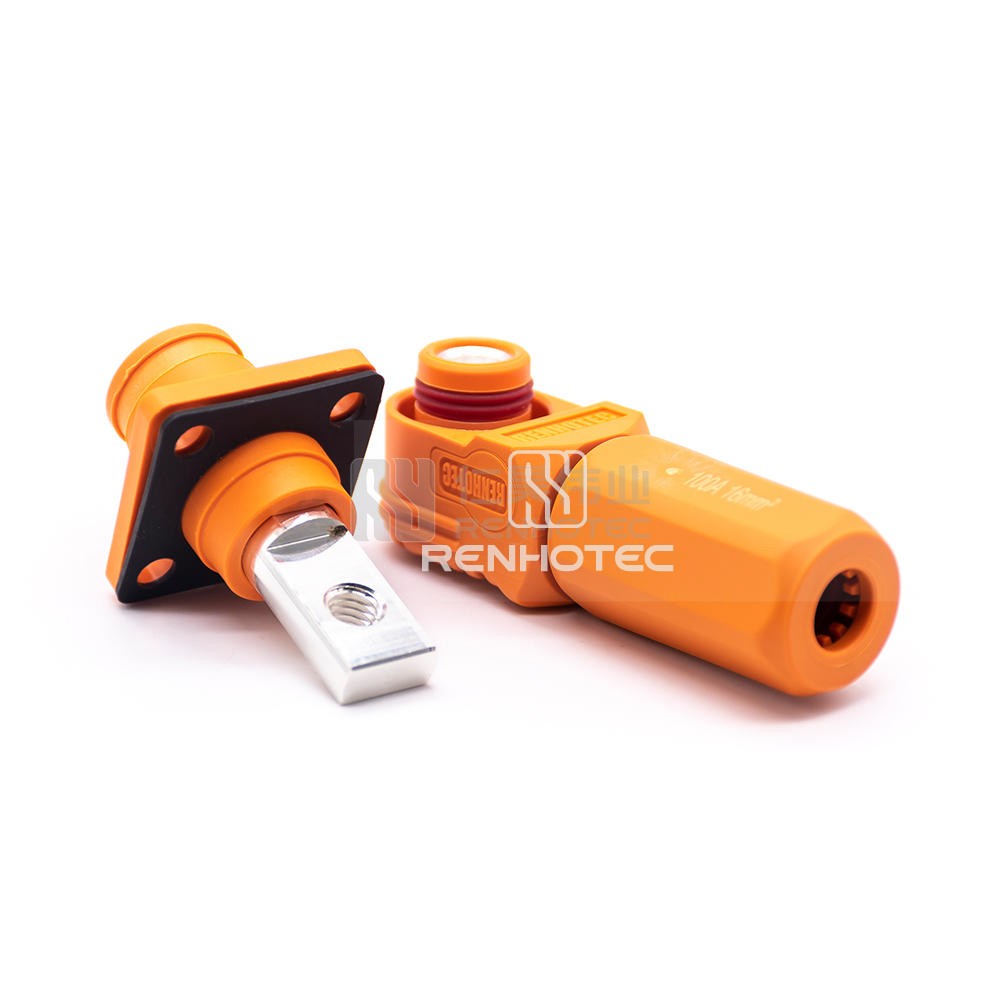

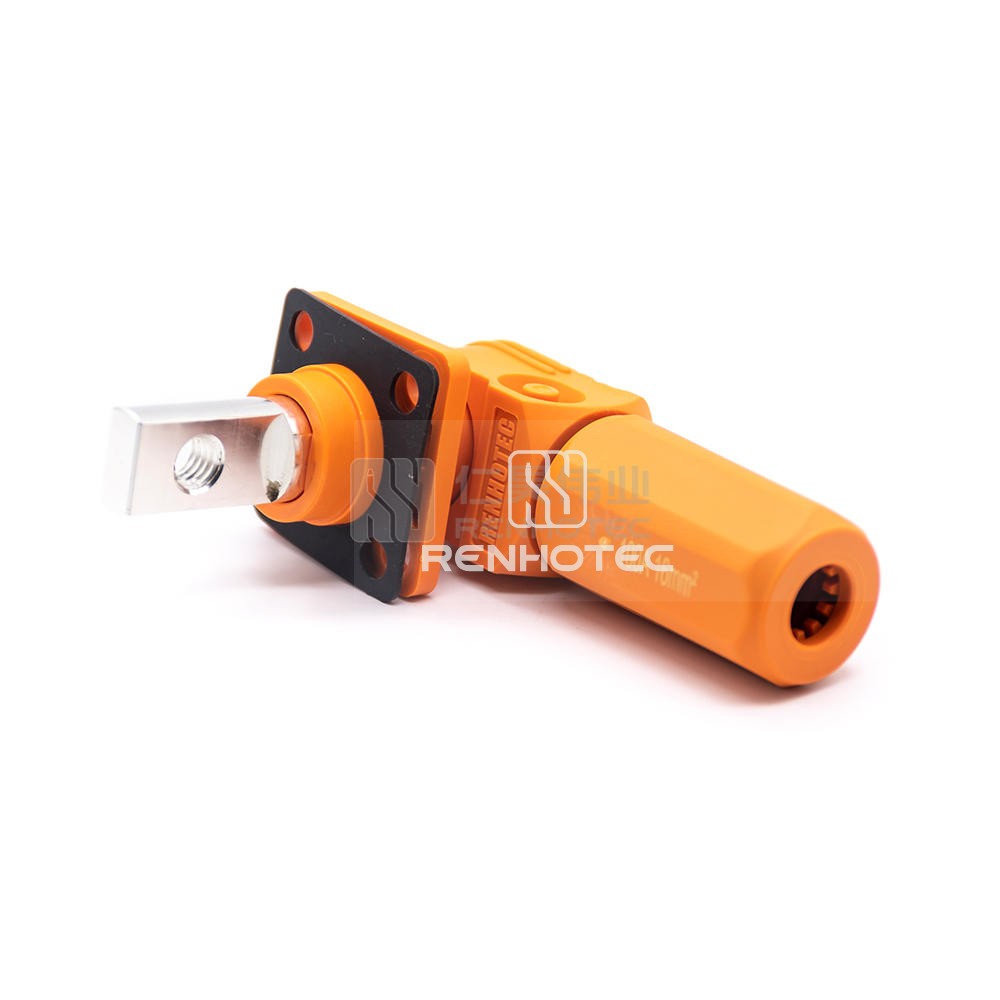

6.0mm Power Entry Connector 100A Cable Plug Right angled 16mm² Orange

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    This 6.0mm power entry connector features a 100A capacity with a right-angled 16mm² cable plug in a vibrant orange color. Ideal for high-power applications, this connector ensures secure and efficient power transmission in a compact and reliable design.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
