RHT-P006-C16-RD

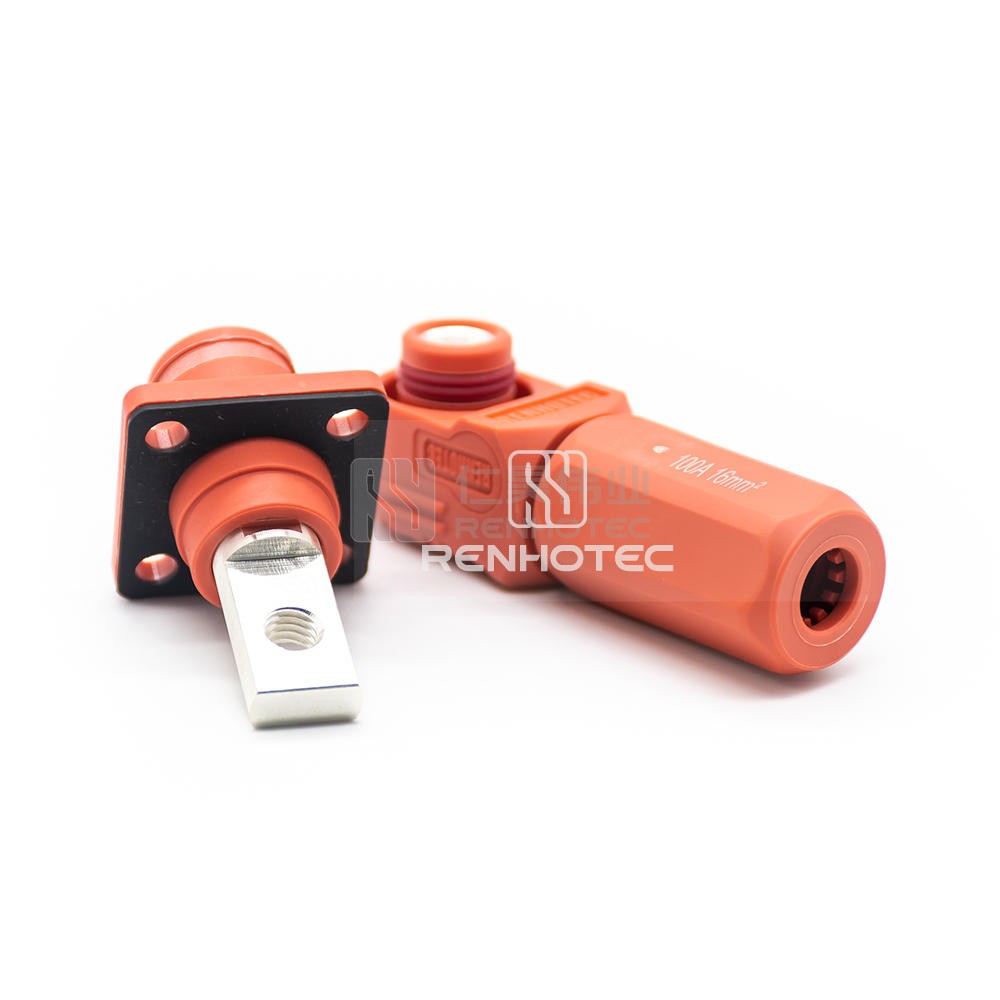

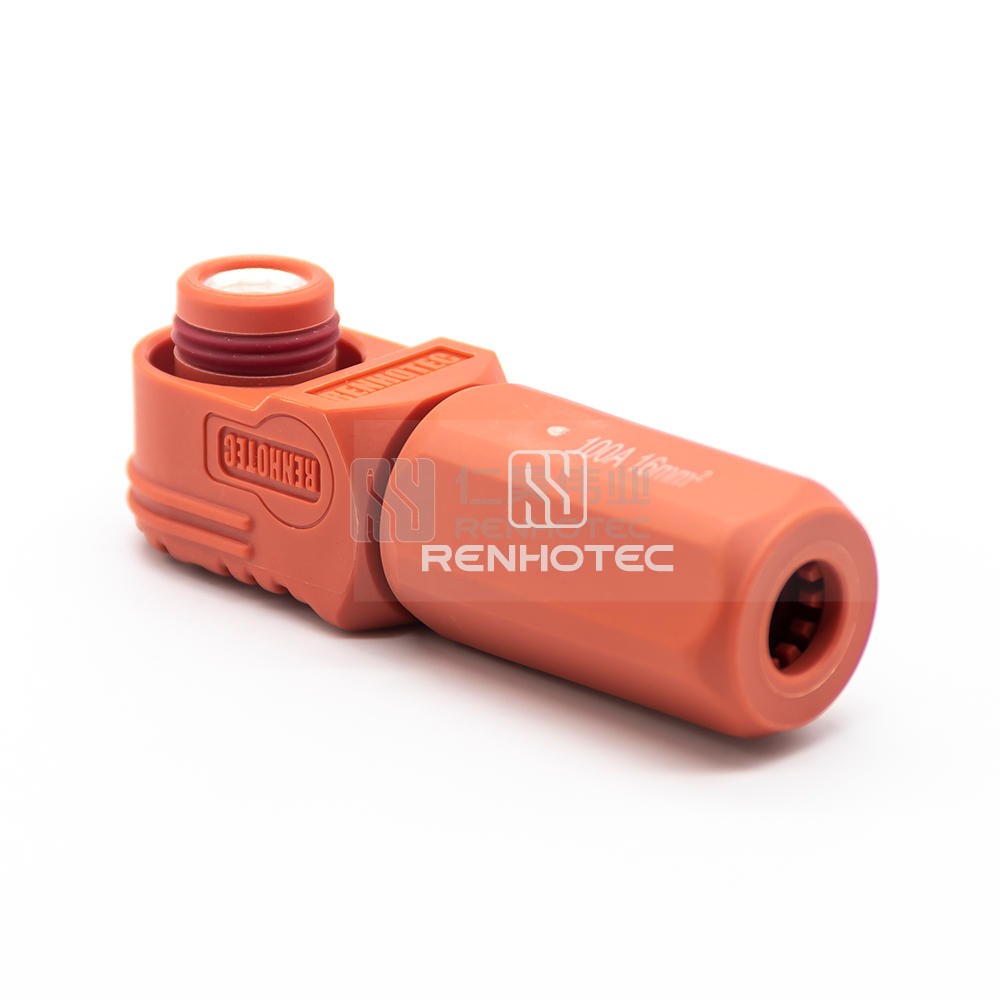

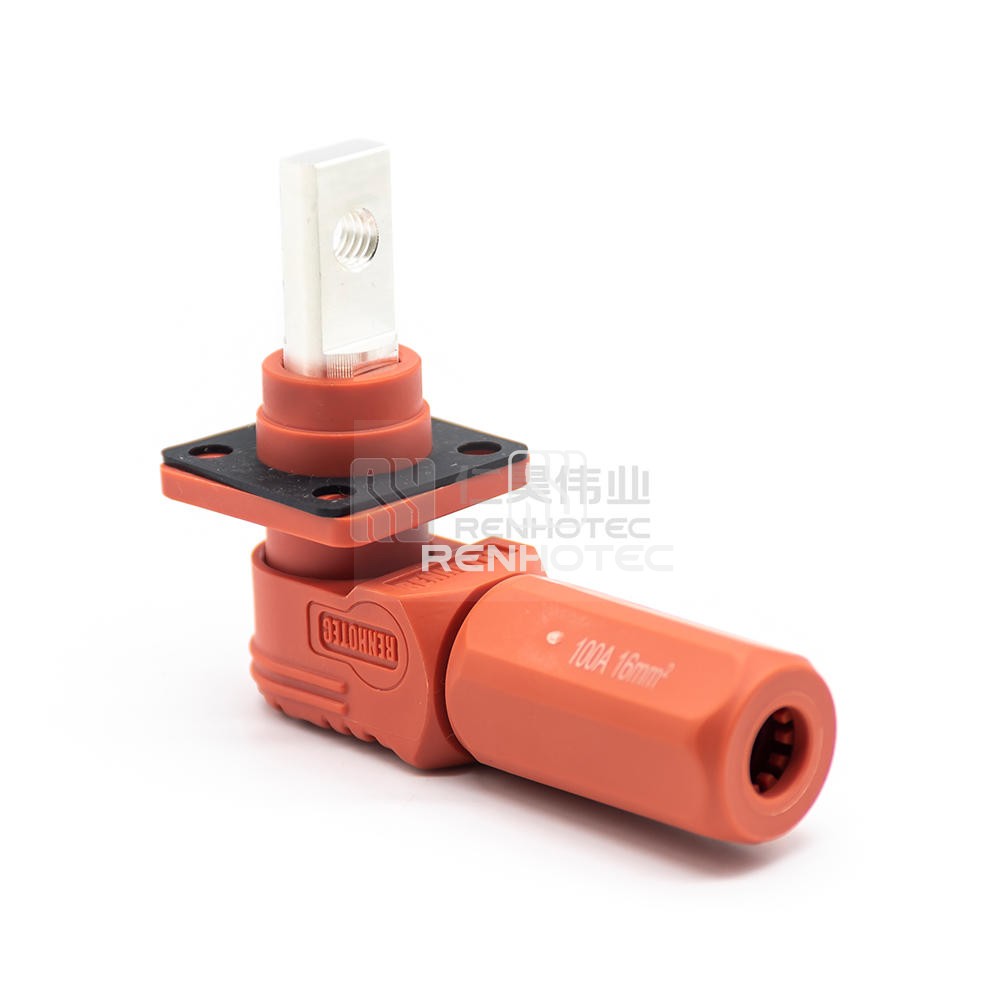

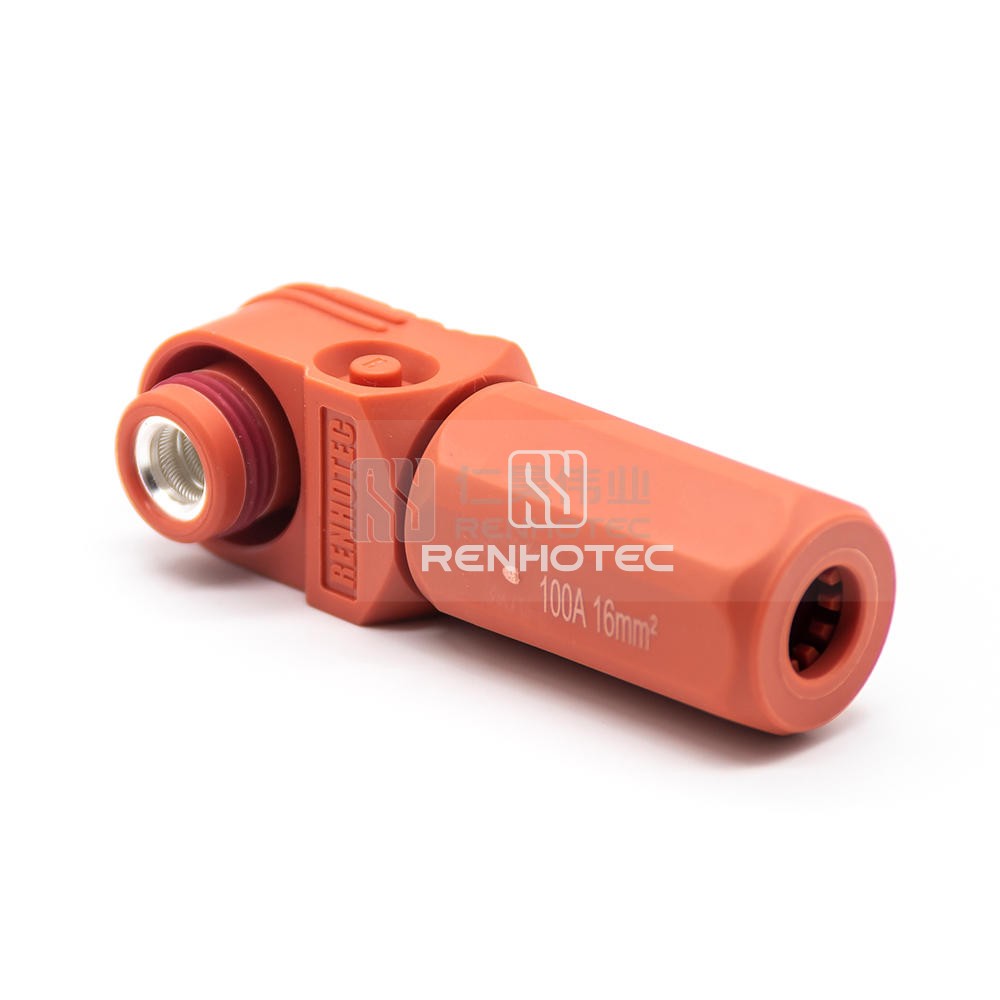

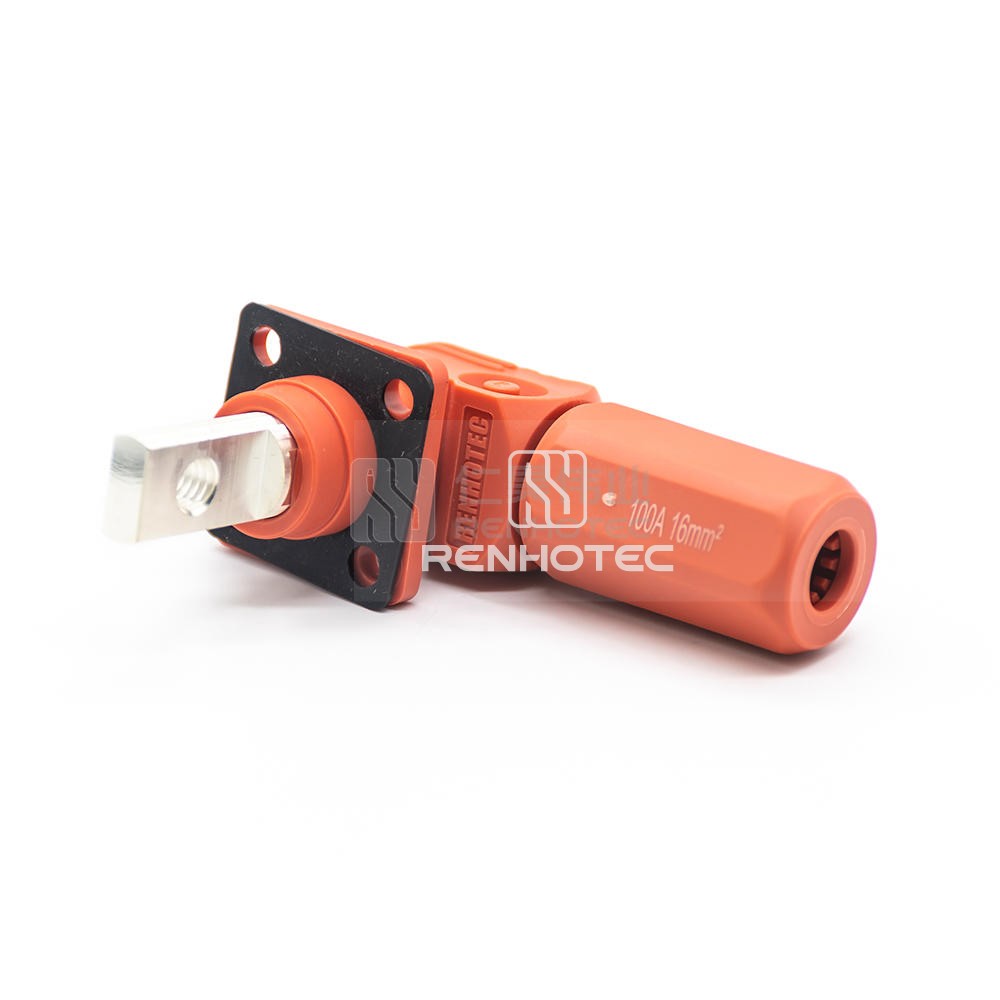

6.0mm Power Entry Connector 100A Cable Plug Right angled 16mm² Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Enhance your power connections with this high-quality 6.0mm power entry connector. Capable of handling 100A current, this cable plug features a right-angled design for convenient installation and is color-coded in vibrant red for easy identification. Designed for 16mm² cables, this connector offers reliable performance and durability for your power supply needs.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
