Products > Energy Storage Connector > 6.0mm Power Entry Connector 100A Cable Plug Right Angled 16mm² Unshielded Cable Orange

FCC0616-F1YR

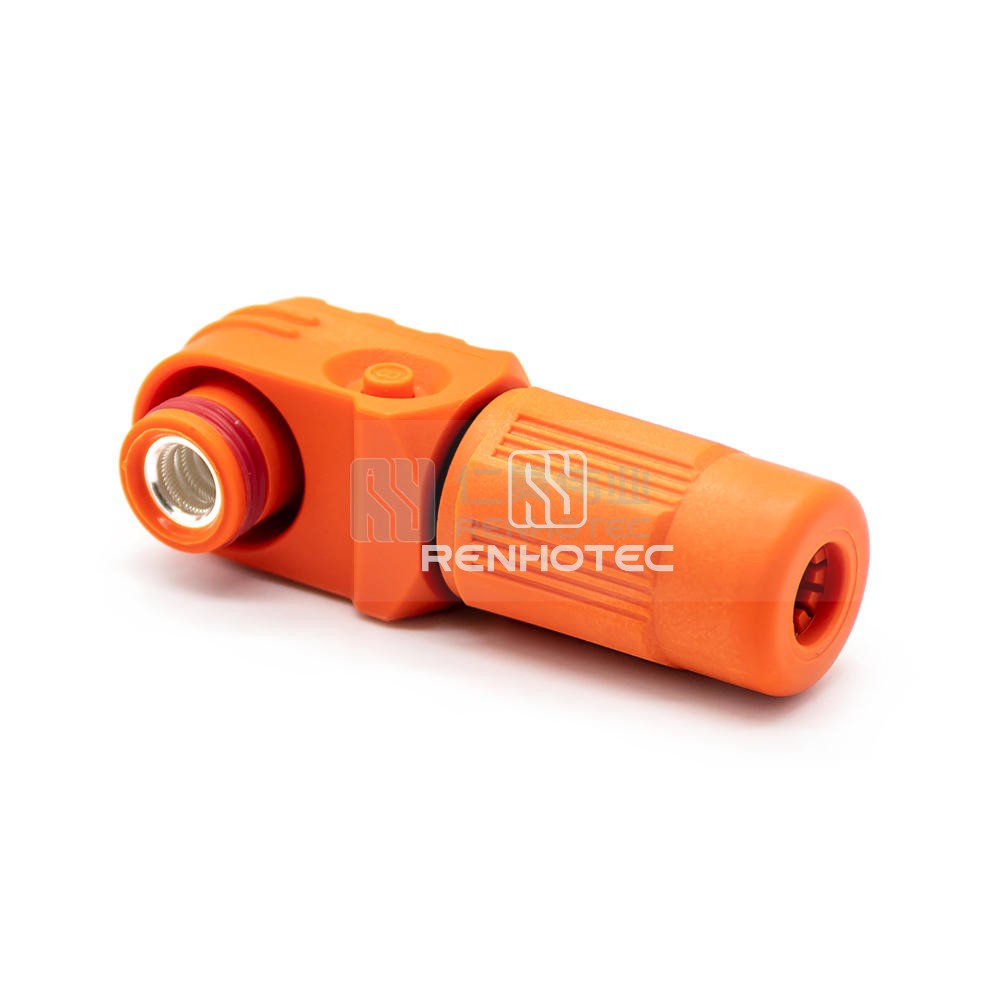

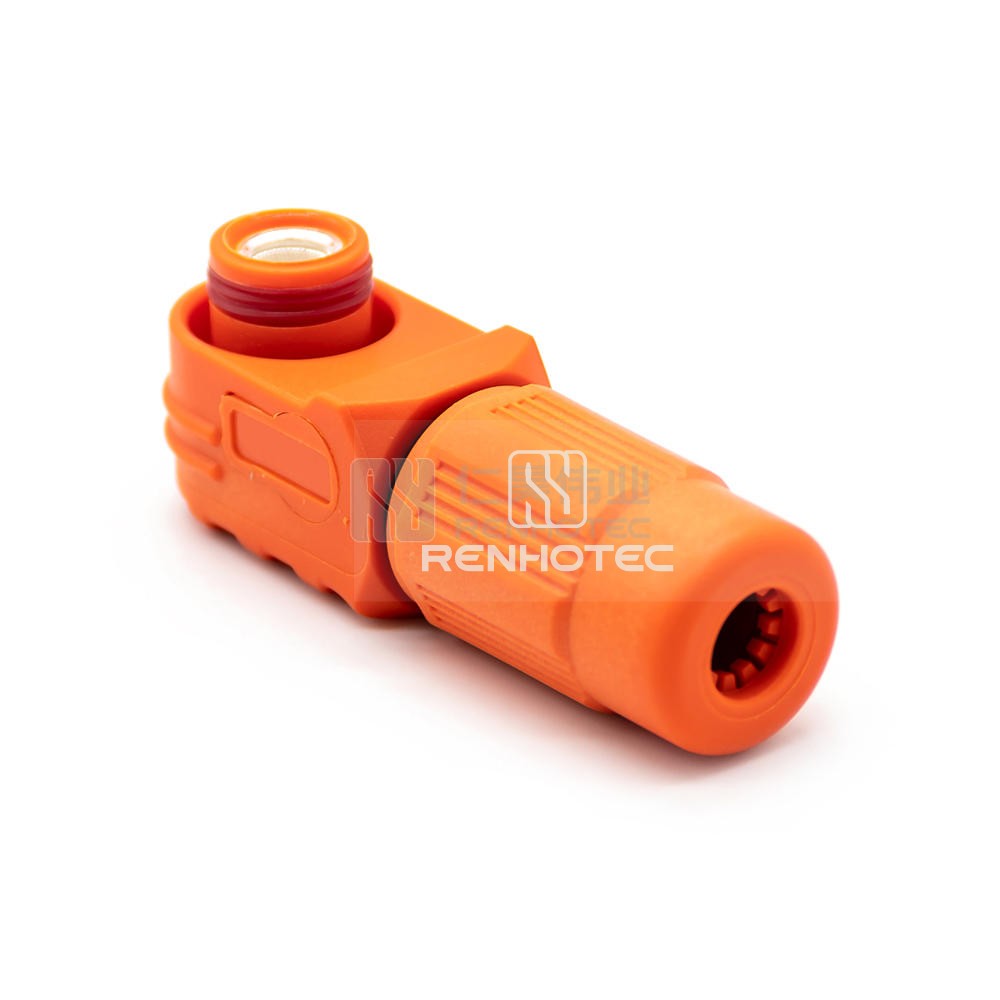

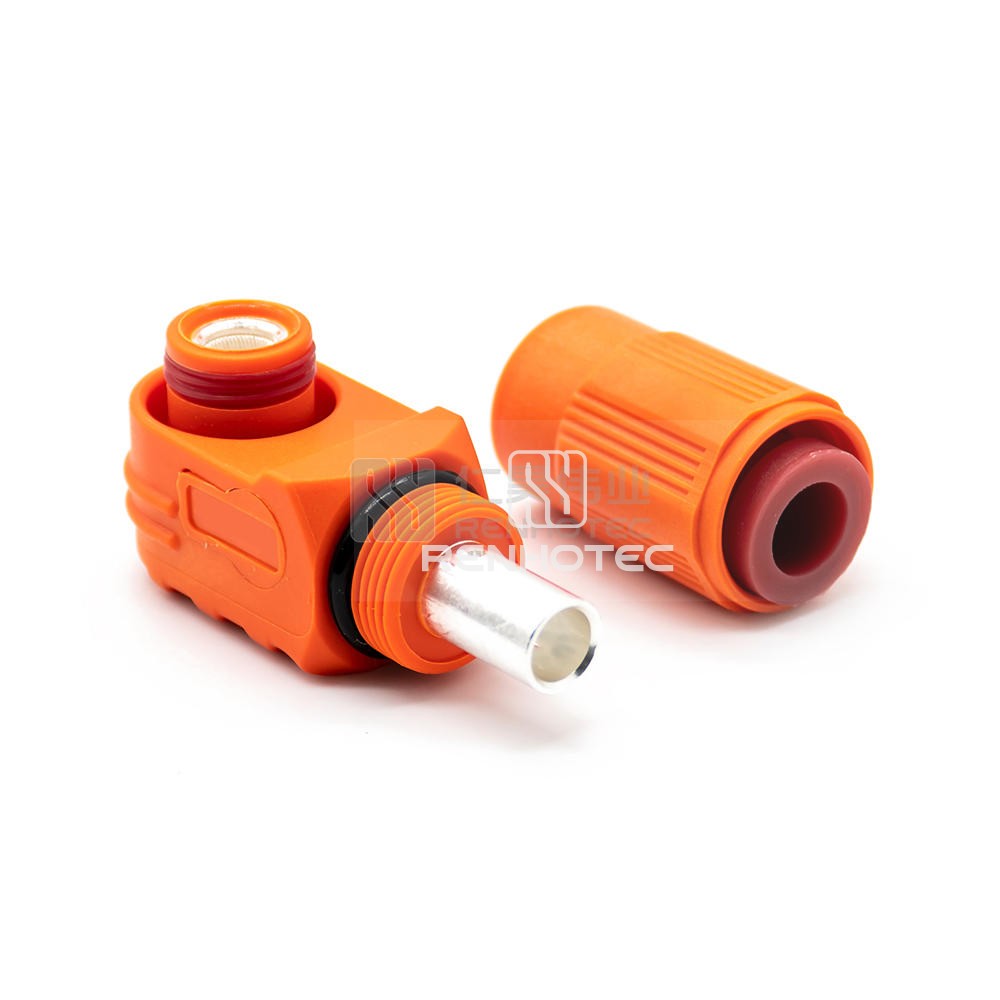

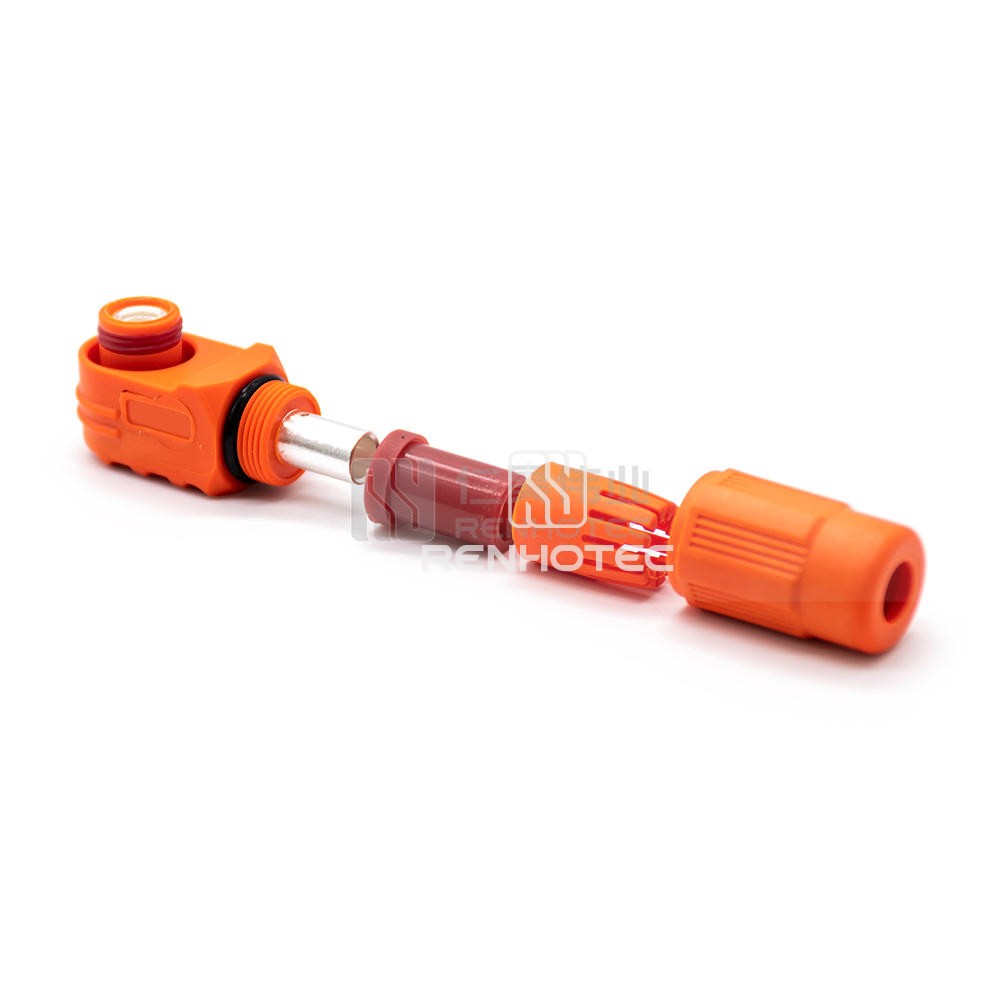

6.0mm Power Entry Connector 100A Cable Plug Right Angled 16mm² Unshielded Cable Orange

Easily connect power cables with this 6.0mm 100A cable plug. Right-angled design for convenience and compatibility with 16mm² unshielded cables. Vibrant orange color for easy identification.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
