Products > Energy Storage Connector > 6.0mm Power Entry Connector 100A Cable Plug Right Angled 16mm² Unshielded Cable Red

FCC0616-F1RR

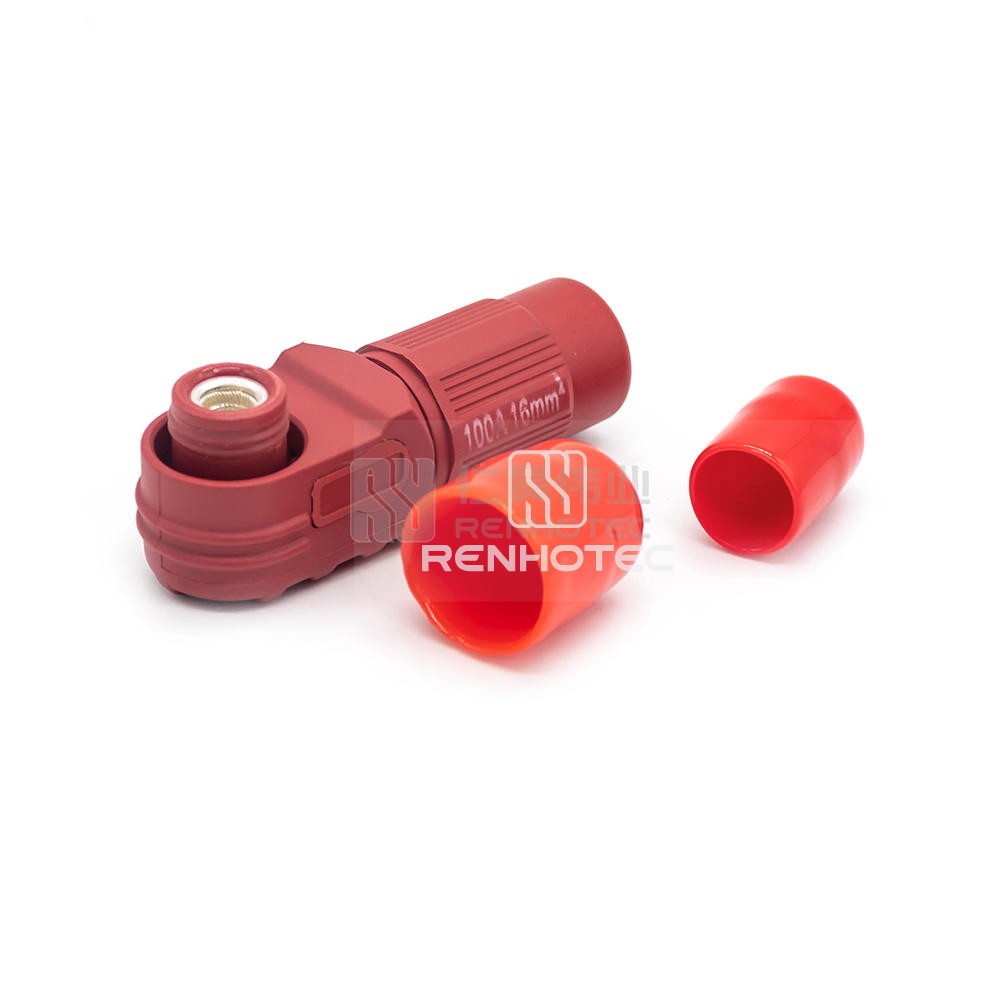

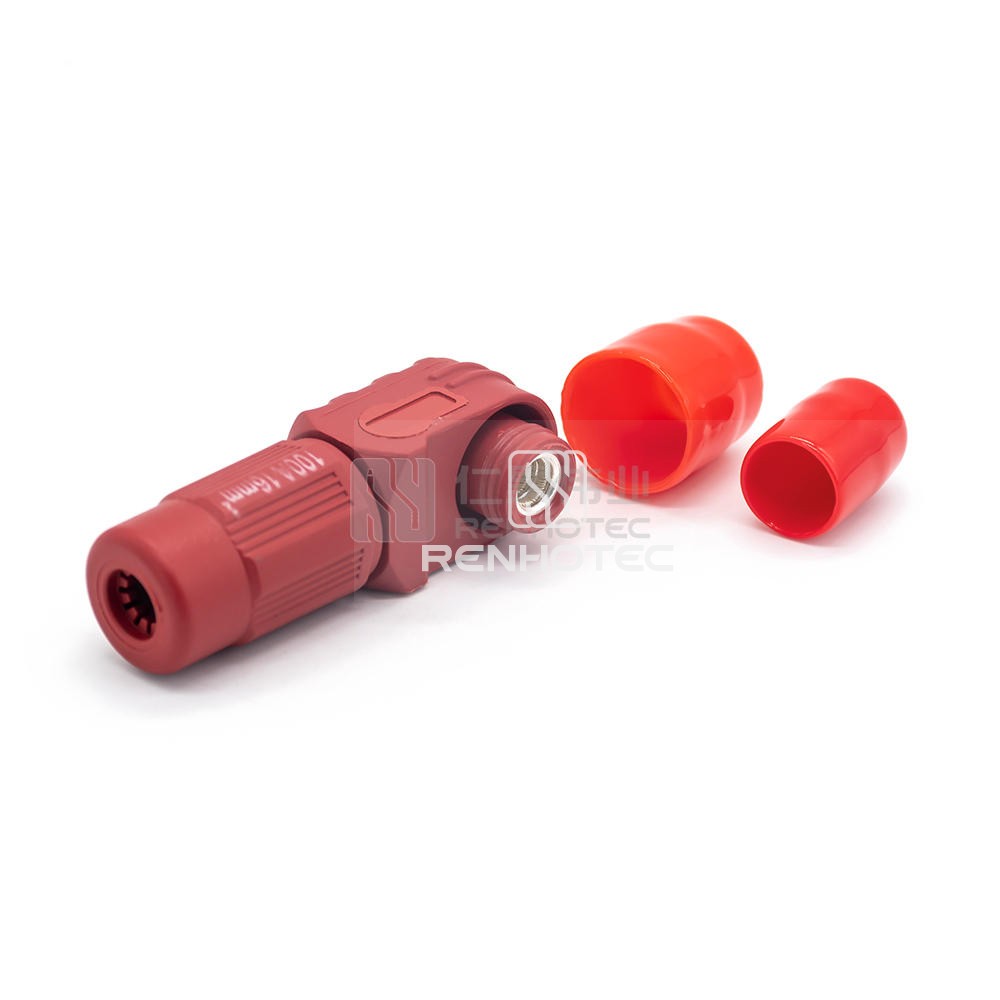

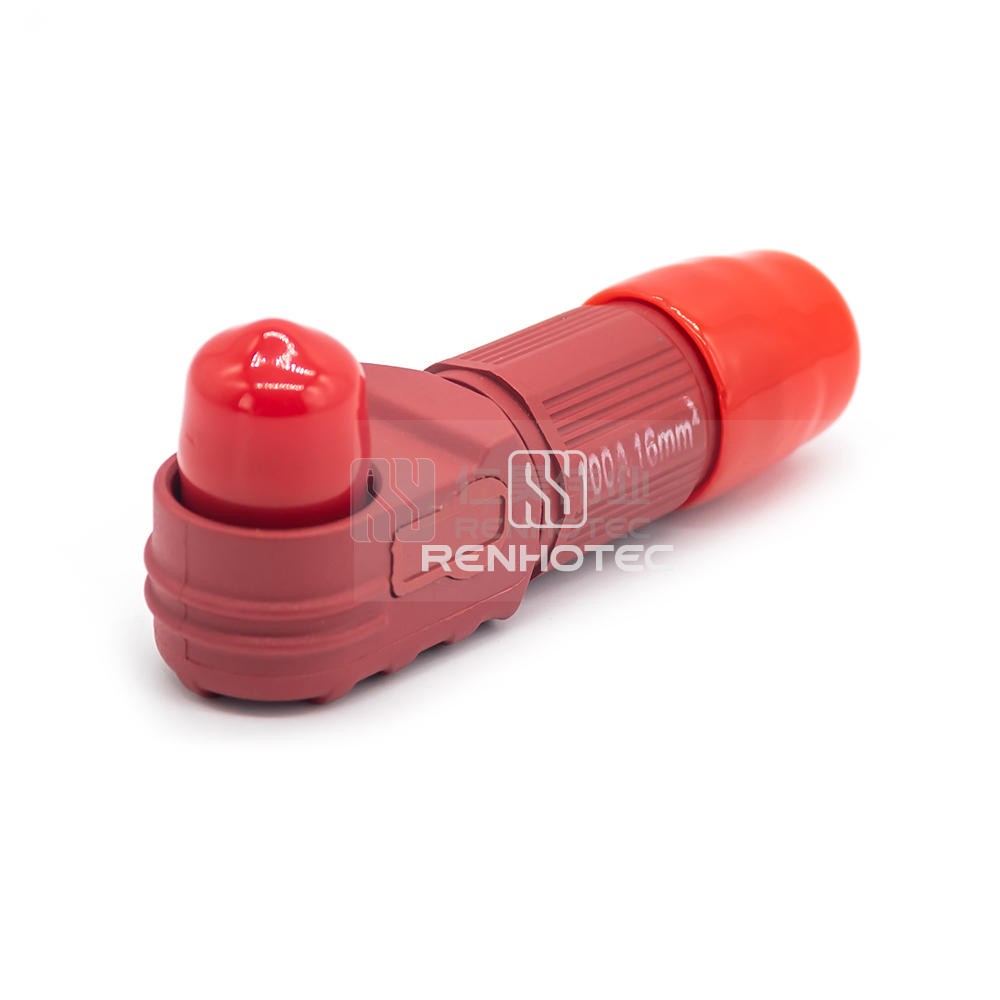

6.0mm Power Entry Connector 100A Cable Plug Right Angled 16mm² Unshielded Cable Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Explore our 6.0mm power entry connector featuring a 100A cable plug designed for easy connection with a right-angled design. Suitable for 16mm² unshielded cables in vibrant red color. Browse now for durable and efficient power solutions.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
