Products > Energy Storage Connector > 6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black
6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black - RHT-P006-C25-BK
6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black - RHT-P006-C25-BK

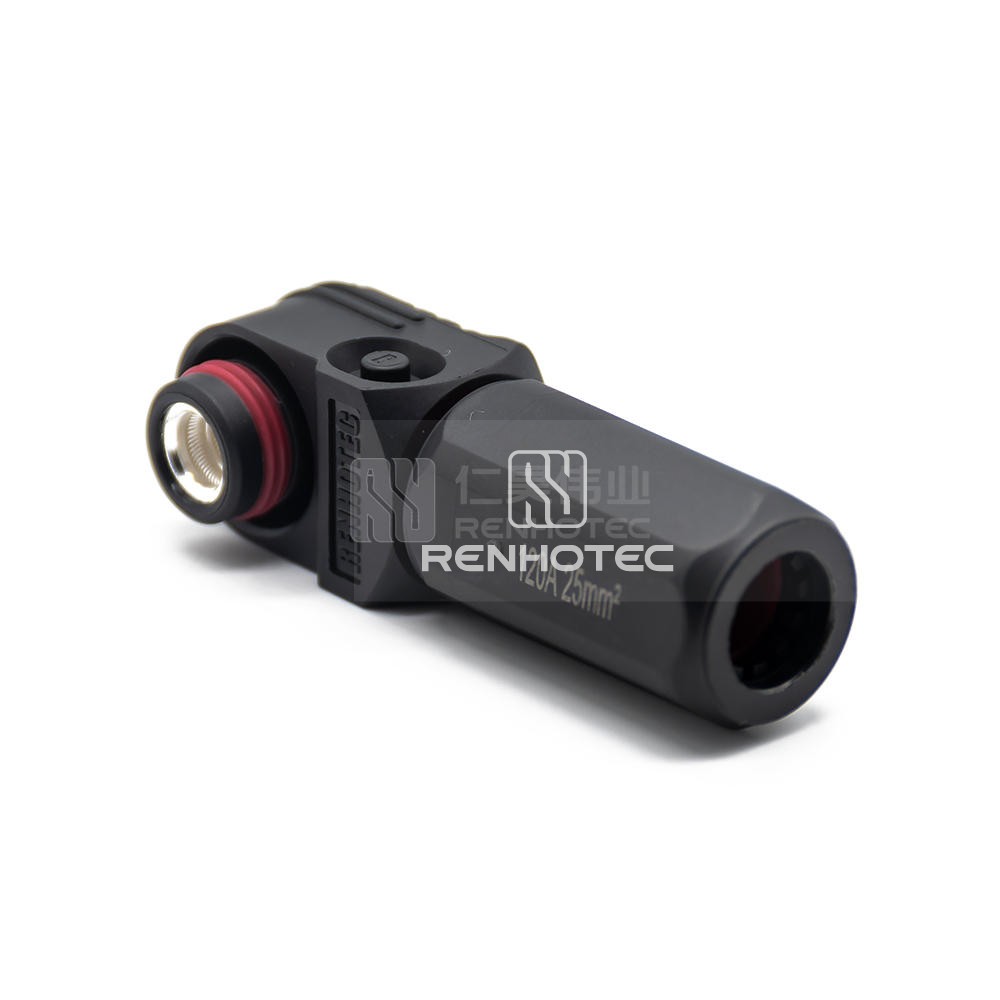

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black product image

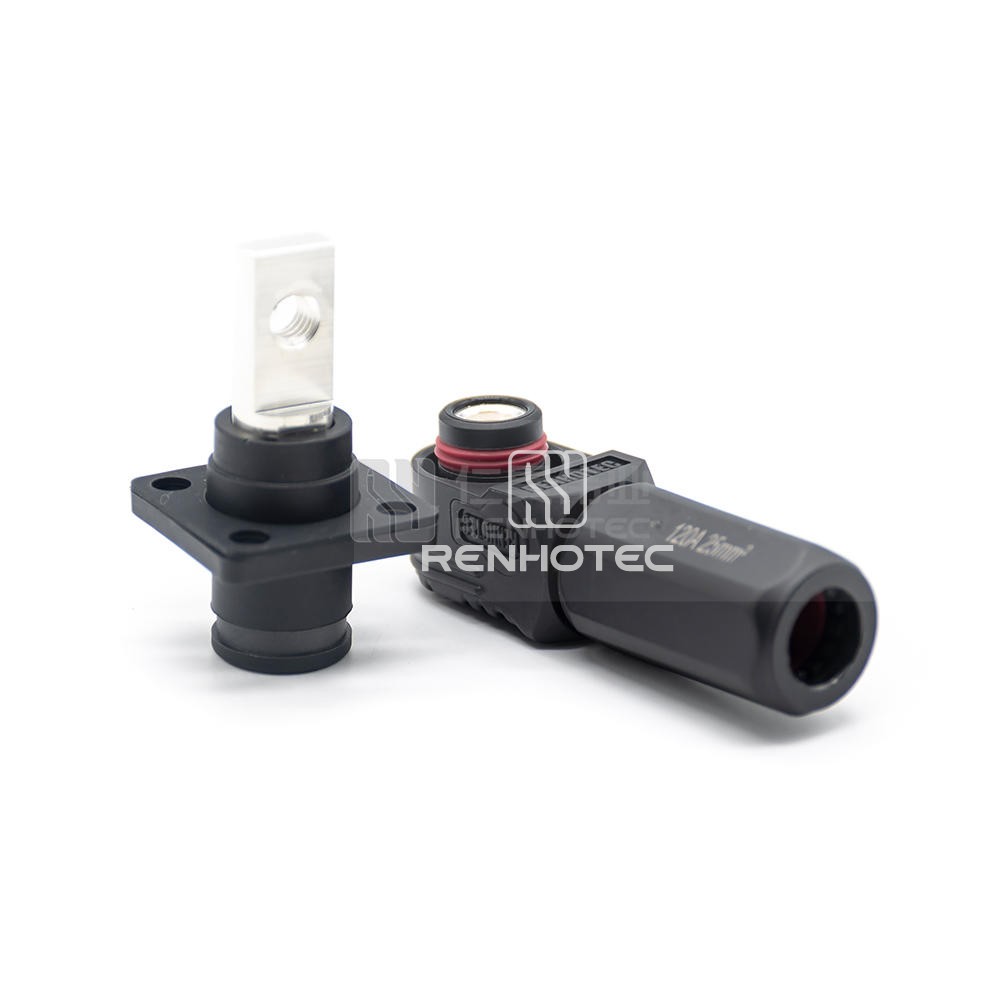

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black product image

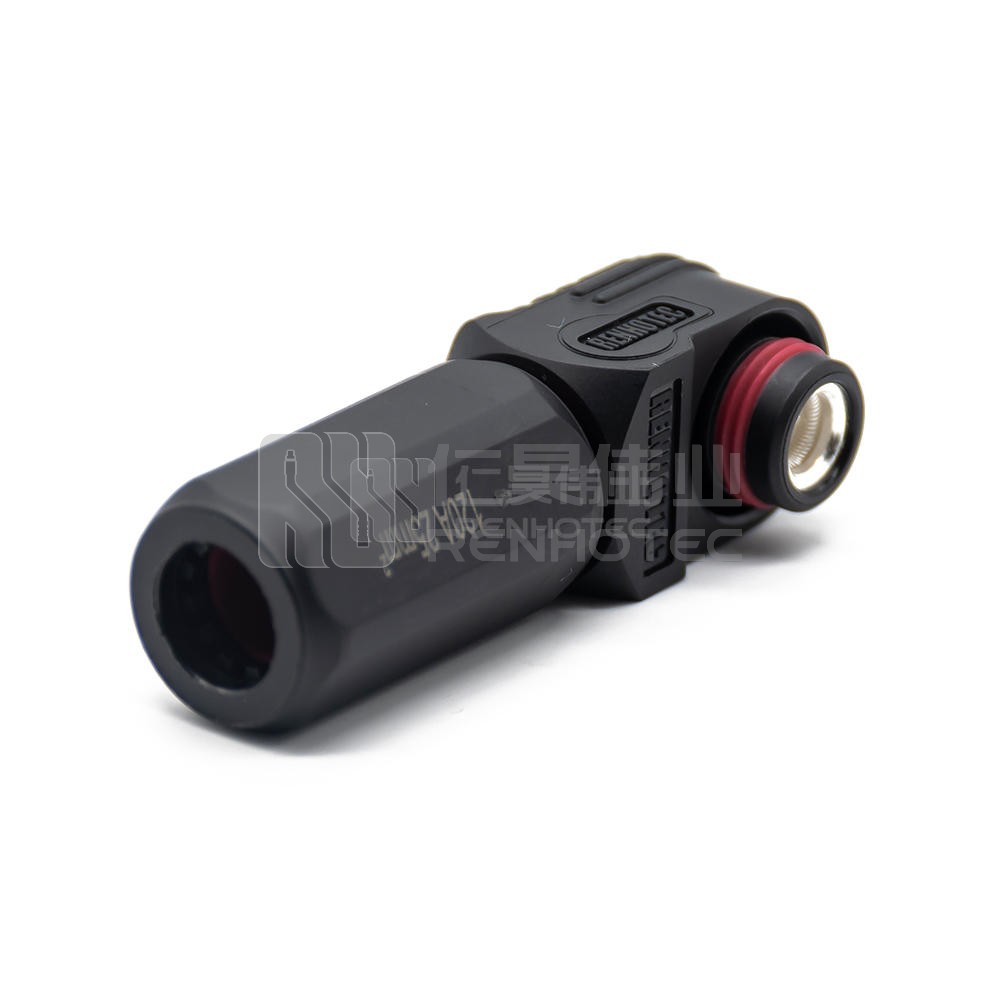

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black product image

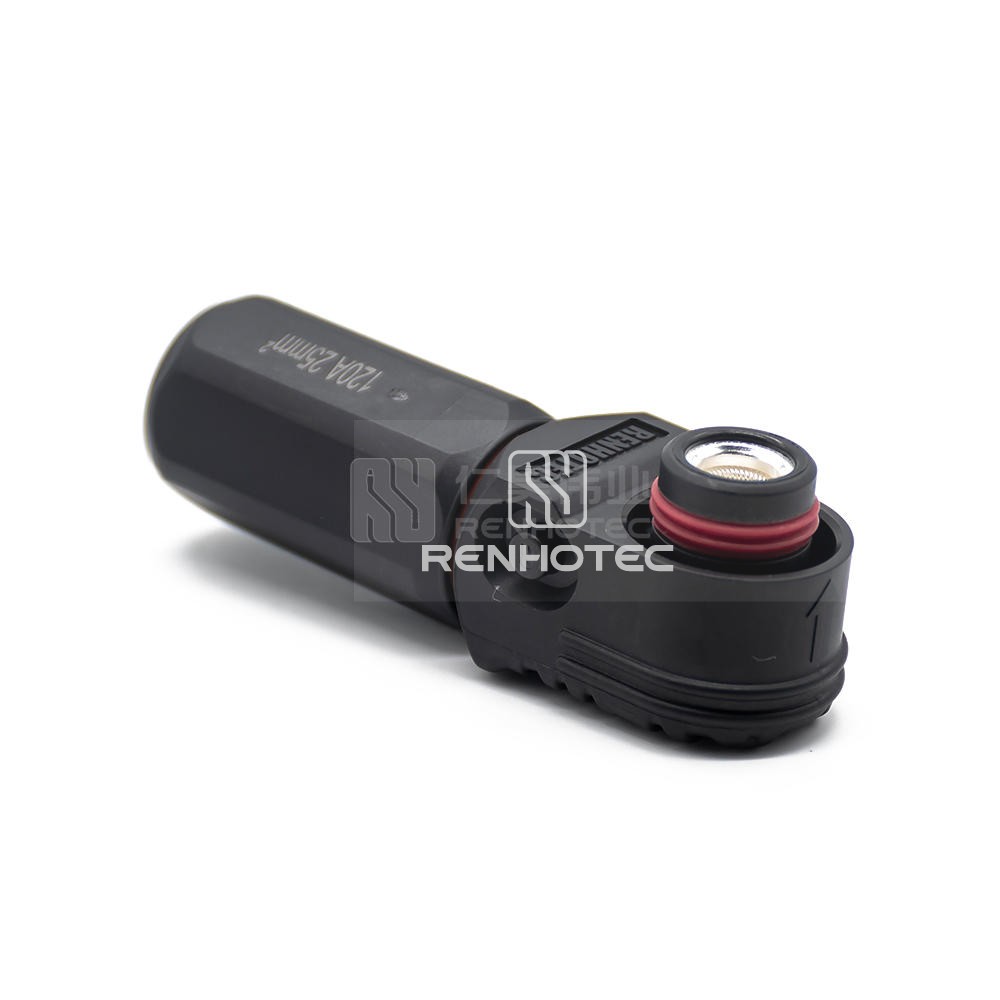

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black product image

RHT-P006-C25-BK

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Black

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions1
OrientationRight Angle
Contact Size6mm
Mounting TypeCable Type
Contact TerminationCrimp
Wire Gauge or Range25mm²
ColorBlack
Materials
Shell MaterialNylon
Contact MaterialT2
Contact FinishSilver
Electrical
Rated Voltage1000V
Rated Current120A
ShieldingUnshielded
Environmental
Ingress ProtectionIP54
Operating Temperature-40°C ~ + 125°C

Product excerpt

Certification

M.2022.206.C77197 CE Certificate Energy Storage Connectors Cable Download
Renhotec Energy Storage Connector CE Certificate [EN] Download

Catelog

RENHOTEC Battery Storage Connector Catalog [EN] Download
RENHOTEC EV Product Catalog [EN] Download
