Products > Energy Storage Connector > 6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Red

FCC0625-F1RR

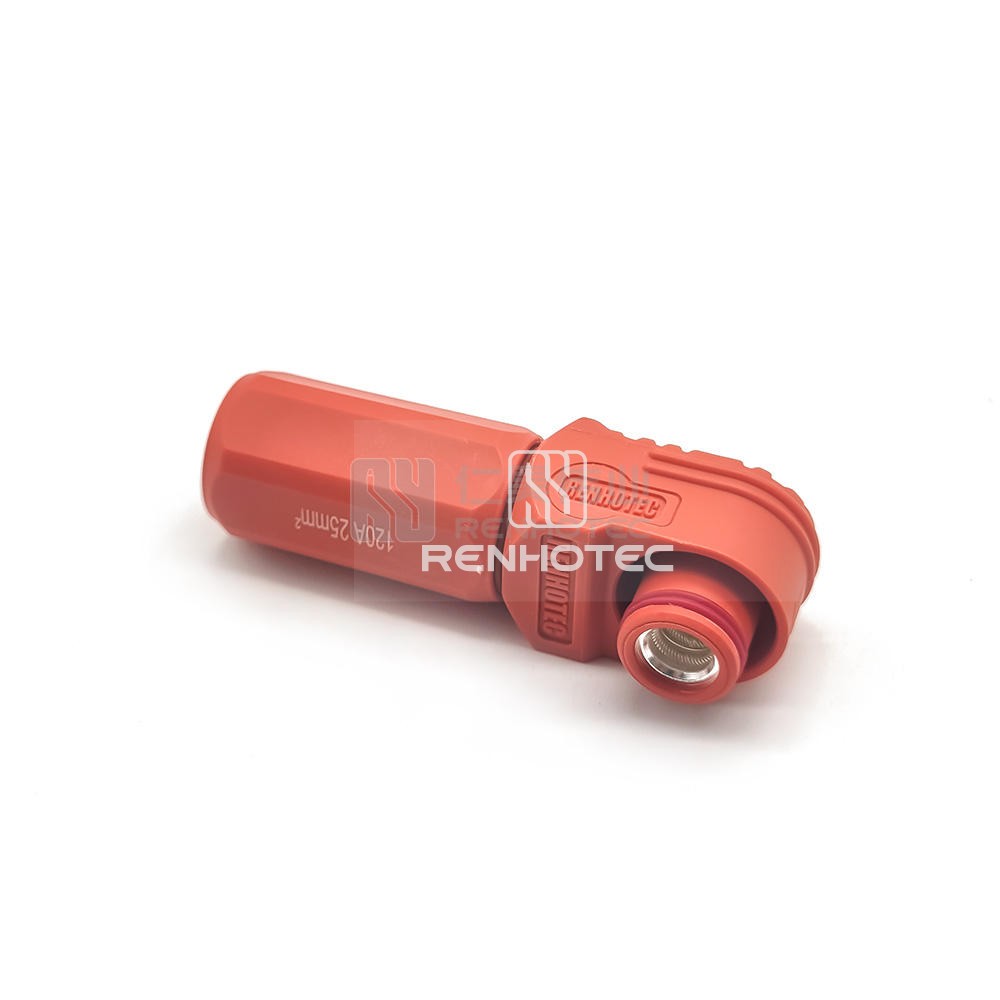

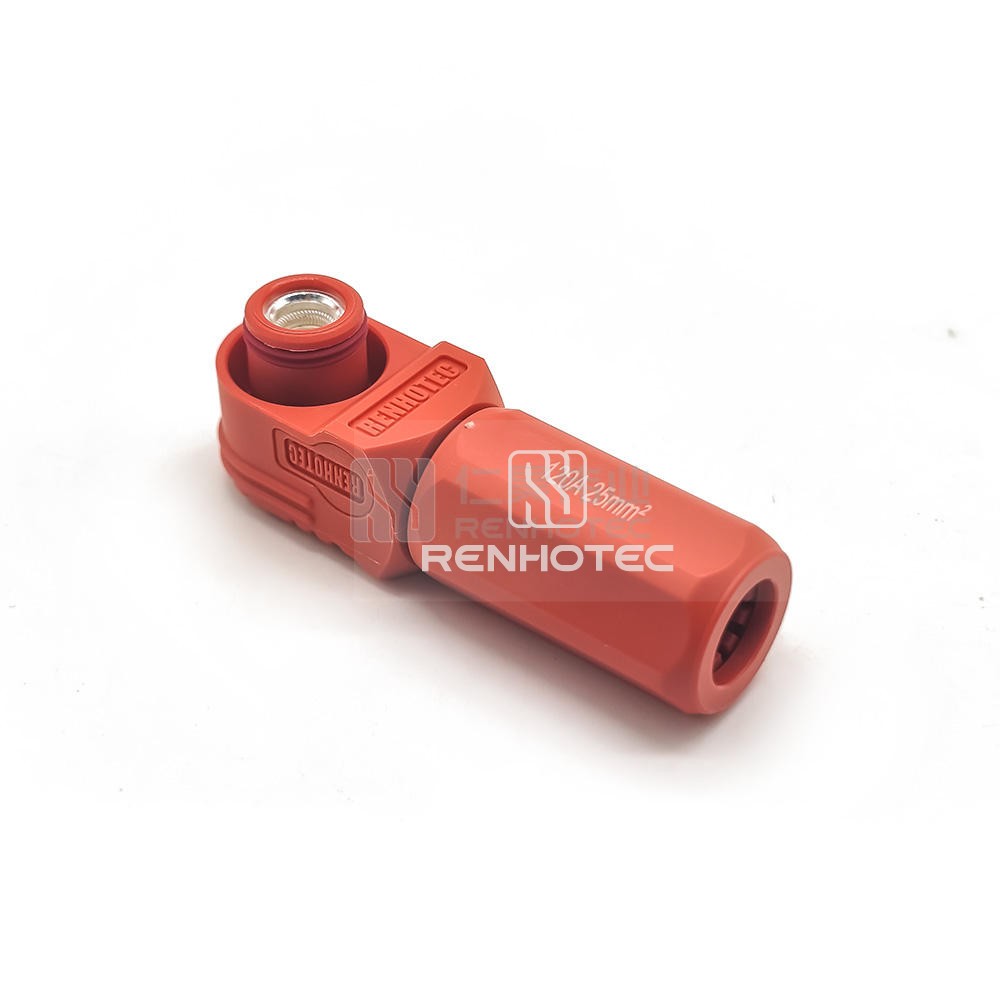

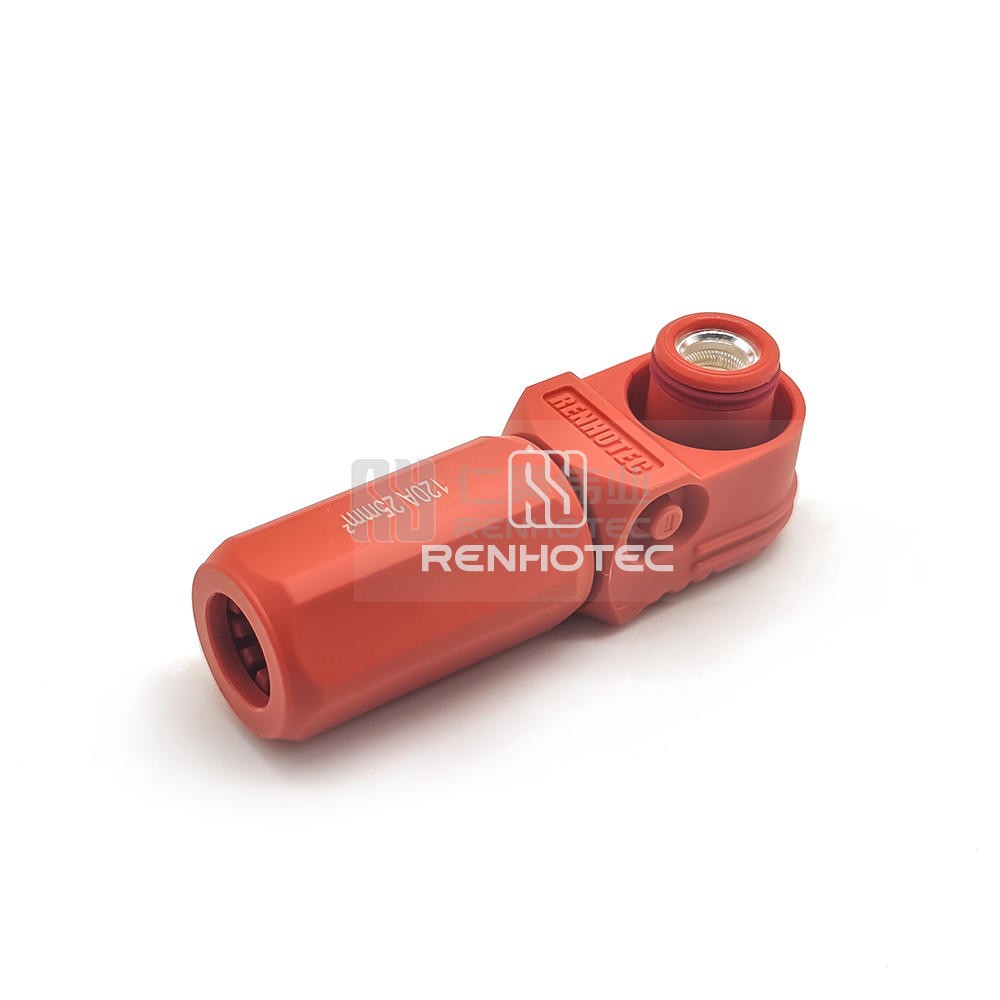

6.0mm Power Entry Connector 120A Cable Plug 25mm² Unshielded Cable Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Enhance your power connections with this 6.0mm Power Entry Connector featuring a high 120A capacity, suitable for 25mm² unshielded cables in a vibrant red color. Upgrade your electronic setups with reliability and efficiency.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
