Products > Energy Storage Connector > 6.0mm Power Entry Connector 120A Cable Plug Right angled 25mm² Unshielded Cable Black

FCC0625-F1BR

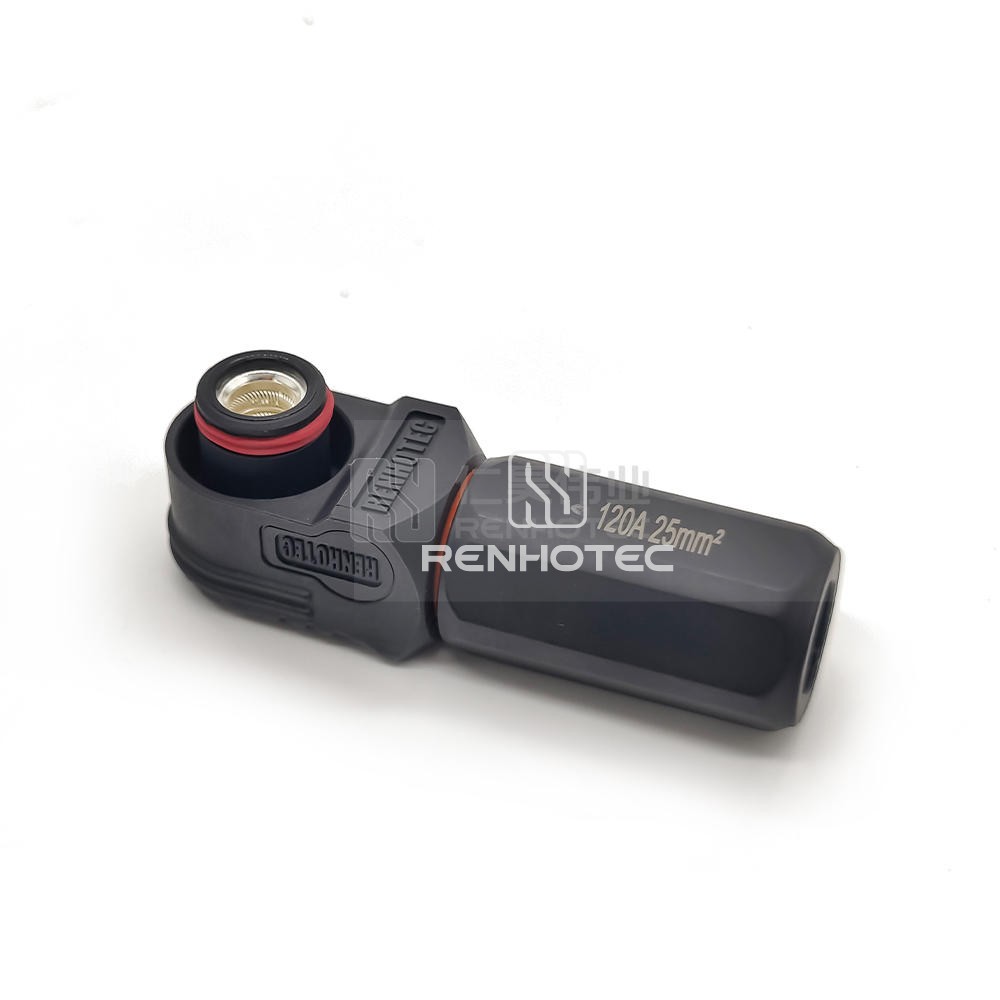

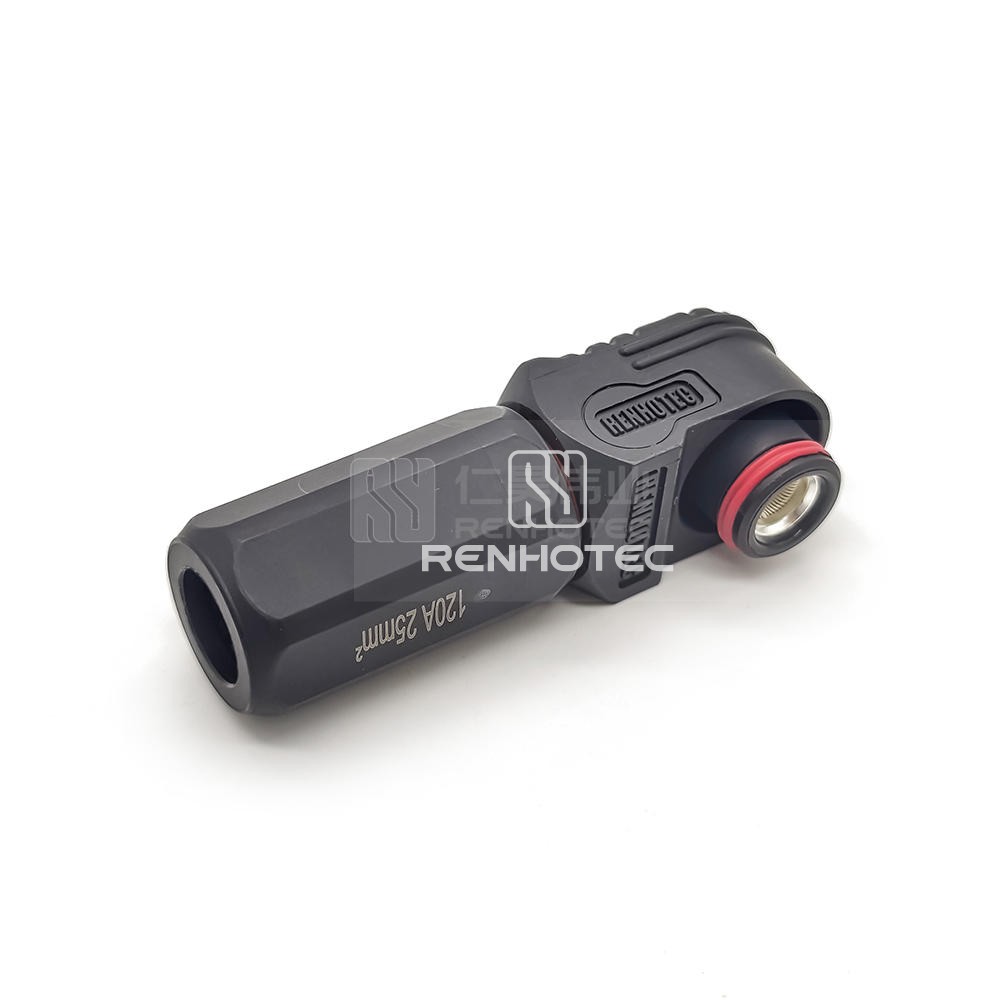

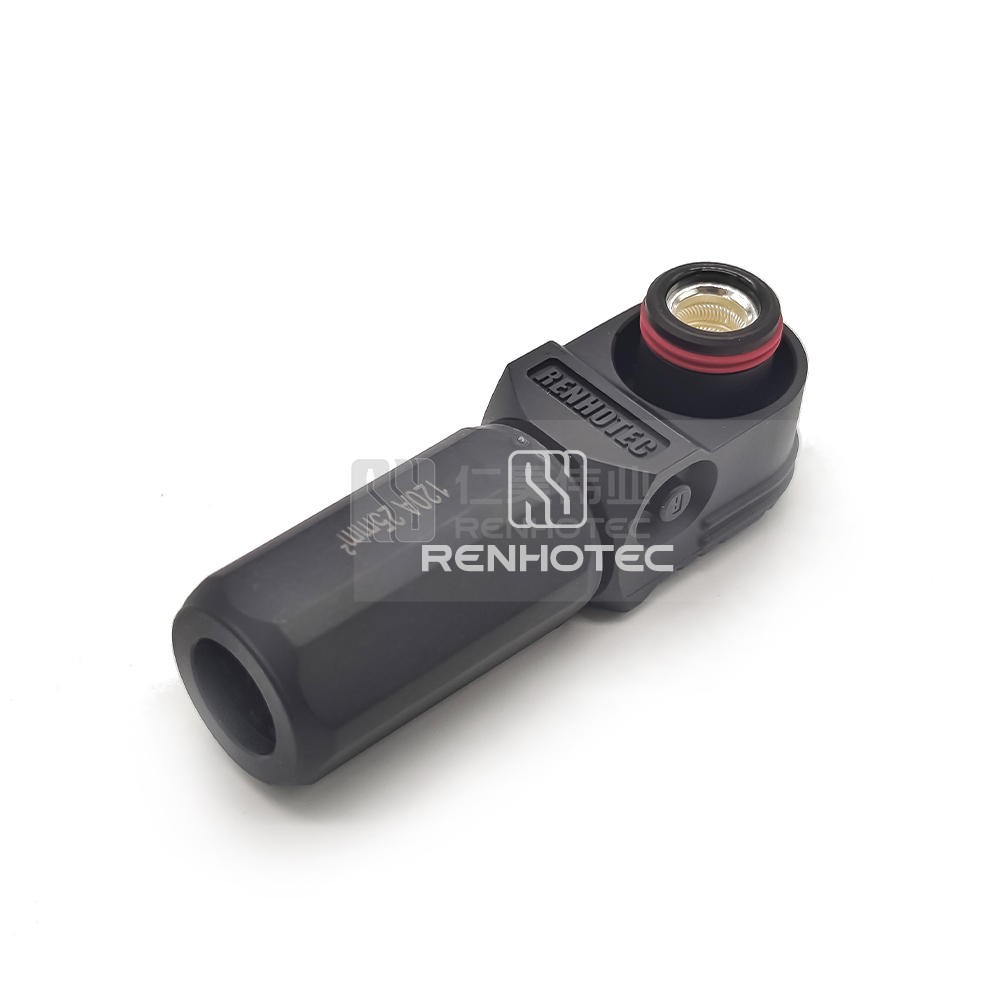

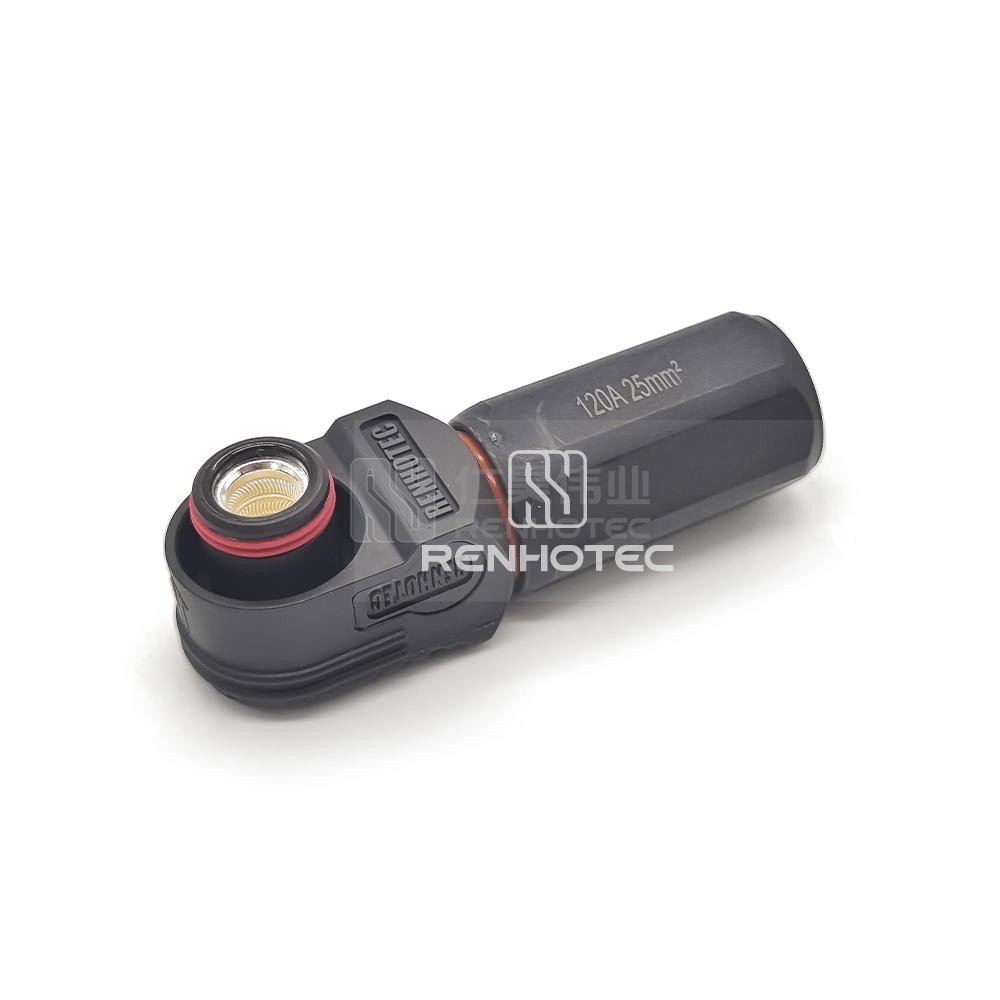

6.0mm Power Entry Connector 120A Cable Plug Right angled 25mm² Unshielded Cable Black

This Power Entry Connector features a 6.0mm plug suitable for cables up to 25mm², capable of handling 120A of power. The right-angled design helps in space-saving applications. Unshielded and color-coordinated in black, this connector provides a reliable power input solution.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
