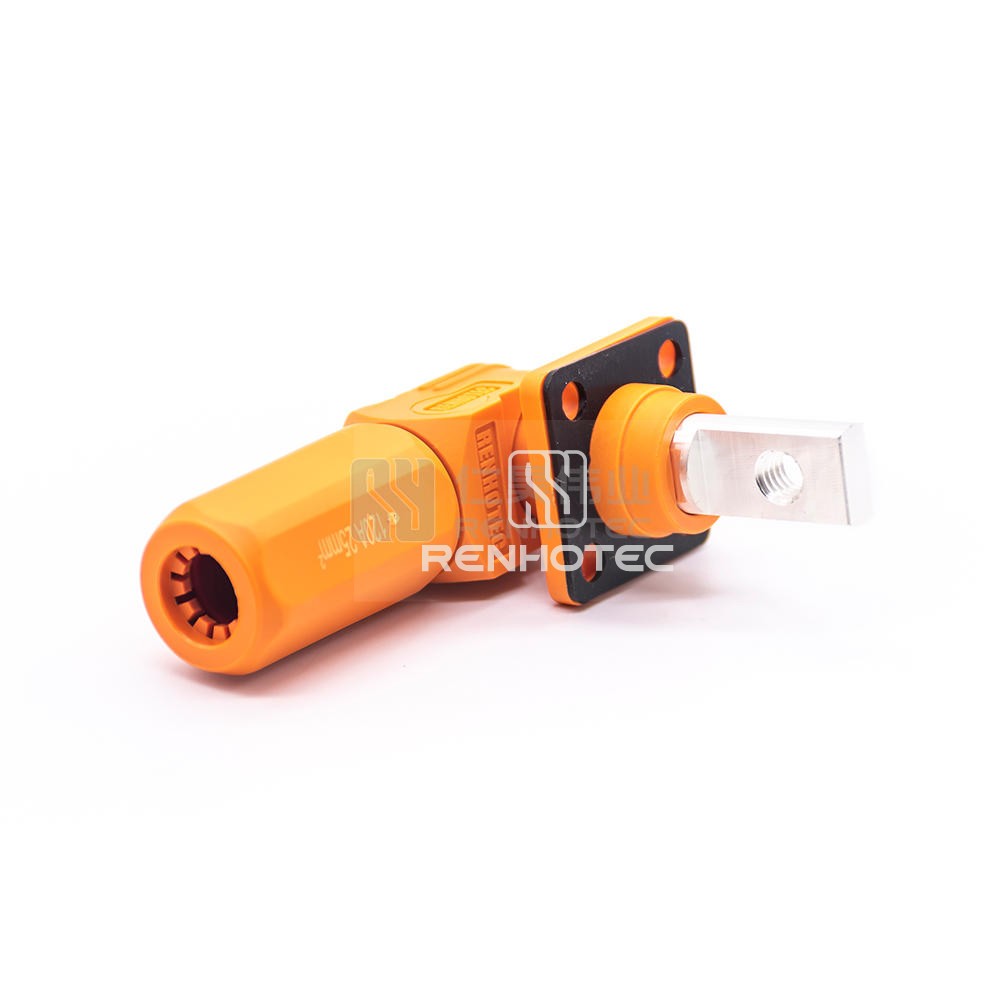

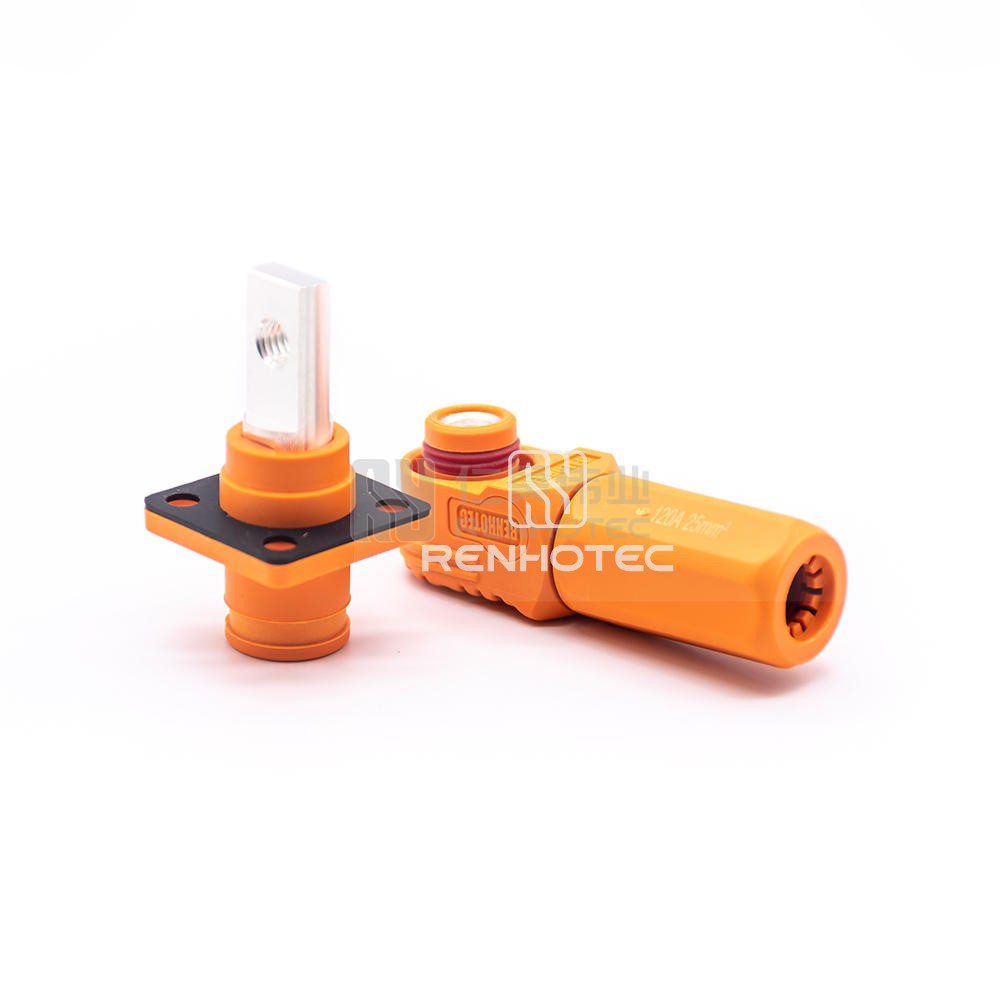

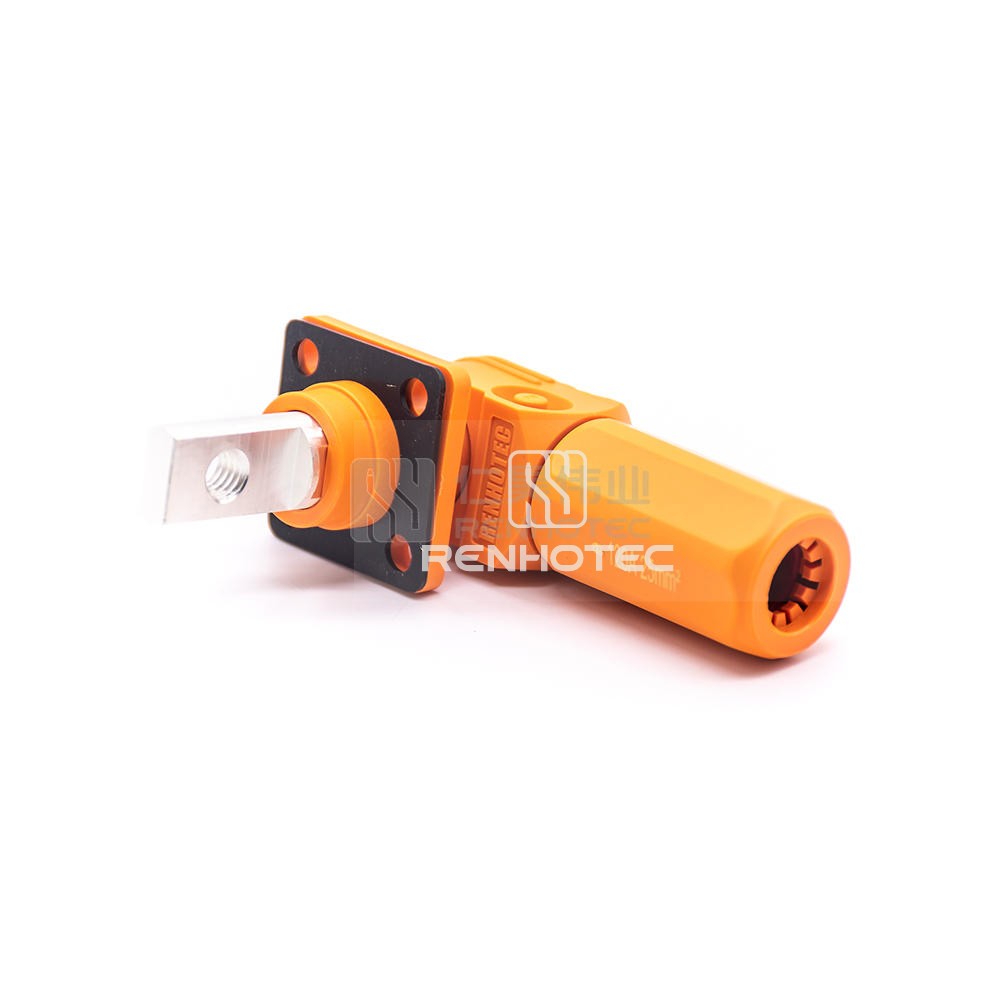

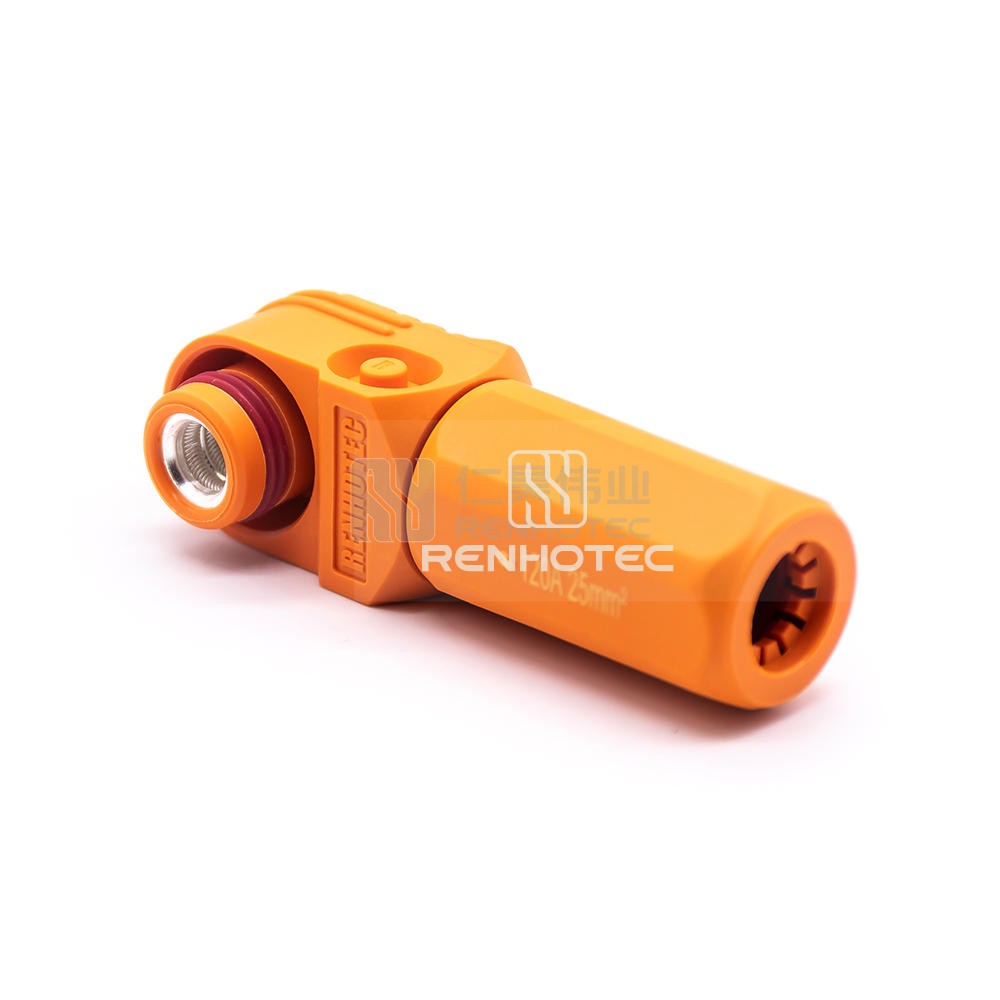

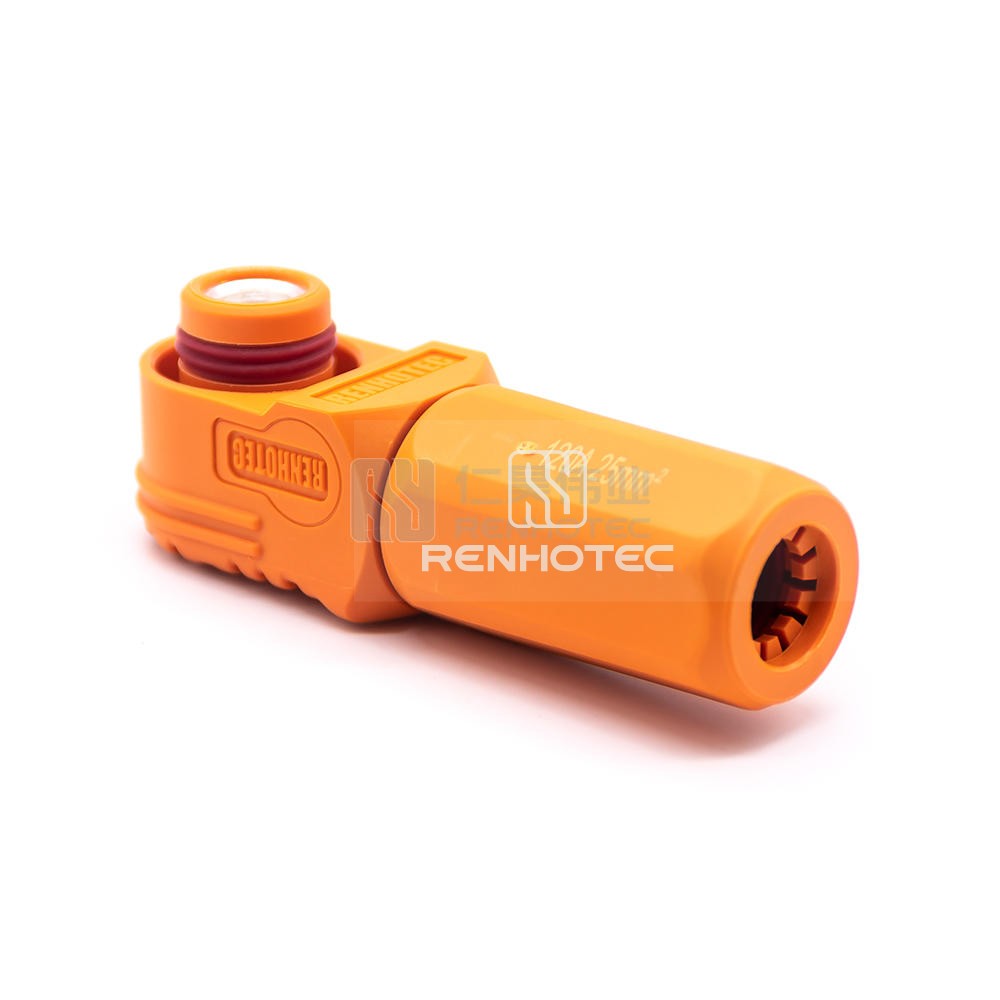

This 6.0mm Power Entry Connector features a 120A cable plug, right-angled design, and is compatible with 25mm² unshielded cables in a vibrant orange color. Perfect for high-power applications with easy connectivity in confined spaces.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 6mm |
Contact Termination | Crimp |
Color | Orange |
Electrical
Rated Voltage | 1000V |
Rated Current | 120A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 25mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP54 |
Operating Temperature | -40°C ~ + 125°C |
