Products > Energy Storage Connector > 6.0mm Power Entry Connector 120A Cable Plug Right angled 25mm² Unshielded Cable Red

RHT-P006-C25-RD

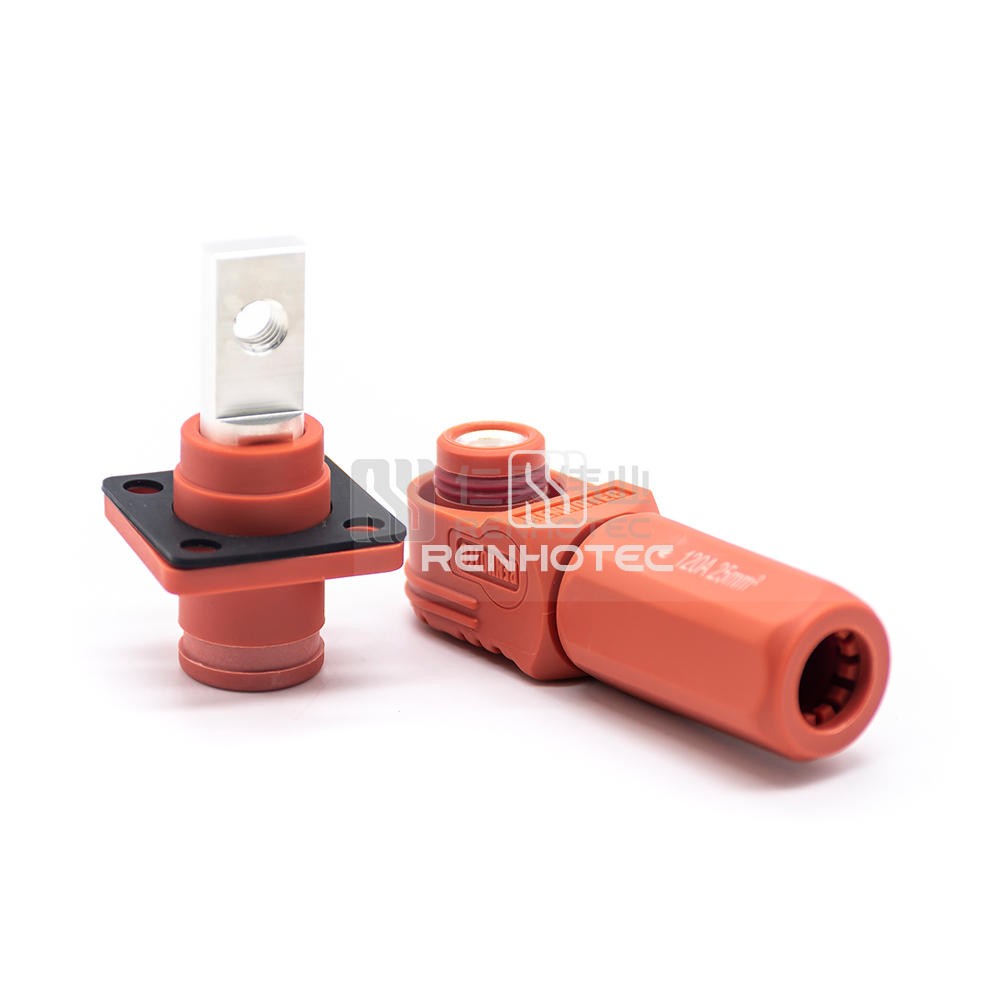

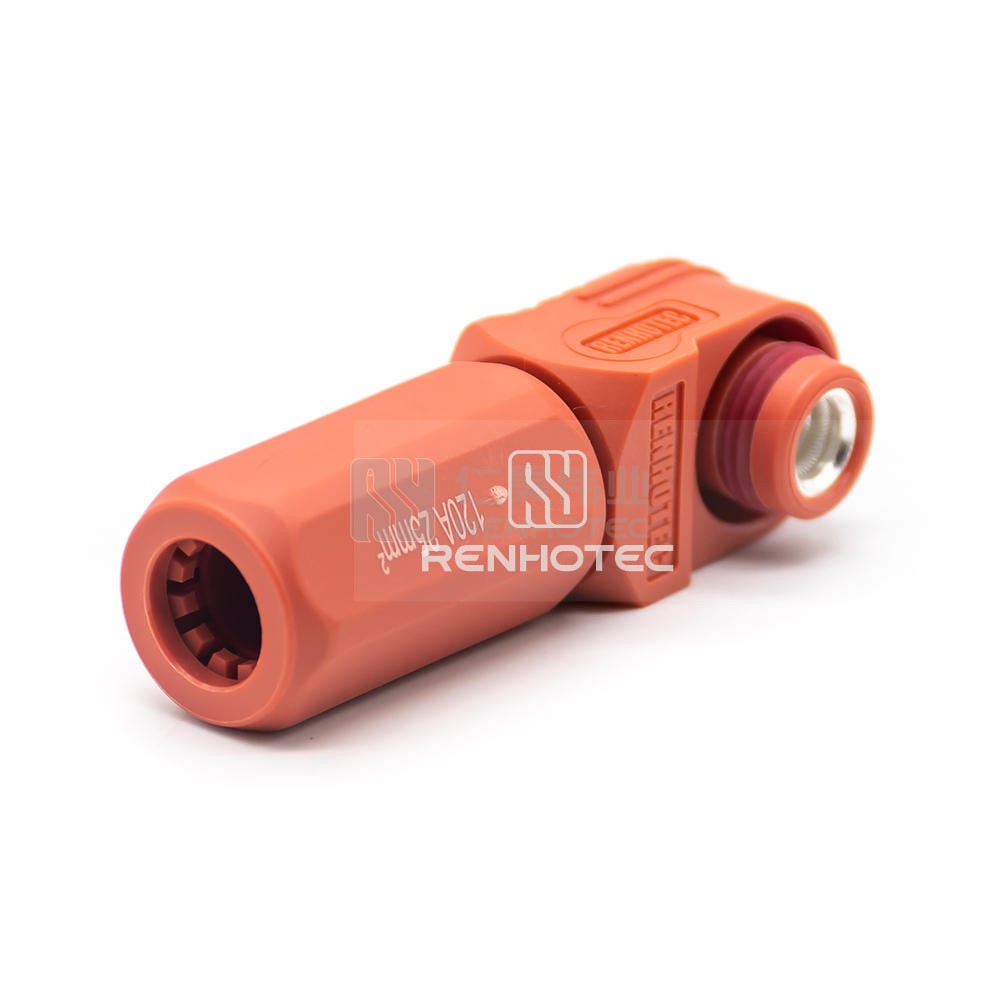

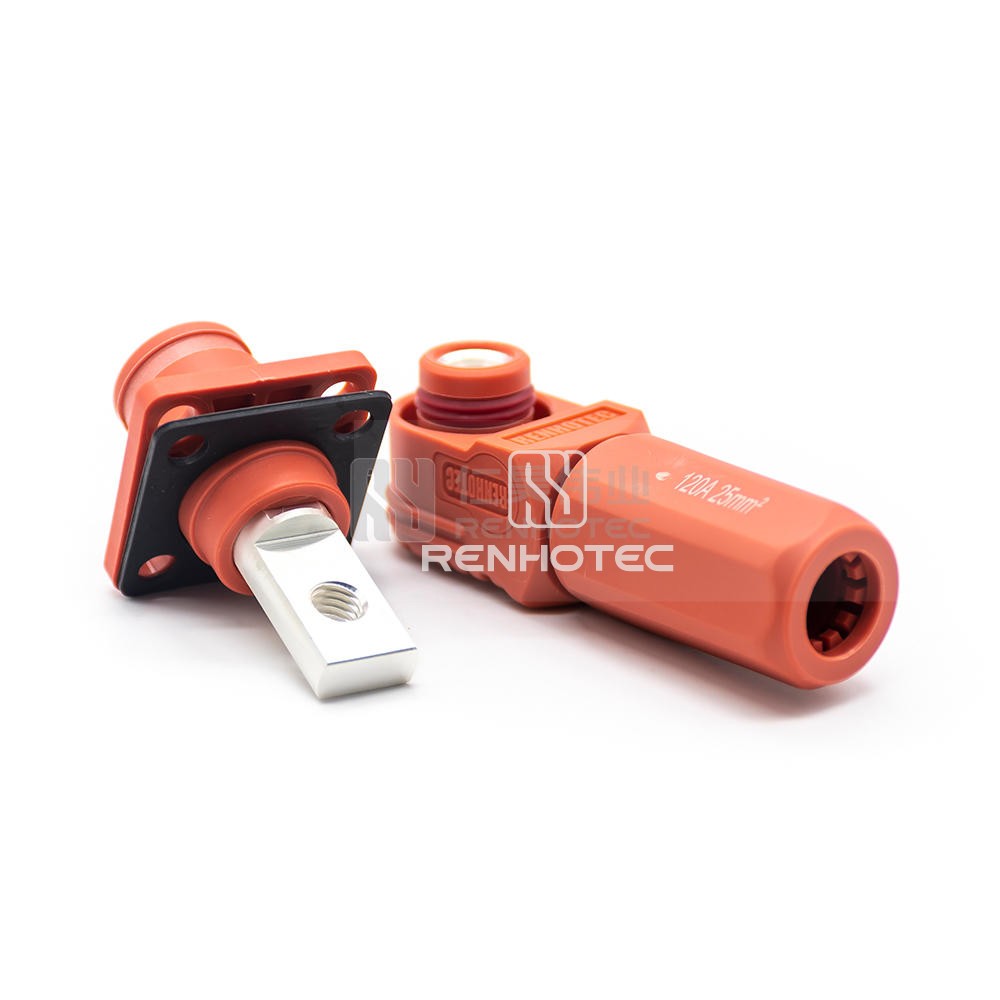

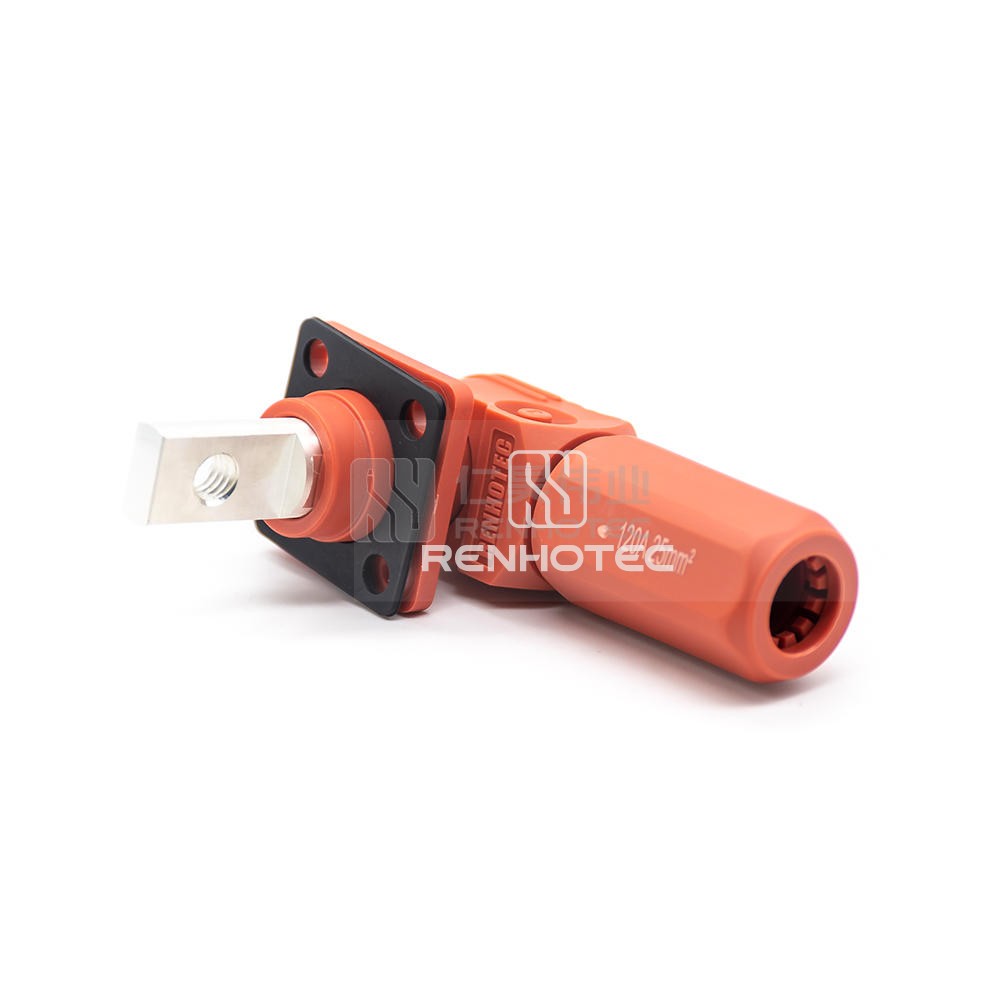

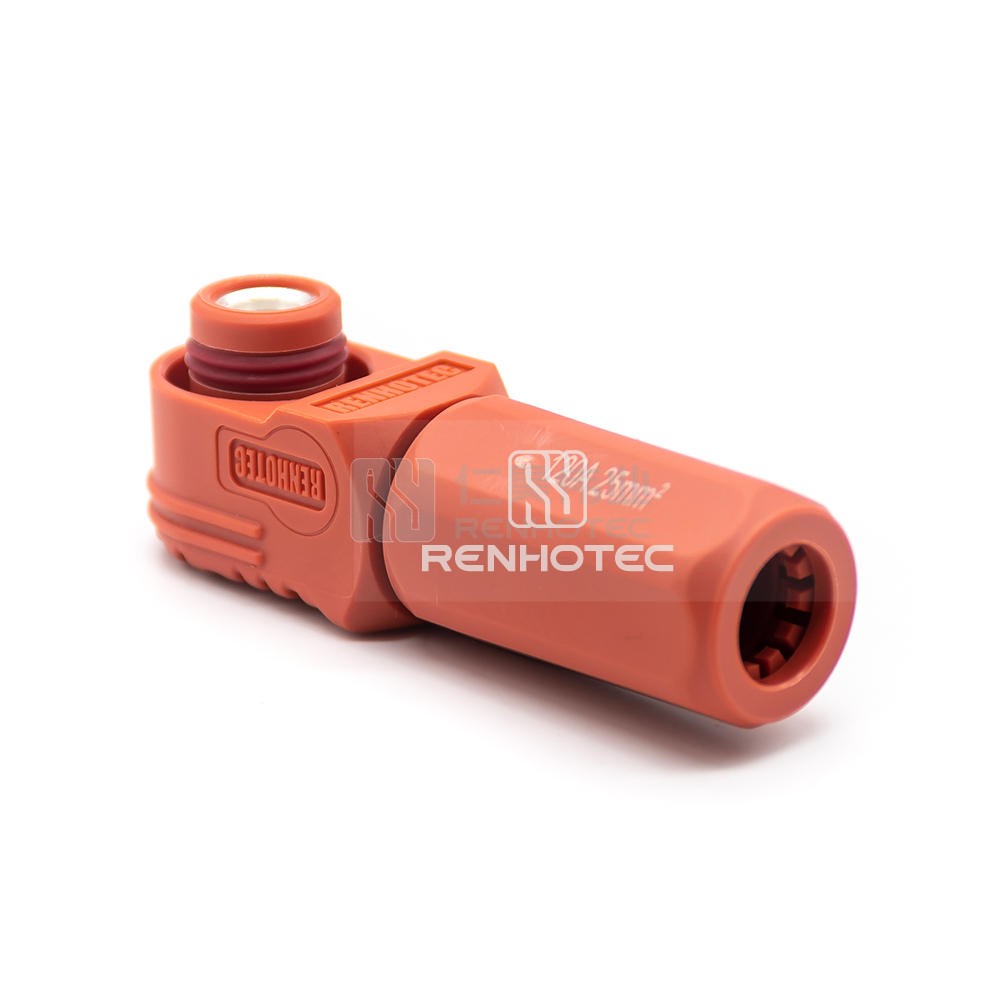

6.0mm Power Entry Connector 120A Cable Plug Right angled 25mm² Unshielded Cable Red

This 6.0mm power entry connector features a 120A capacity, right-angled design, and is suitable for 25mm² unshielded cables in a vibrant red color. Enhance your electrical project with this reliable and convenient connector.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×
    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
