Products > Energy Storage Connector > 6.0mm Power Entry Connector 125A Receptacle Busbar Teminal Orange Z Key

FSP220160CZ-UA63ARH

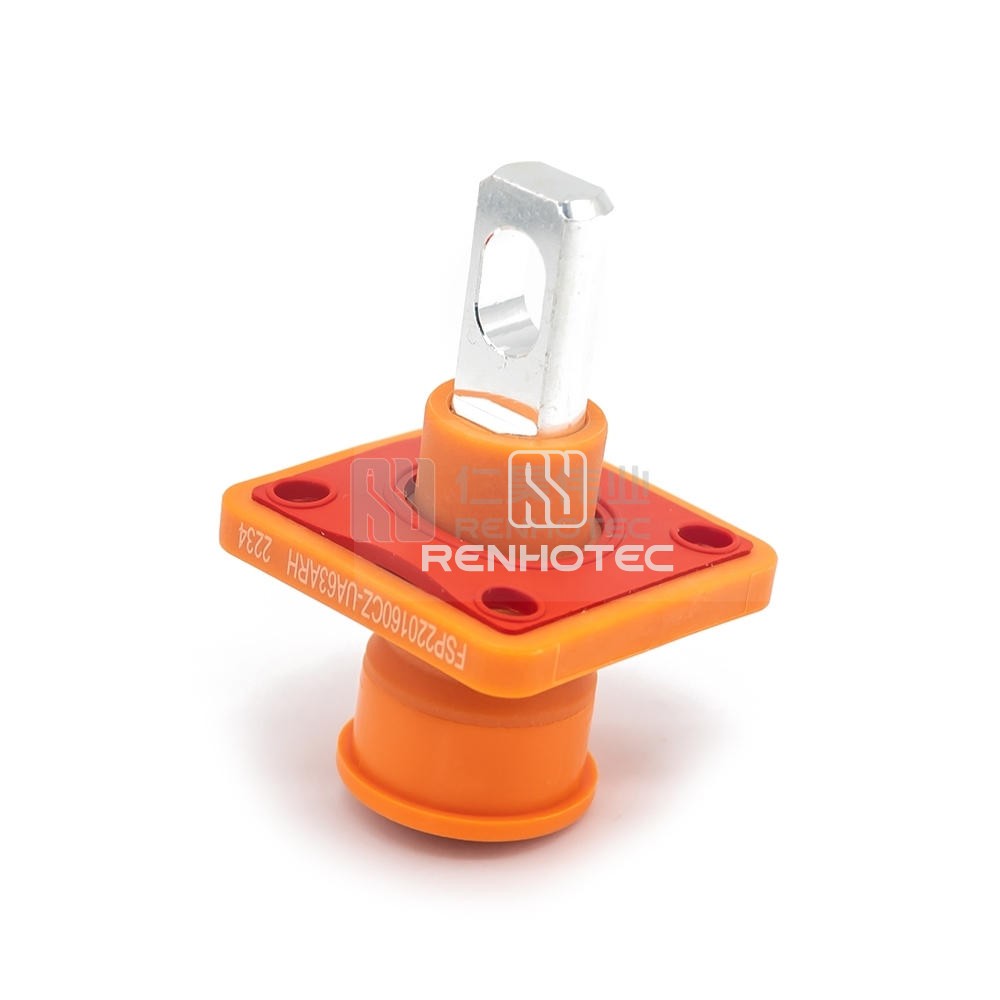

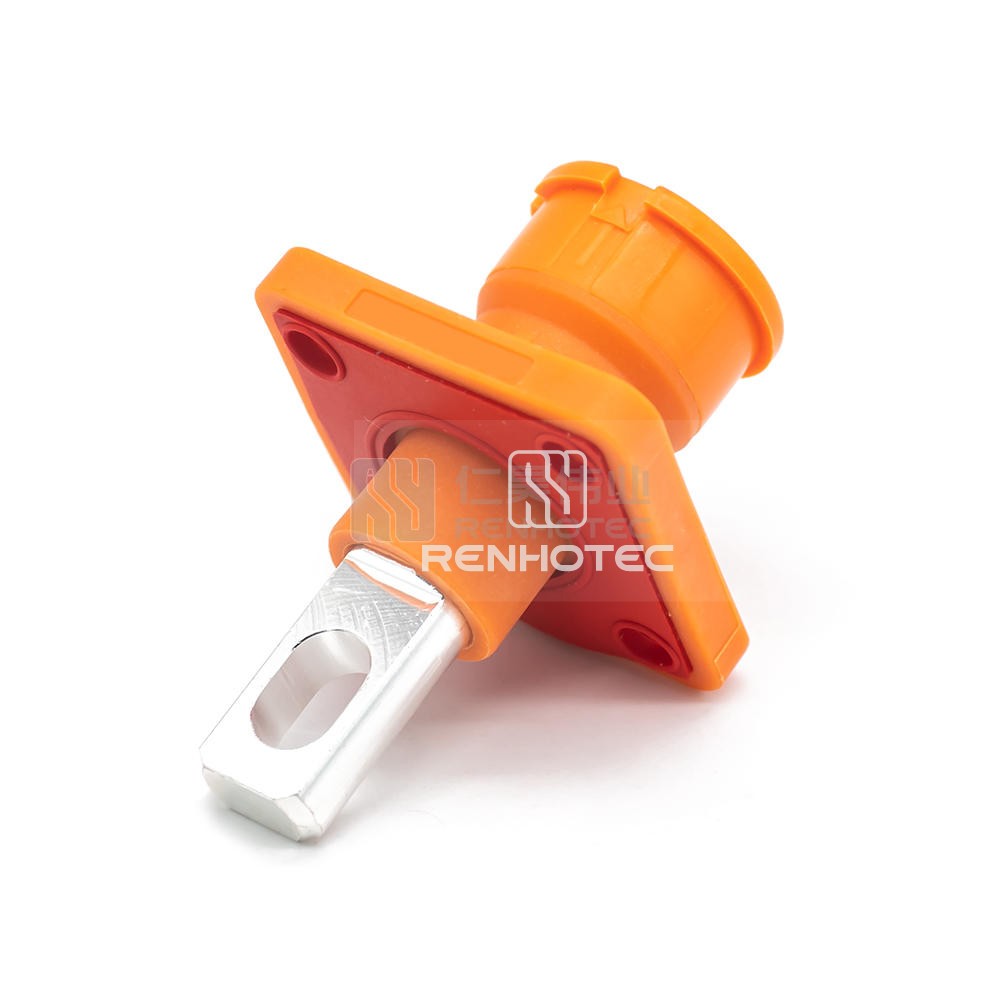

6.0mm Power Entry Connector 125A Receptacle Busbar Teminal Orange Z Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Get secure power entry with this 6.0mm connector featuring a 125A receptacle and orange Z key design for easy identification.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationBusbar
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current125A
    ShieldingUnshielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialPA66
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
