Products > Energy Storage Connector > 6.0mm Power Entry Connector 125A Receptacle Teminal(M6 screw) Orange Z Key

FSP220160CZ-UM61ARH

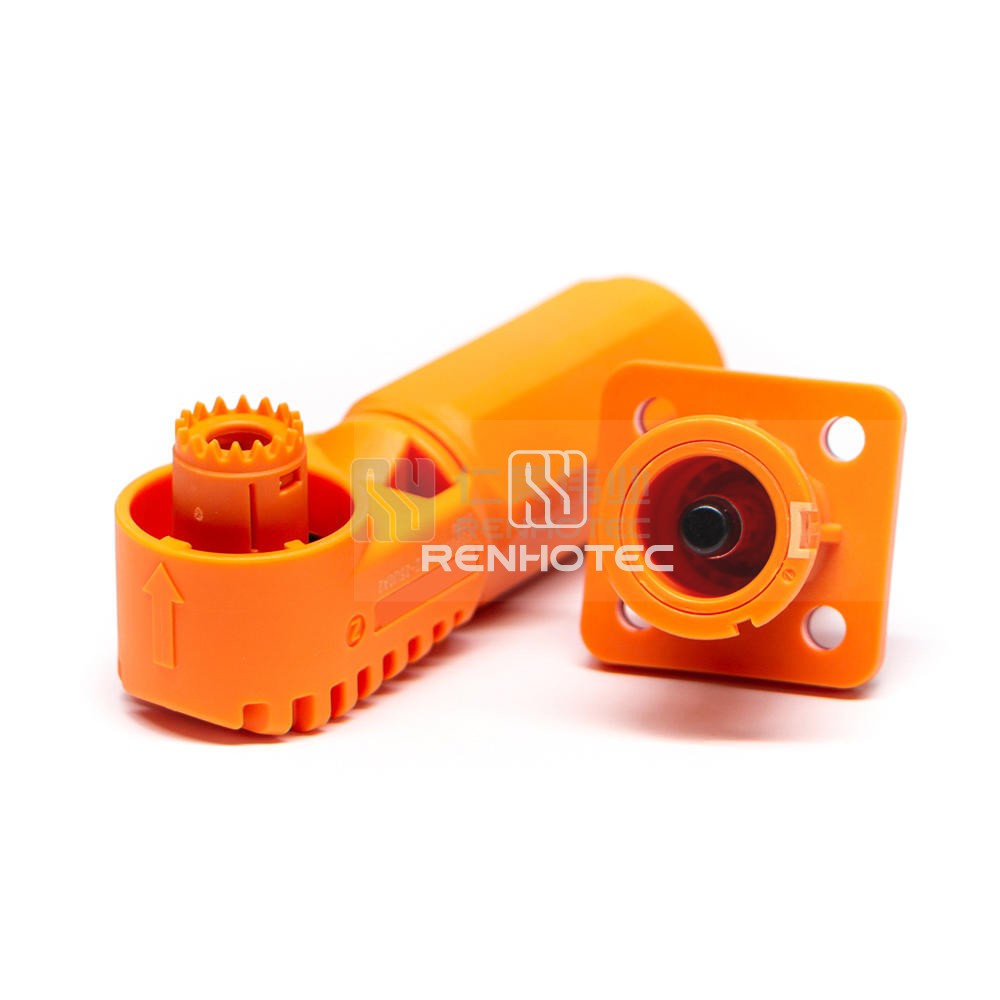

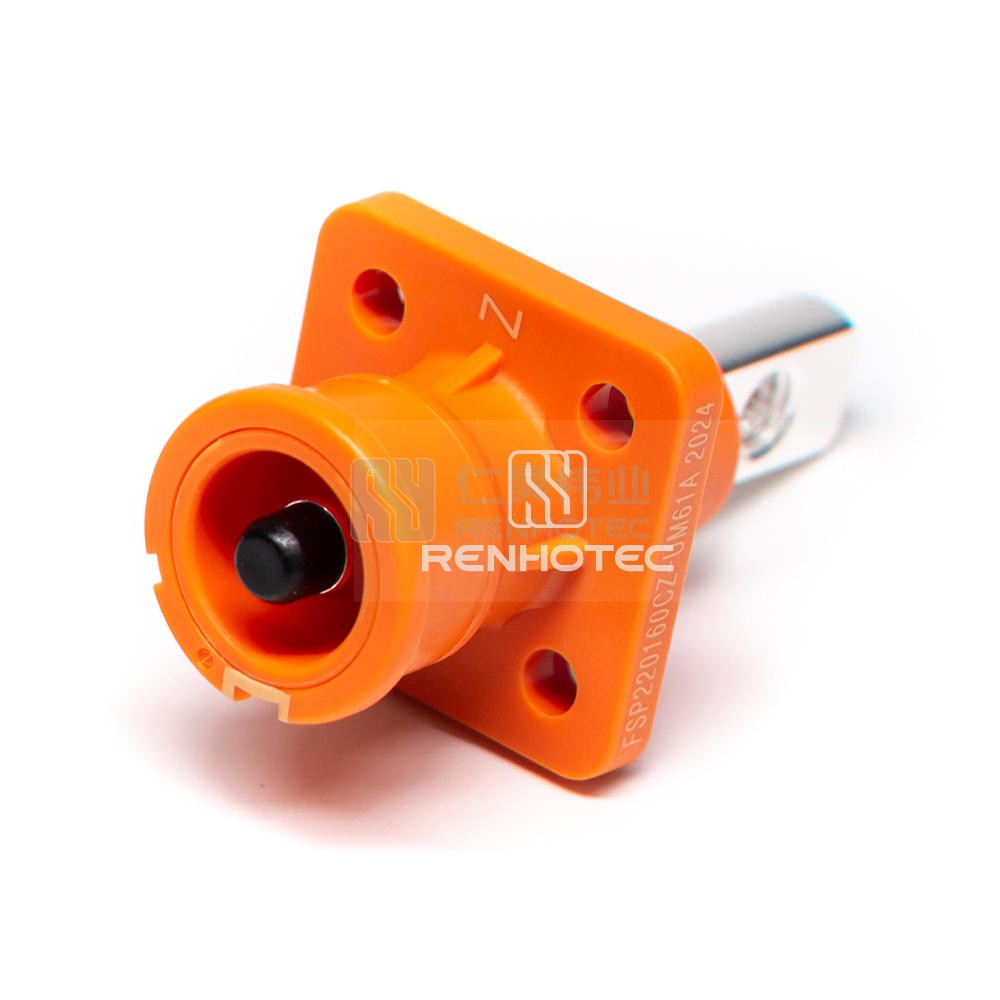

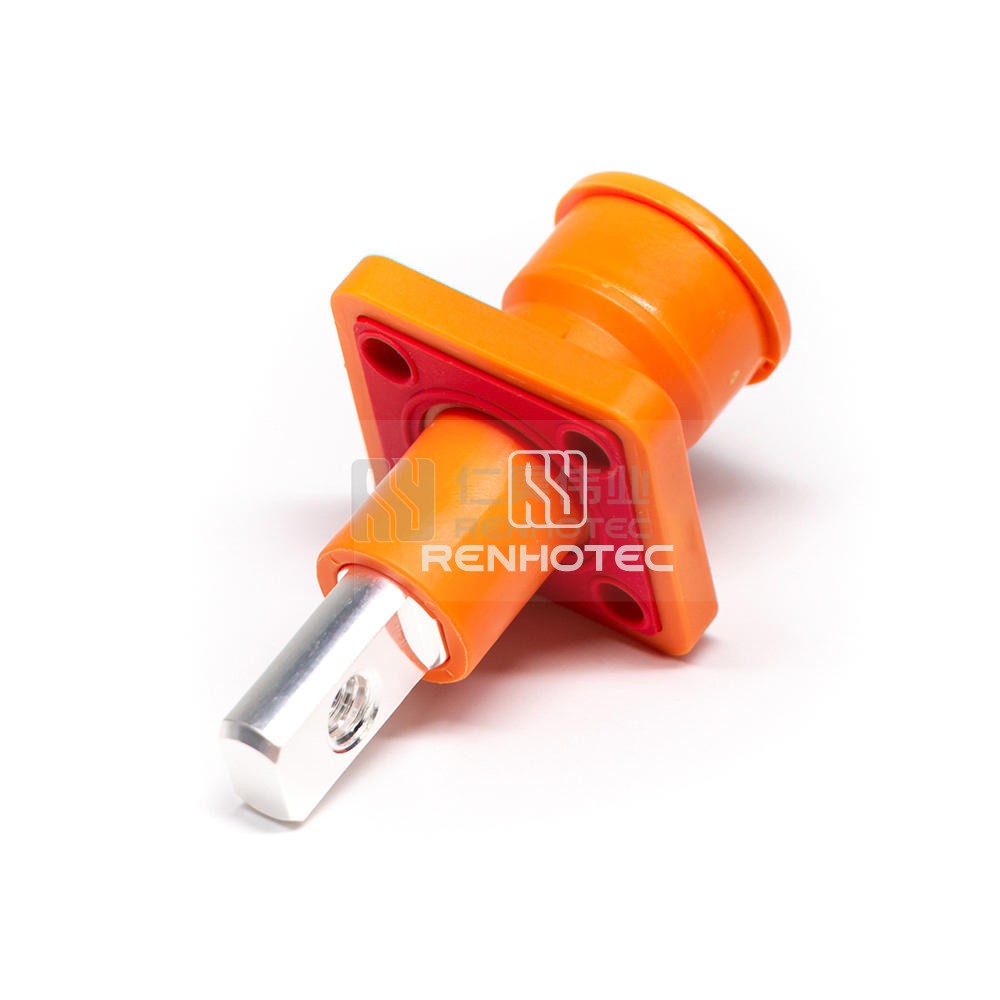

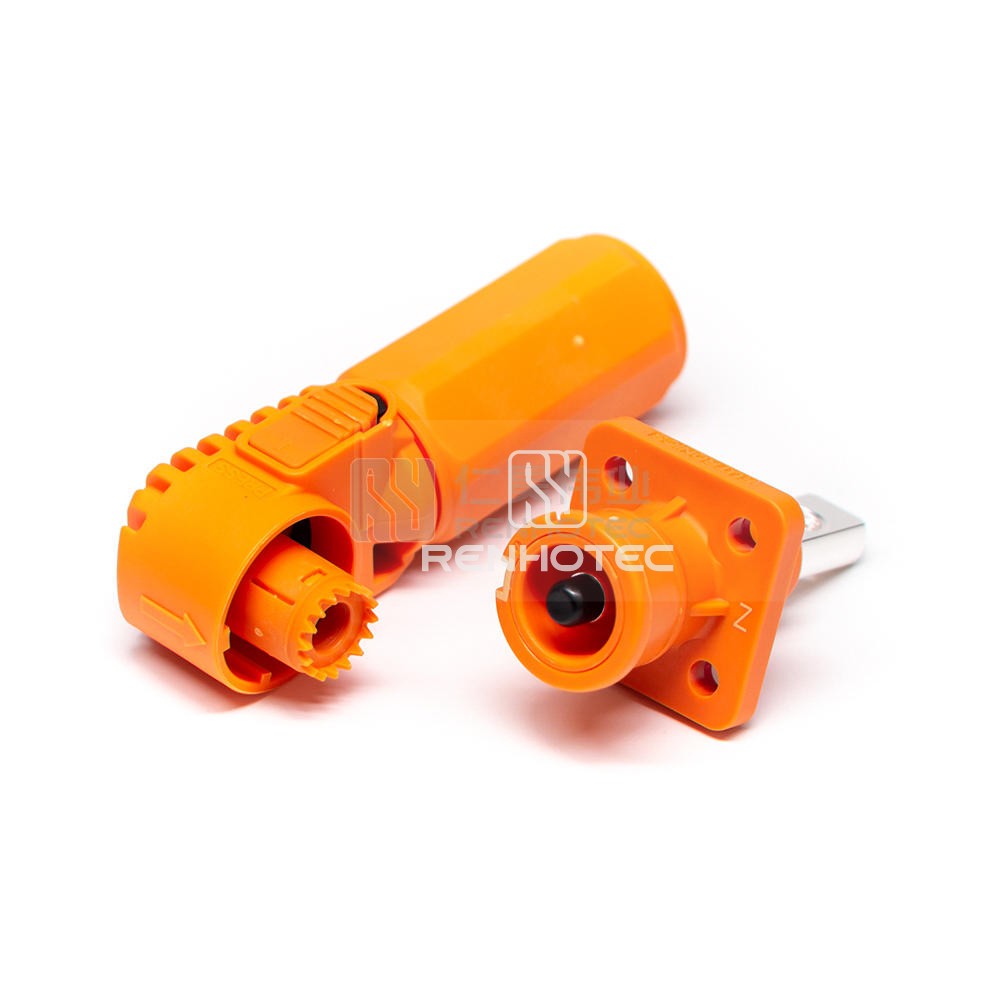

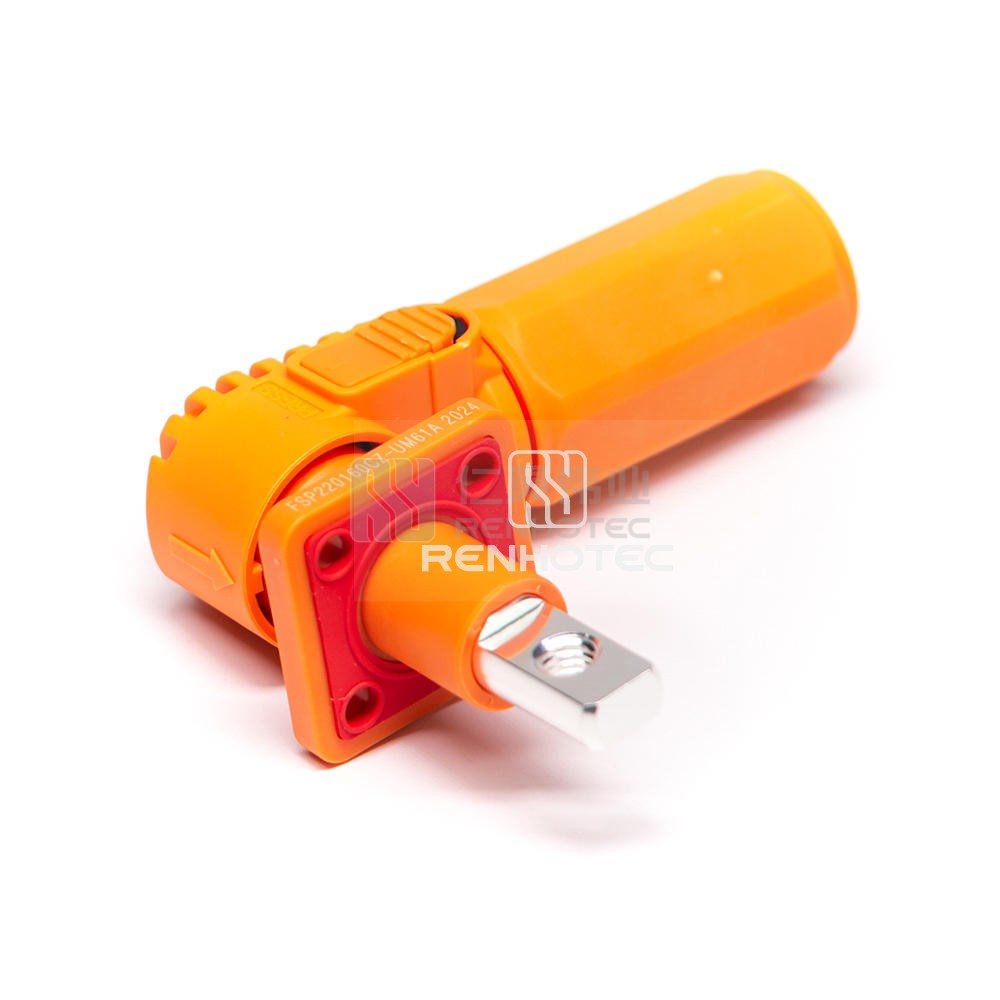

6.0mm Power Entry Connector 125A Receptacle Teminal(M6 screw) Orange Z Key

This 6.0mm power entry connector features a high current capacity of 125A, receptacle terminal with M6 screw, and a distinctive orange Z key design. Ensure secure power connections with this reliable and unique connector.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationBusbar
    Mounting TypePanel Mount
    Mounting FeatureFlange
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current125A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
