Products > Energy Storage Connector > 6.0mm Waterproof Battery Storage Connector Straight 70A Orange 10mm² UnShielded Cable Z Key

FSP600160CZ-10U0A2RH

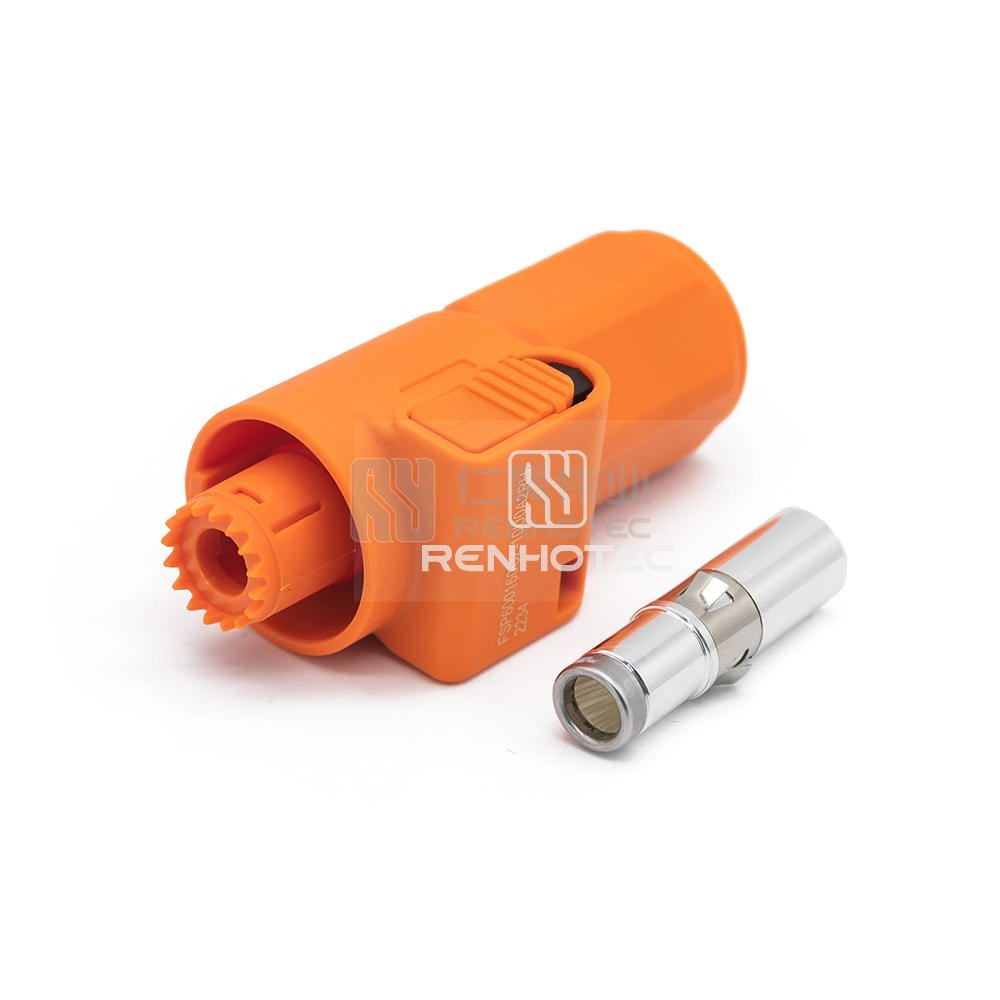

6.0mm Waterproof Battery Storage Connector Straight 70A Orange 10mm² UnShielded Cable Z Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    This 6.0mm Waterproof Battery Storage Connector features a straight design with a 70A capacity in vibrant orange color. The 10mm² UnShielded Cable with Z key ensures secure and efficient power delivery for your electronic devices.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current70A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range10mm²

    Material

    Shell MaterialPA66
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
