Products > HVIL Series Connector > 6 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight
- Overview
- Technical data
- Catalog
- Certificate
Product certification

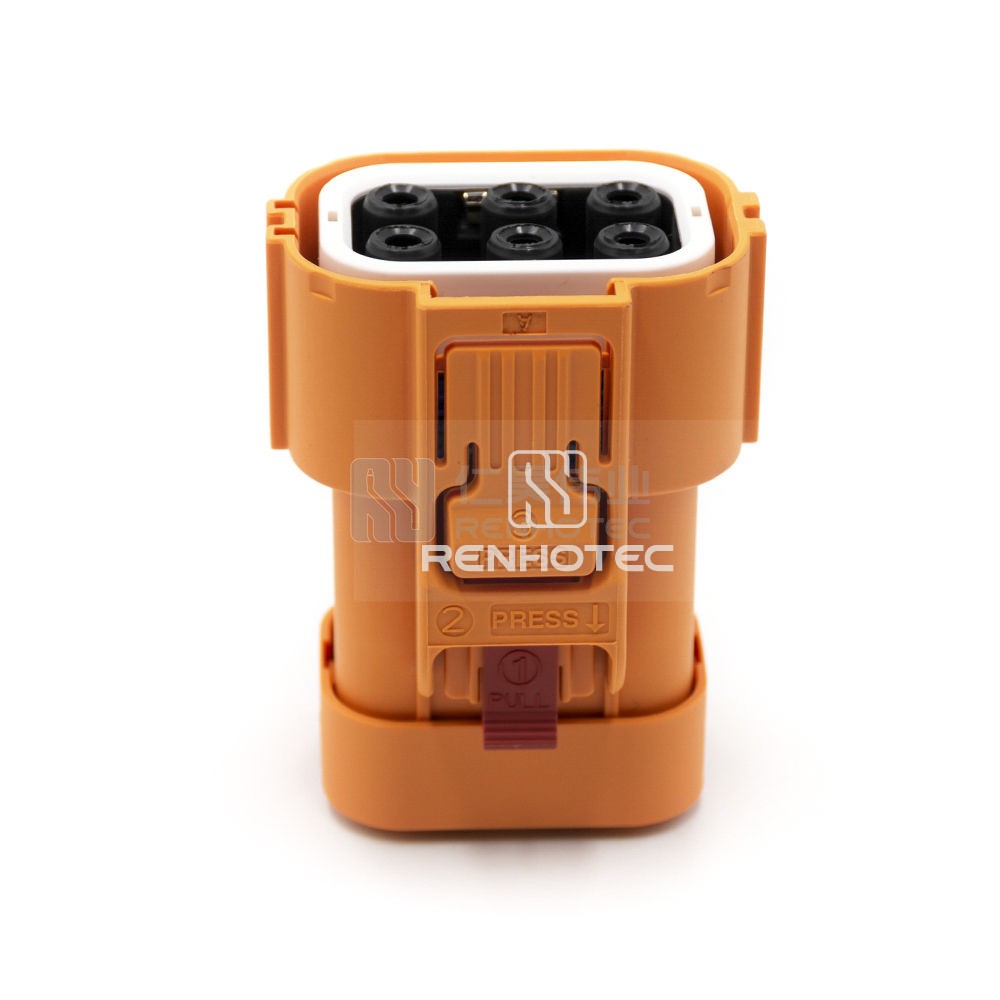

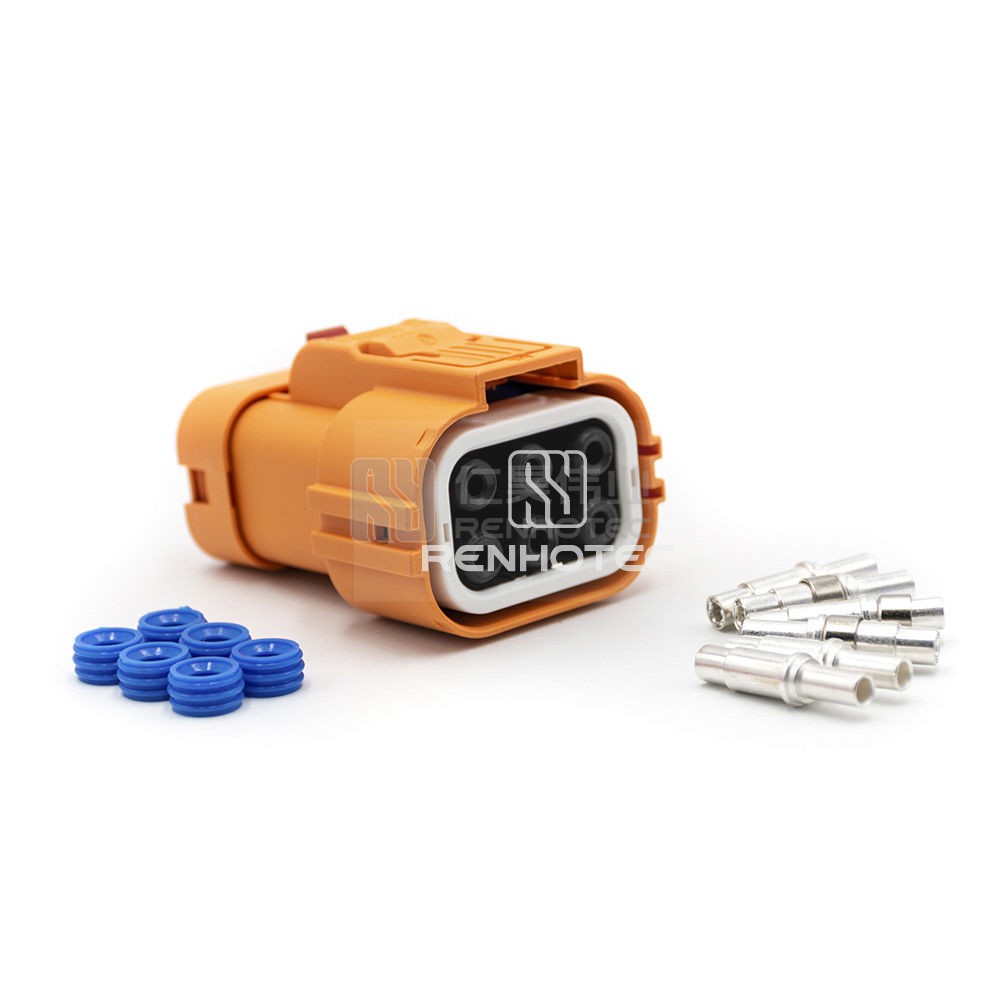

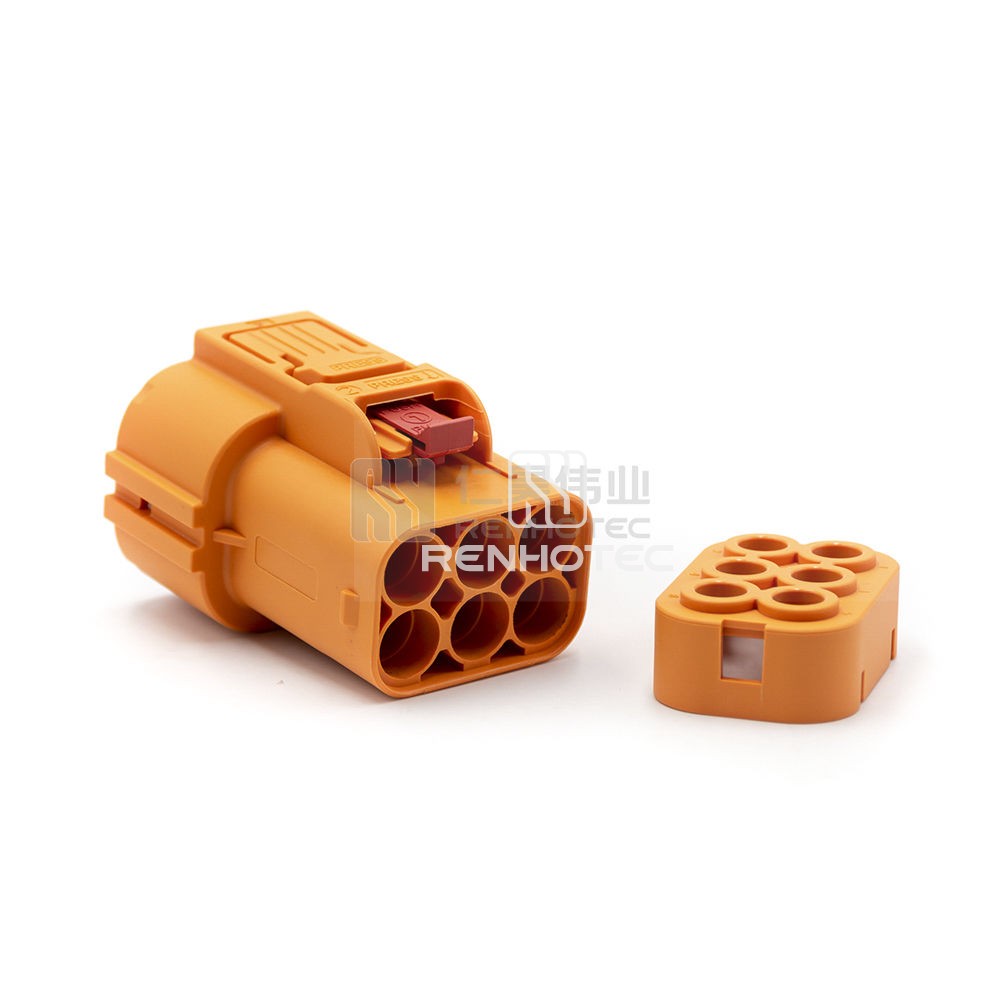

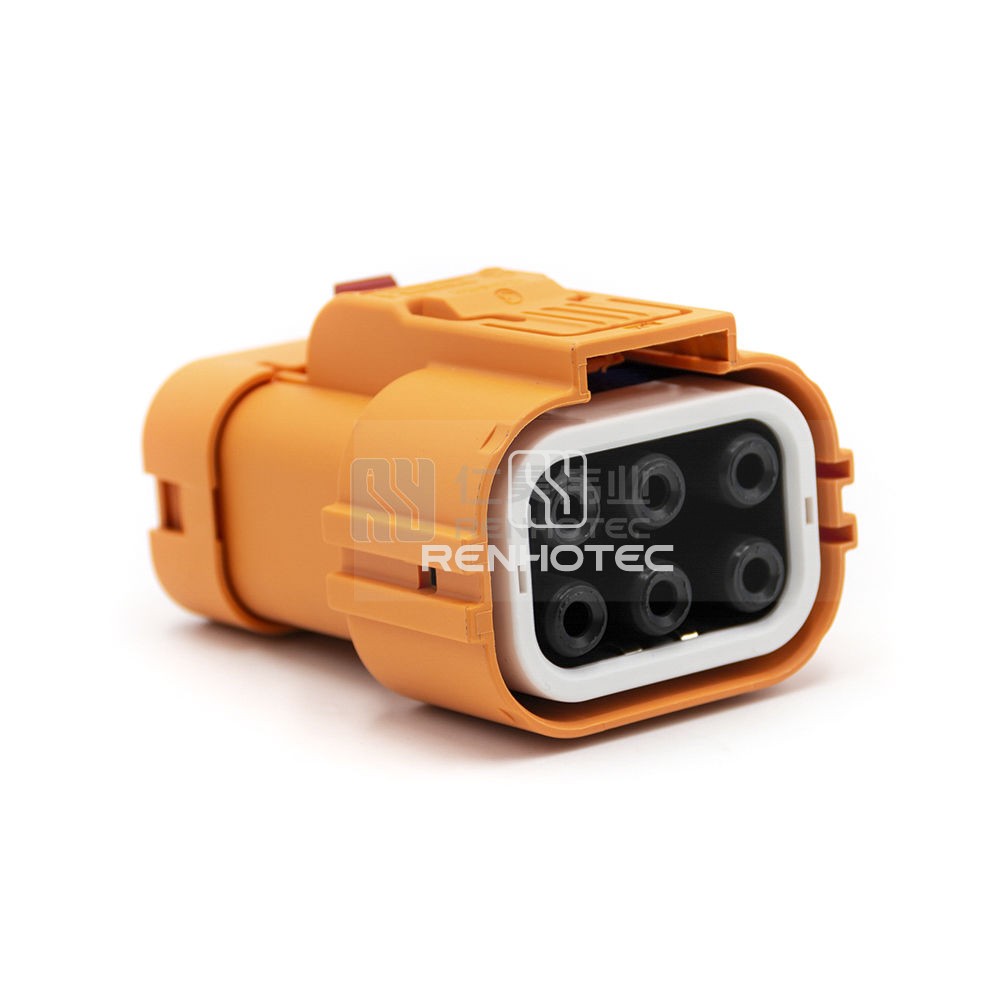

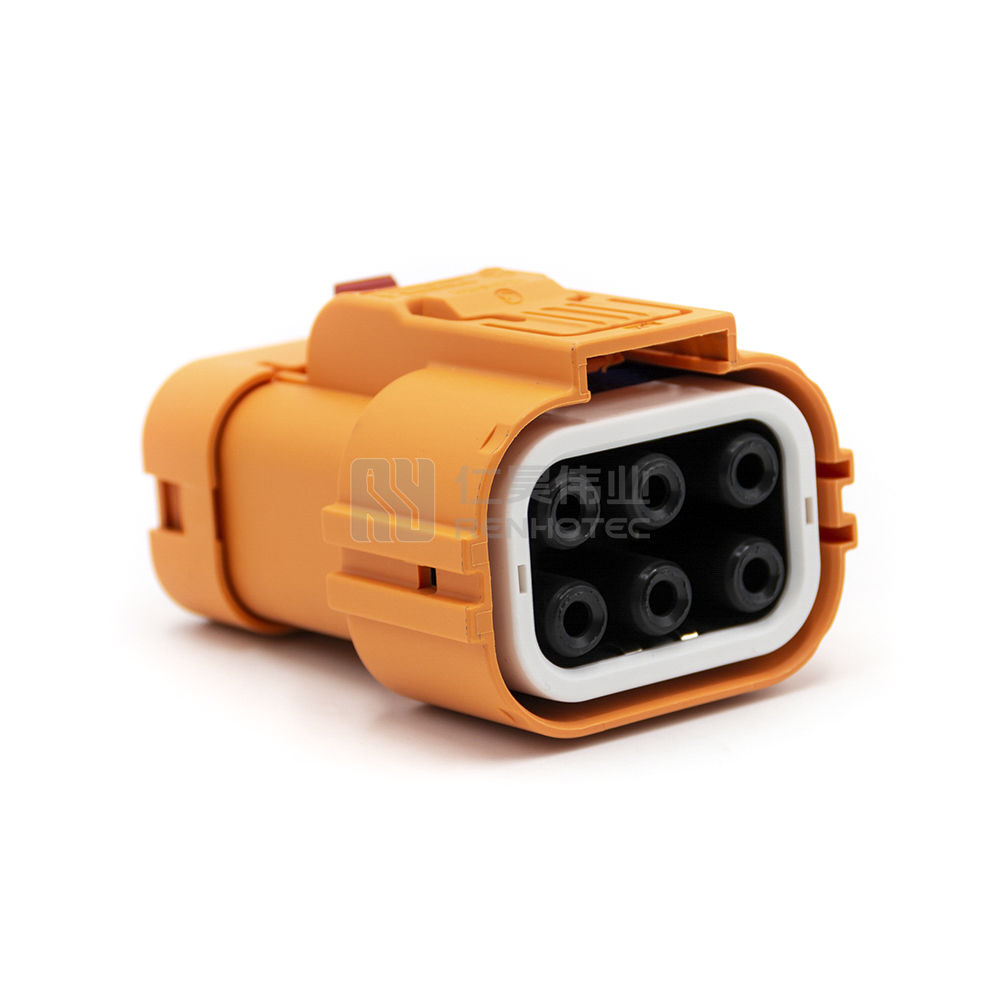

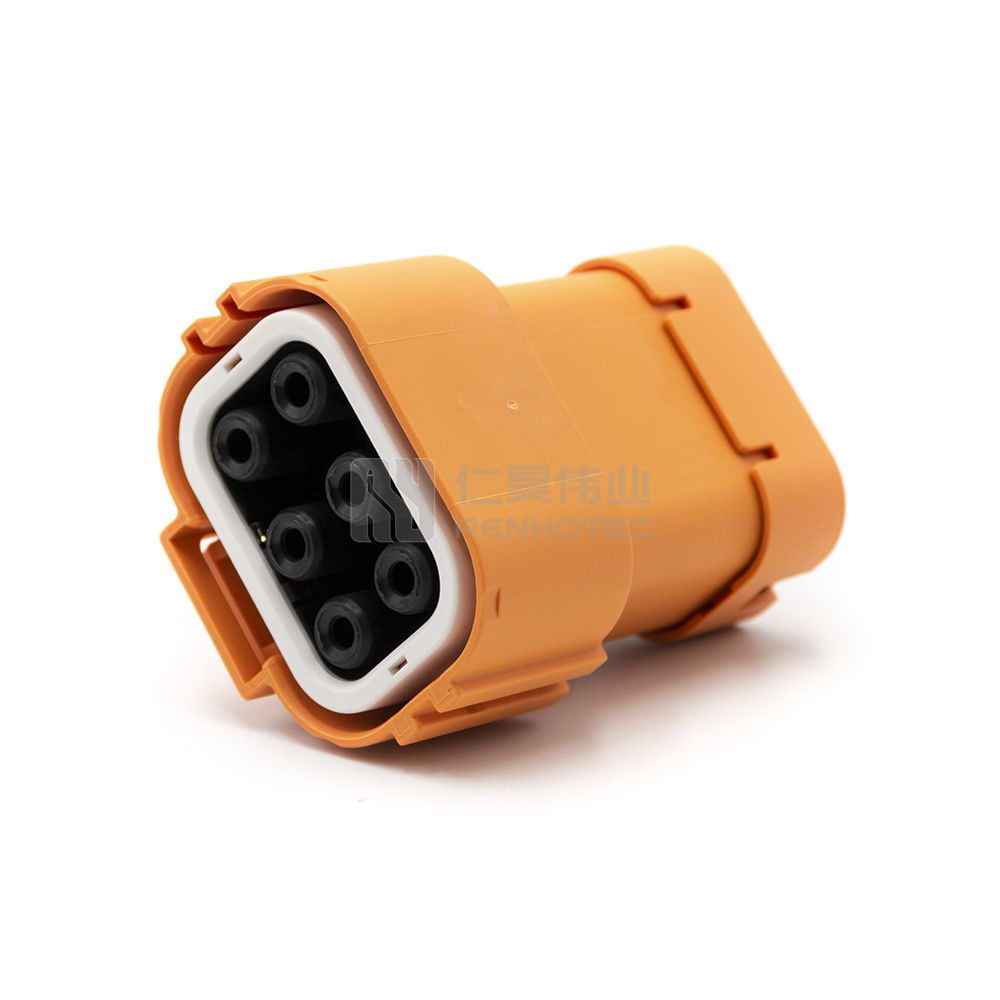

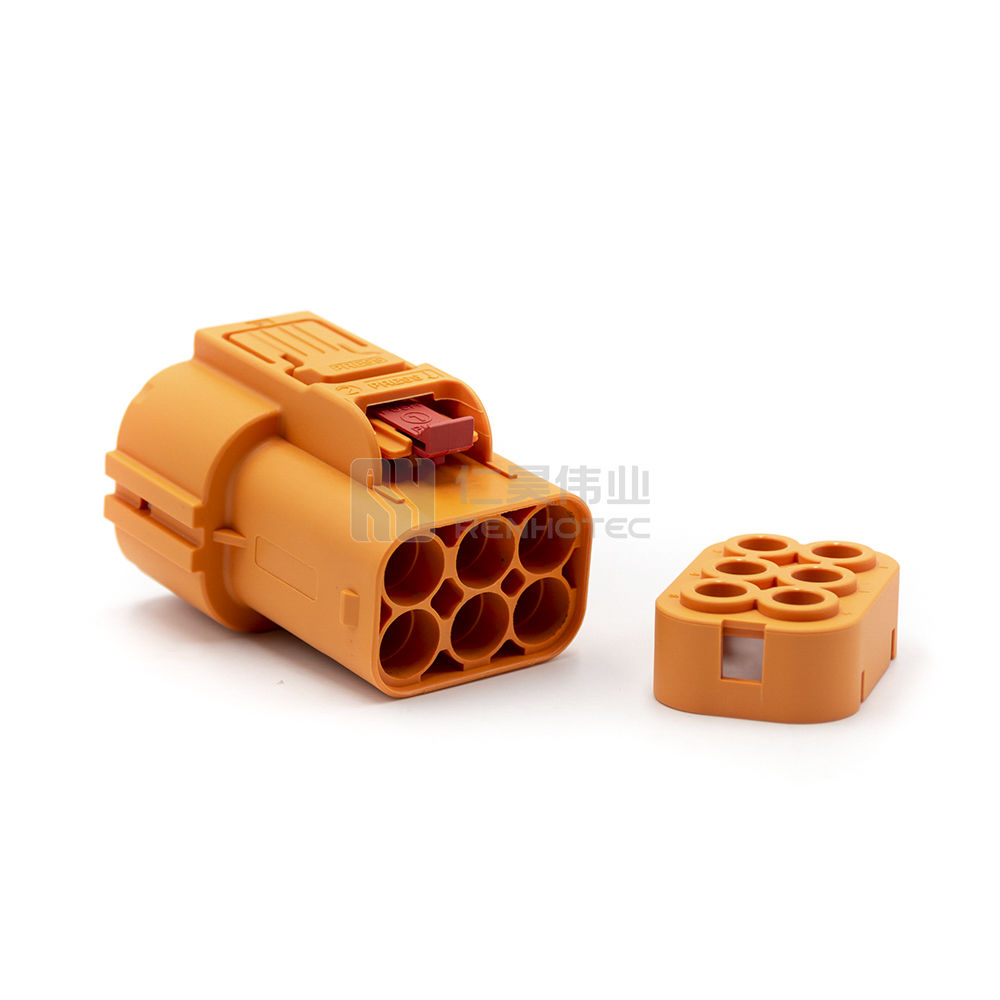

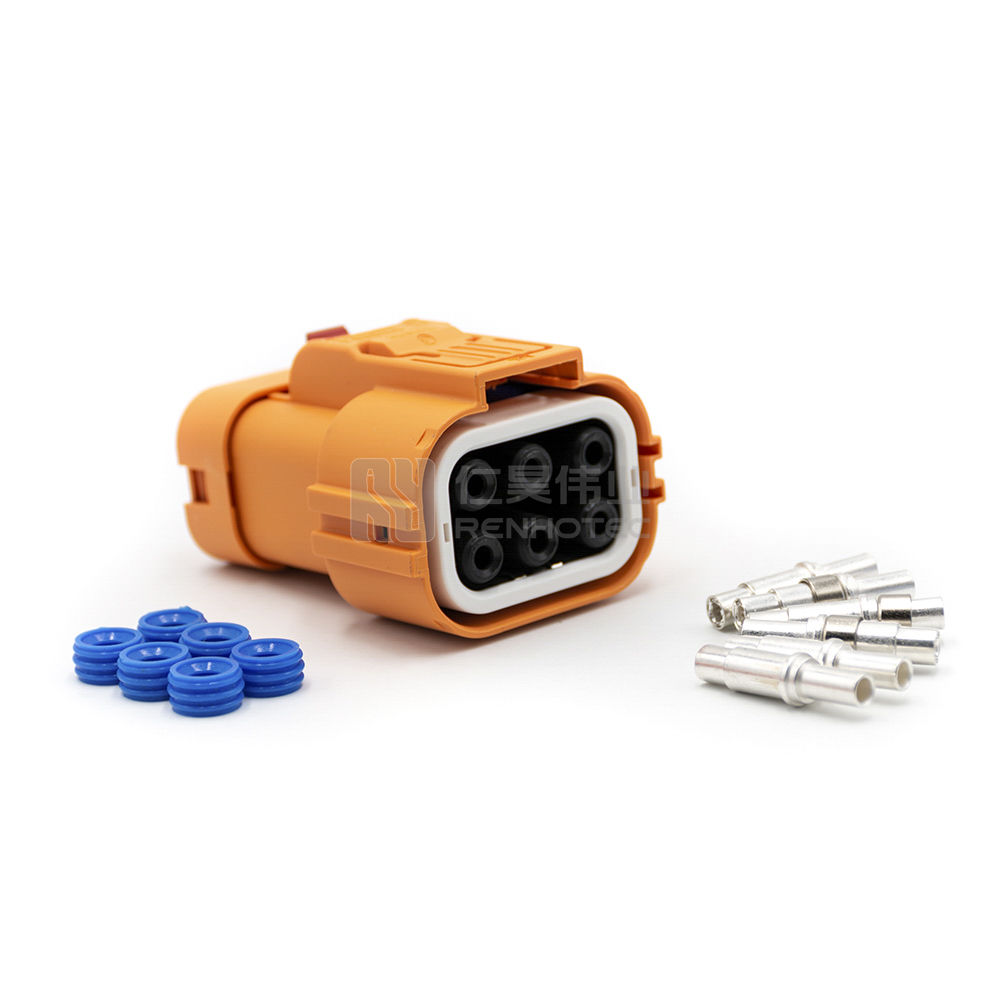

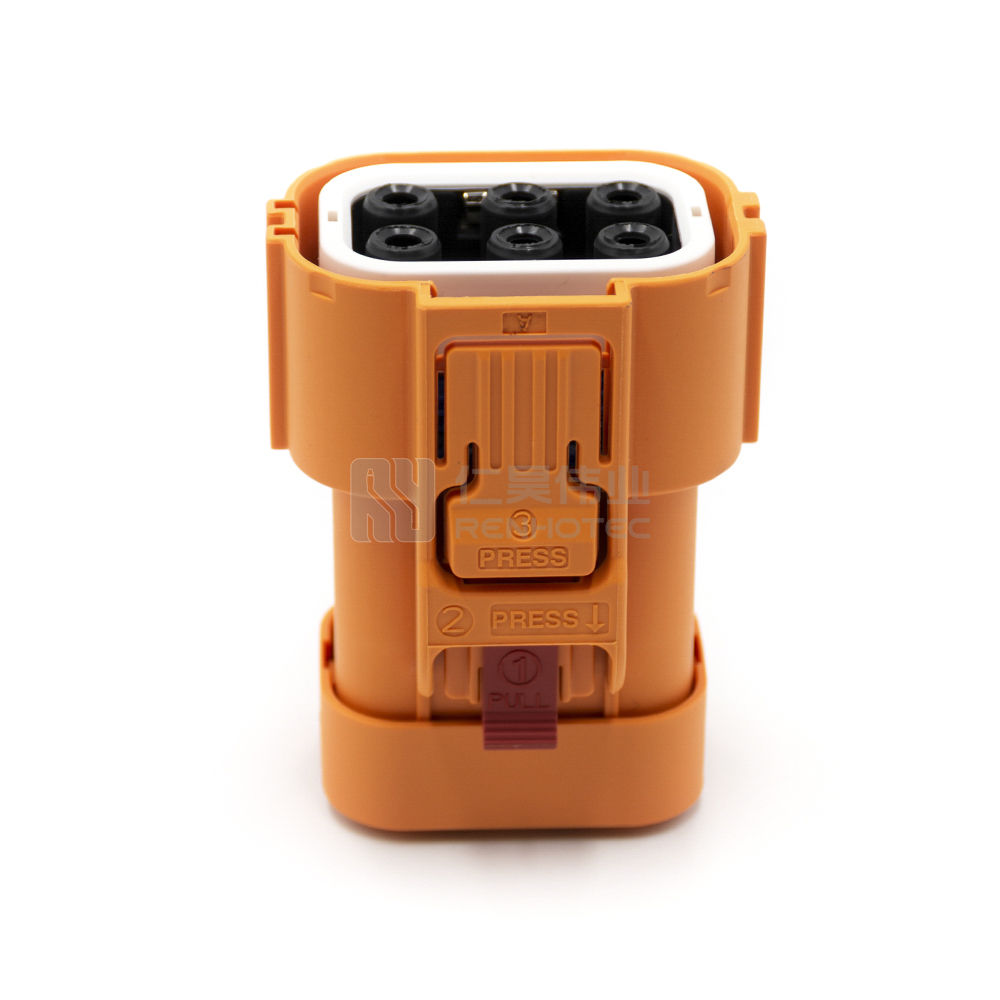

This 6 POS high power electric vehicle cable plug with 20A capacity and 2.5mm² shielded cable is designed with a key straight connection for secure applications. Ideal for electric vehicles, ensuring safe and efficient power transmission.
General
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 6 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical
Rated Voltage | 800V |
Rated Current | 20A |
Shielding | Shielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 2.5mm² |
Material
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
High Voltage Interlock Connectors CE | Download |
