Products > HVIL Series Connector > 6 POS High Power Electric vehicle Cable Plug 40A 6mm2 Shielded Cable A Key Straight

ST535000-A-6

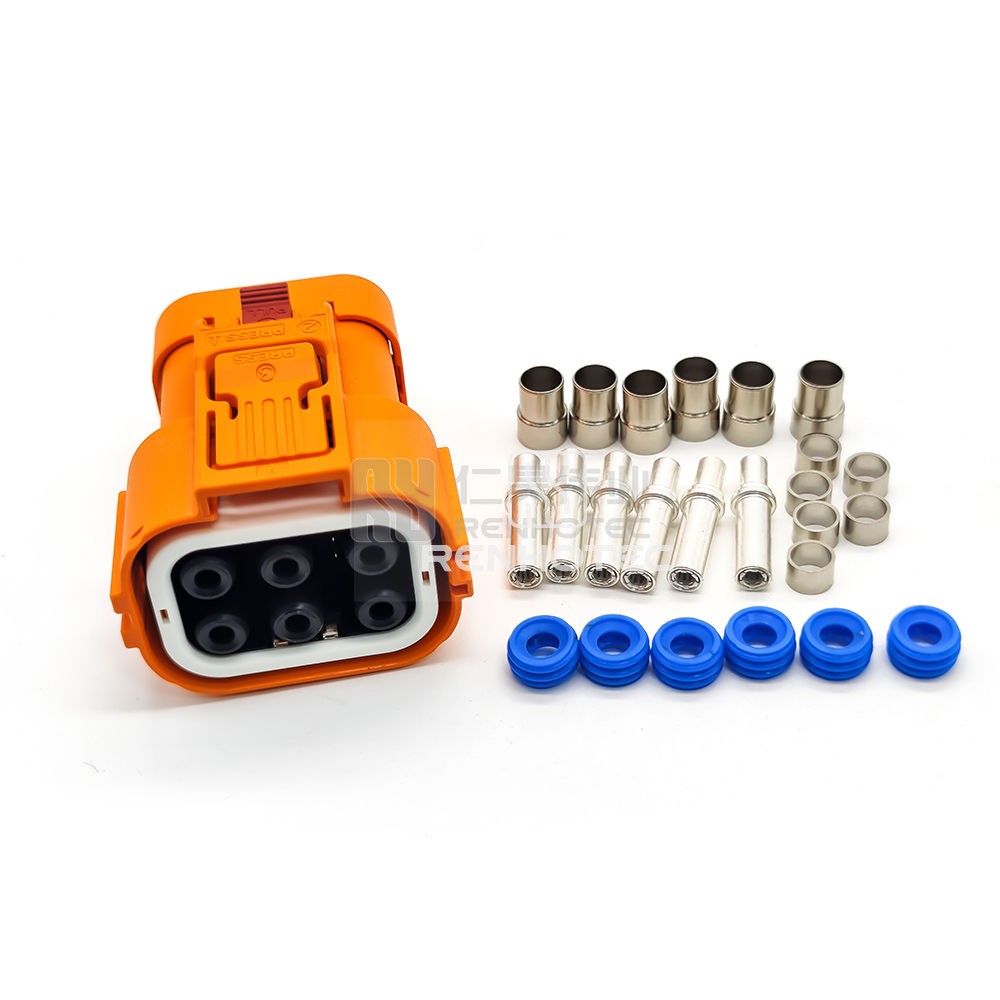

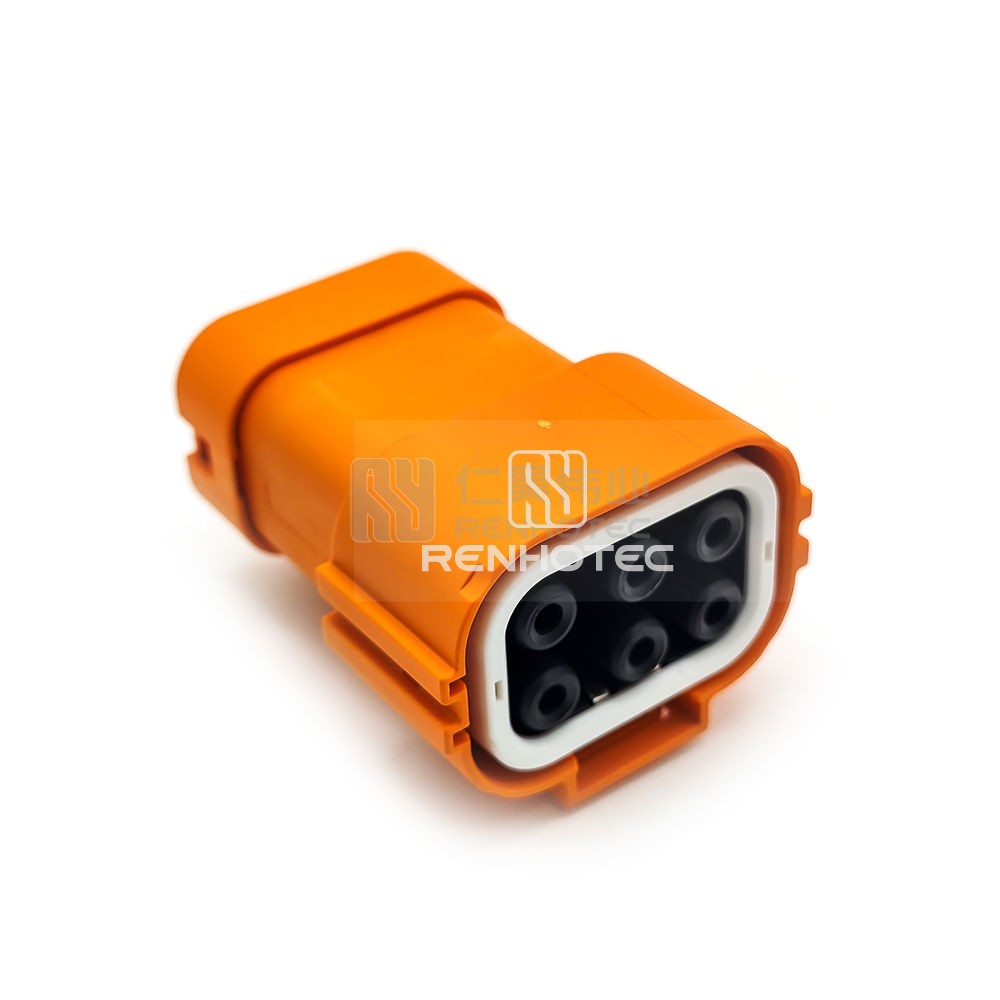

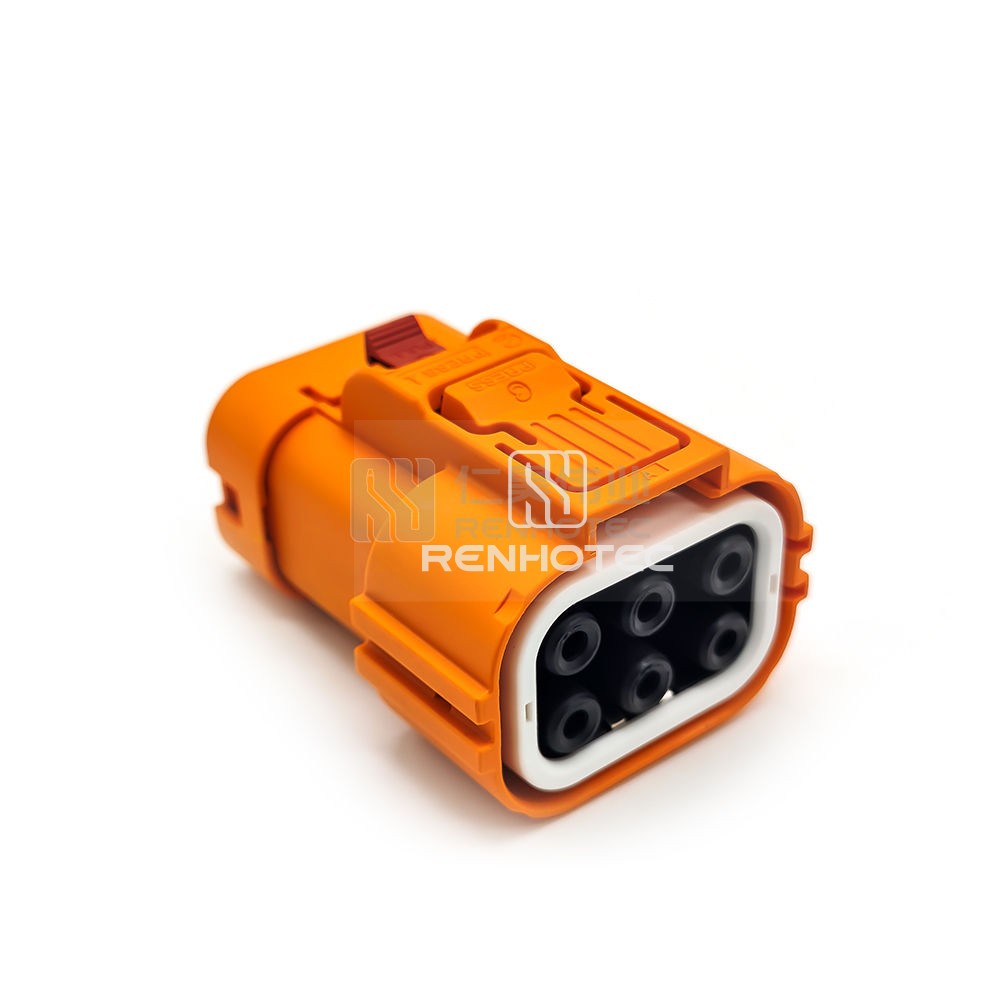

6 POS High Power Electric vehicle Cable Plug 40A 6mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This waterproof Touch Proof cable plug is designed for high power electric vehicles, featuring 6 POS configuration, 40A capacity, and shielded 6mm² cable for efficient and secure charging.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions6
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current40A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range6mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
