Products > Energy Storage Connector > 8.0mm Power Battery Connector 200A Cable Plug Right Angled 50mm² Unshielded Cable Black

FCC0850-F1BR
8.0mm Power Battery Connector 200A Cable Plug Right Angled 50mm² Unshielded Cable Black

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

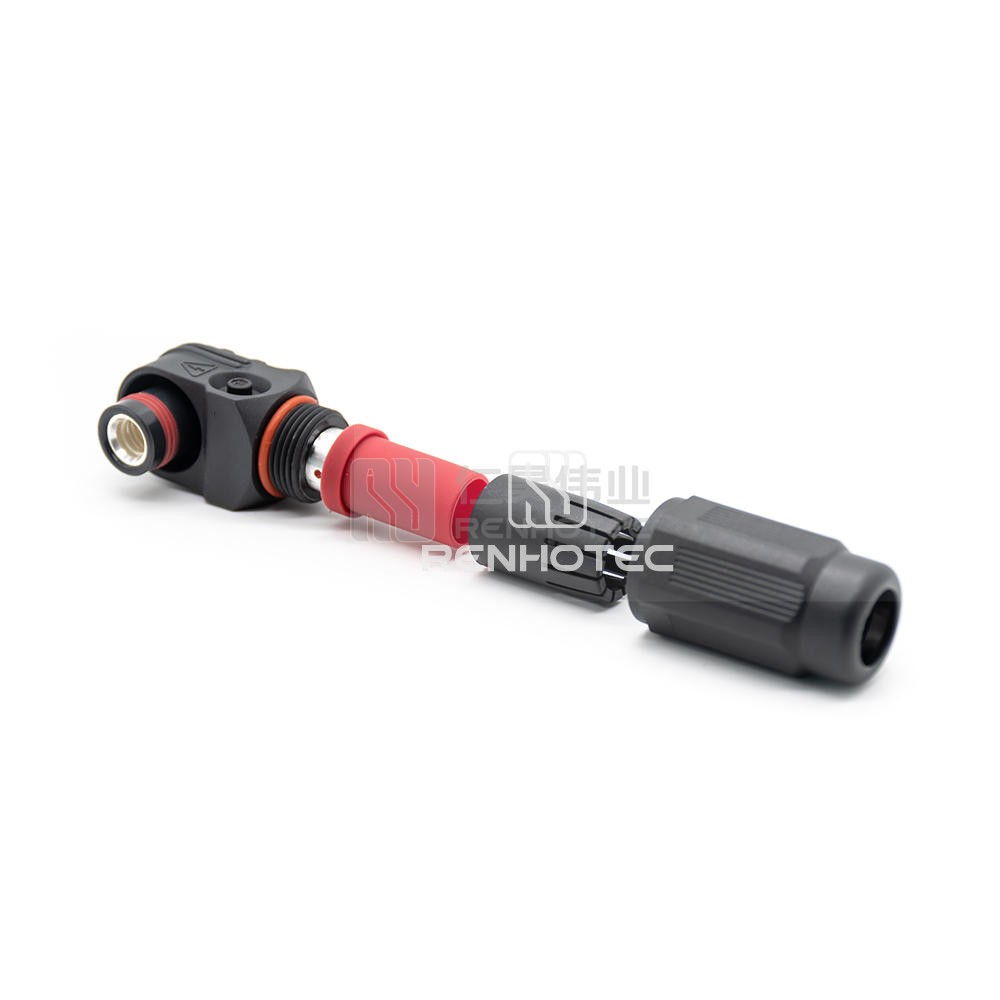

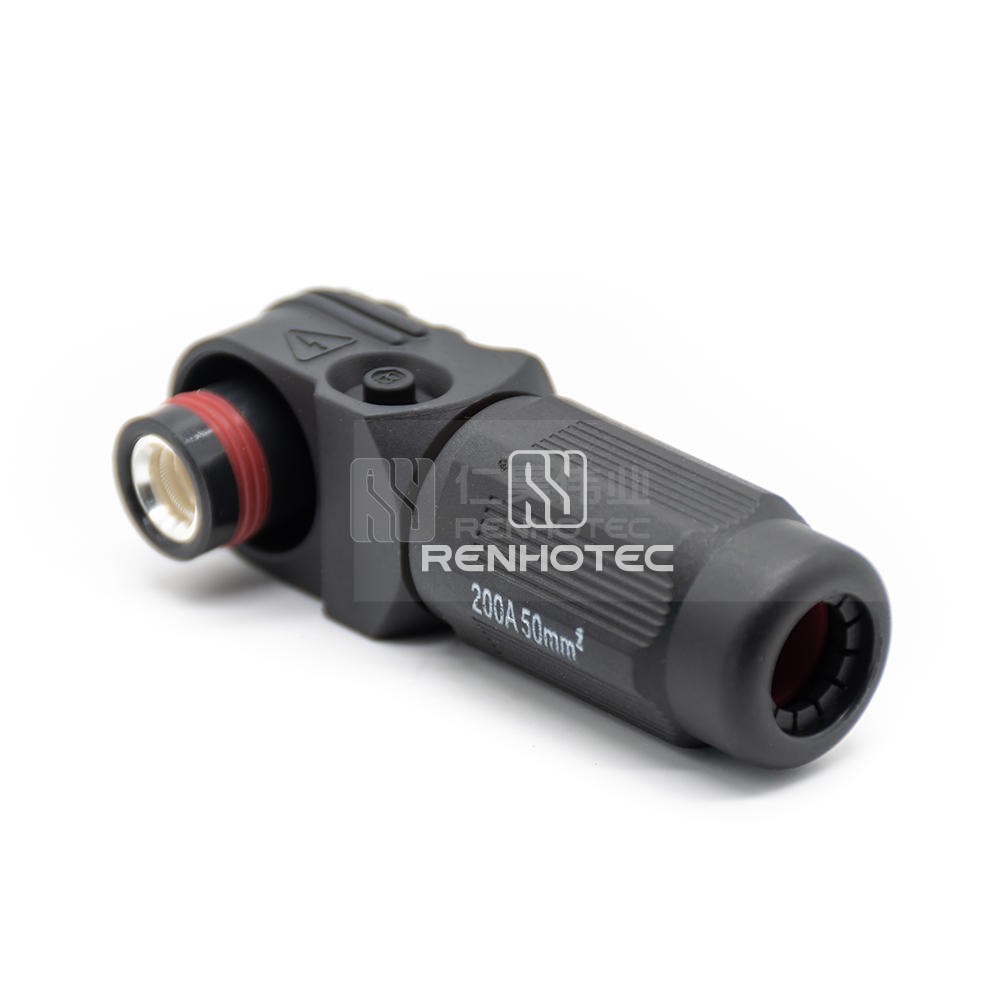

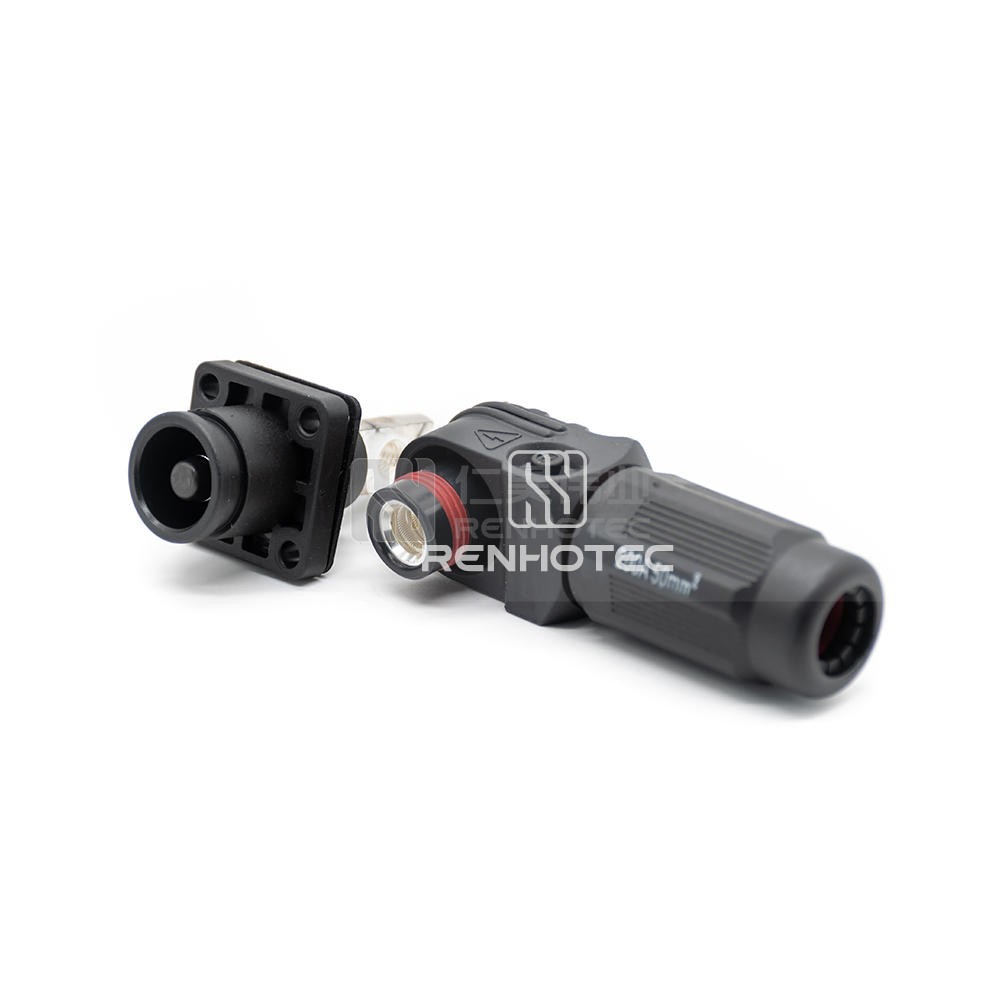

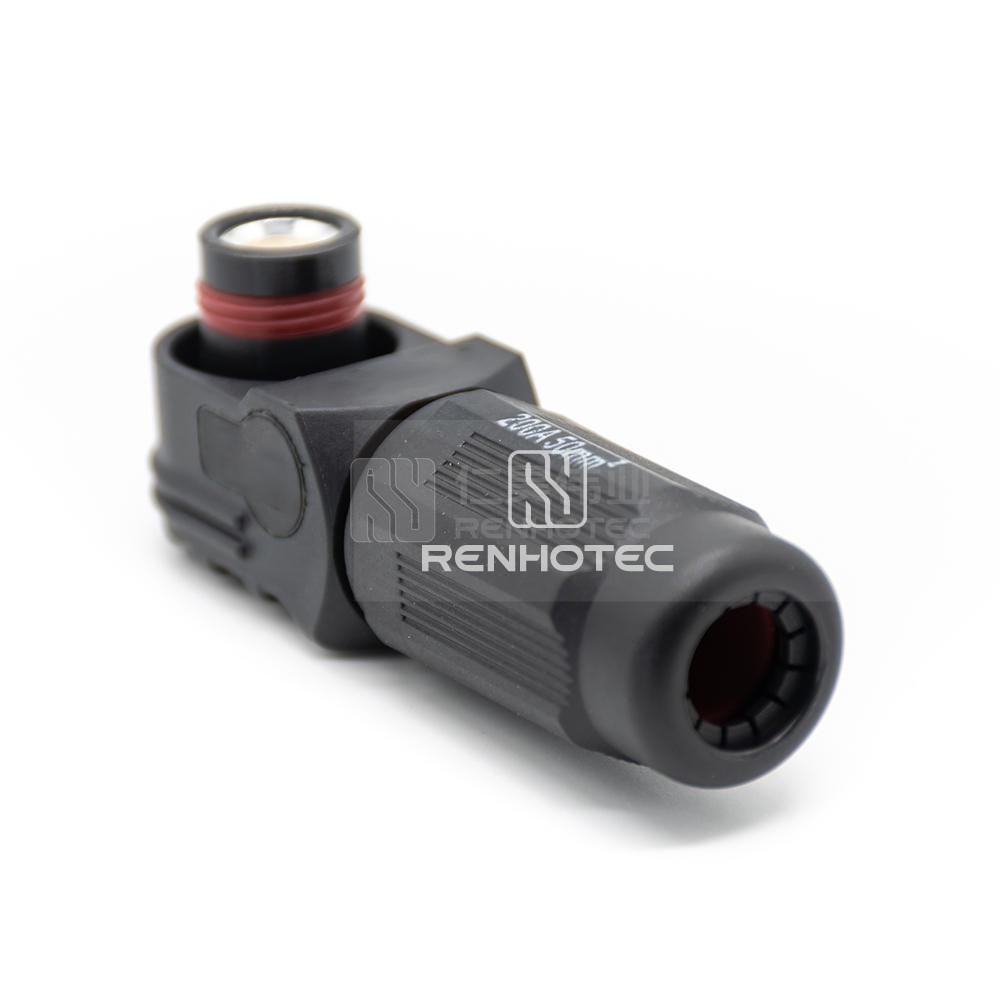

    This 8.0mm power battery connector features a 200A capacity, right-angled design, and is compatible with 50mm² unshielded cables. The black color adds a sleek touch for your electrical connections.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
