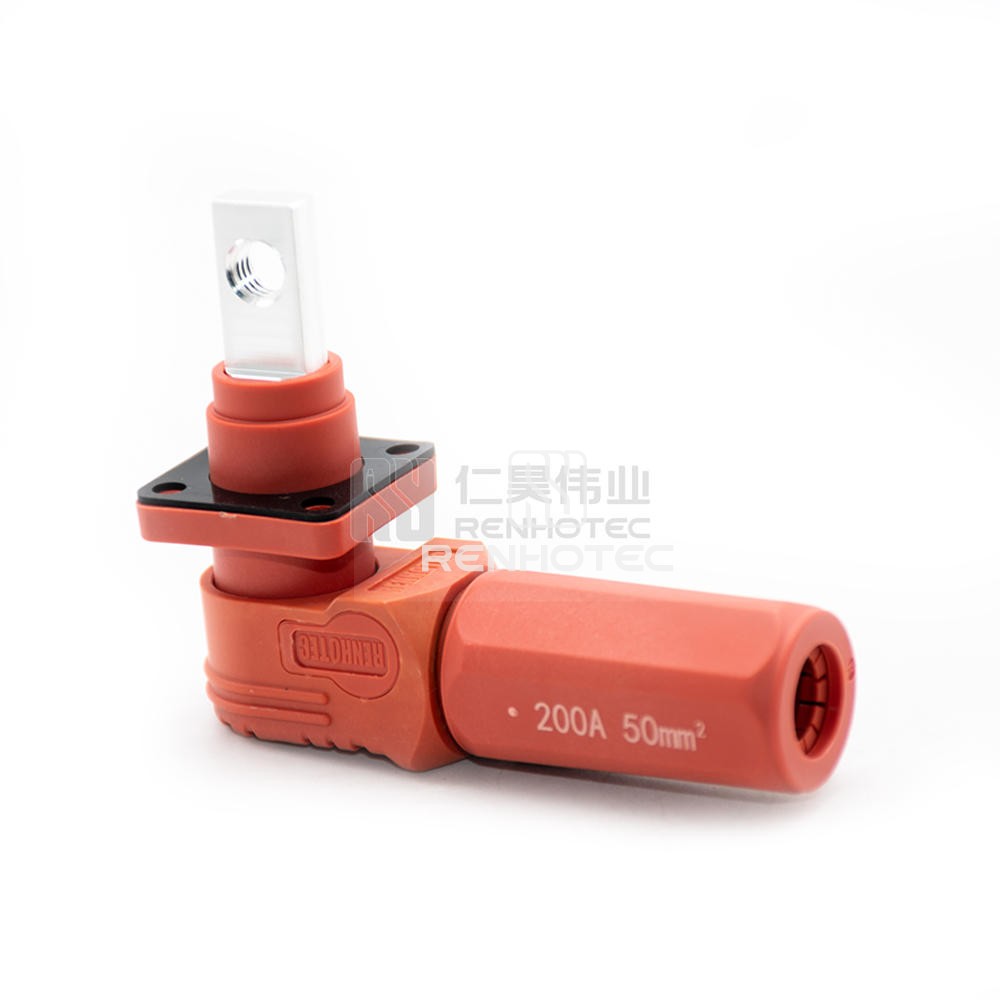

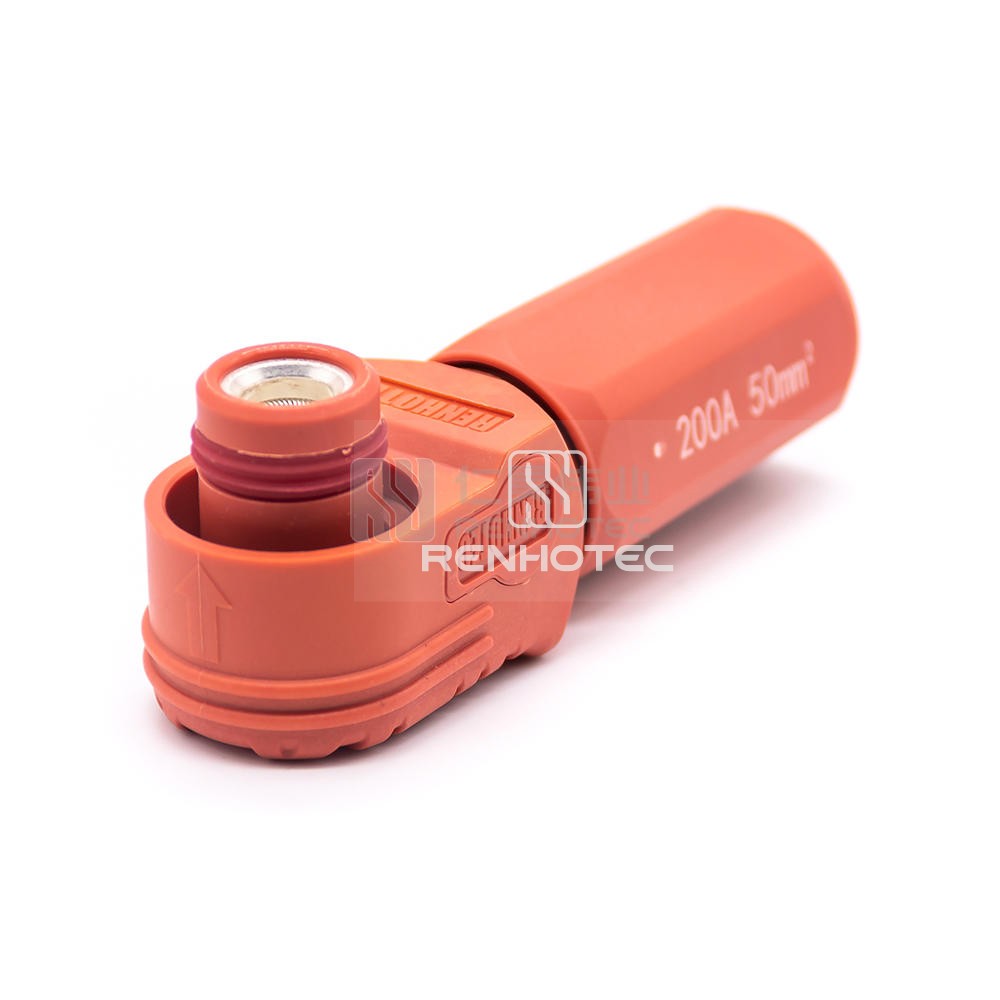

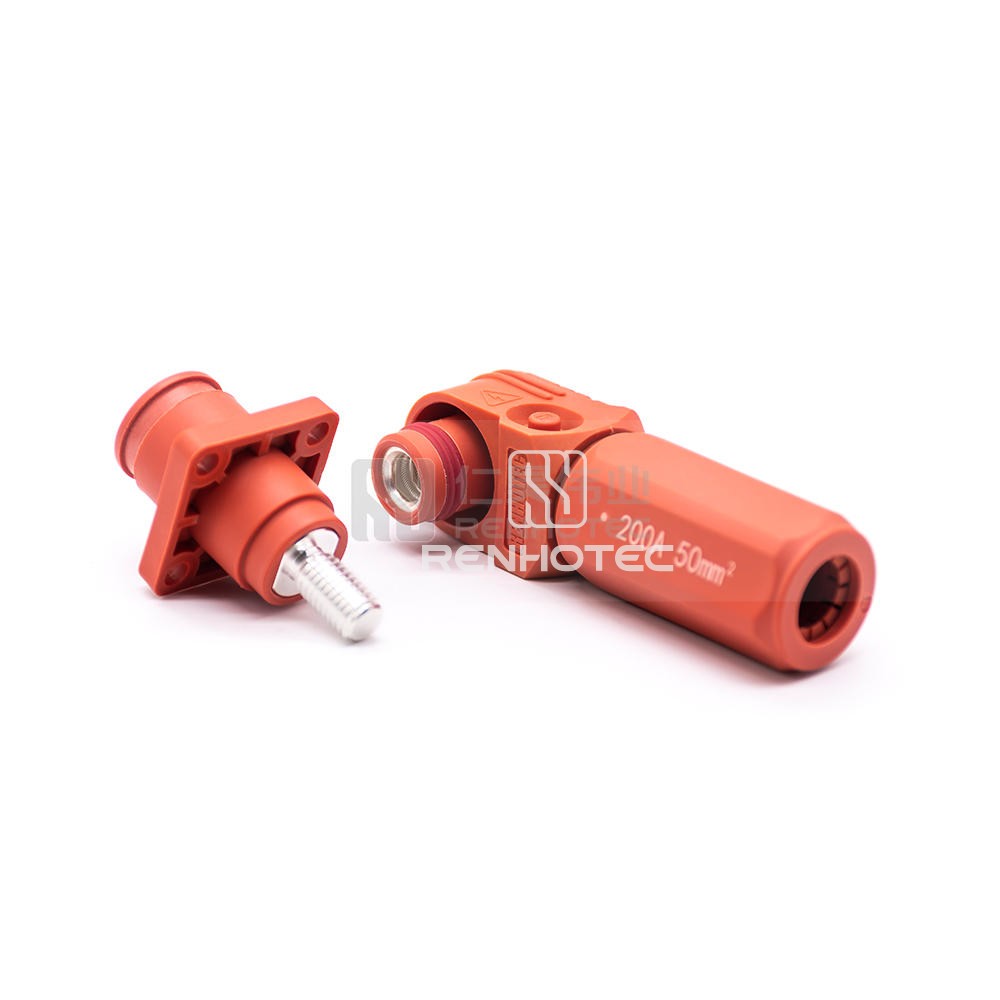

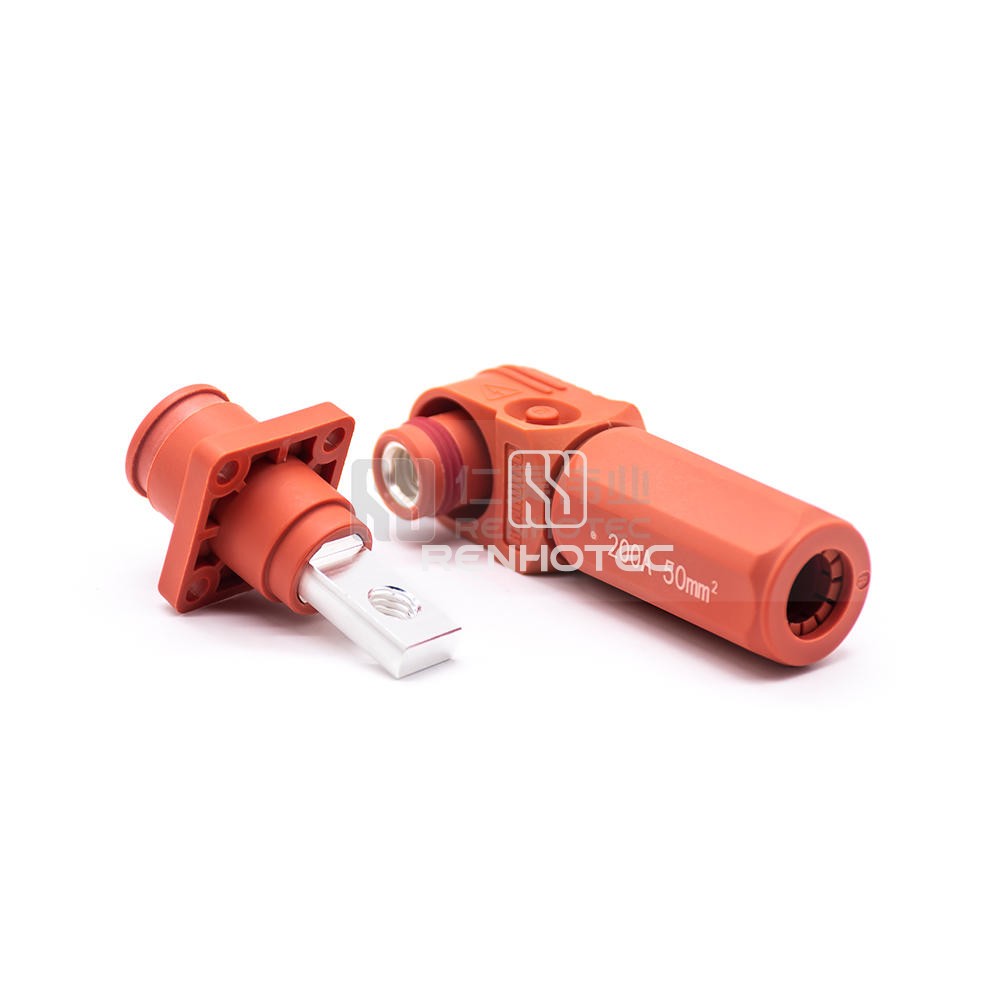

Products > Energy Storage Connector > 8.0mm Power Battery Connector 200A Cable Plug Right angled 50mm² Unshielded Cable Red
- Overview
- Technical data
- Catalog
High-quality 8.0mm power battery connector with a 200A capacity. Features a right-angled design and compatible with 50mm² unshielded cables. Reliable and efficient solution for your power connection needs.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Color | Red |
Electrical
Rated Voltage | 1000V |
Rated Current | 200A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP54 |
Operating Temperature | -40°C ~ + 125°C |
