Products > Energy Storage Connector > 8.0mm Power Entry Connector 120A Cable Plug Right Angled 25mm² Unshielded Cable Black

FCC0825-F1BR
8.0mm Power Entry Connector 120A Cable Plug Right Angled 25mm² Unshielded Cable Black

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

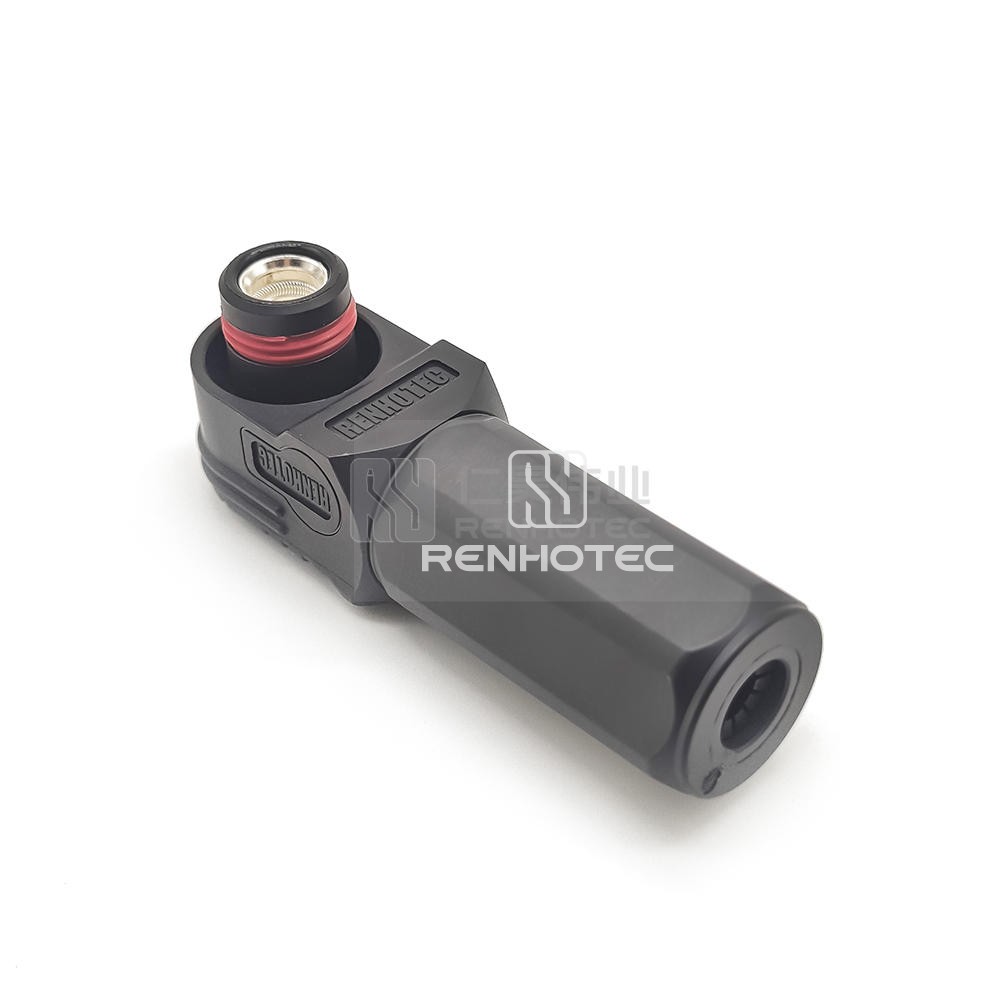

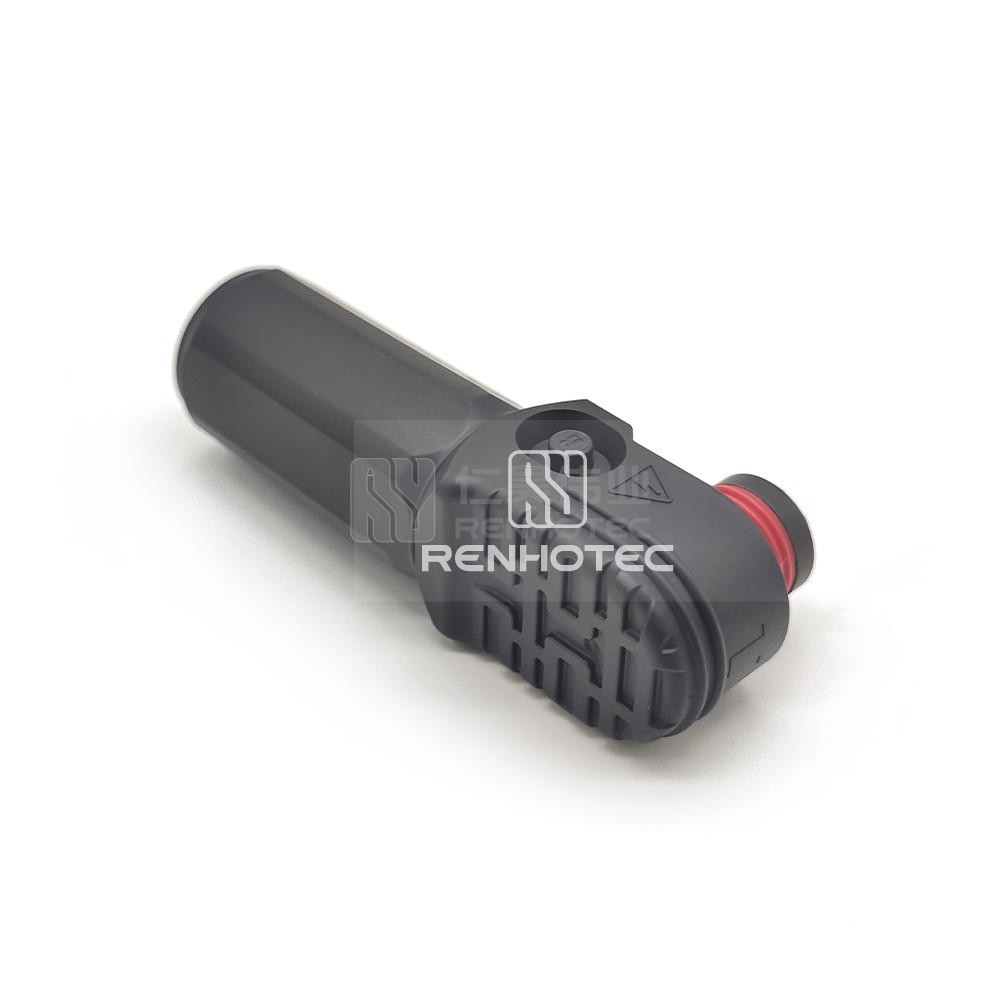

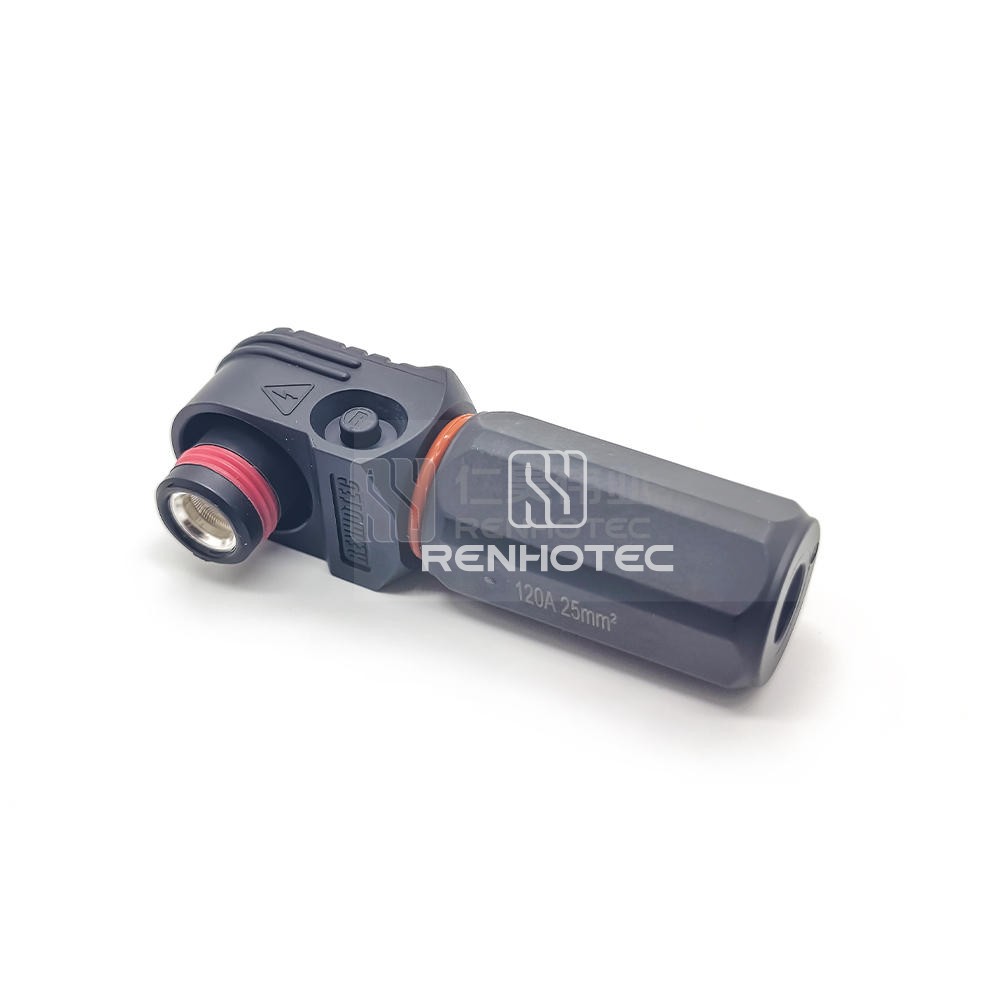

    This 8.0mm power entry connector features a high current rating of 120A, a right-angled design, and is compatible with 25mm² unshielded cables. The connector is in a sleek black color, ensuring a reliable and efficient power connection.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
