FCC0825-F1YR

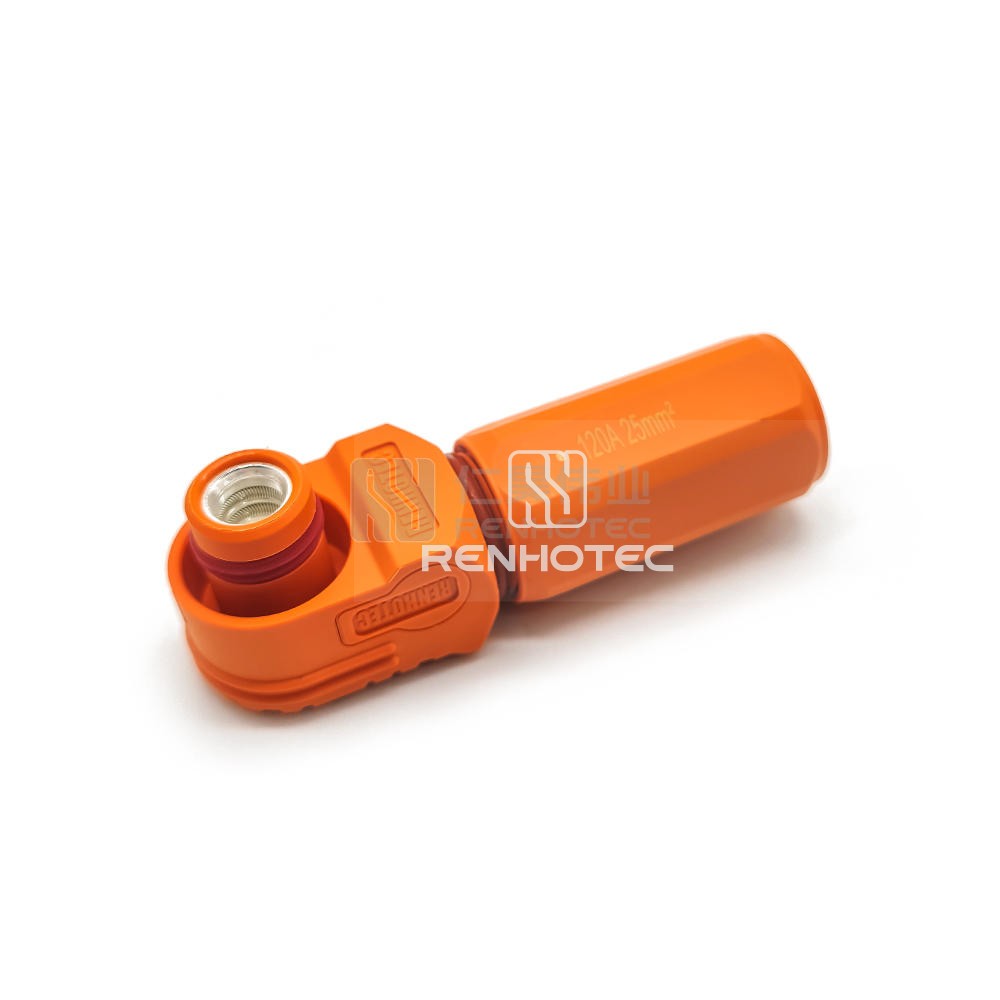

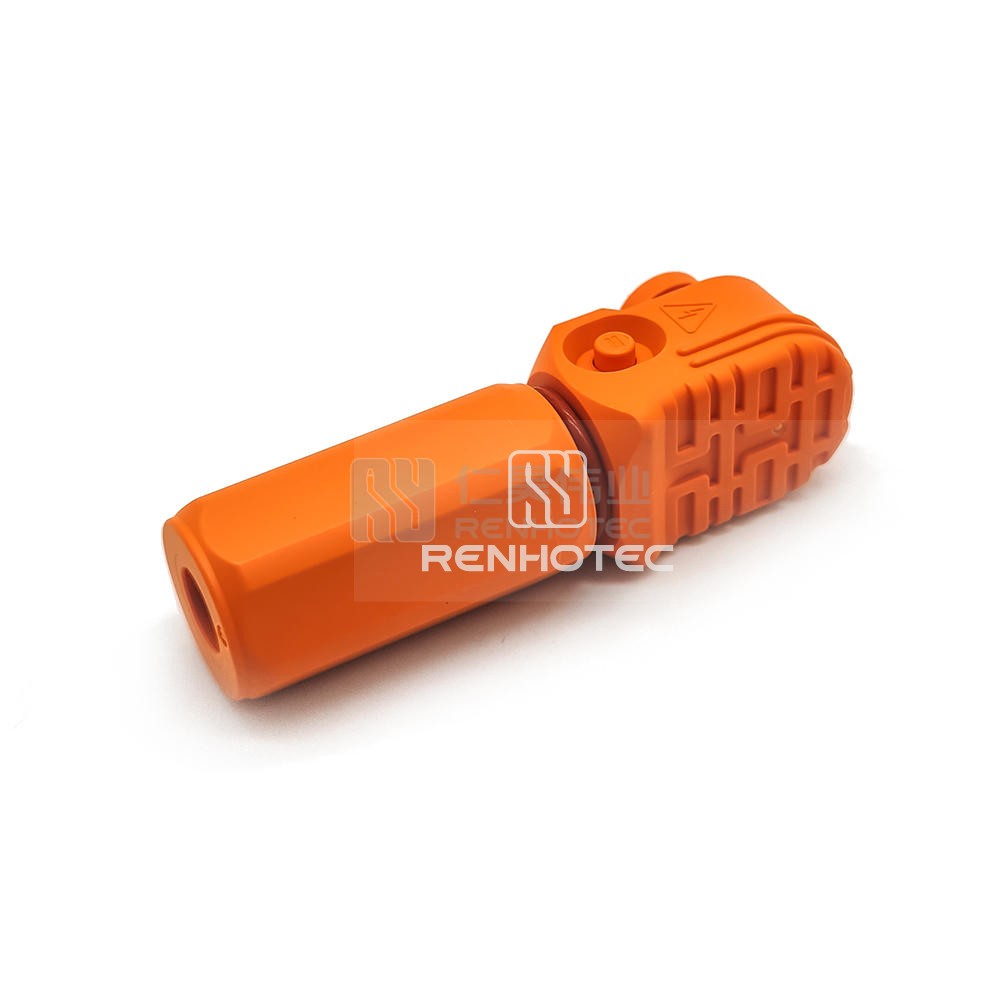

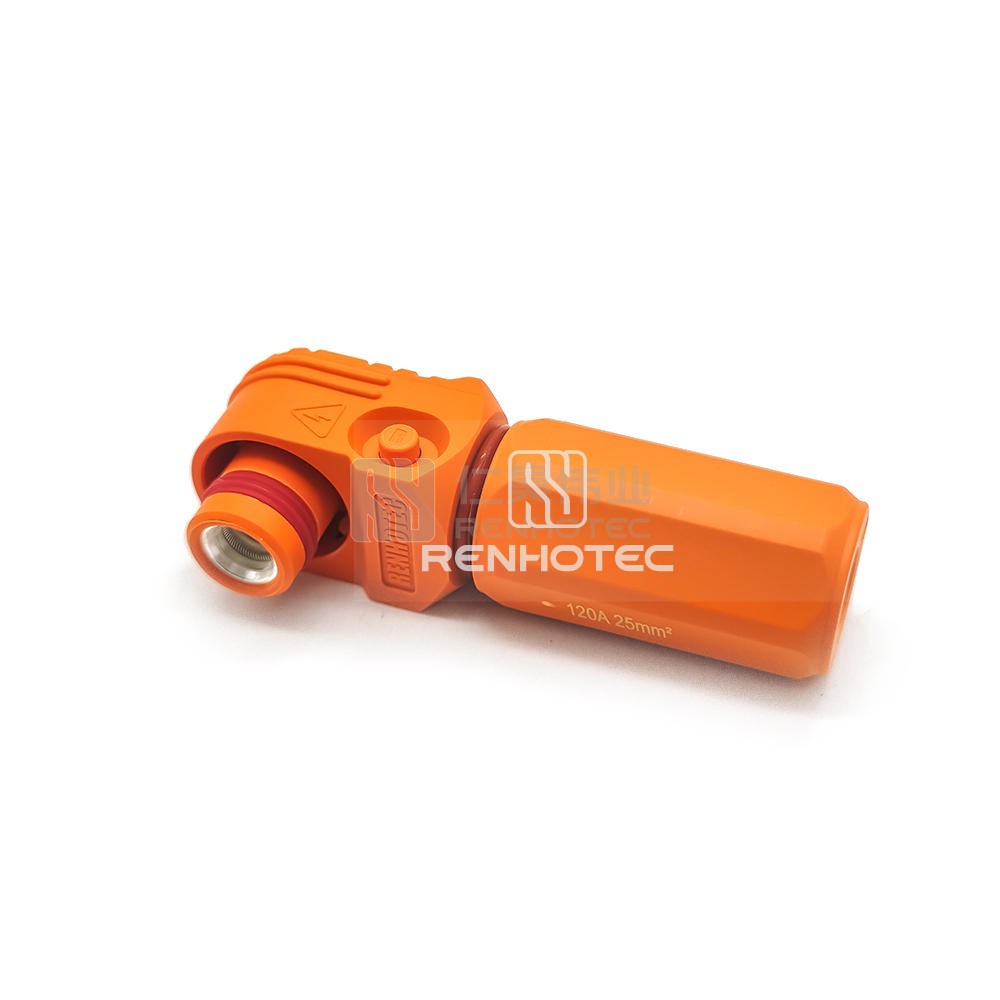

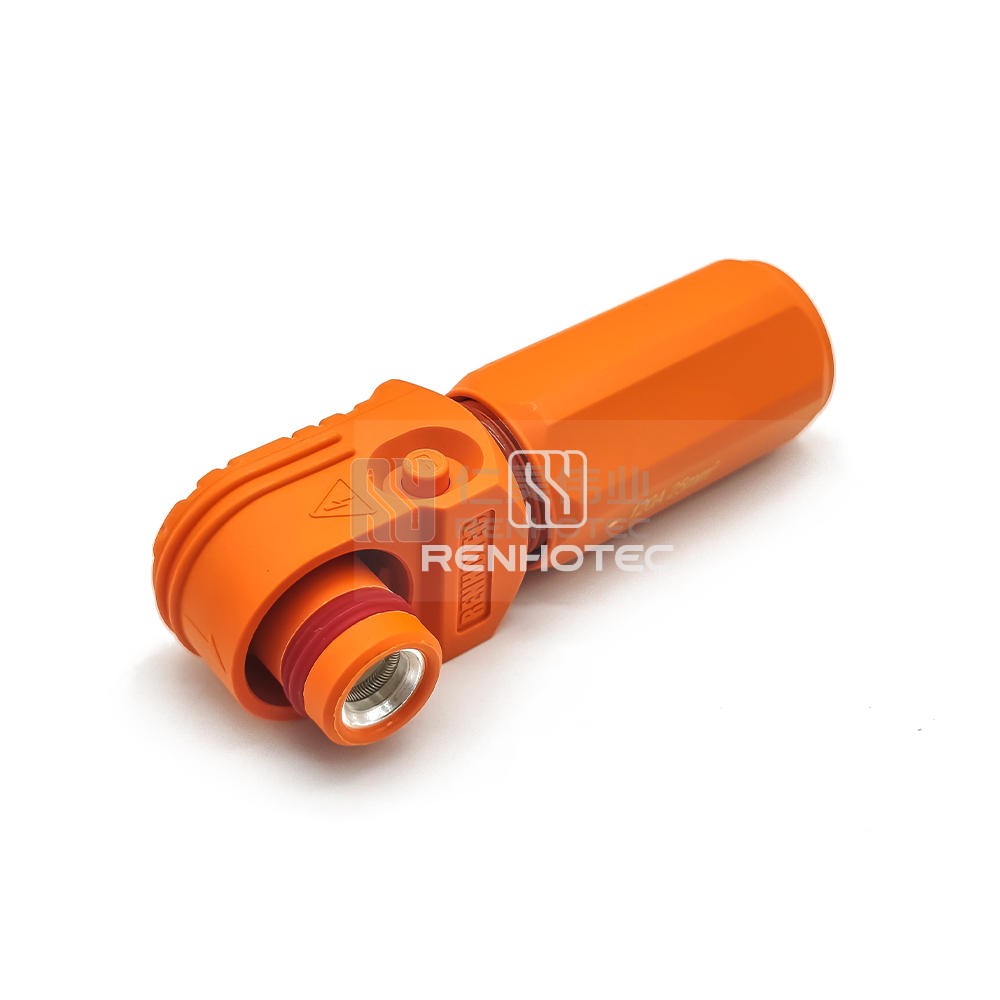

8.0mm Power Entry Connector 120A Cable Plug Right Angled 25mm² Unshielded Cable Orange

High-quality 8.0mm power entry connector with a 120A cable plug designed for a right-angled connection. The 25mm² unshielded cable in vibrant orange color ensures optimal power transmission and visibility.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
