FCC0825-F1RR

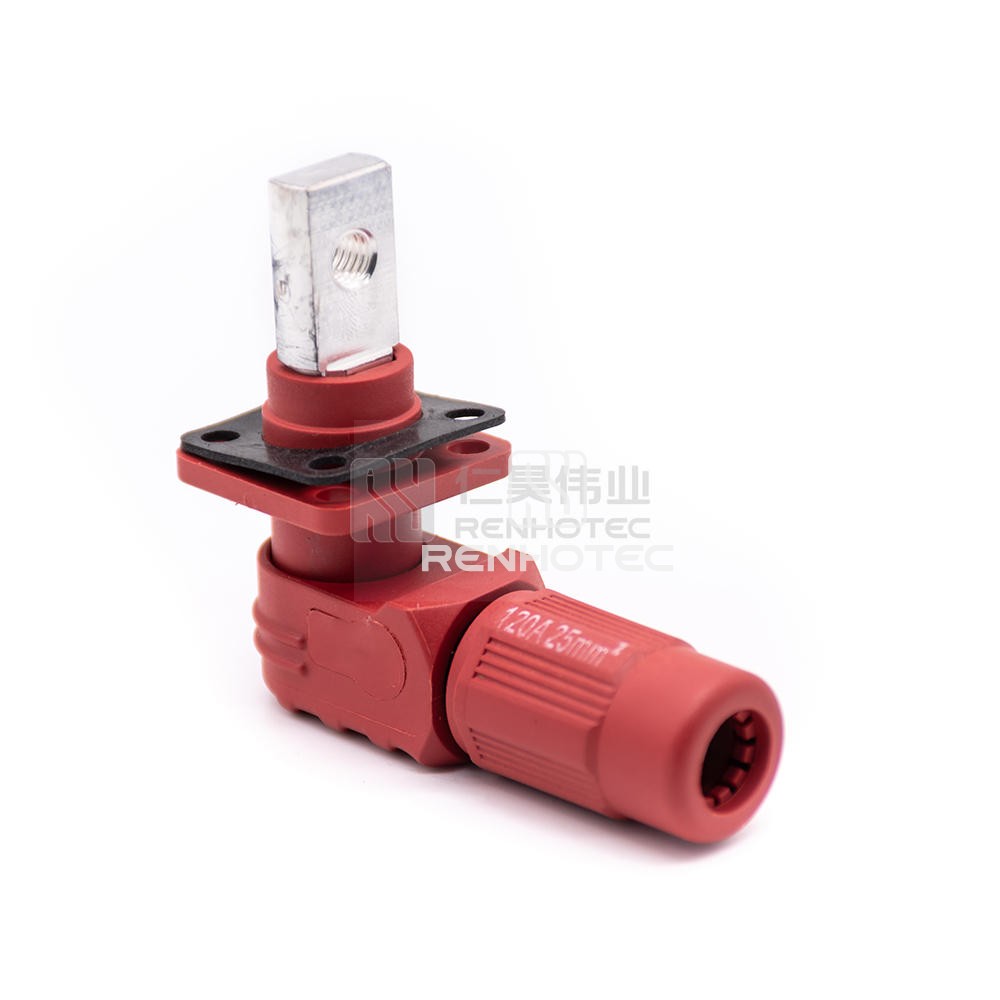

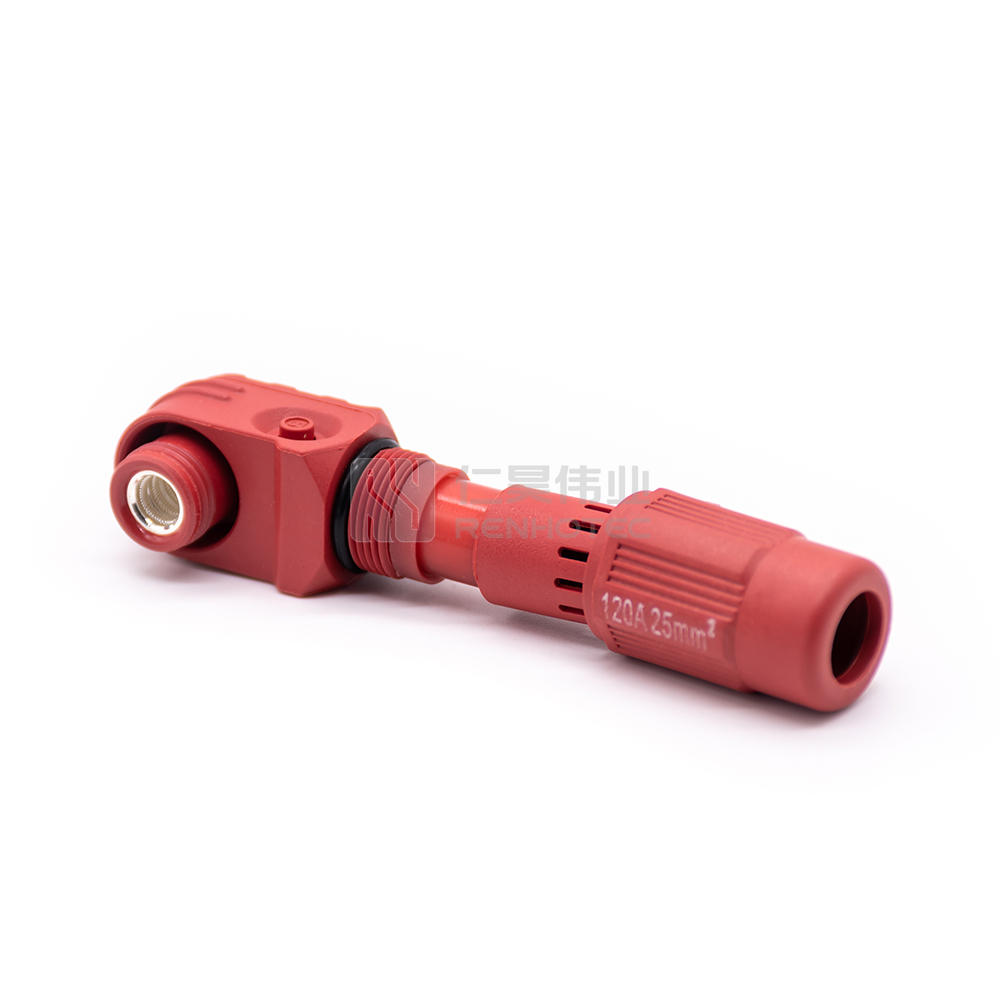

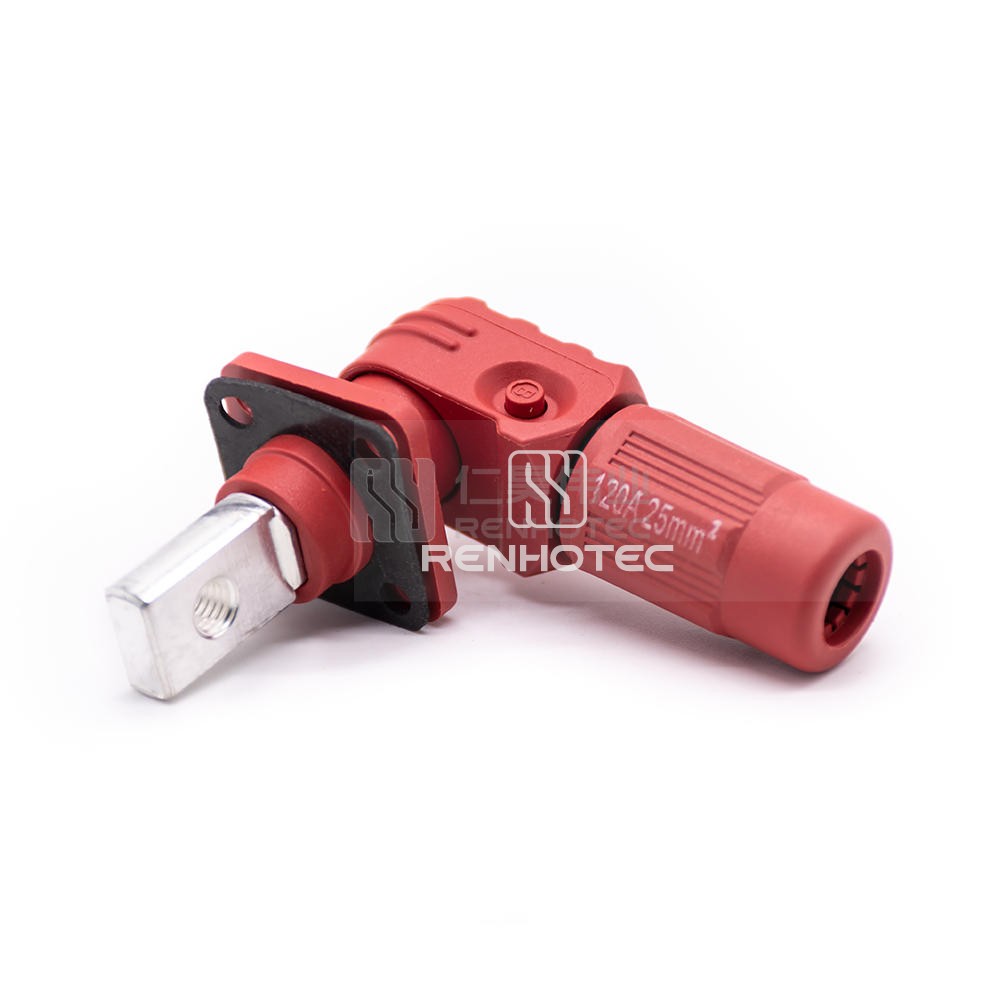

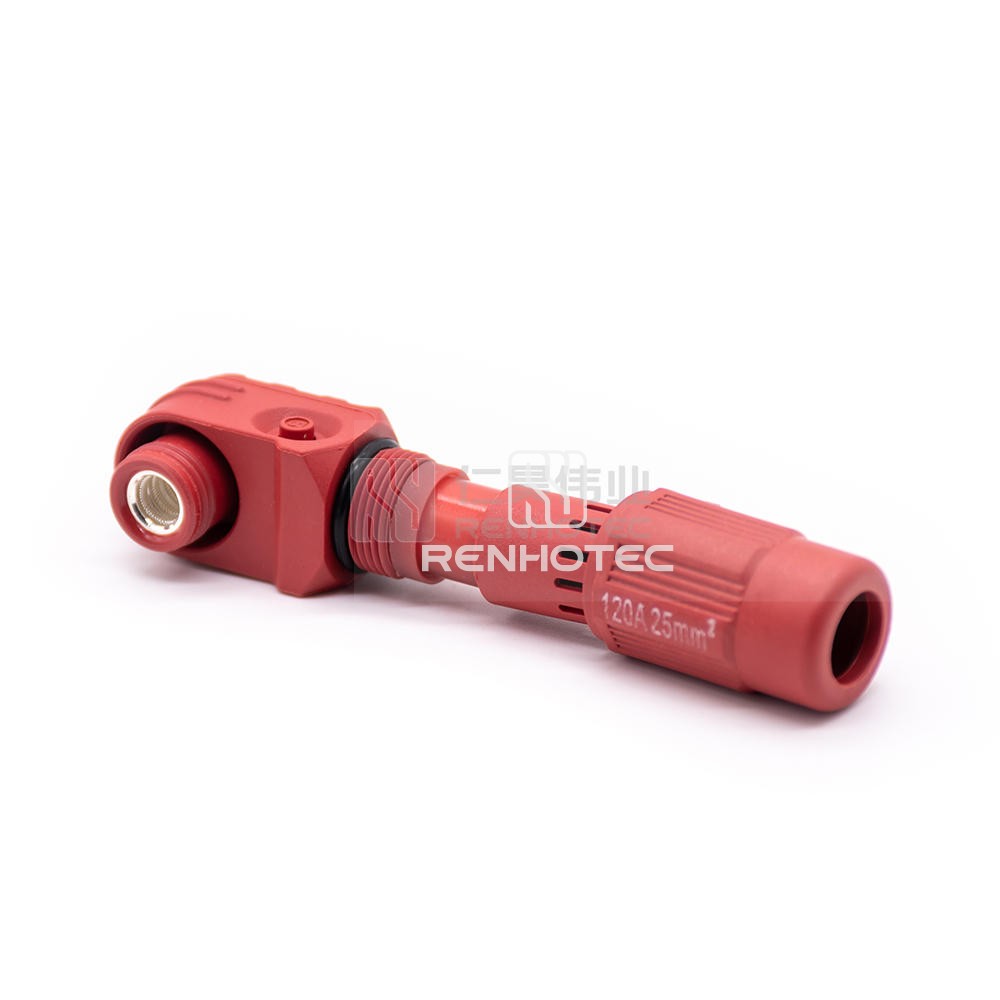

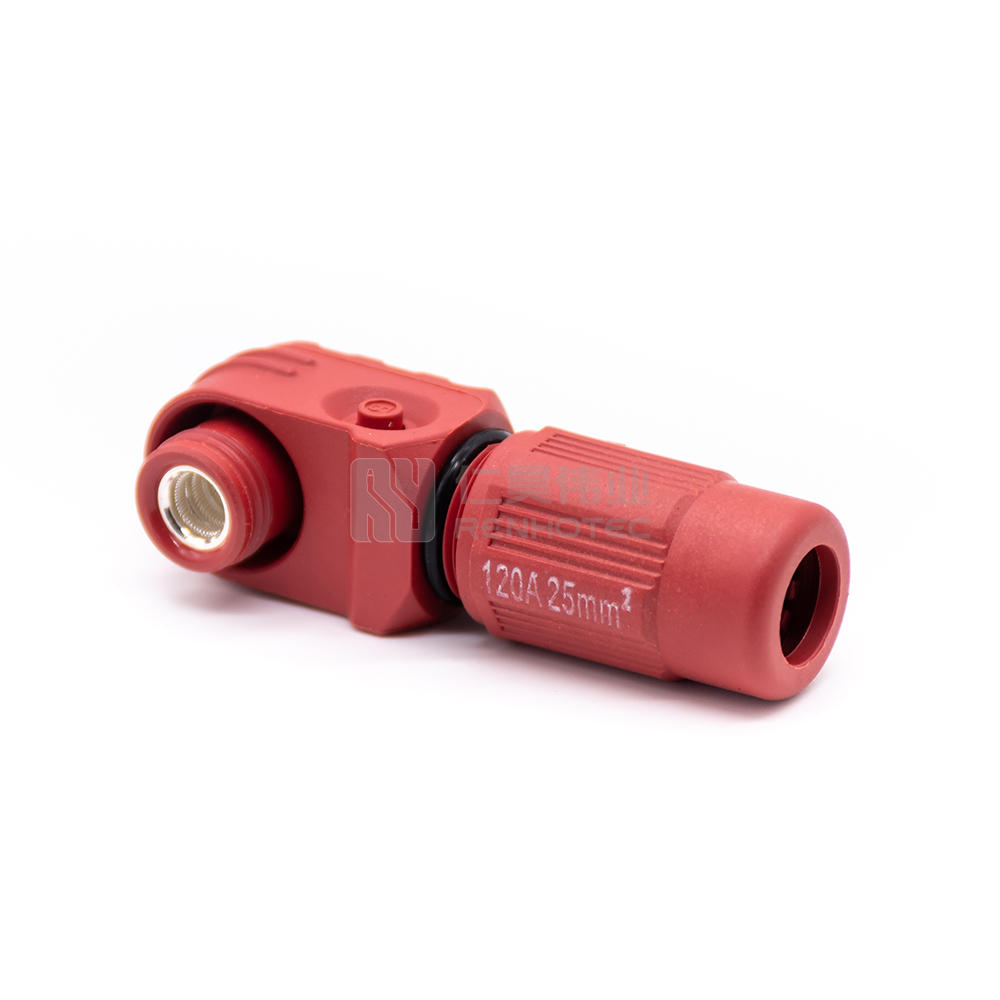

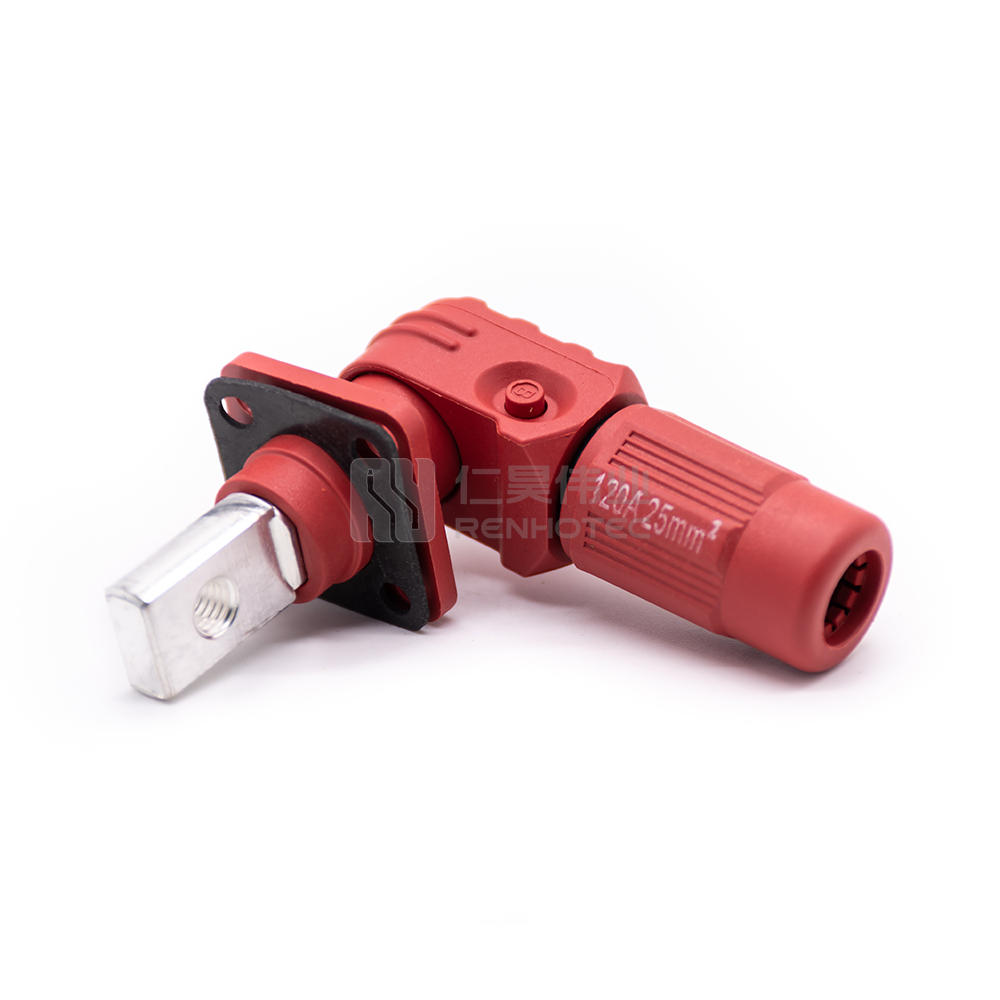

8.0mm Power Entry Connector 120A Cable Plug Right Angled 25mm² Unshielded Cable Red

This high-quality 8.0mm power entry connector with a 120A cable plug is designed for a right-angled connection, suitable for use with 25mm² unshielded cables. The vibrant red color adds visibility and ease of identification. Trustworthy performance and durability make it ideal for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
