Products > Energy Storage Connector > 8.0mm Power Entry Connector 150A Cable Plug Right angled 35mm² Black

RHT-P008-C35-BK

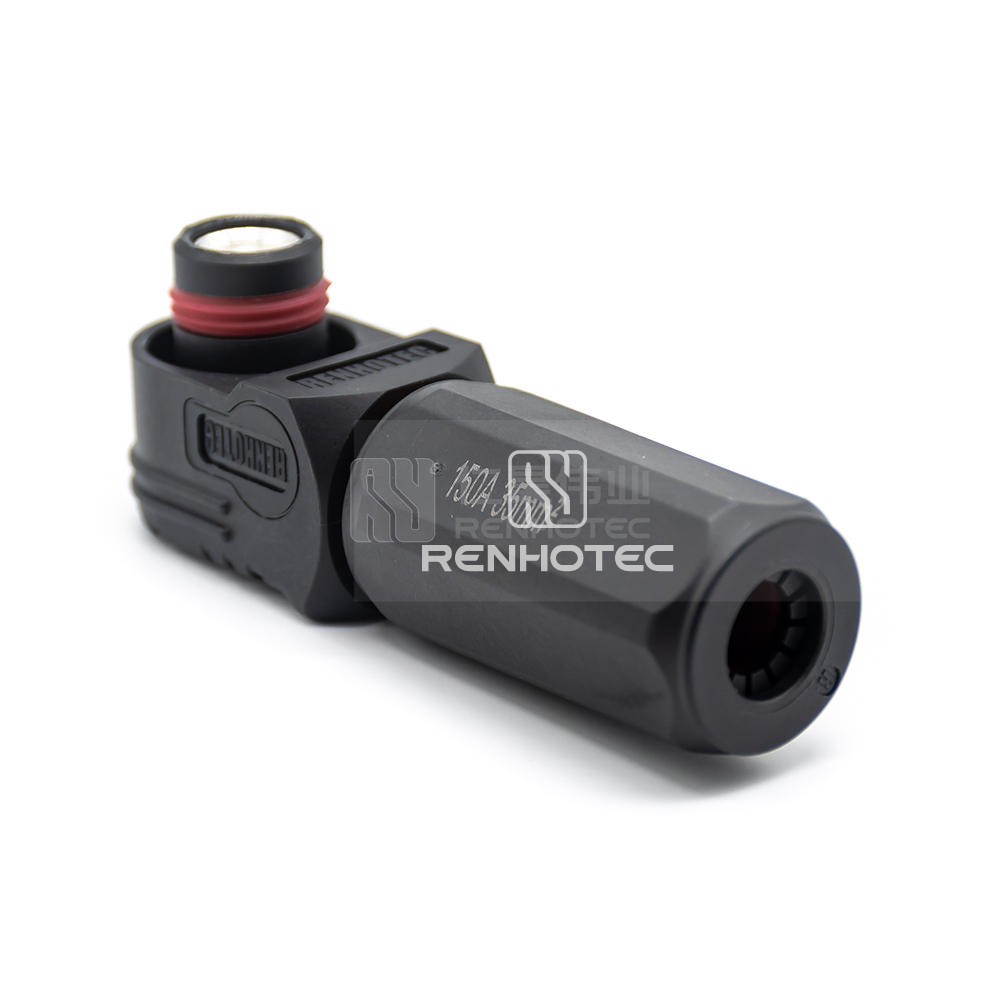

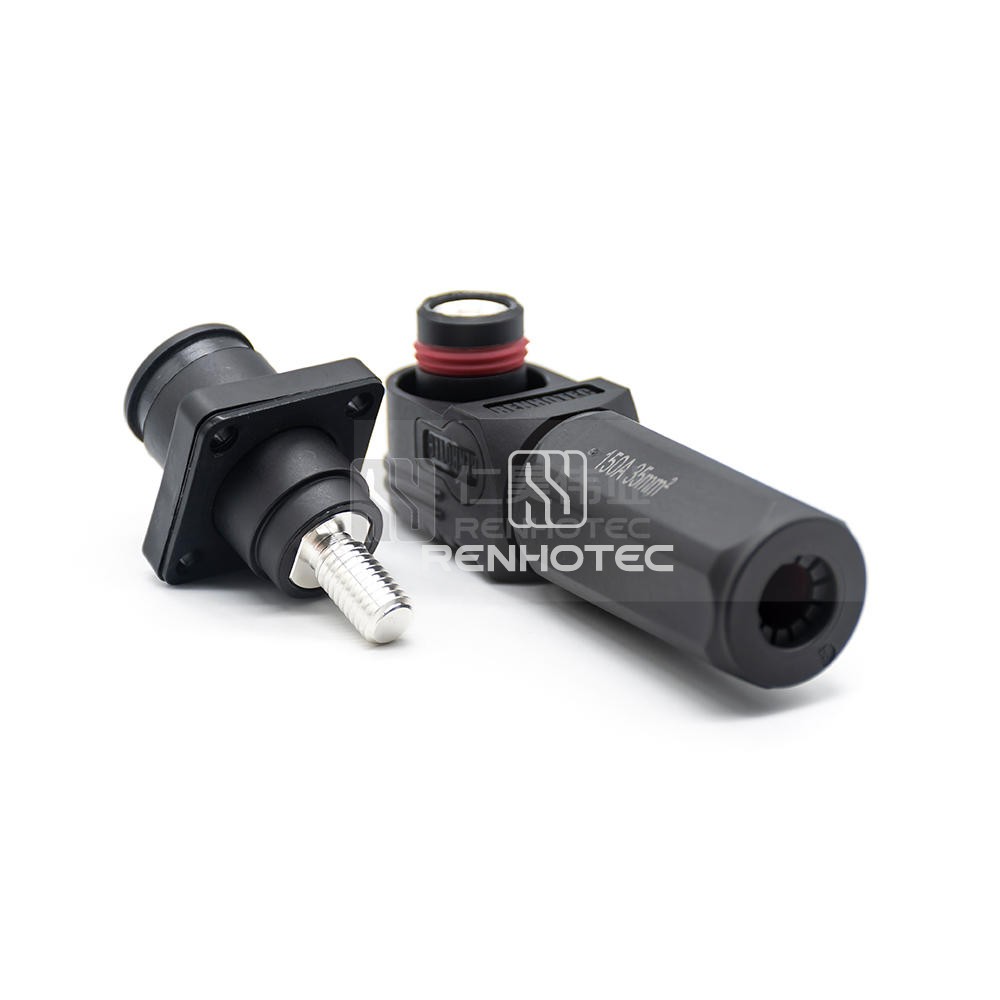

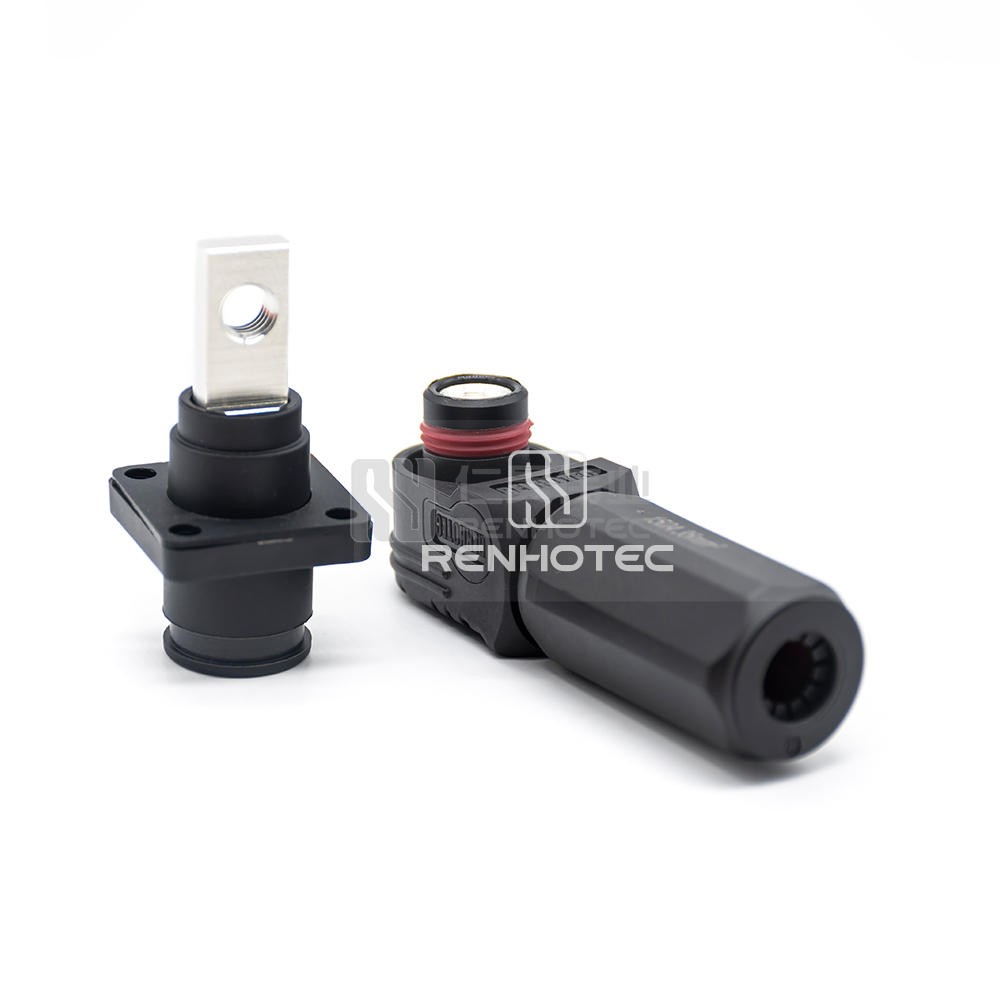

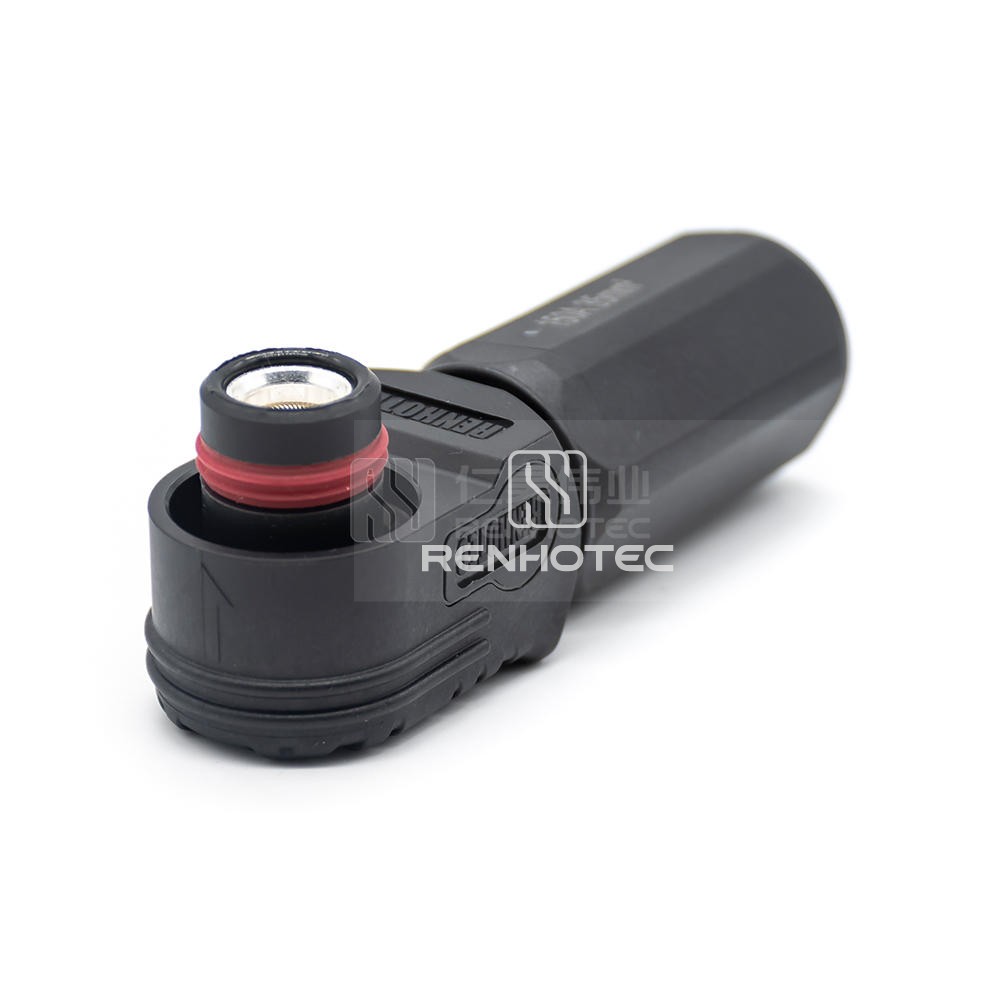

8.0mm Power Entry Connector 150A Cable Plug Right angled 35mm² Black

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Enhance your power supply system with this high-quality 8.0mm Power Entry Connector. With a robust 150A current rating, right-angled design, and capable of handling 35mm² cables, this black connector provides reliable power connections for your electronic devices.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current150A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
