Products > Energy Storage Connector > 8.0mm Power Entry Connector 150A Cable Plug Right Angled 35mm² Unshielded Cable Black
- Overview
- Technical data
- Catalog

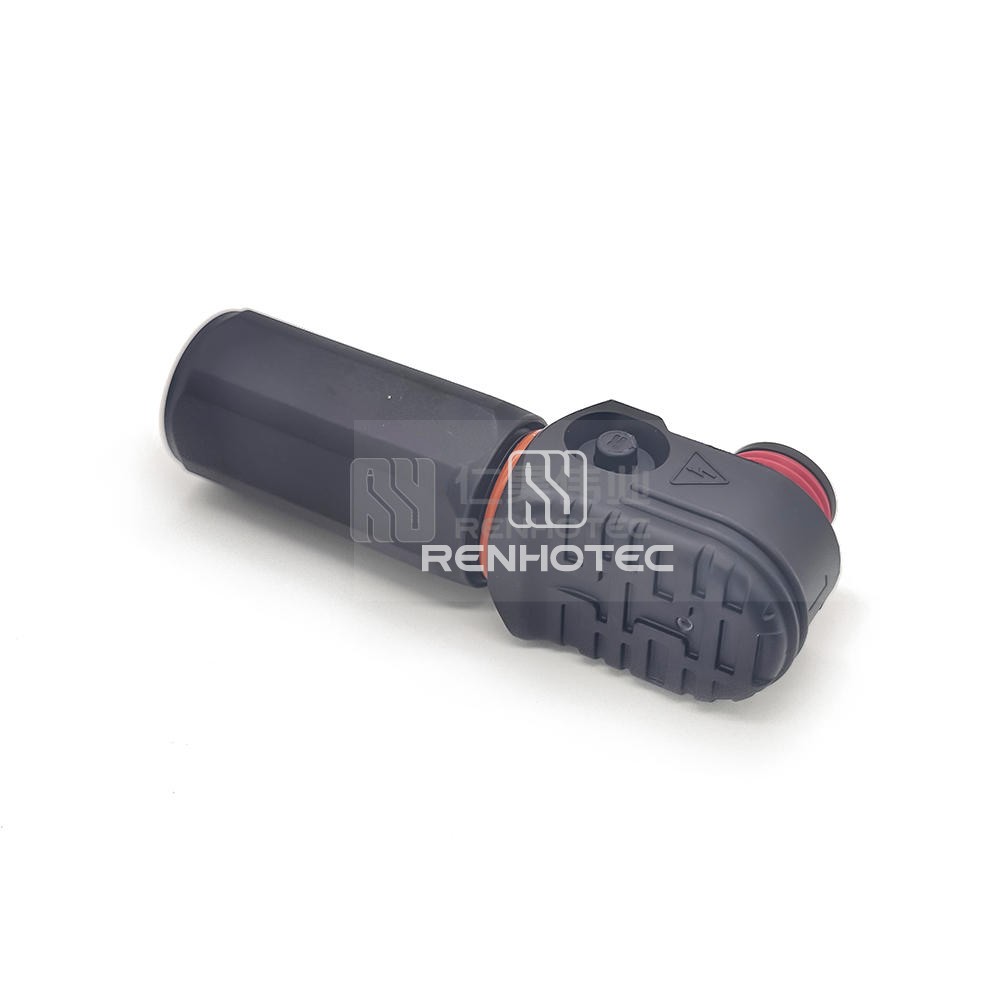

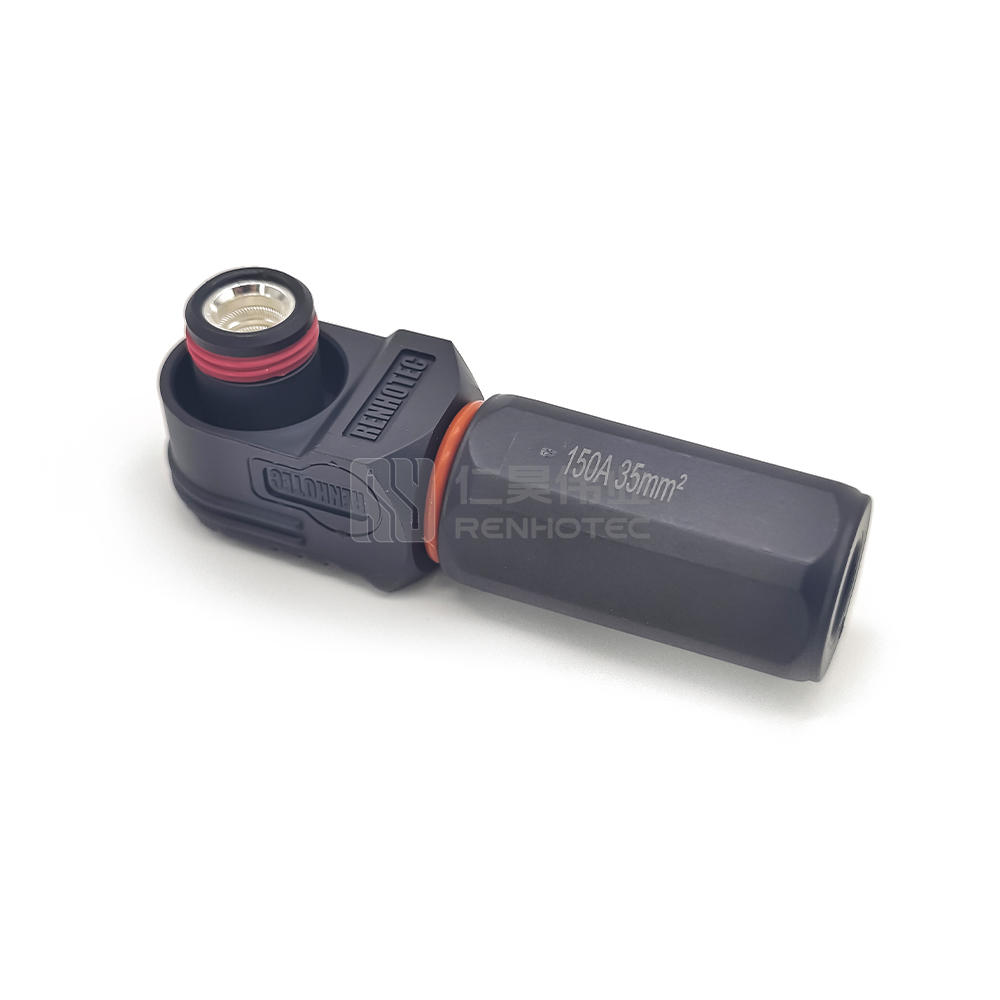

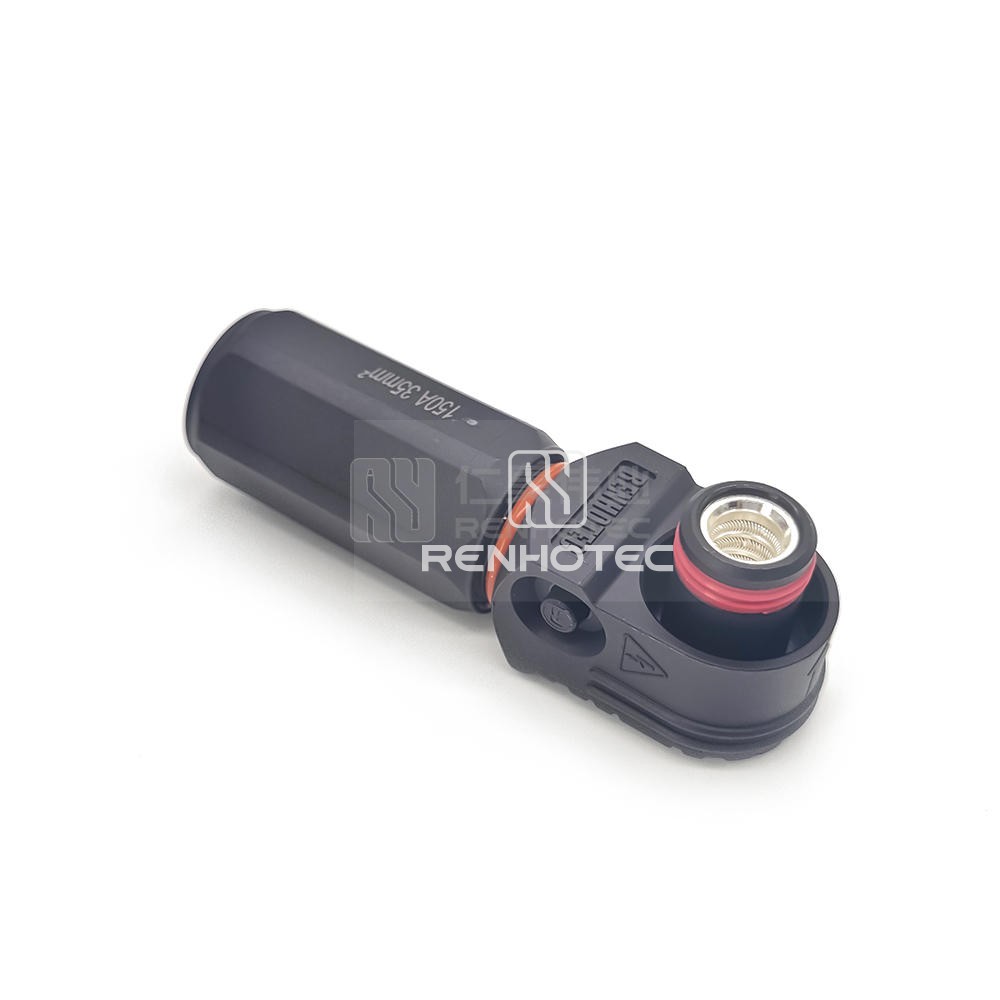

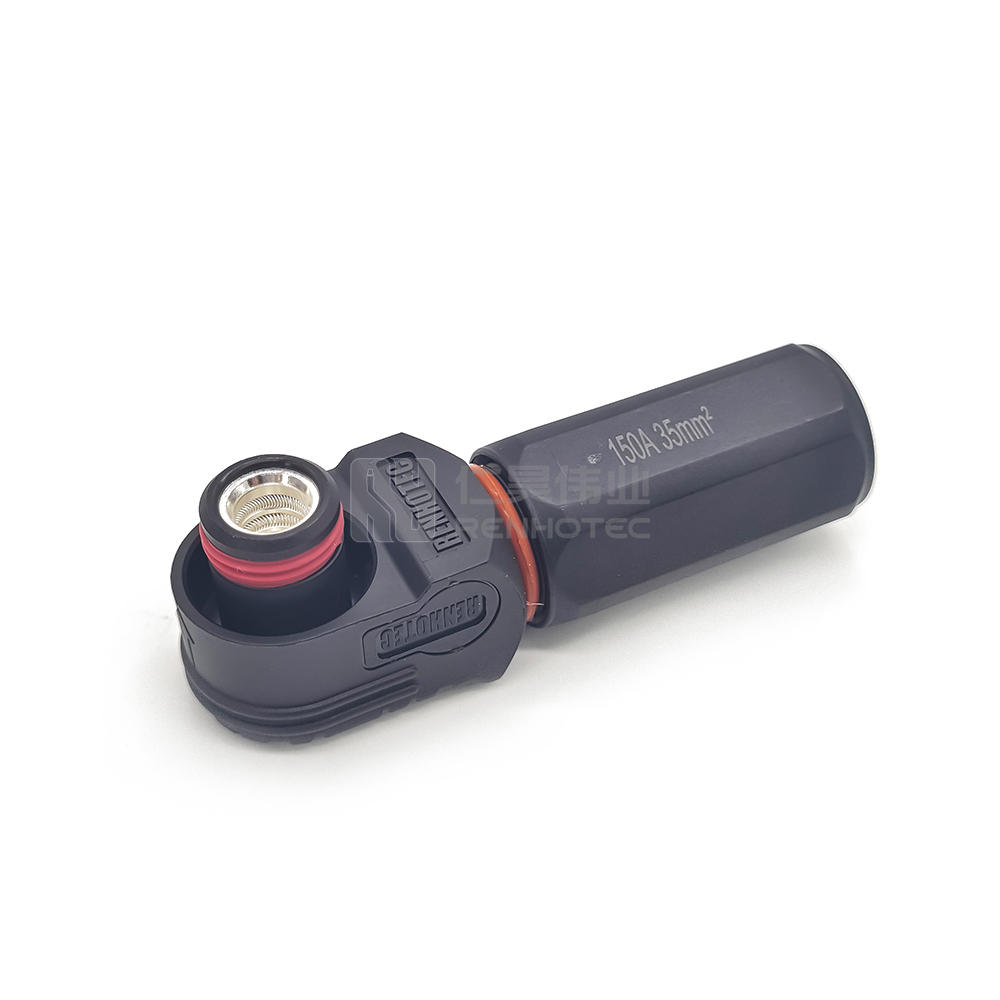

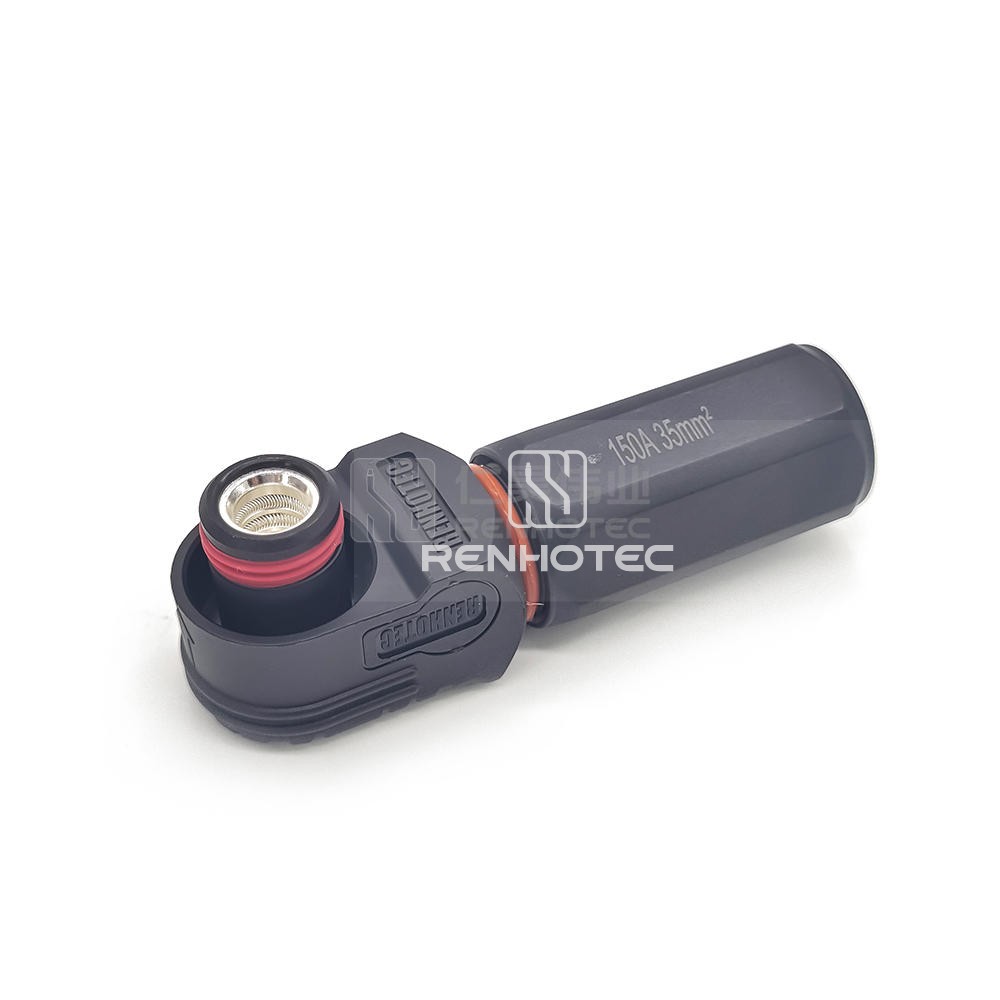

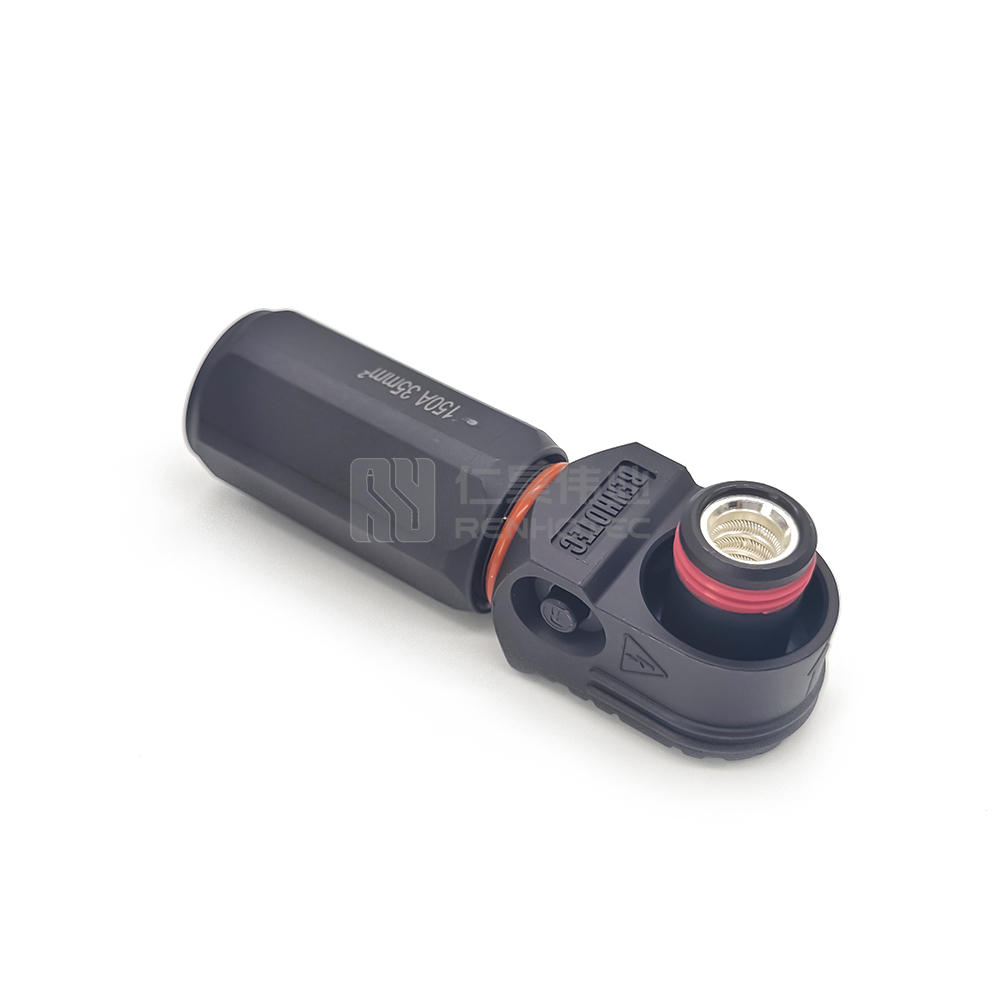

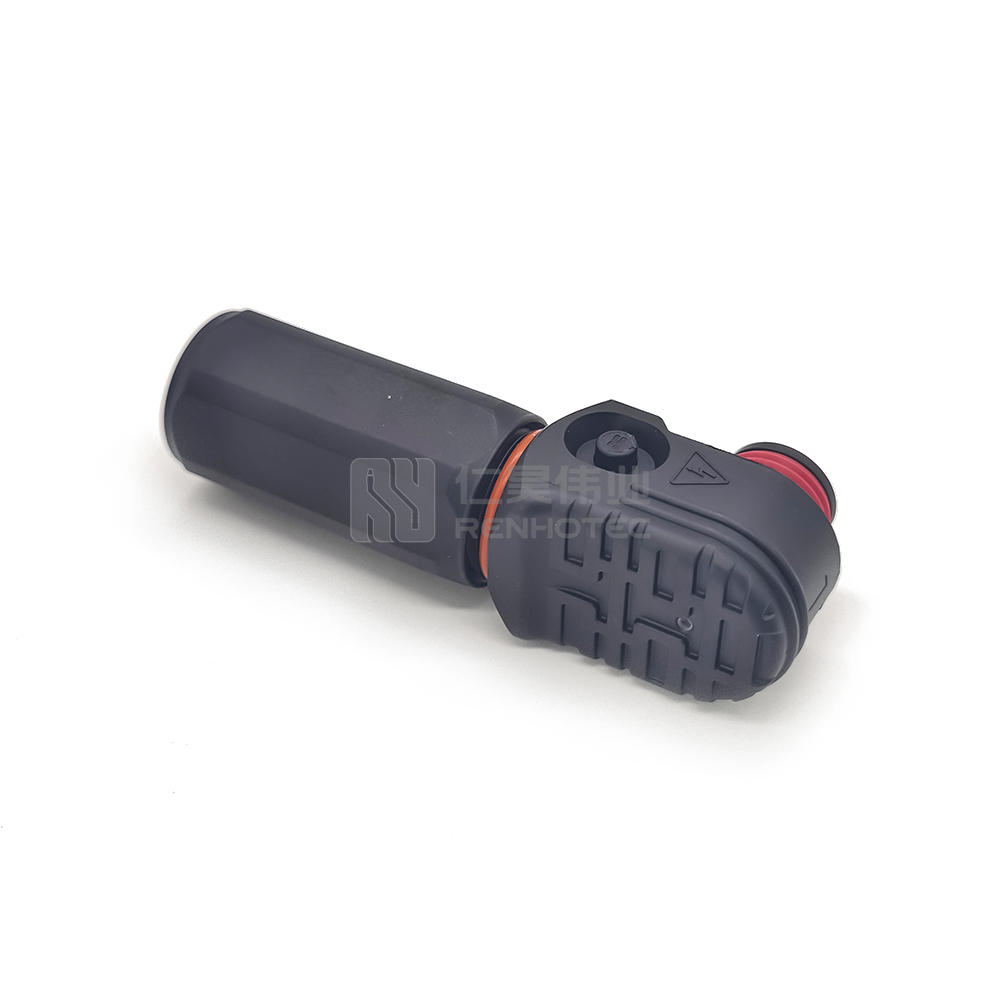

This premium quality power entry connector features a 8.0mm cable plug with 150A capacity, designed with a right-angled 35mm² unshielded black cable for efficient power connectivity. Ideal for various electronics applications.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Color | Black |
Electrical
Rated Voltage | 1000V |
Rated Current | 150A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 35mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP54 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
