FCC0835-F1YR

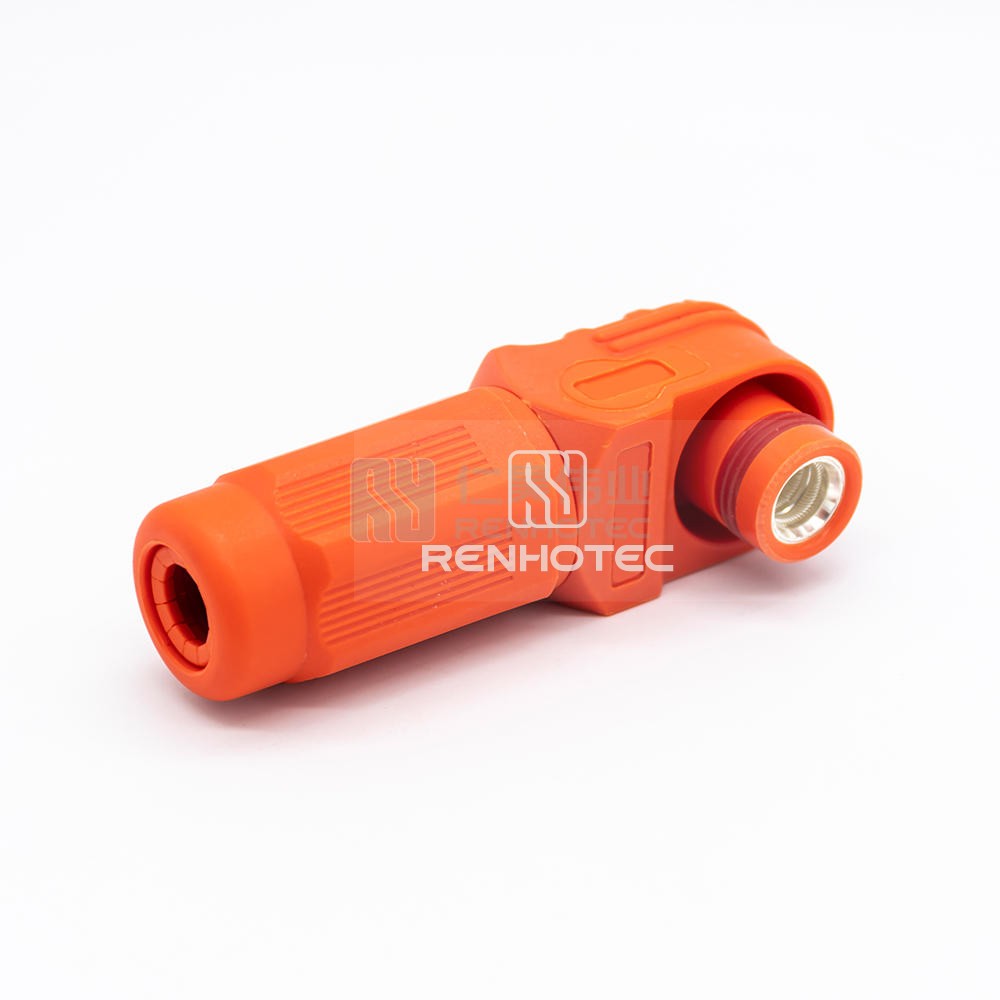

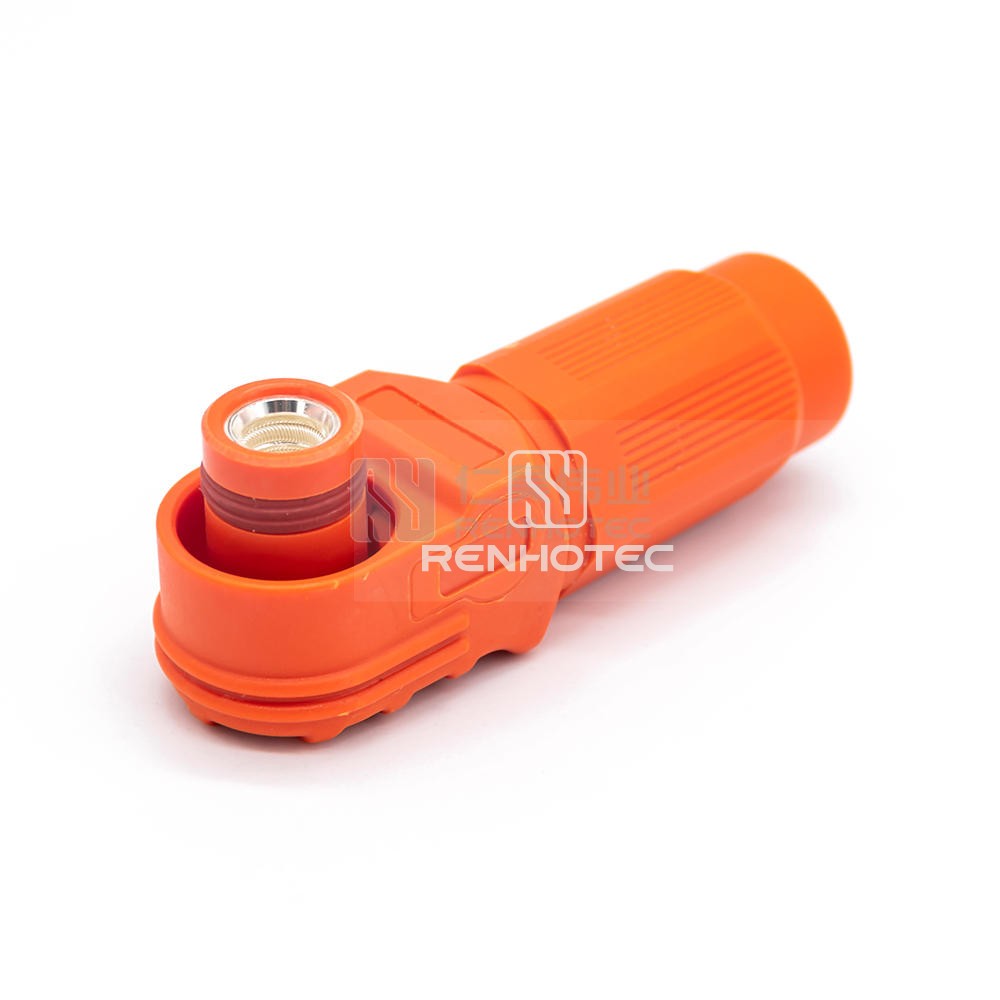

8.0mm Power Entry Connector 150A Cable Plug Right Angled 35mm² Unshielded Cable Orange
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

Enhance your power connections with this 8.0mm right-angled cable plug suitable for 35mm² unshielded cables. Capable of handling 150A of power, this orange connector ensures reliable and secure power transmission.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationRight Angle
Number of Positions1
Contact Size8mm
Contact TerminationCrimp
ColorOrange
Material
Shell MaterialNylon
Contact MaterialT2
Contact FinishSilver
Mechanical
Mounting TypeCable Type
Wire Gauge or Range35mm²
Environmental
Ingress ProtectionIP54
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage1000V
Rated Current150A
ShieldingUnshielded
