Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Cable Plug Right angled 50mm² Unshielded Cable Black

RHT-P008-C50-BK

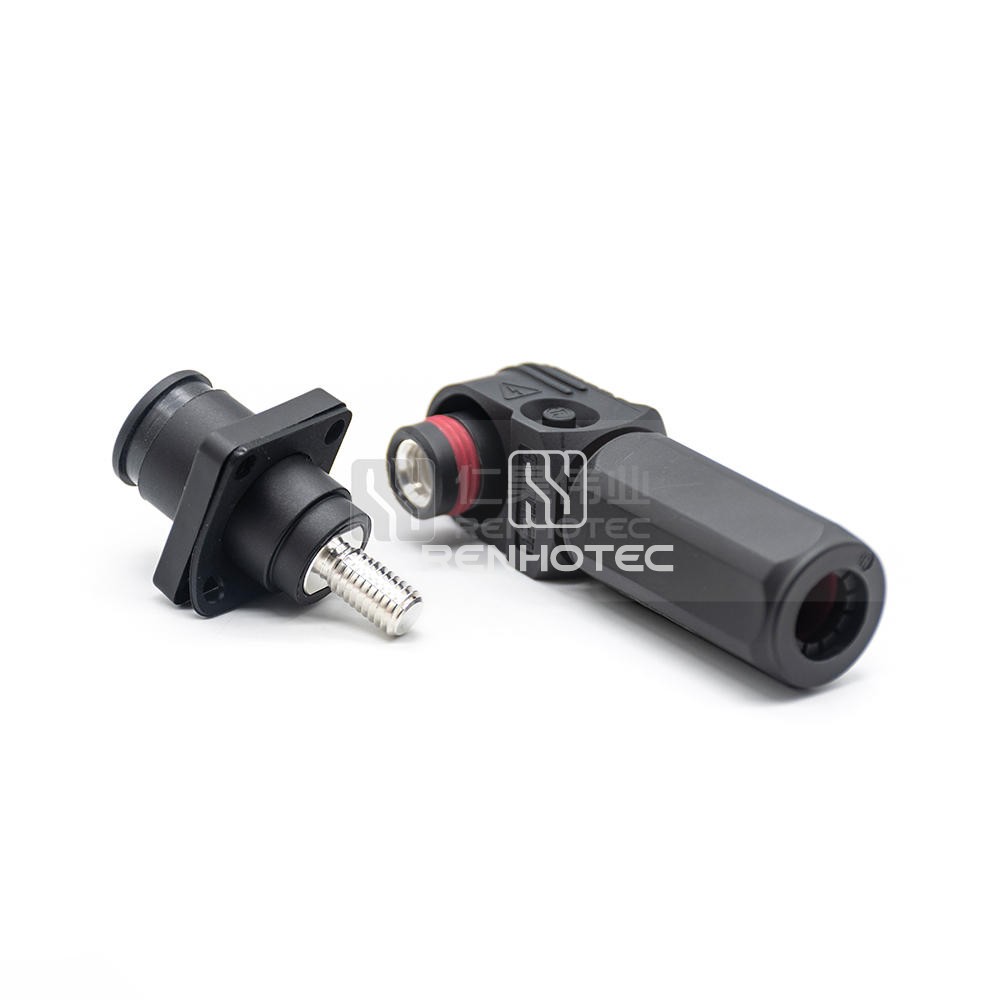

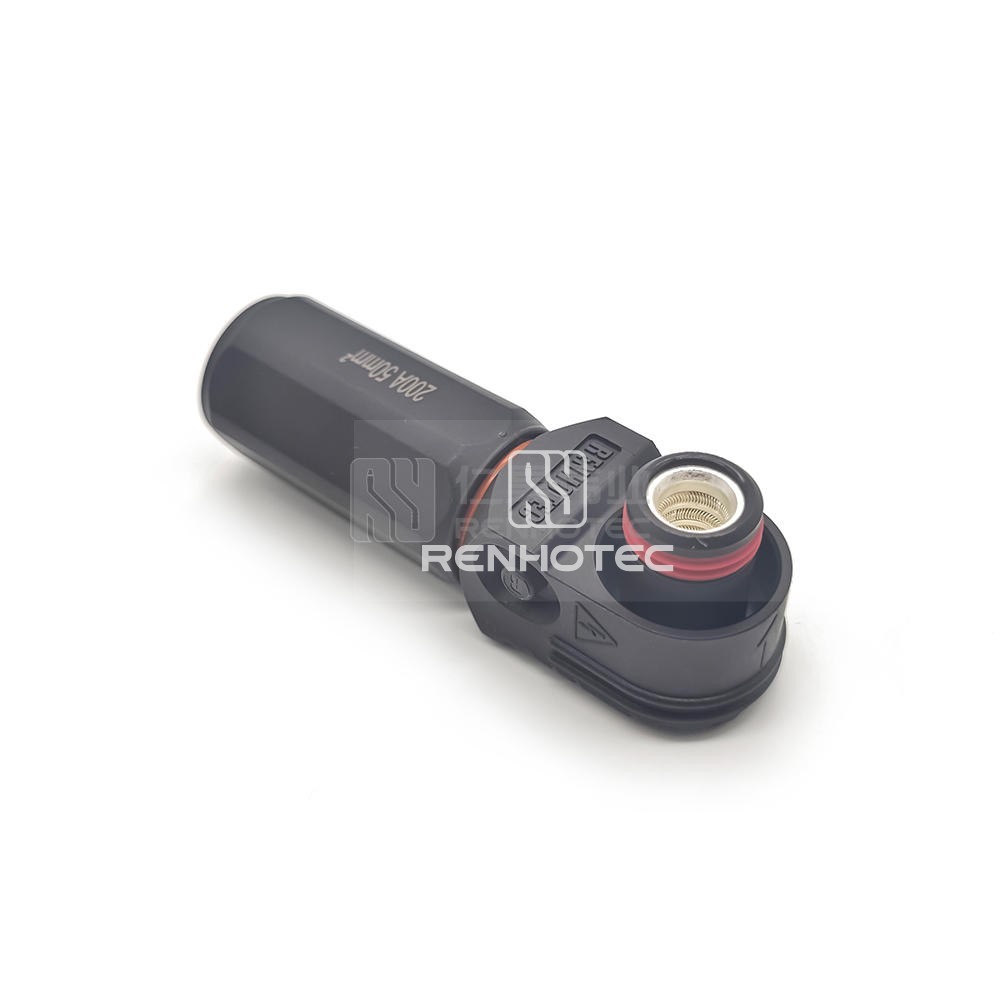

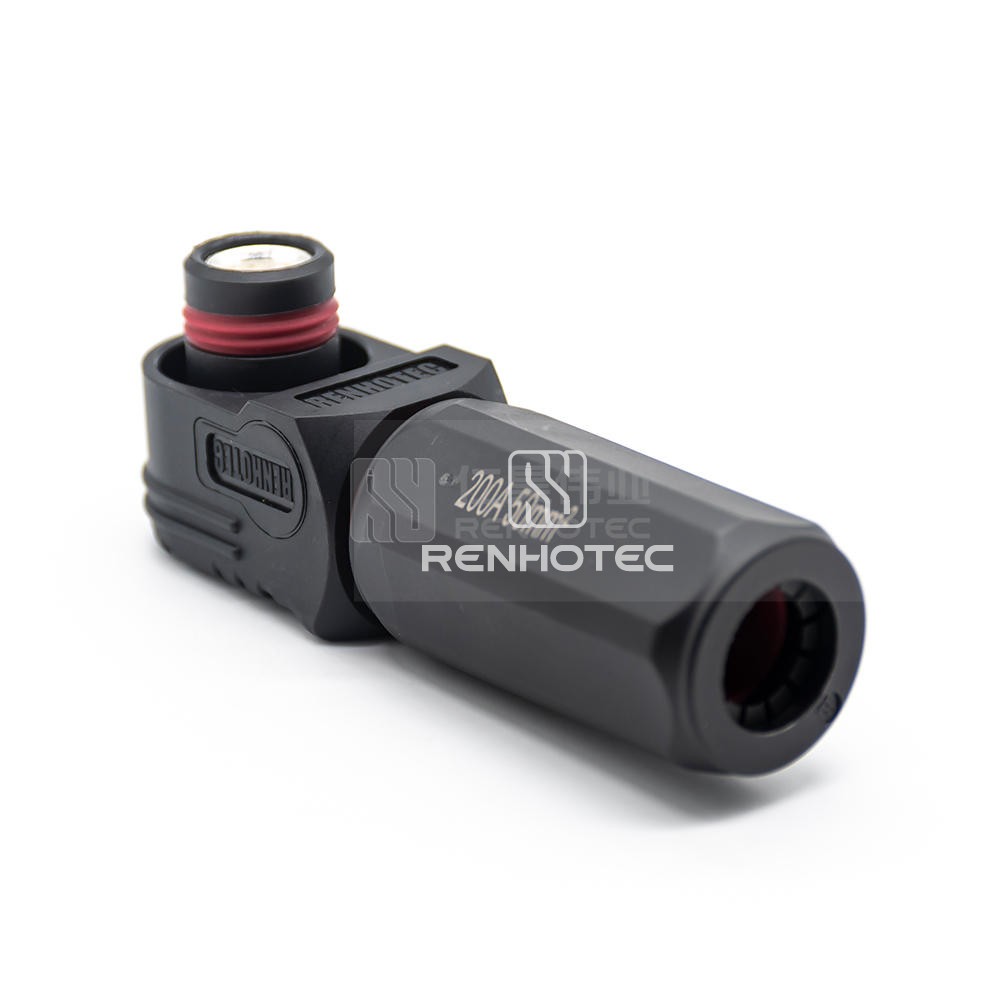

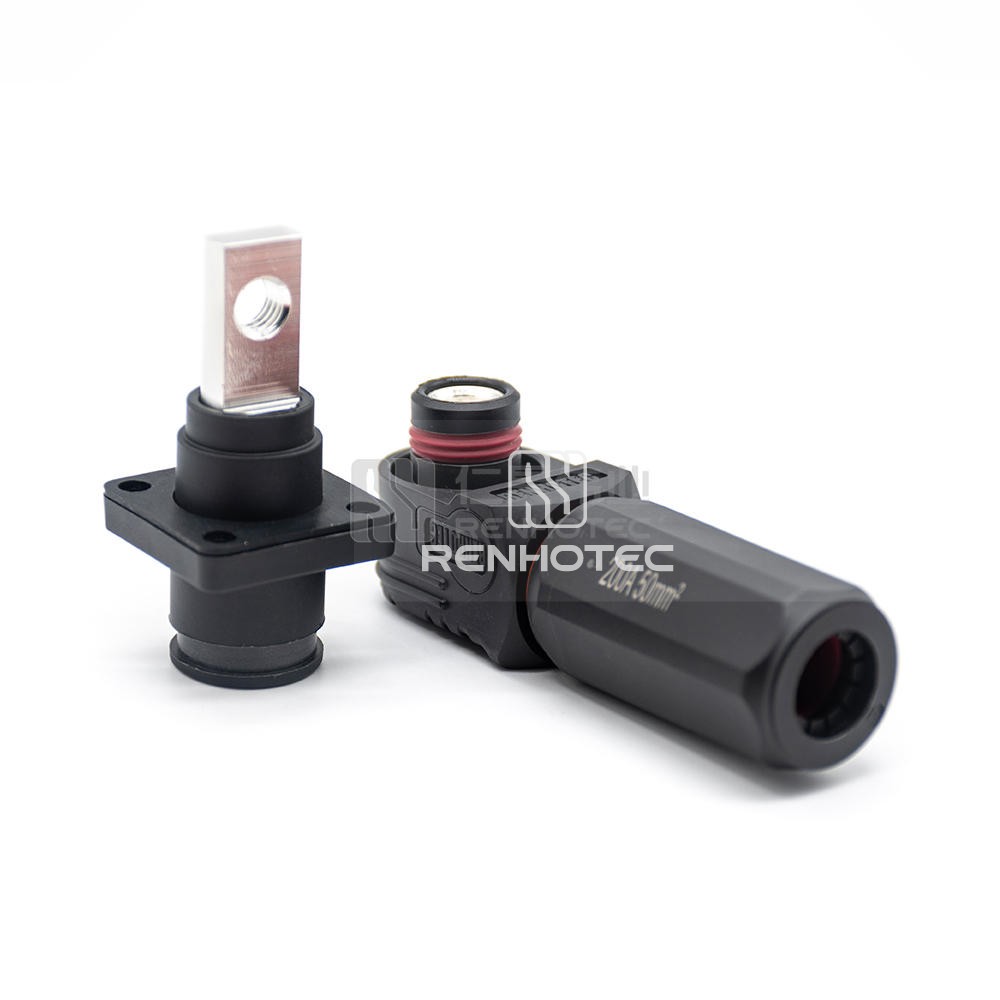

8.0mm Power Entry Connector 200A Cable Plug Right angled 50mm² Unshielded Cable Black

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Efficiently power your devices with this 8.0mm power entry connector featuring a 200A capacity, right-angled cable plug, and 50mm² unshielded black cable.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
