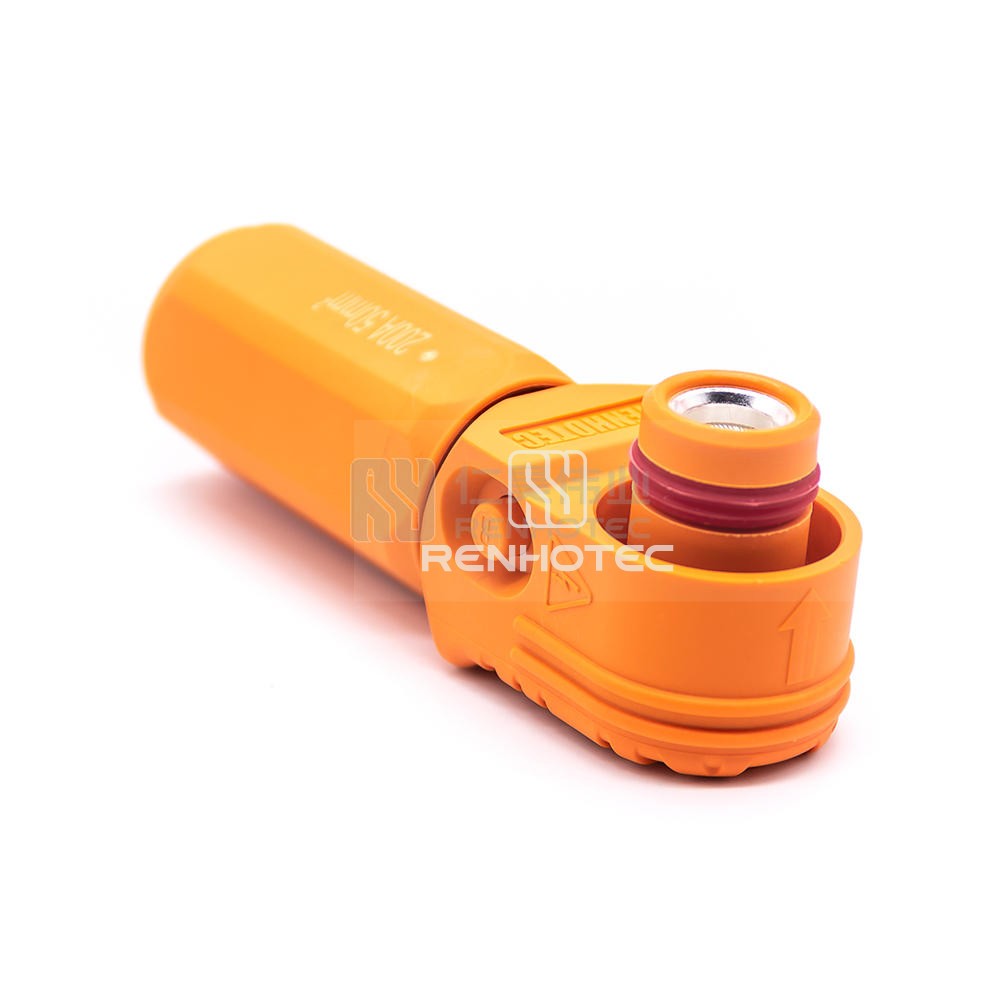

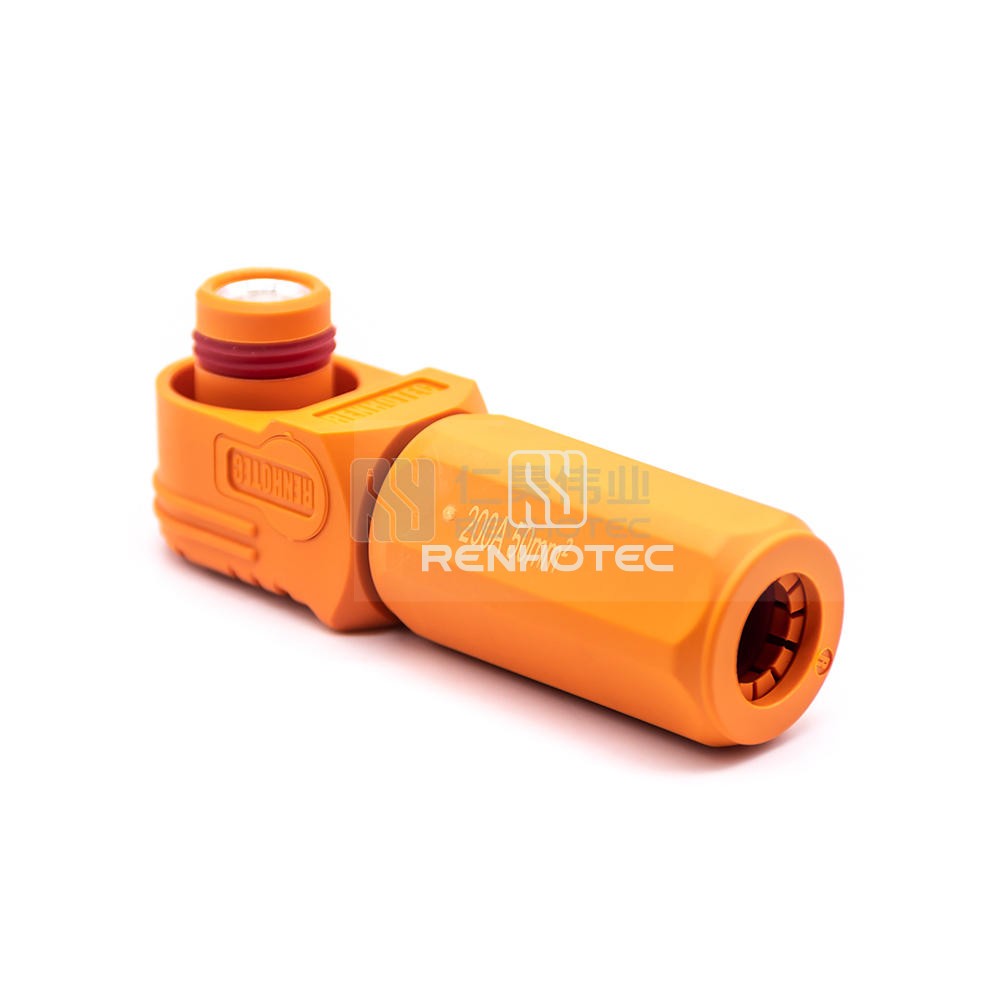

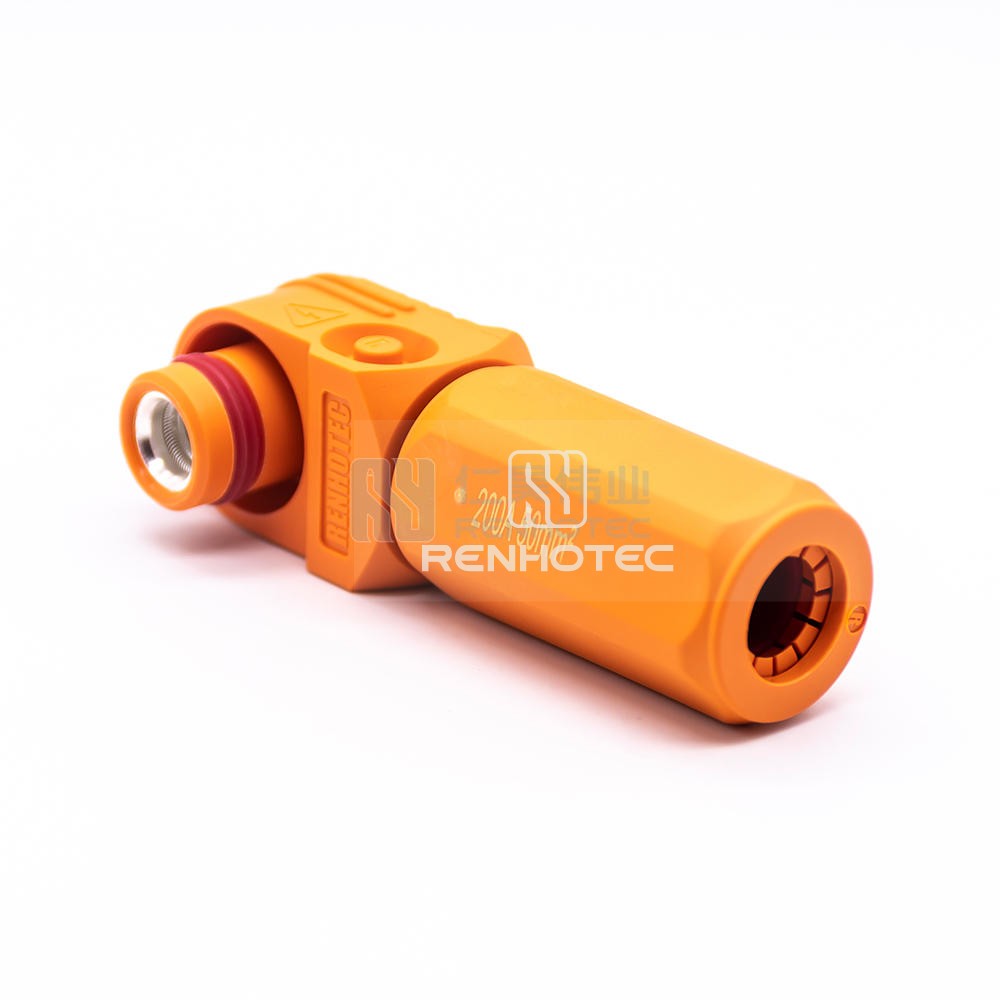

This high-quality power entry connector features a 200A capacity and 8.0mm cable plug ideal for 50mm² unshielded cables. With a right-angled design, it offers convenience and ease of use. The vibrant orange color adds visibility and style to your applications.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Color | Orange |
Electrical
Rated Voltage | 1000V |
Rated Current | 200A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP54 |
Operating Temperature | -40°C ~ + 125°C |
