Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Cable Plug Right Angled 50mm² Unshielded Cable Red

FCC0850-F1RR

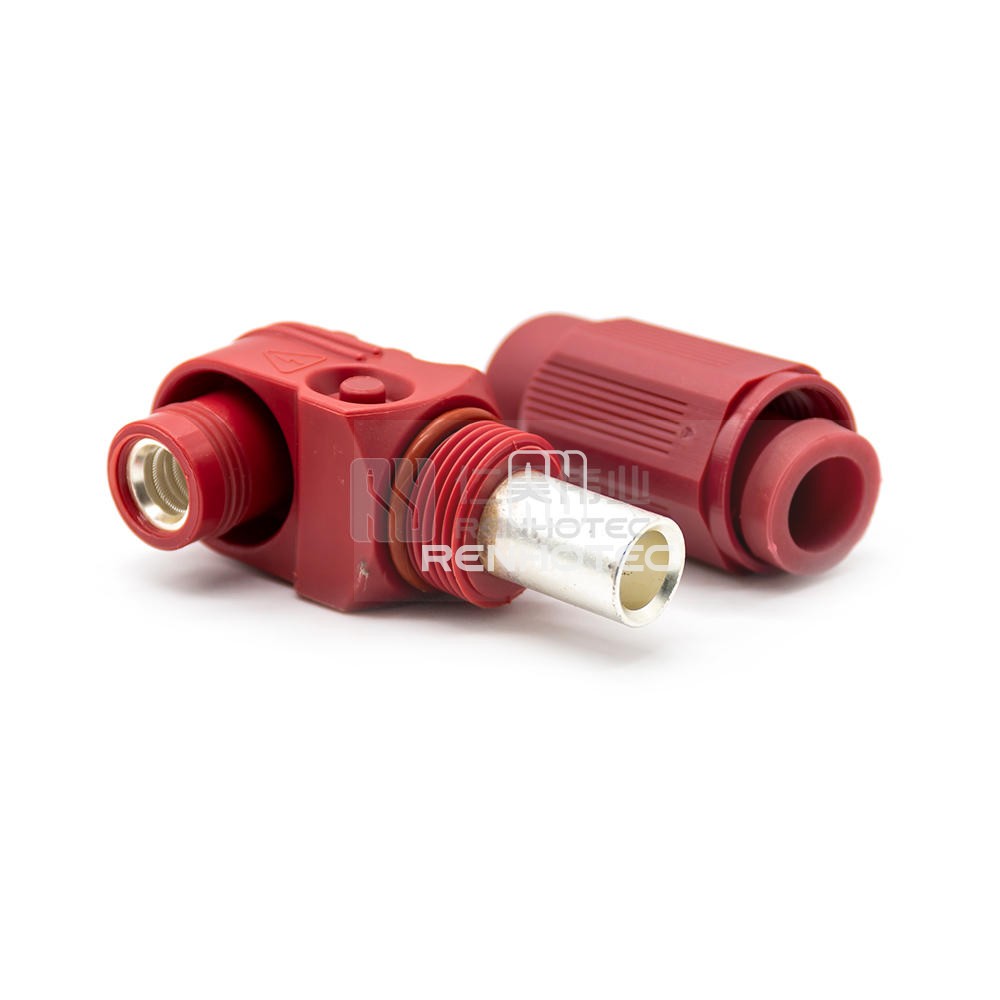

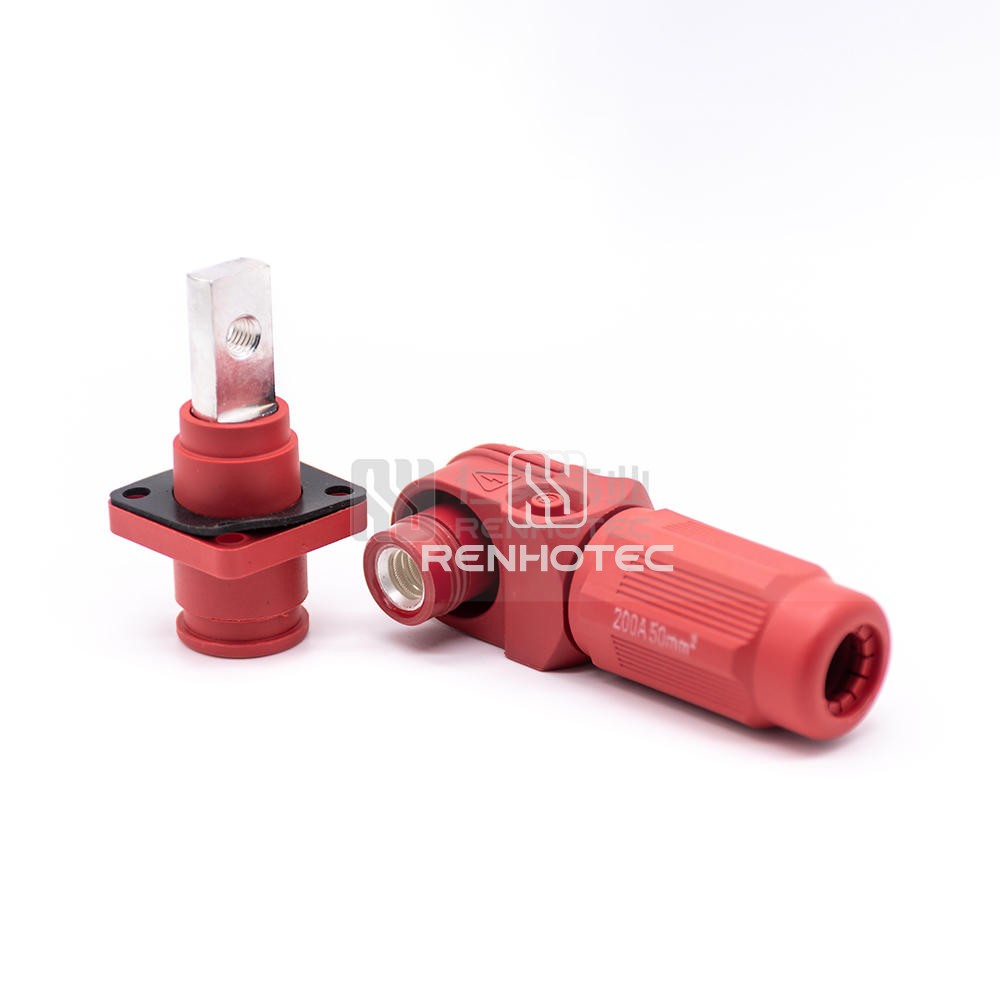

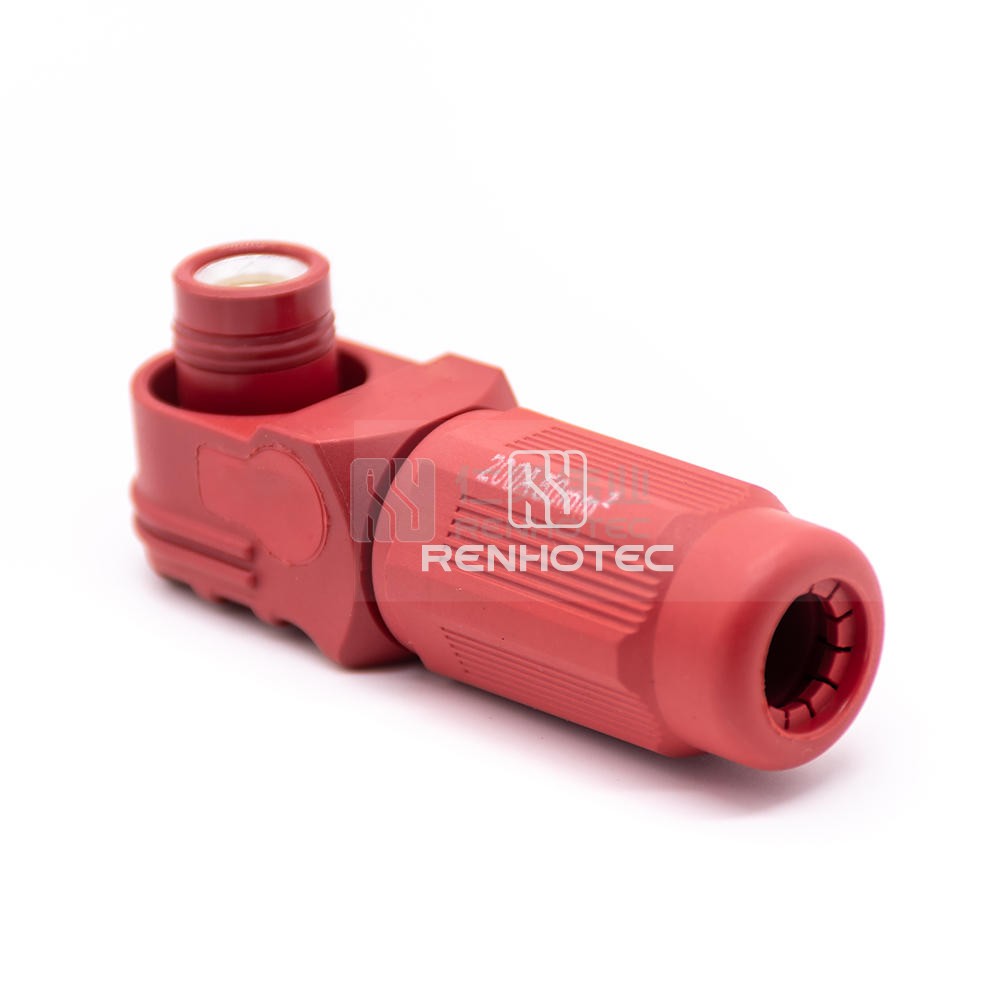

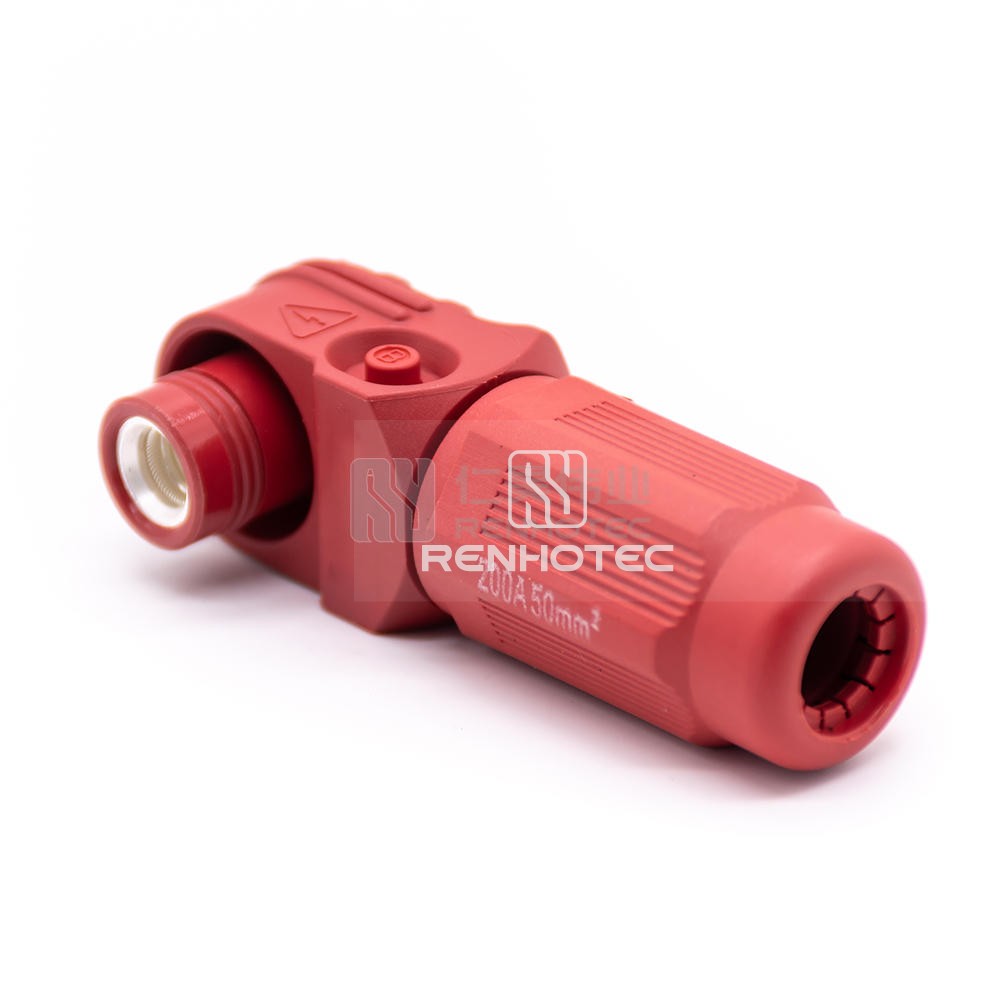

8.0mm Power Entry Connector 200A Cable Plug Right Angled 50mm² Unshielded Cable Red

High-quality 8.0mm power entry connector with a 200A capacity, designed as a right-angled cable plug for easy installation. Suitable for 50mm² unshielded cable in a vibrant red color.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range50mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
