Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Black W Key

FSP200180CW-UM81BRH

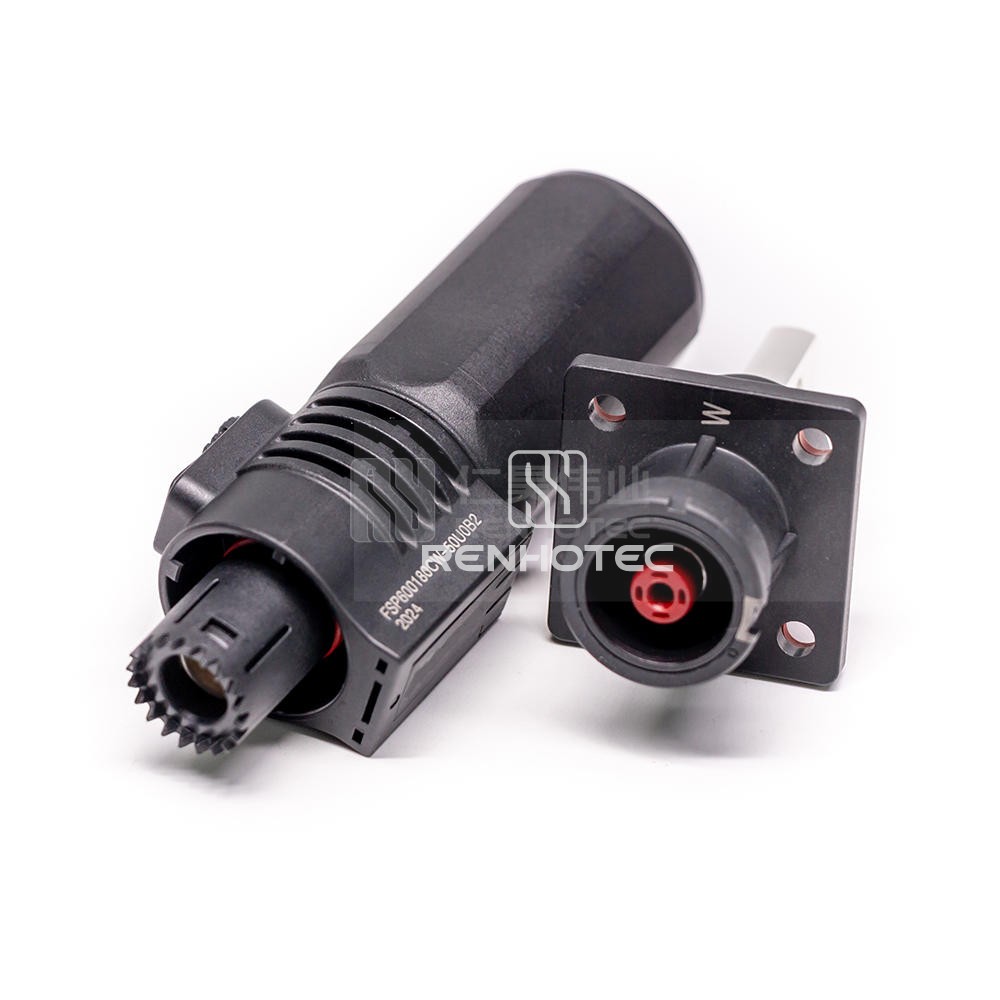

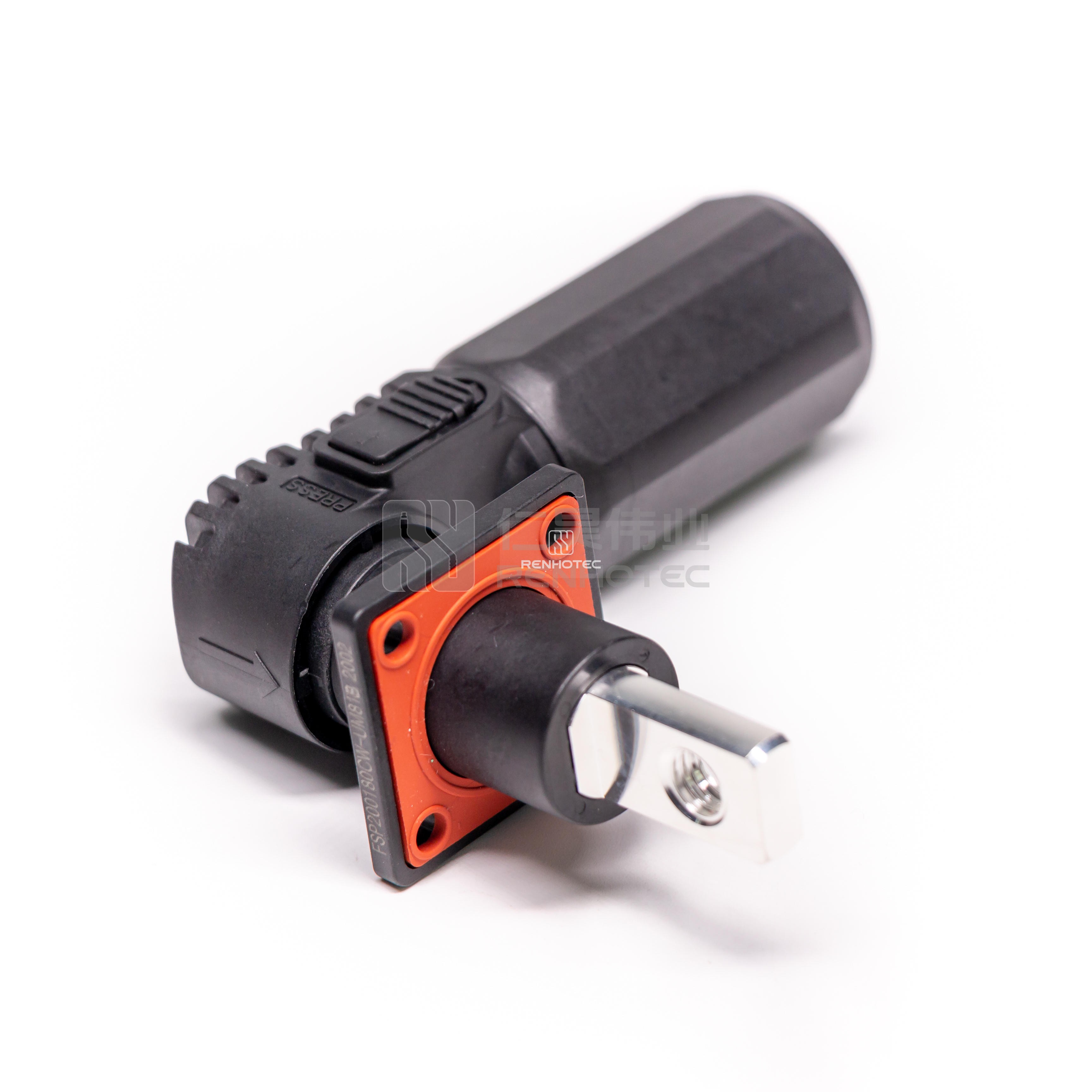

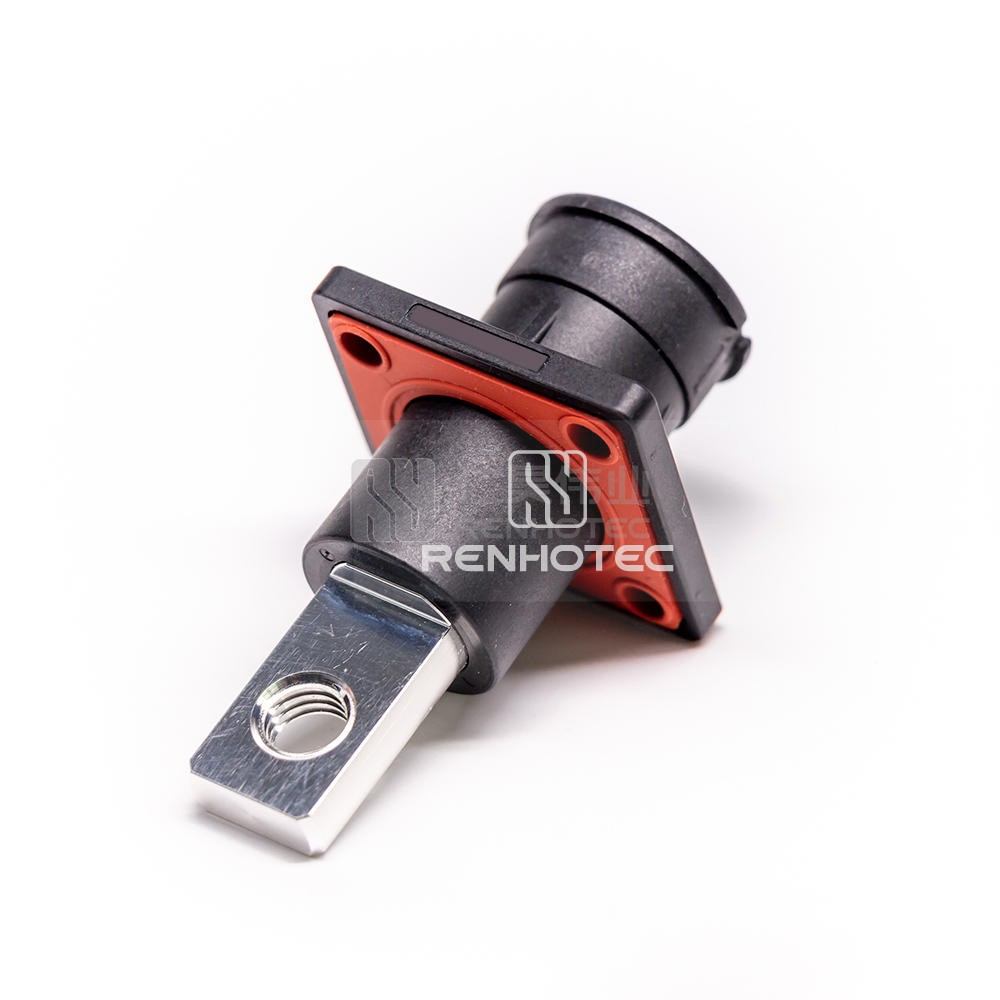

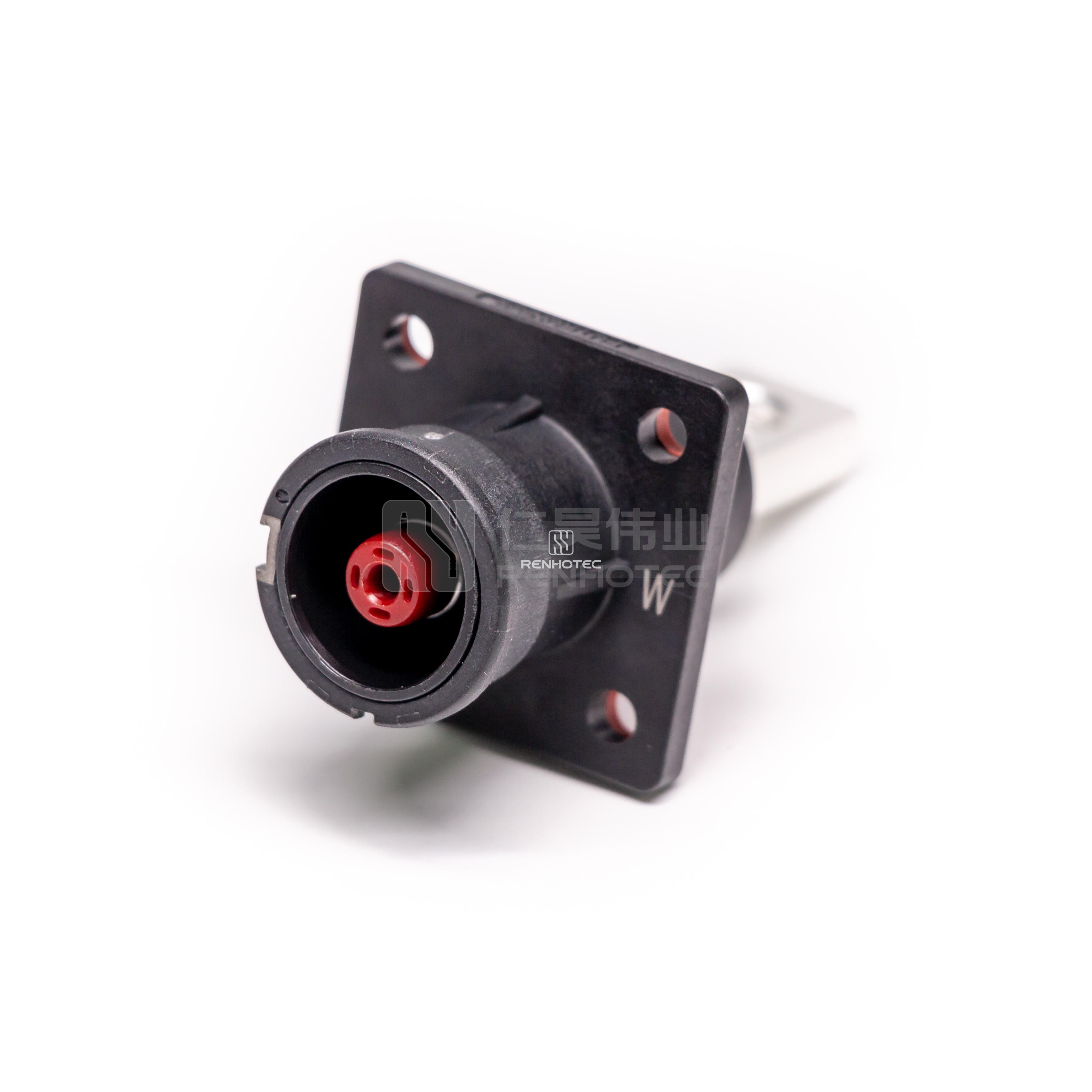

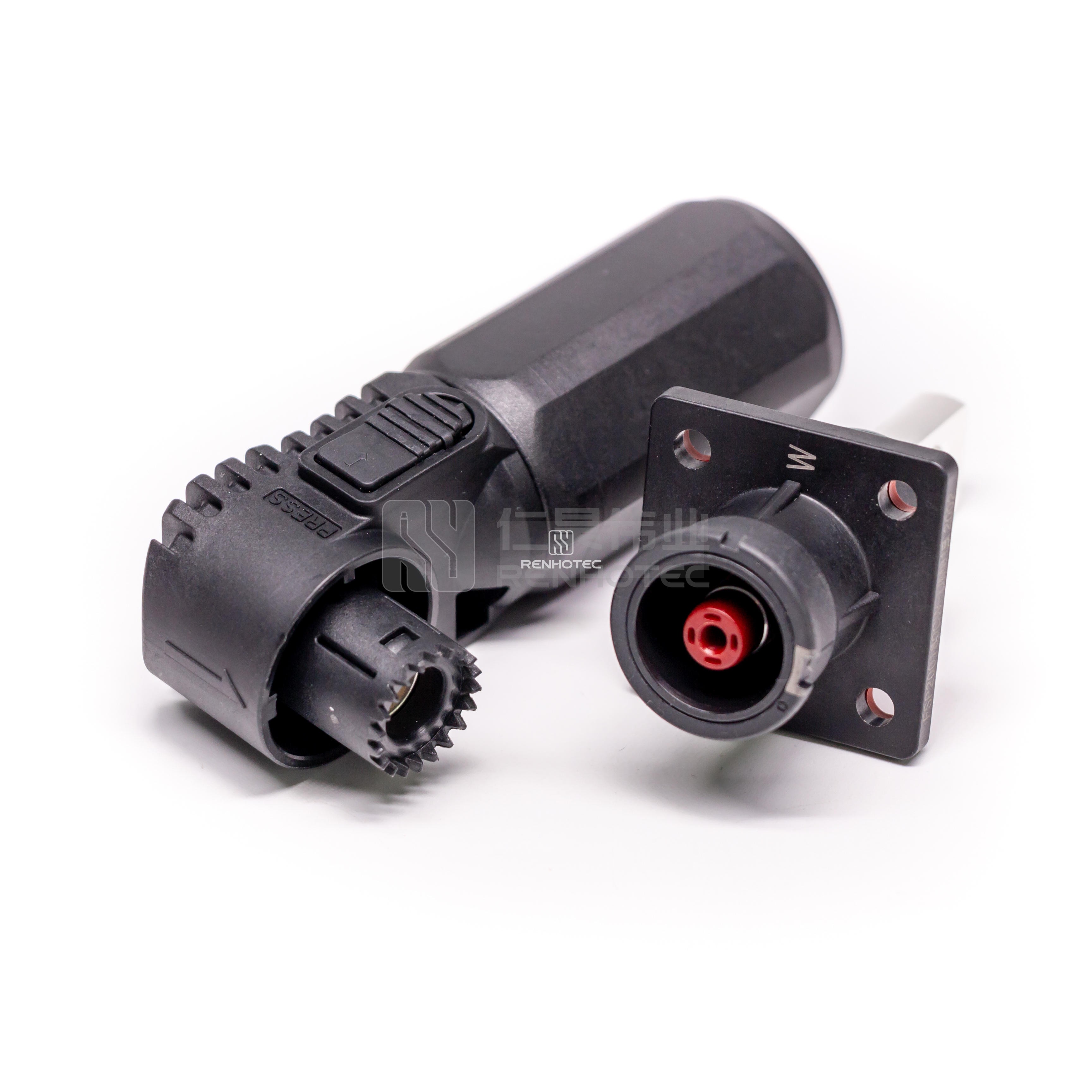

8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Black W Key

High-quality 8.0mm power entry connector with 200A capacity. Features a receptacle busbar terminal with an M8 screw in black color and includes a key for added security. Reliable and durable design for secure power connections.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size8mm
    Contact TerminationBusbar
    Mounting TypePanel Mount
    Mounting FeatureFlange
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
