Products > Energy Storage Connector > 8.0mm Power Entry Connector 250A Receptacle Busbar Teminal(M8 screw) Black W Key

FSP240180CW-UM8B1RH

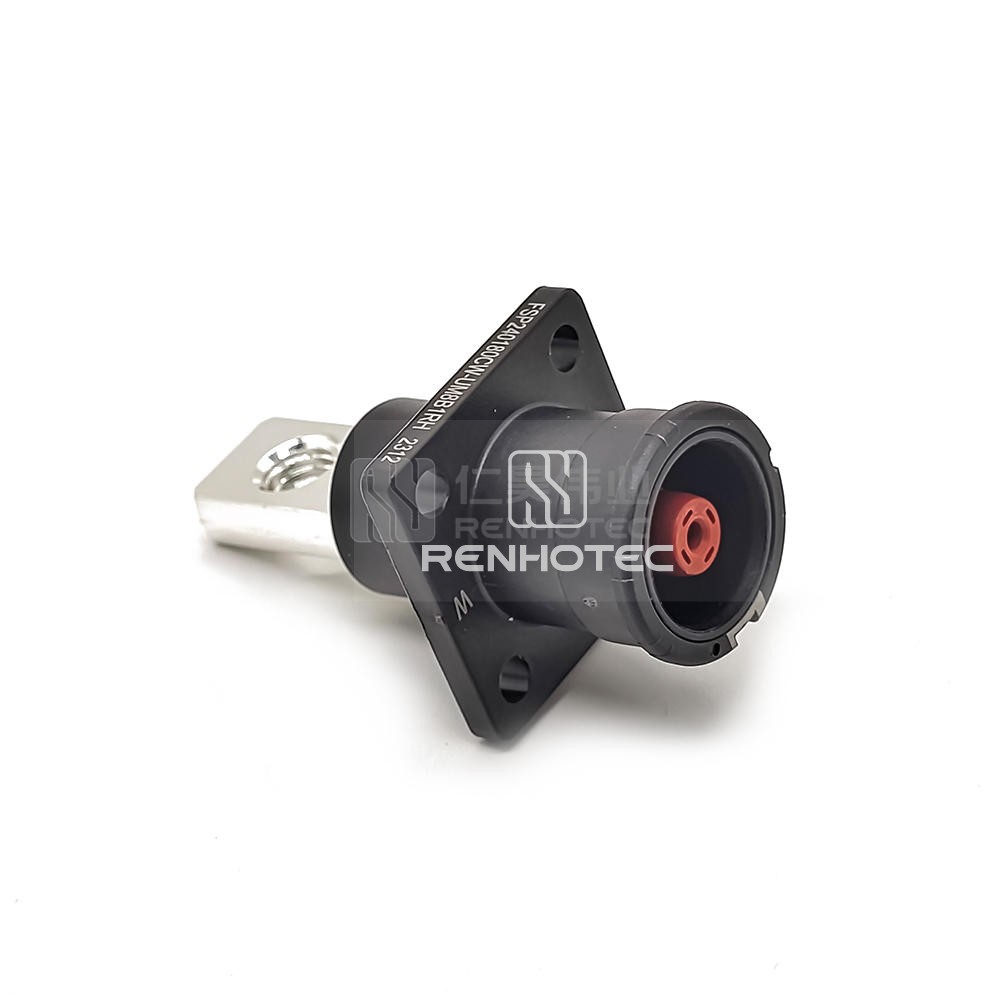

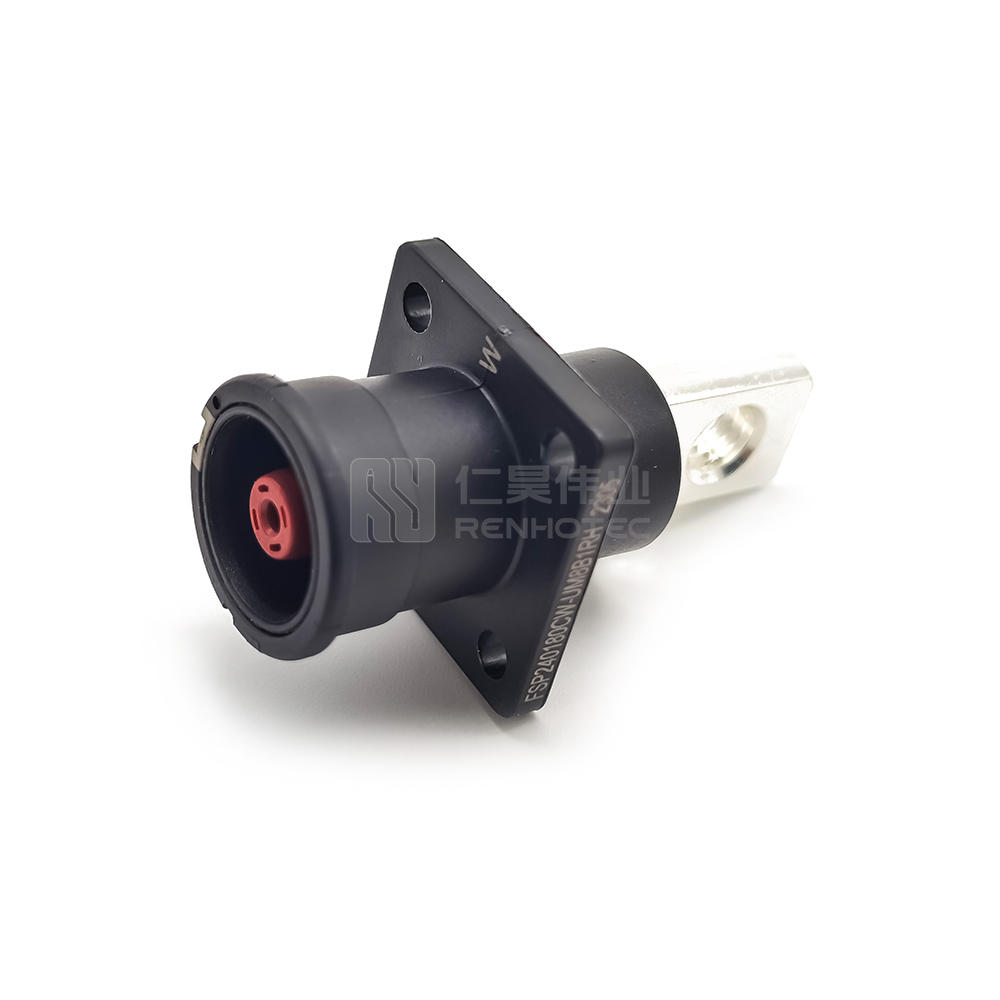

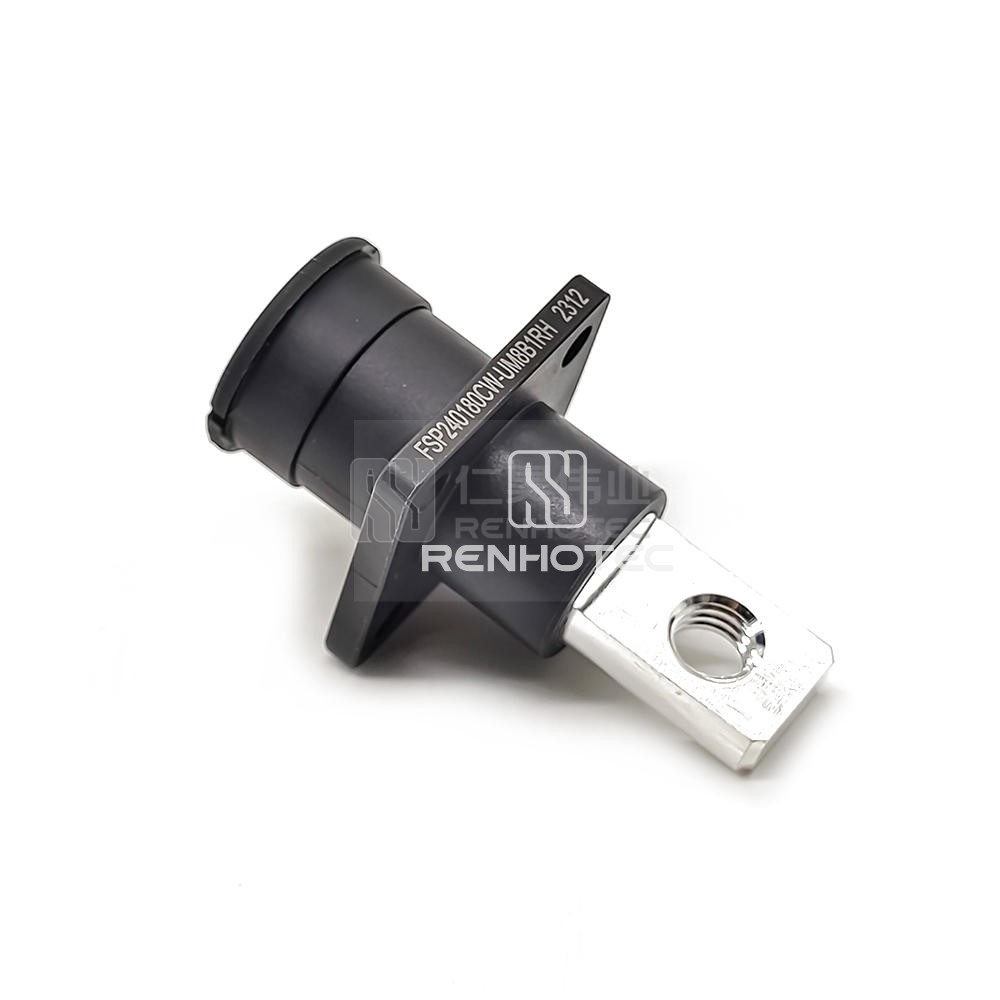

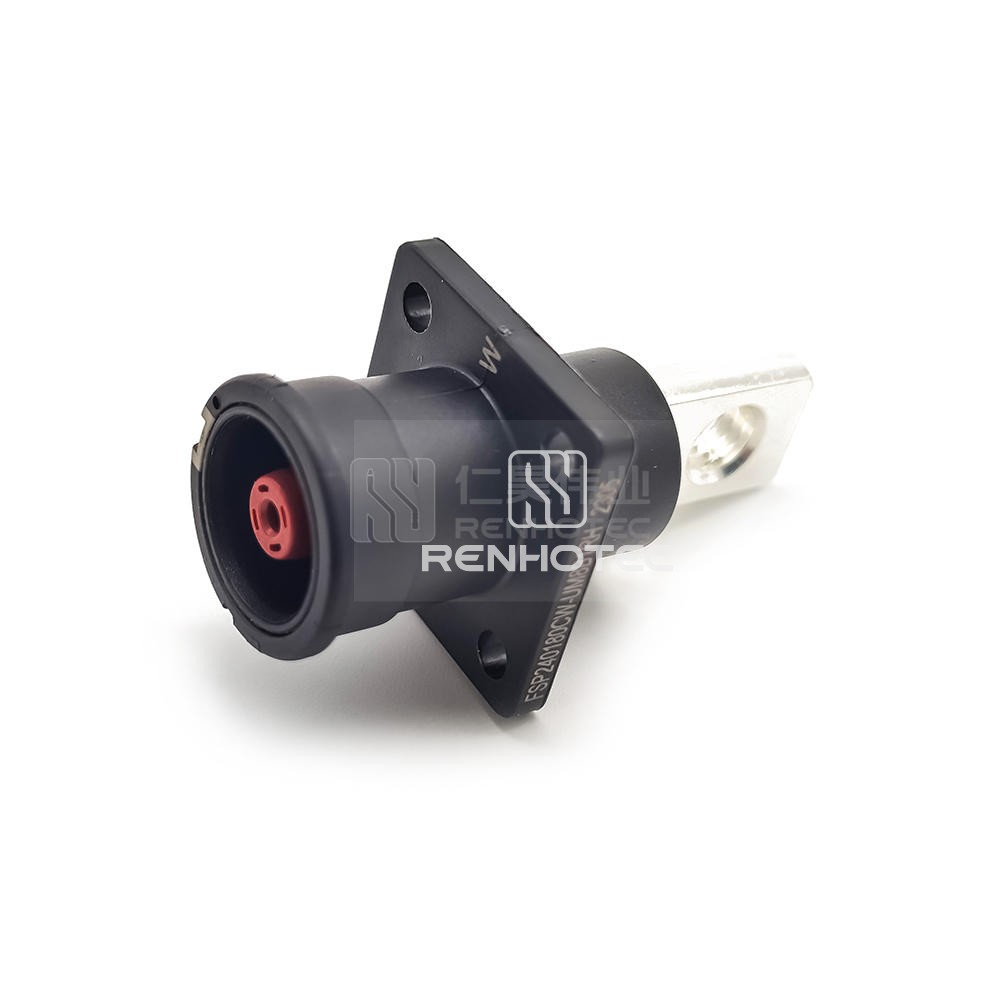

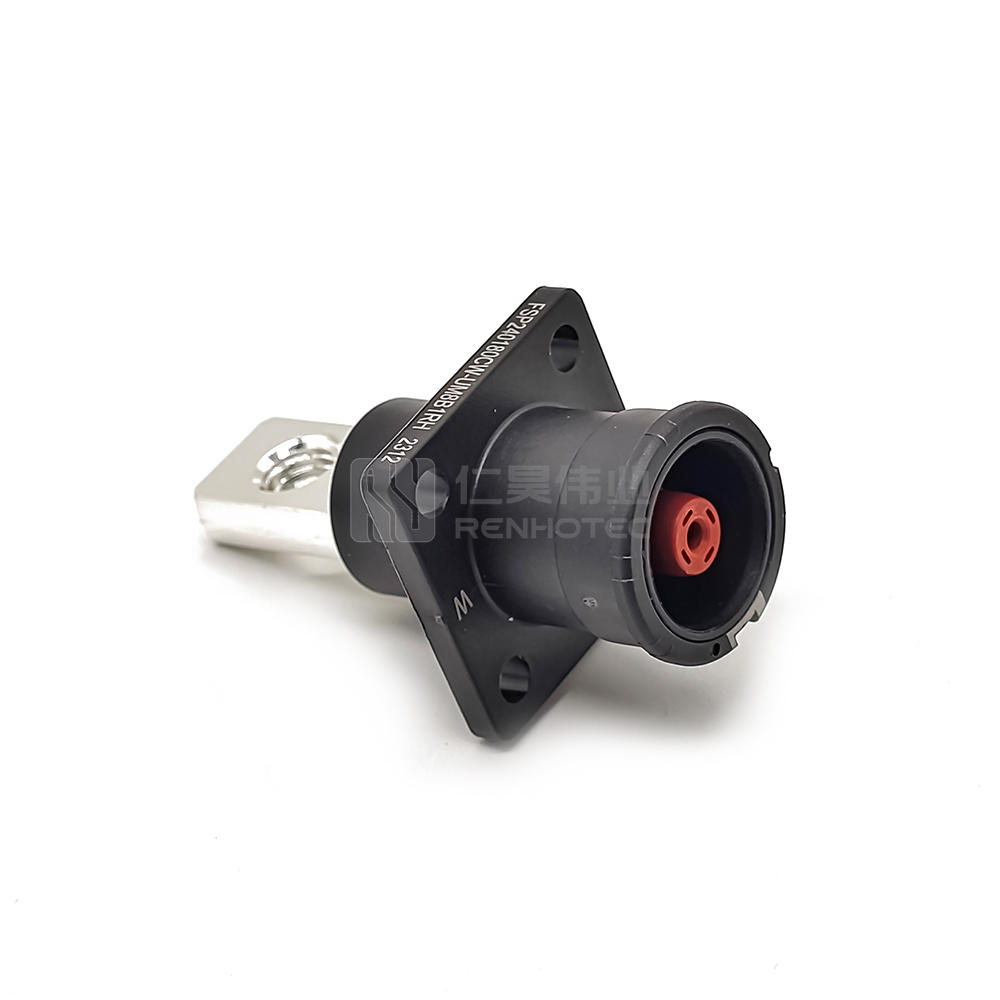

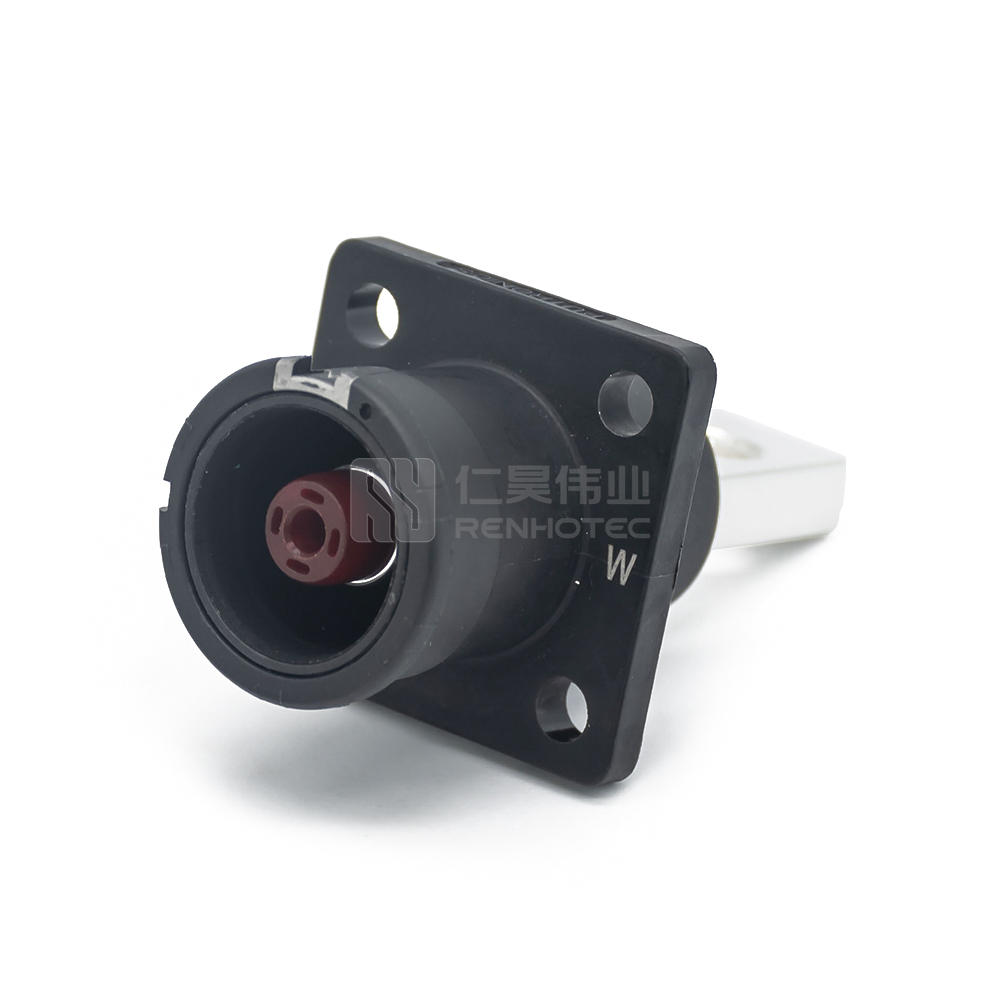

8.0mm Power Entry Connector 250A Receptacle Busbar Teminal(M8 screw) Black W Key

This 8.0mm power entry connector features a 250A receptacle with a busbar terminal, M8 screw, and comes in Black color with a key. Ideal for secure power connections in various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact TerminationBusbar
    Mounting TypePanel Mount
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current250A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
