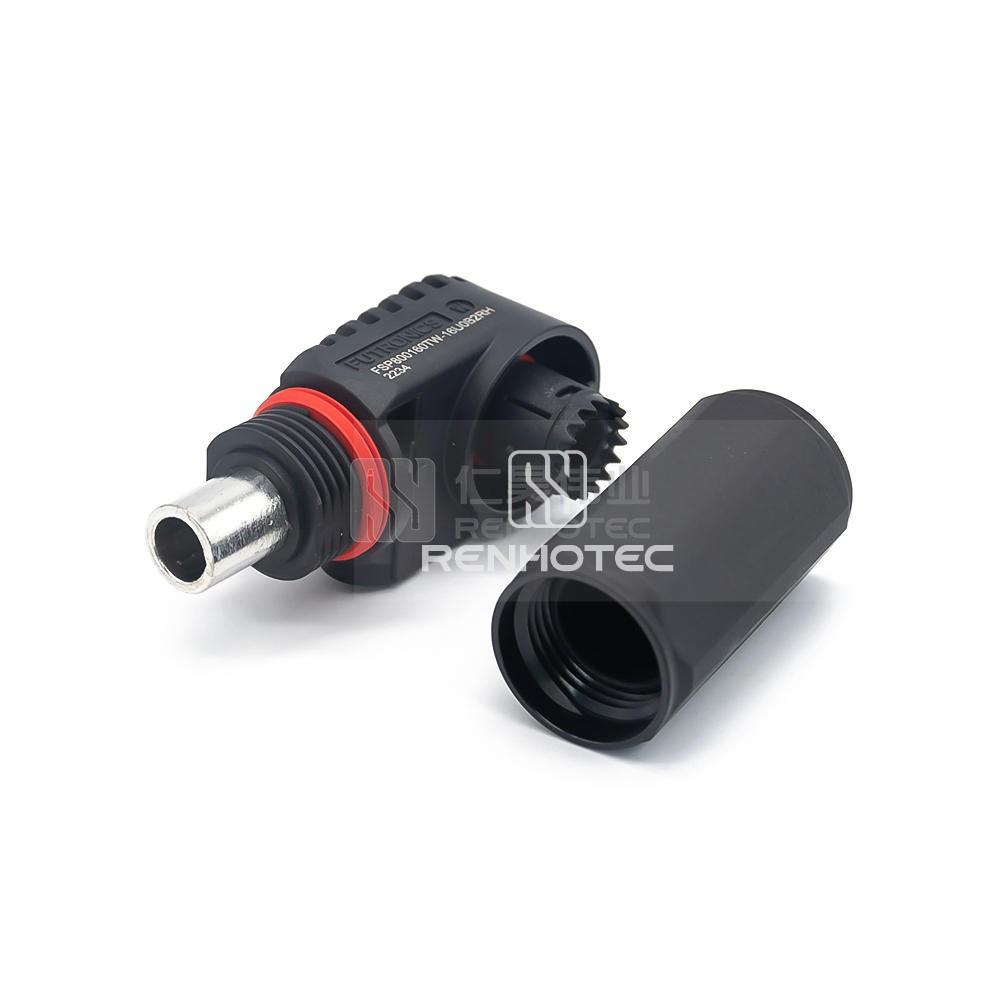

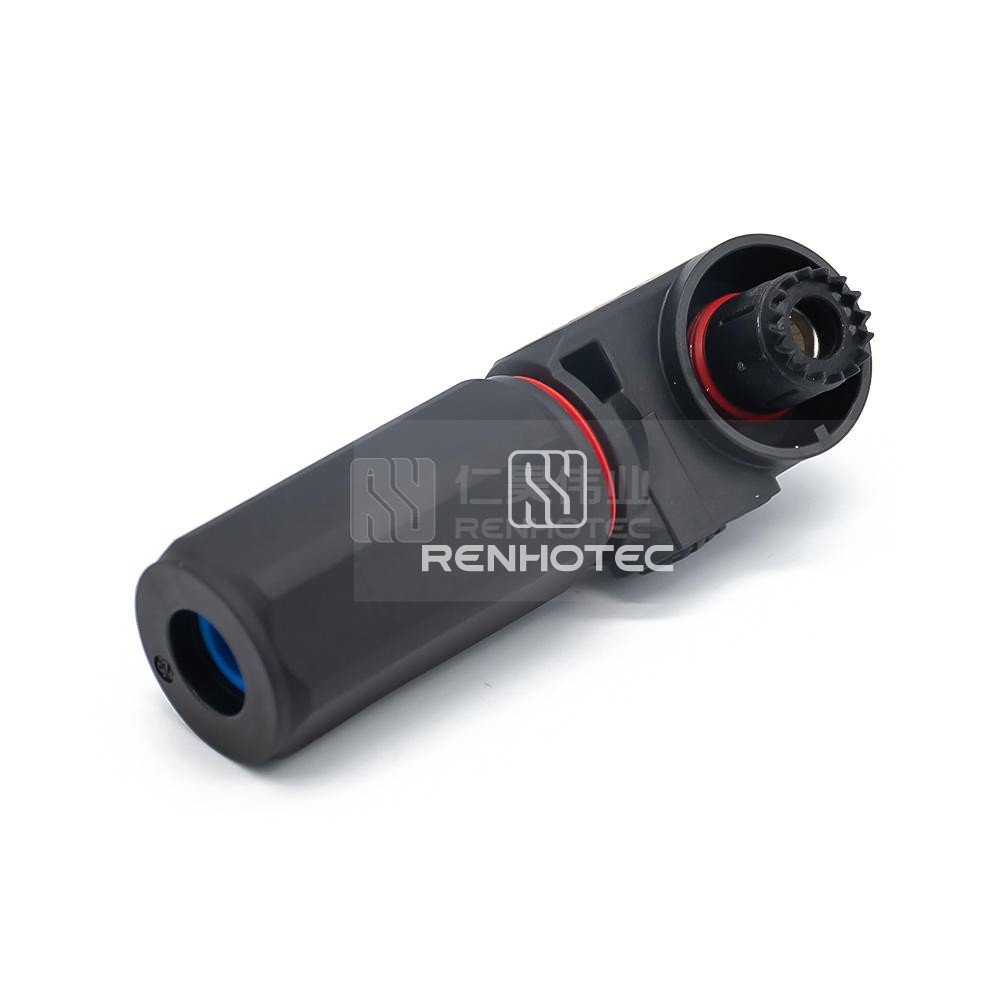

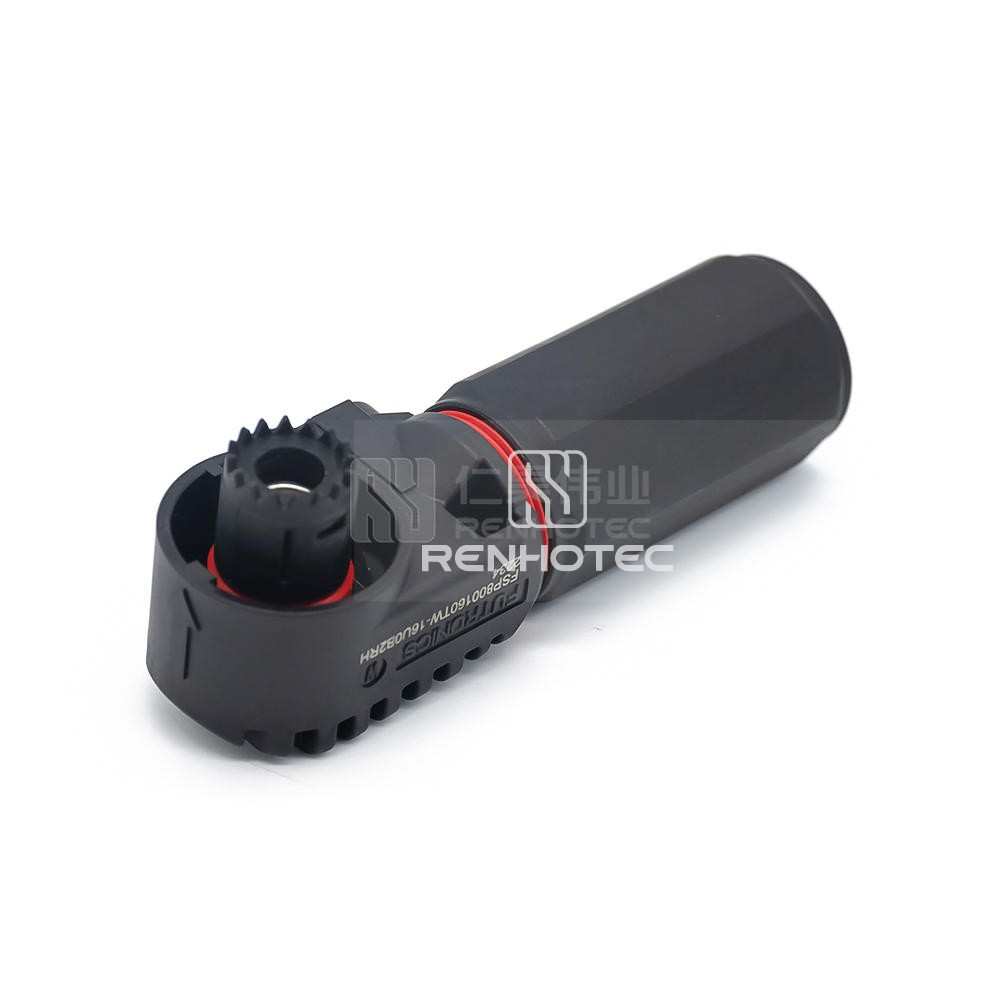

8.0mm Waterproof Battery Storage Connector Right Angle 100A Black 16mm² UnShielded Cable W Key

Explore this 8.0mm waterproof battery storage connector, designed with a right-angle for easy installation, capable of handling 100A. The black 16mm² unshielded cable ensures secure connections, while the included key adds an extra layer of protection.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialPA66
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
