Products > Energy Storage Connector > 8.0mm Waterproof Battery Storage Connector Right Angle 70A Black 10mm² UnShielded Cable W Key

FSP800160TW-10U0B2RH

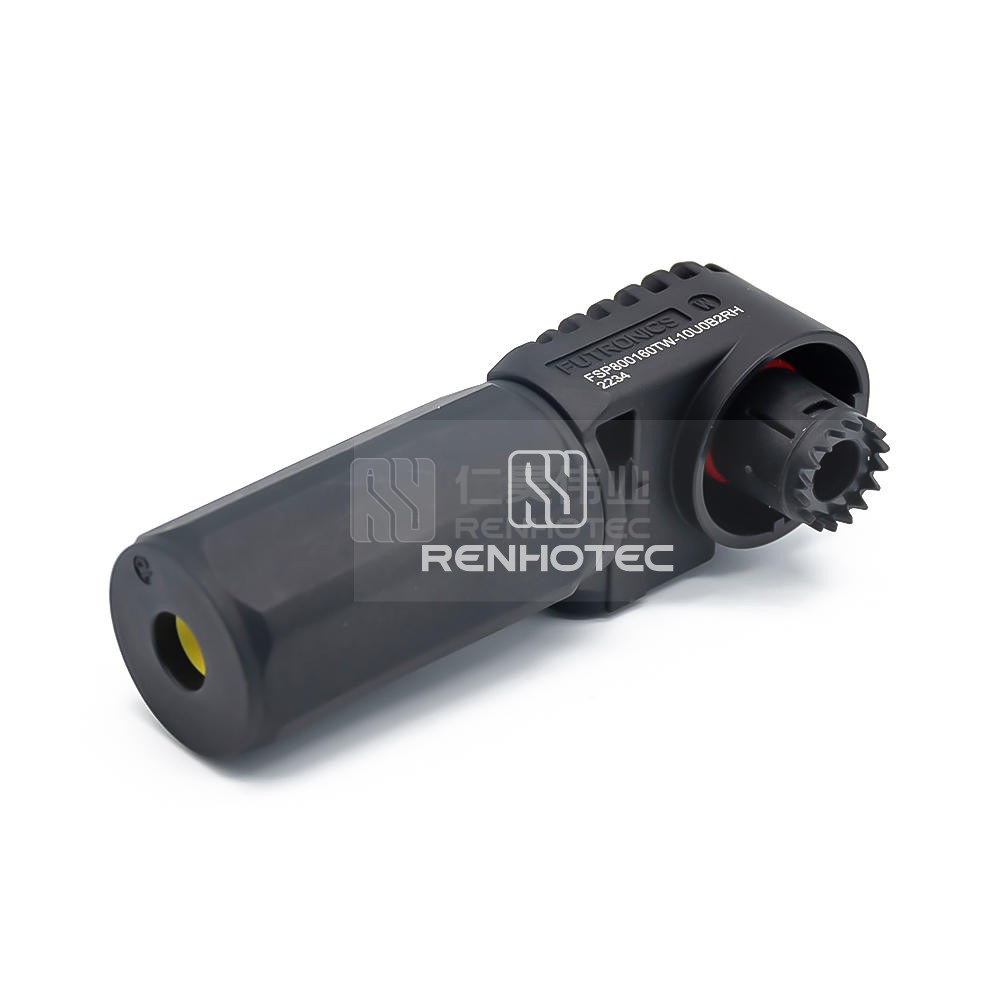

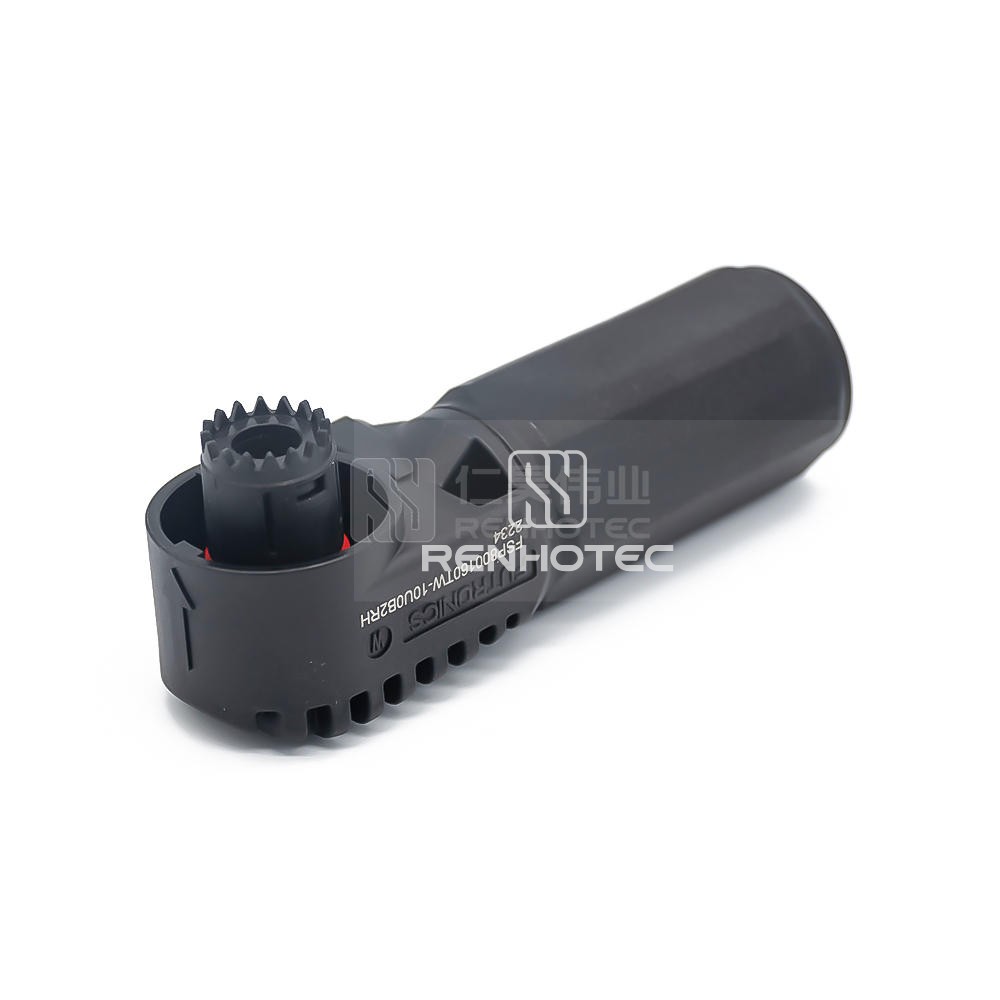

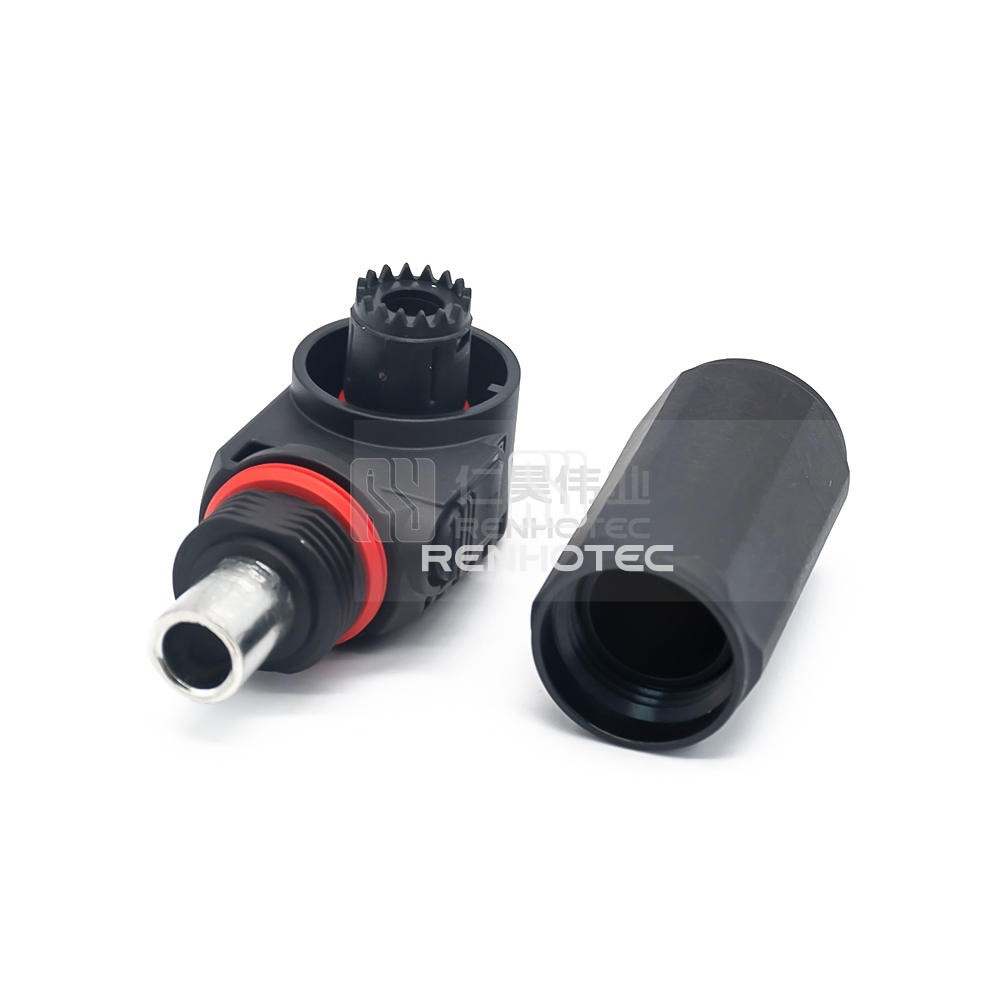

8.0mm Waterproof Battery Storage Connector Right Angle 70A Black 10mm² UnShielded Cable W Key

Securely connect and protect your battery with this 8.0mm waterproof connector. Designed with a right angle for convenience, capable of handling 70A current with a 10mm² unshielded cable. Includes a key for added security.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current70A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range10mm²

    Material

    Shell MaterialPA66
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
