Products > Energy Storage Connector > 8.0mm Waterproof Battery Storage Connector Straight 200A Black 16mm² UnShielded Cable W Key
- Overview
- Technical data
- Catalog

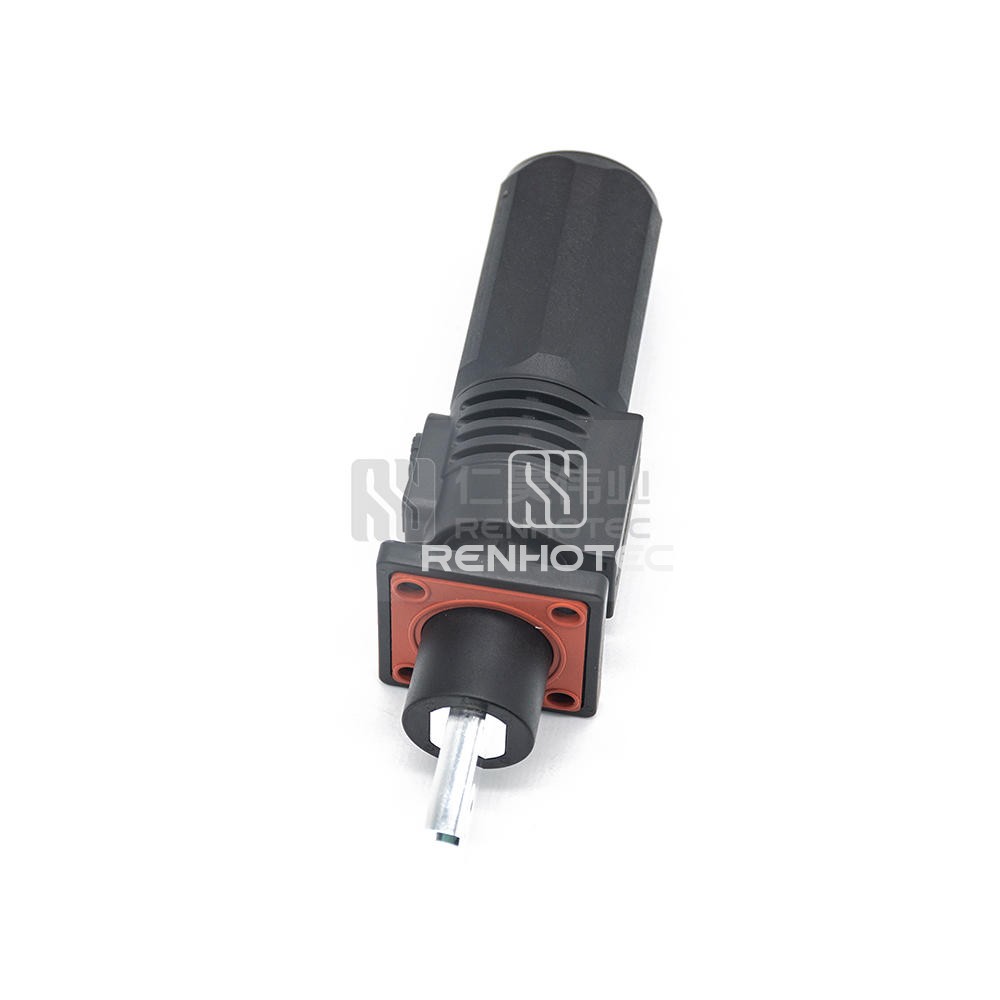

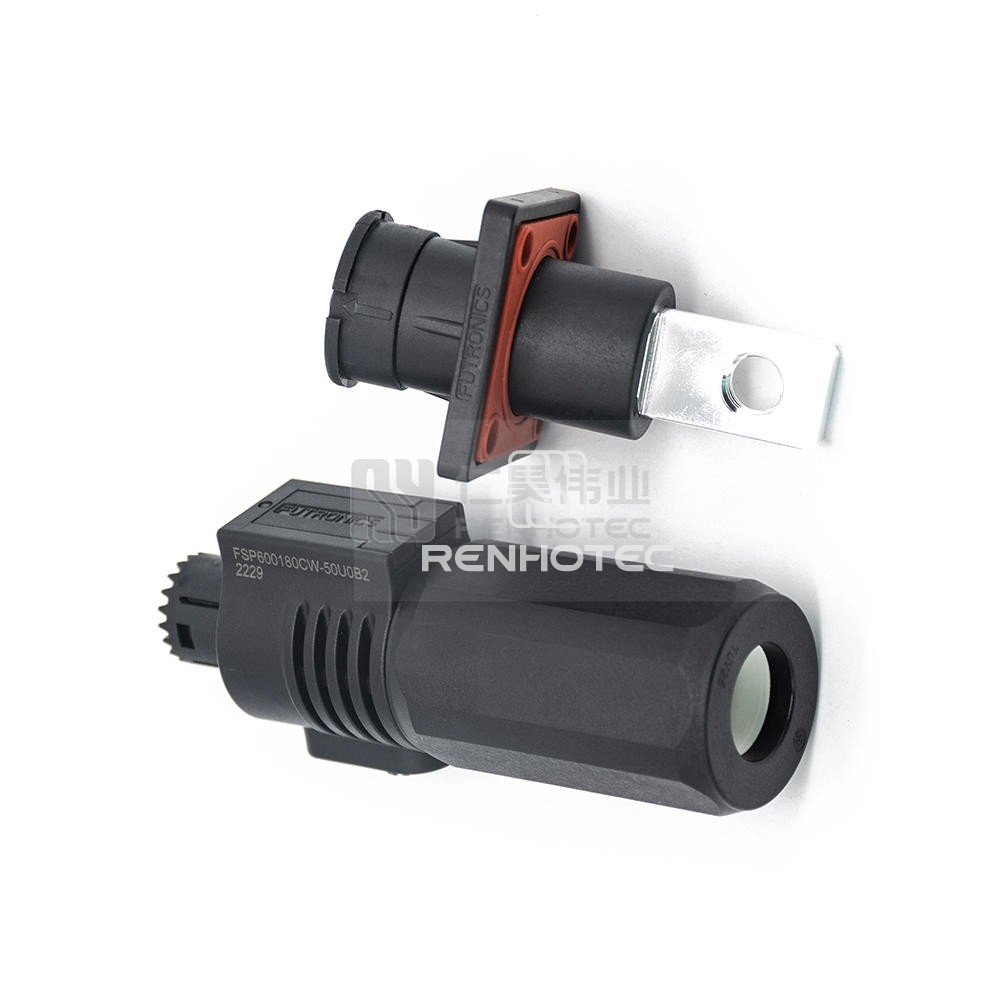

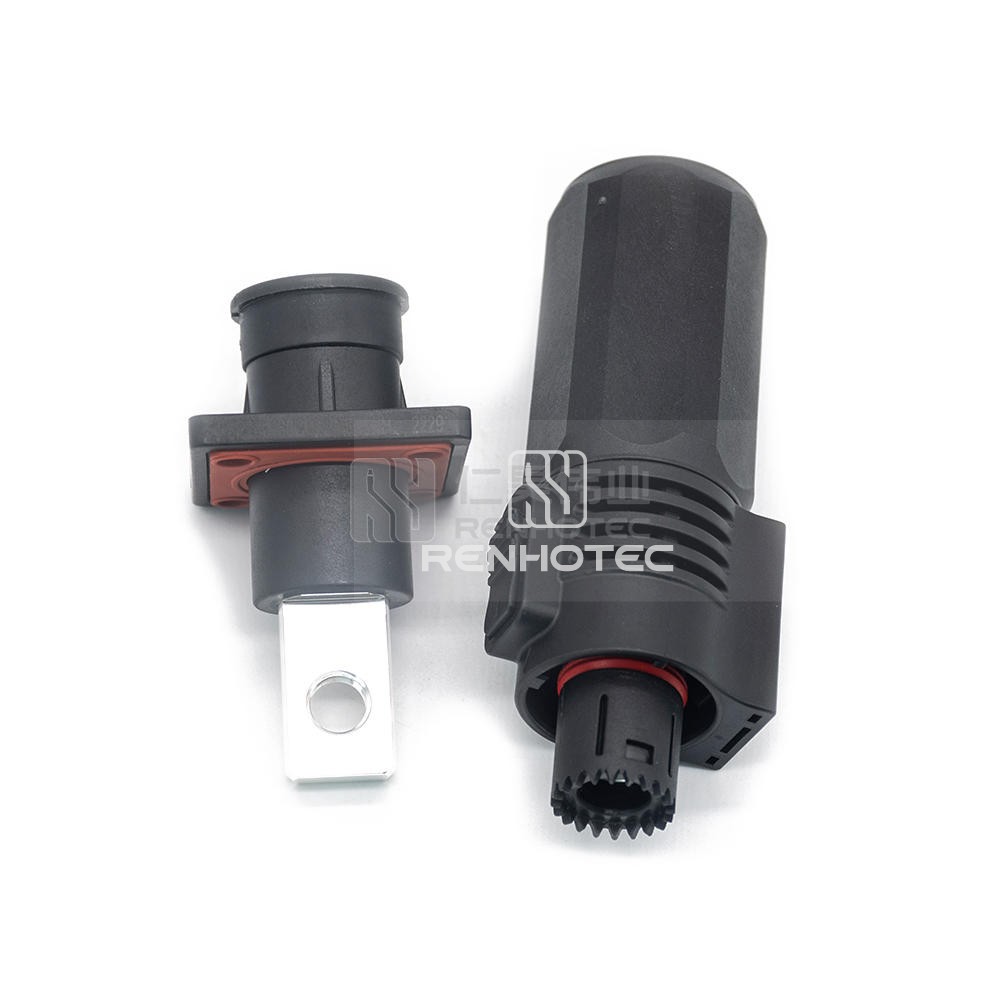

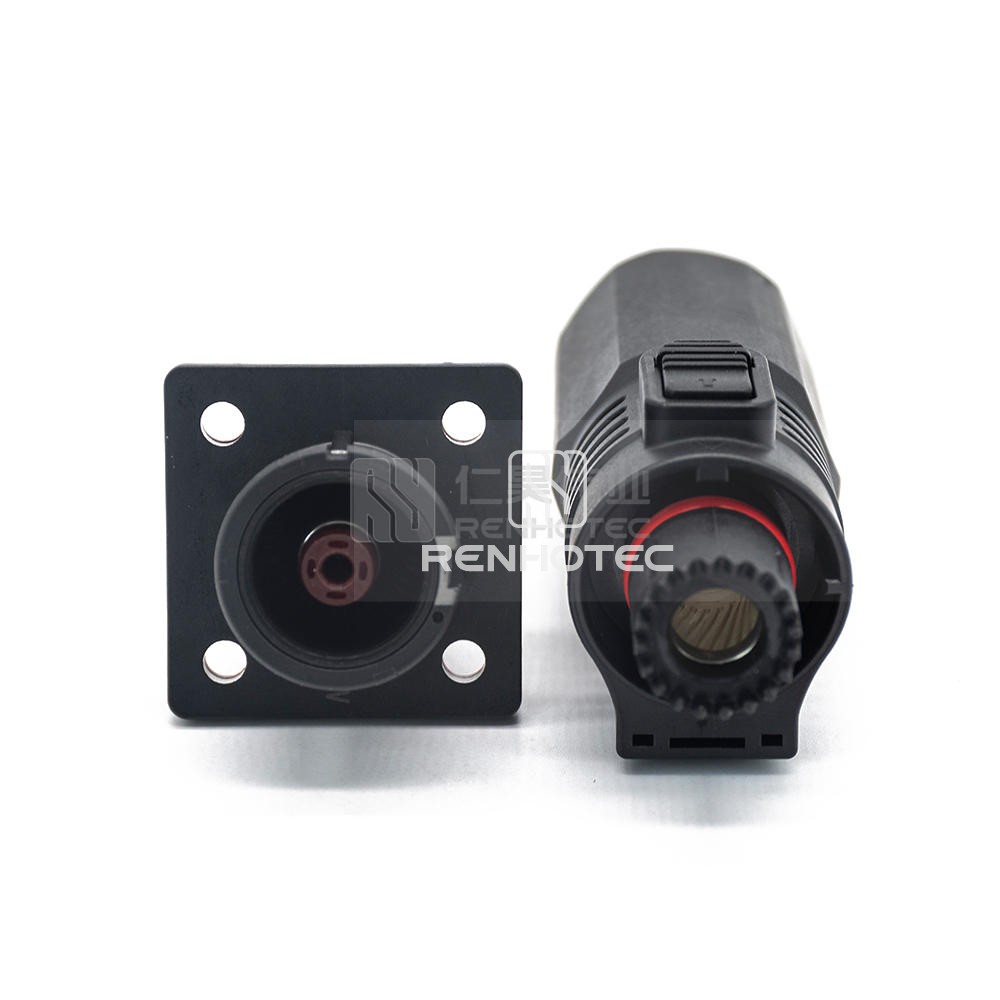

Ensure a secure and reliable connection with this 8.0mm Waterproof Battery Storage Connector featuring a 200A capacity. The straight design and included key provide ease of use and added safety. Compatible with 16mm² unshielded cables, ideal for various applications.
General
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | W |
Color | Orange |
Electrical
Rated Voltage | 1000V |
Rated Current | 200A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | PA66 |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
