Products > HVIL Series Connector > Automotive Connectors MINI MSD 250A Plug With Fuse Secondary Locking

MINIMSD-P-250-1-H

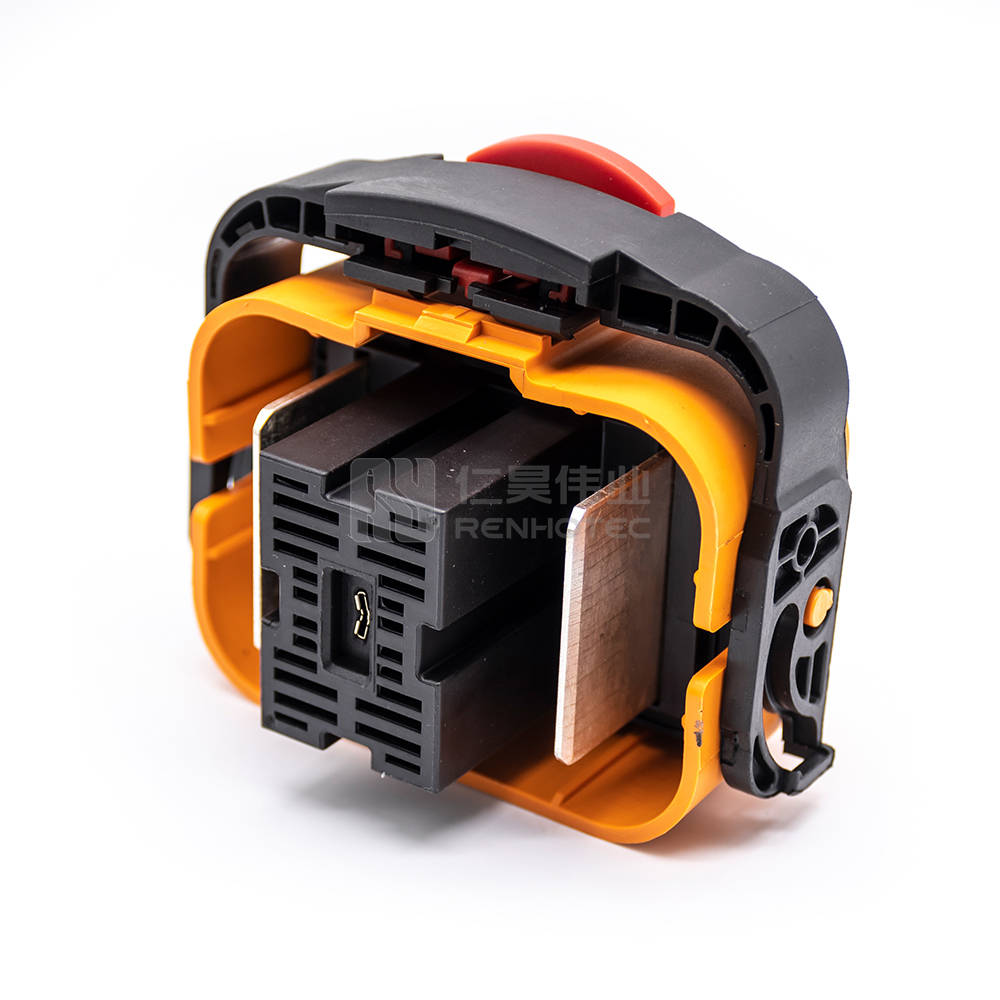

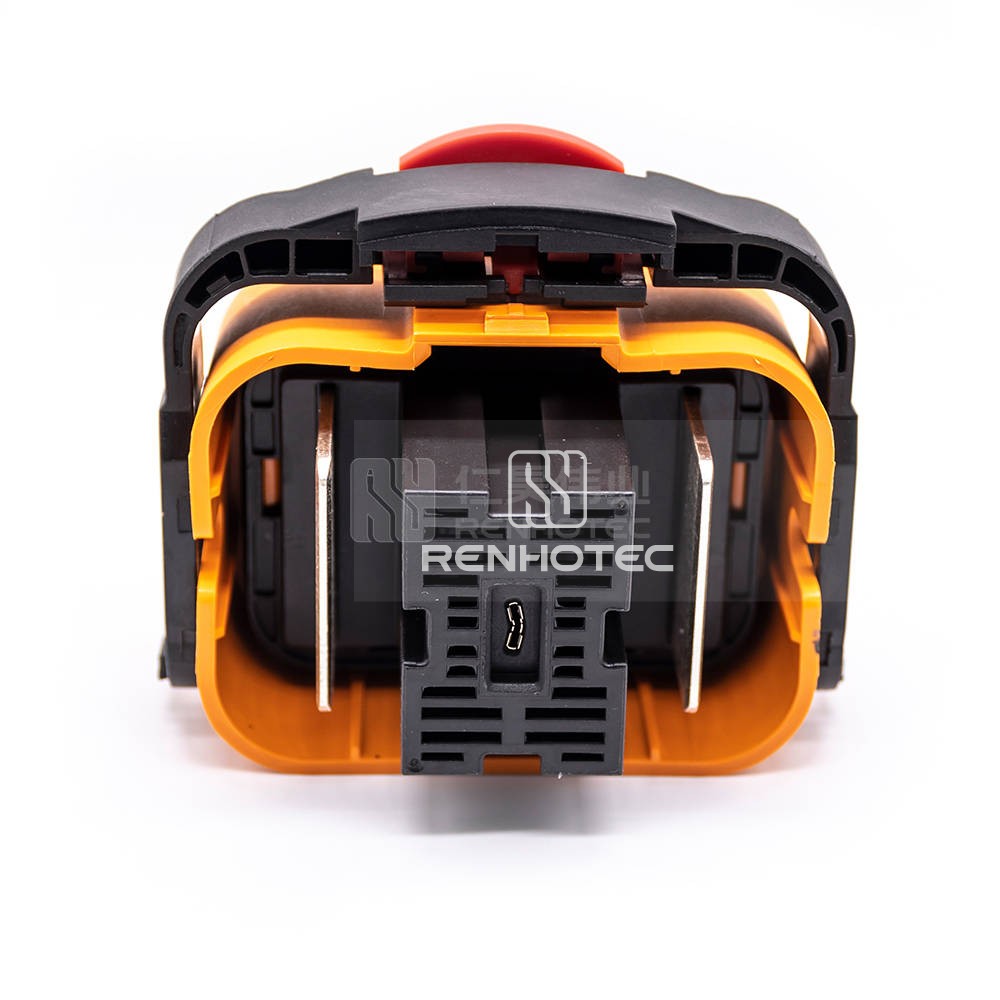

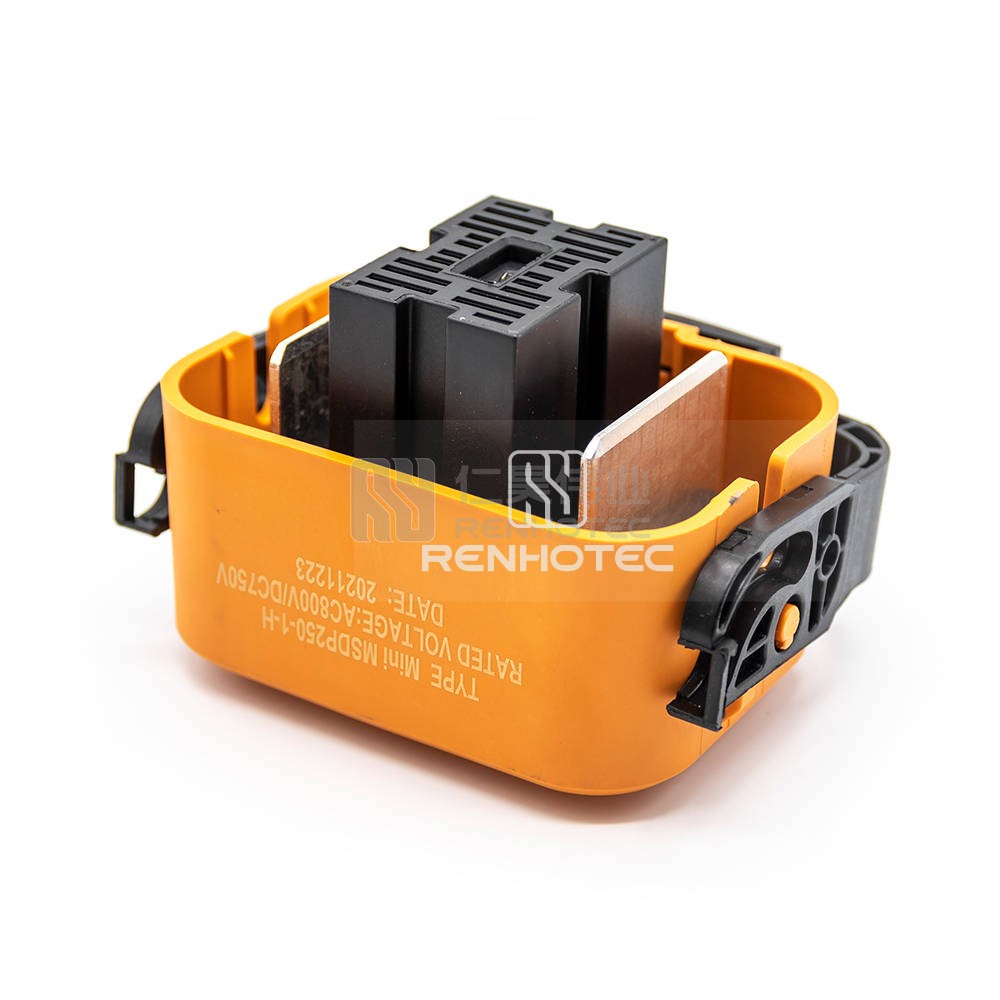

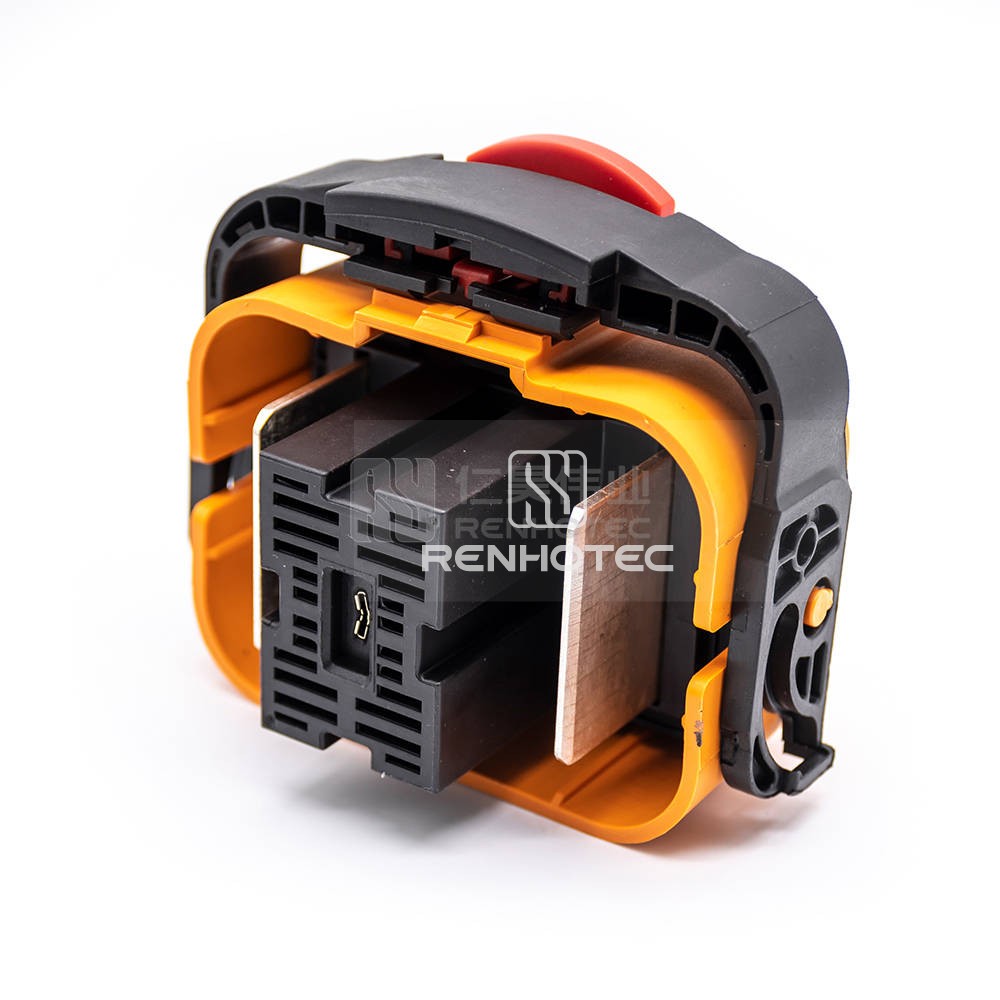

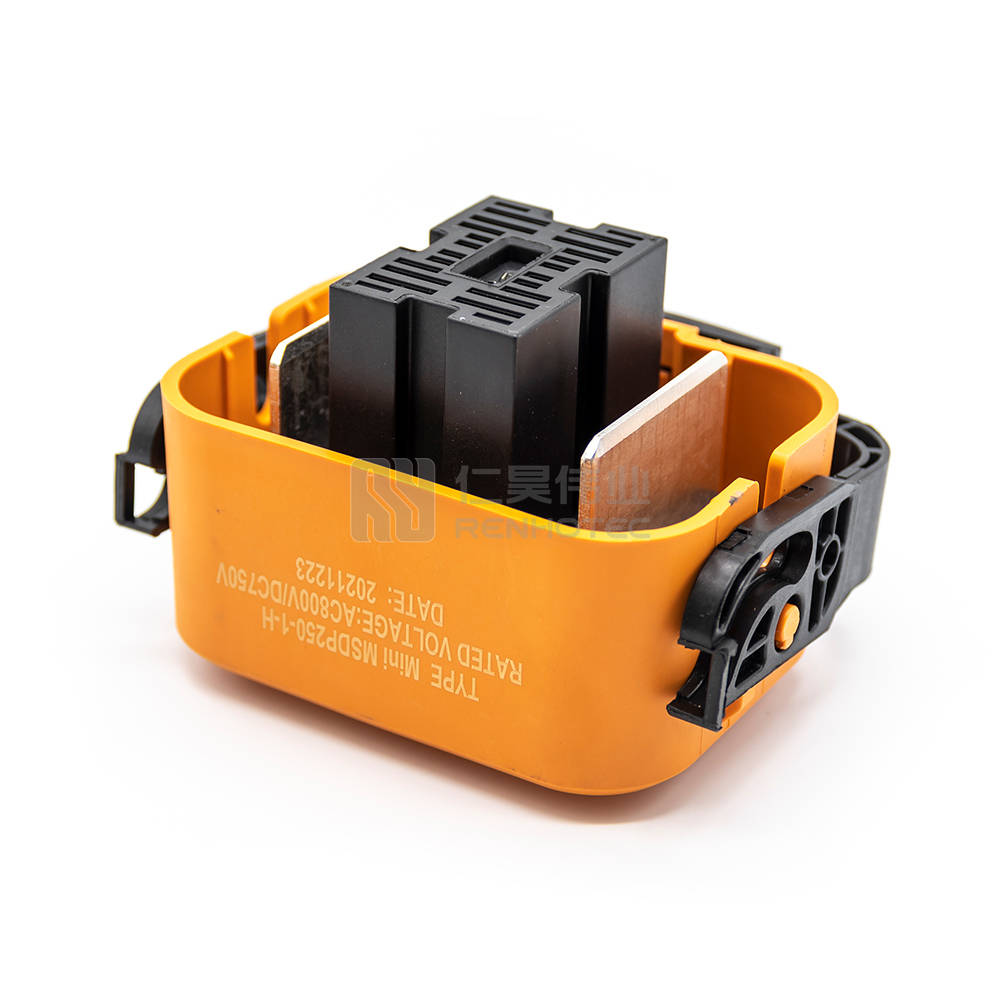

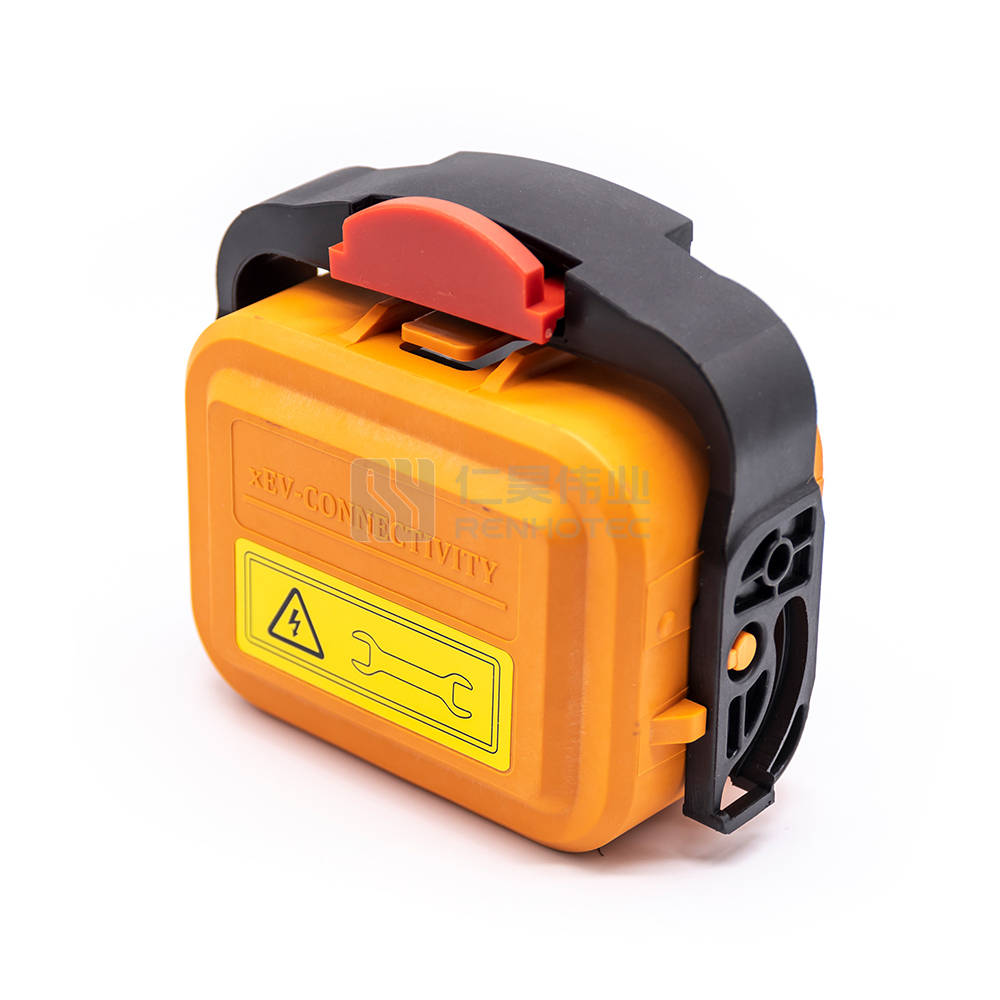

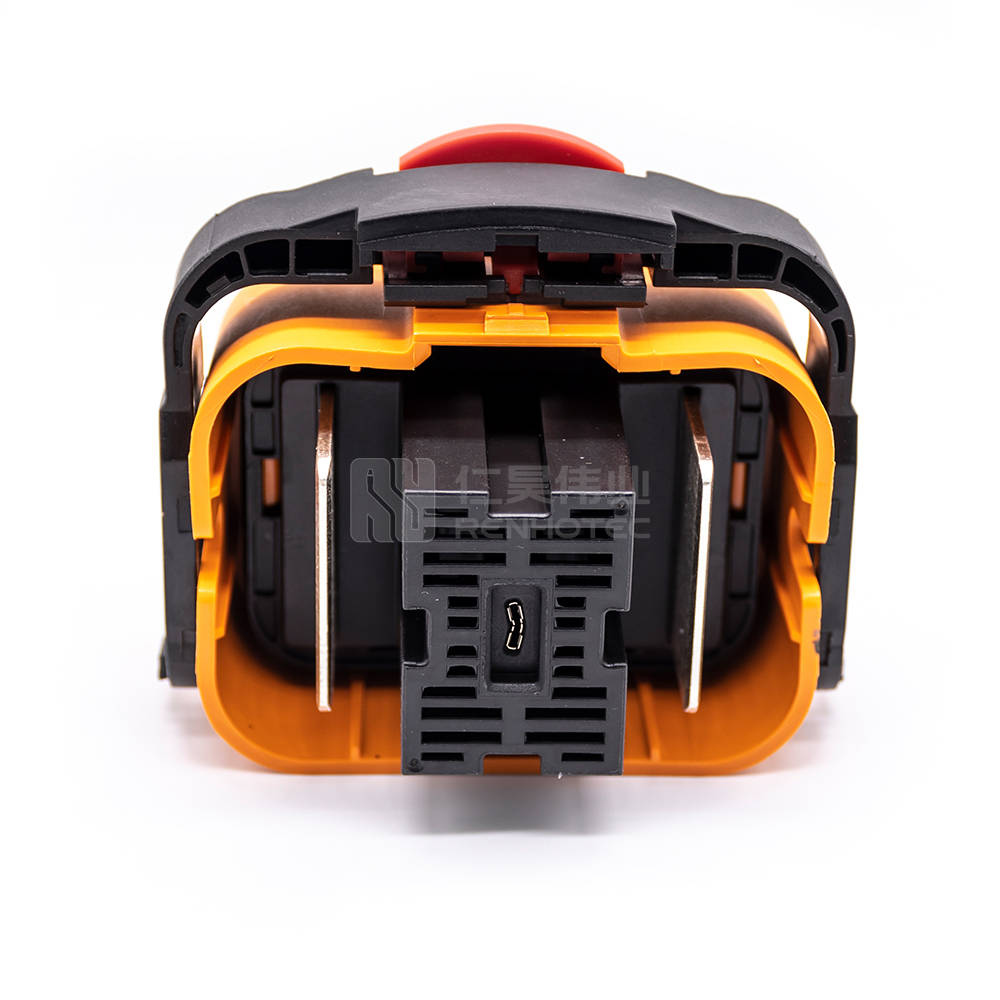

Automotive Connectors MINI MSD 250A Plug With Fuse Secondary Locking

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Enhance your vehicle's electrical system with the MINI MSD 250A Plug featuring a fuse and secondary locking mechanism. Secure and reliable, this automotive connector is ideal for various applications in automotive wiring projects.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    Number of Positions2
    UsageAutomotive Electronics
    Contact TerminationCrimp
    ColorOrange
    FeaturesWith Fuse

    Mechanical

    Locking MethodSecondary Locking
    Mounting TypePanel Mount

    Electrical

    Rated VoltageDC750V/AC800V
    Rated Current200A
    Electrical ProtectionIP2XB
    ShieldingShielded

    Material

    Shell MaterialNylon
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
