Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB - MINIMSD-P-400-1-H
Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB - MINIMSD-P-400-1-H

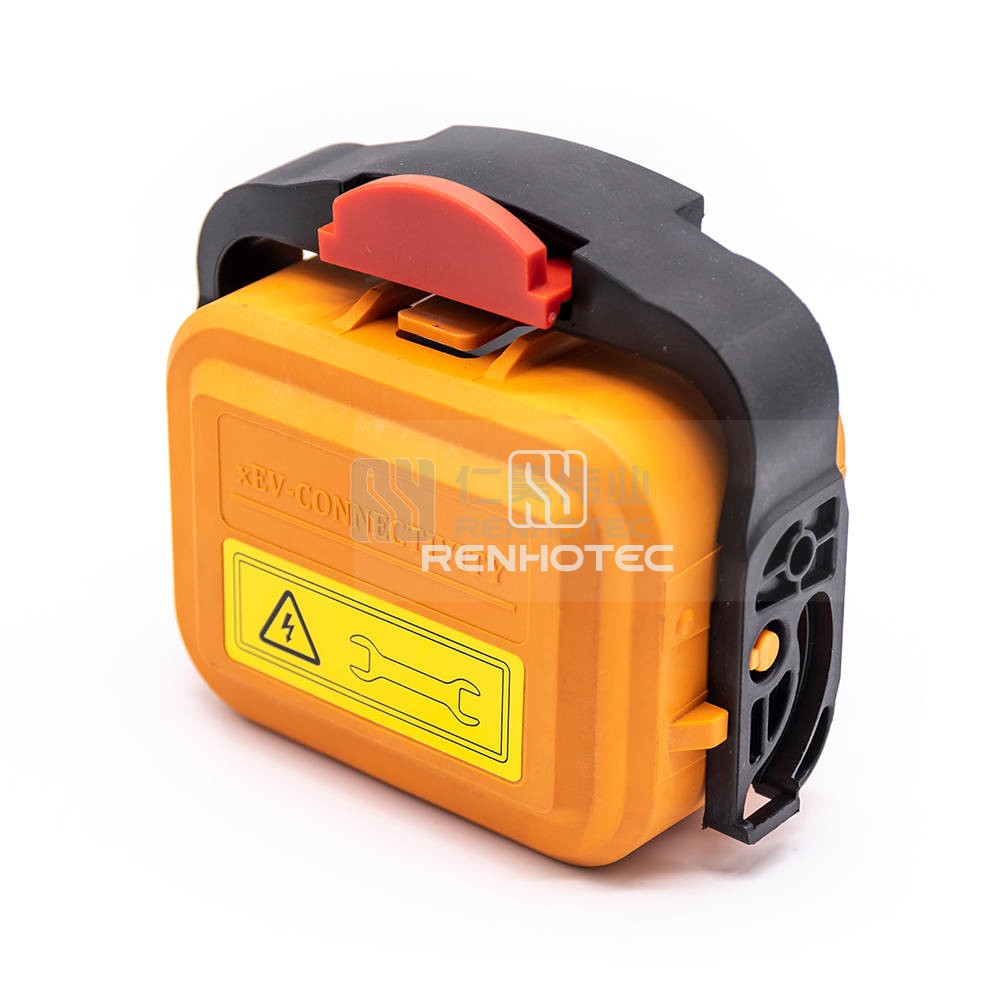

Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB product image

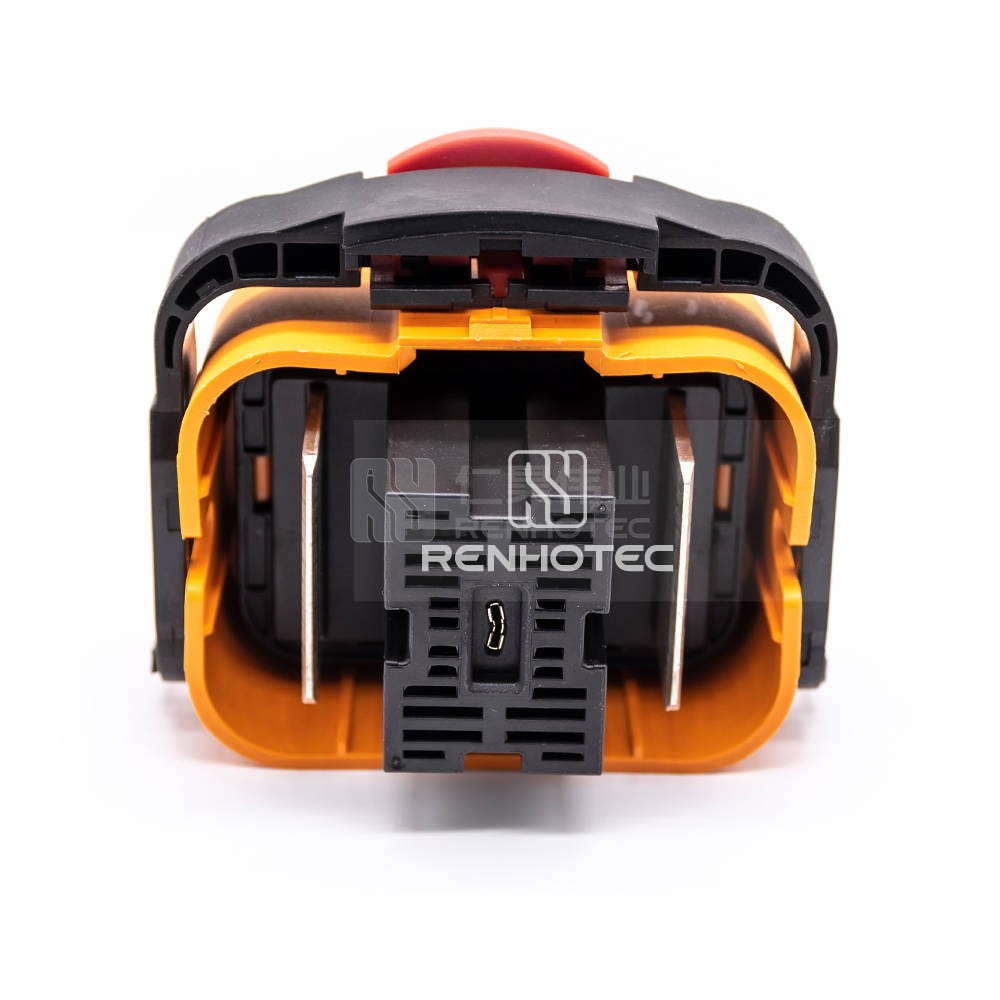

Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB product image

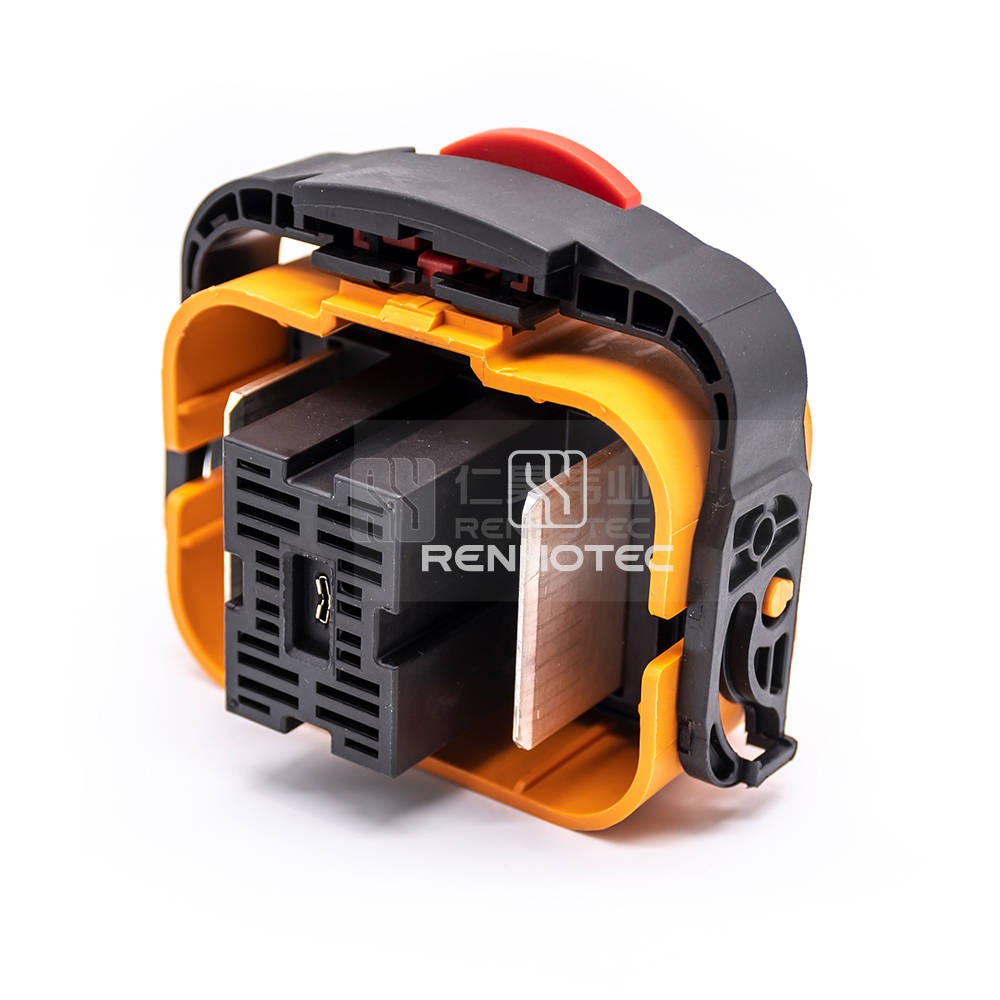

Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB product image
Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB product image

MINIMSD-P-400-1-H

Automotive Connectors MINI MSD 400A Plug With Fuse IP2XB

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions2
Mounting TypePanel Mount
Locking MethodSecondary Locking
Contact TerminationCrimp
ColorOrange
UsageAutomotive Electronics
FeaturesWith Fuse
Materials
Shell MaterialNylon
Contact MaterialCopper Alloy
Contact FinishSilver
Electrical
Rated VoltageDC750V/AC800V
Rated Current400A
ShieldingShielded
Electrical ProtectionIP2XB
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product certification

Product excerpt

This MINI MSD 400A plug with fuse ensures reliable connectivity in automotive applications. With an IP2XB rating, it provides superior protection against dust, making it ideal for use in vehicles to ensure secure and efficient electrical connections.
