Products > HVIL Series Connector > Automotive Connectors MINI MSD Receptacle Front Mount

MINI MSD-R-000-F-H

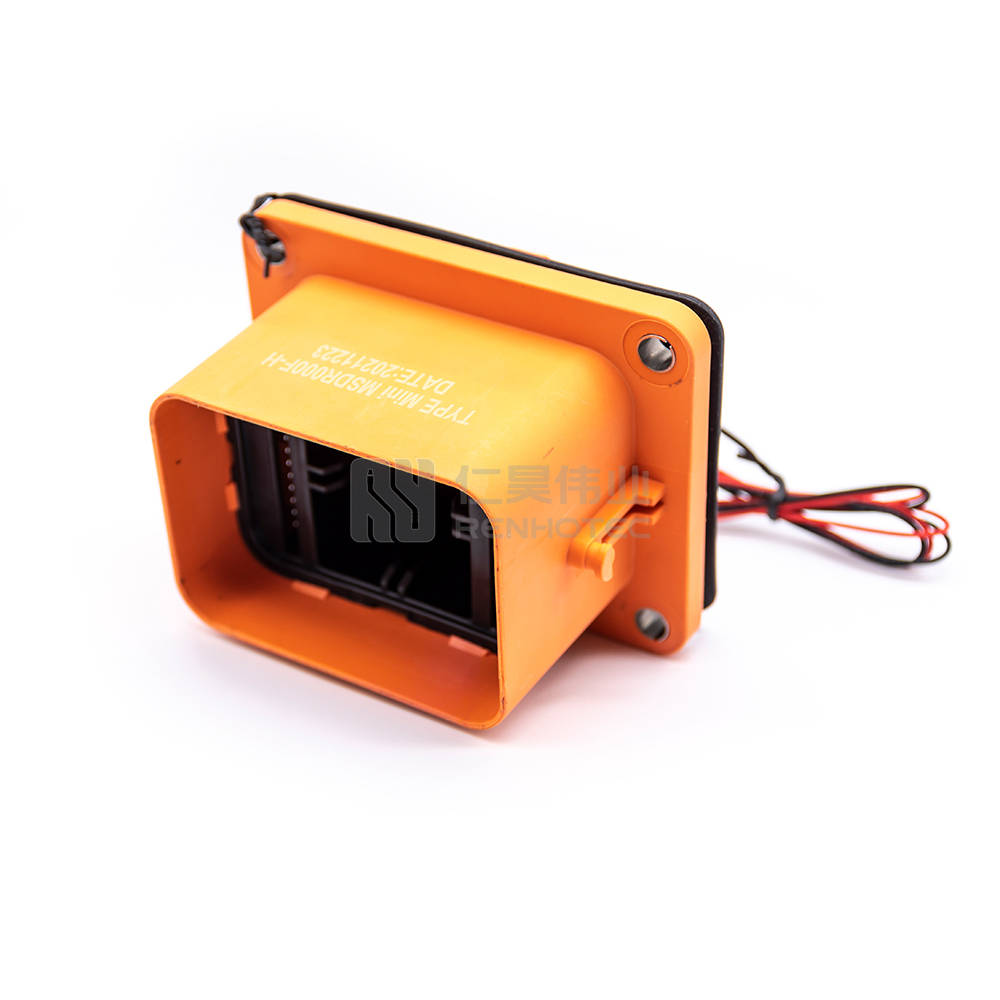

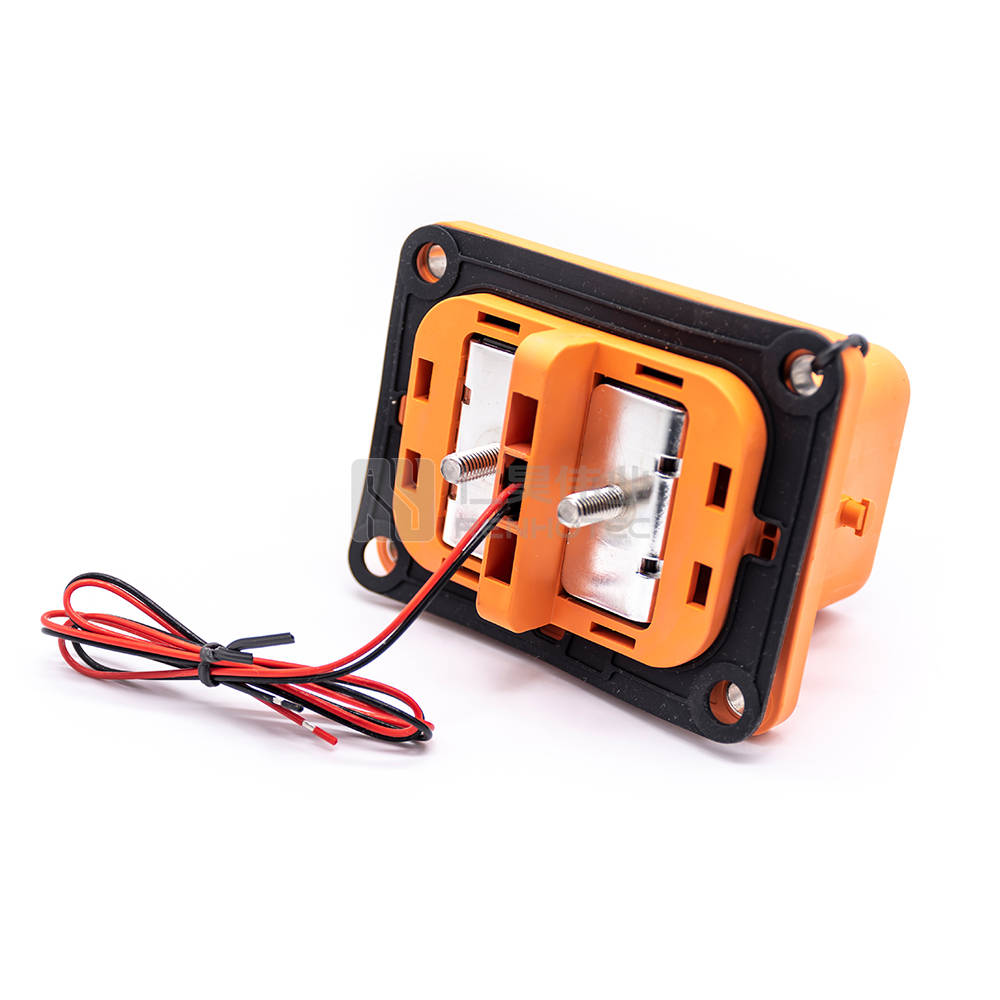

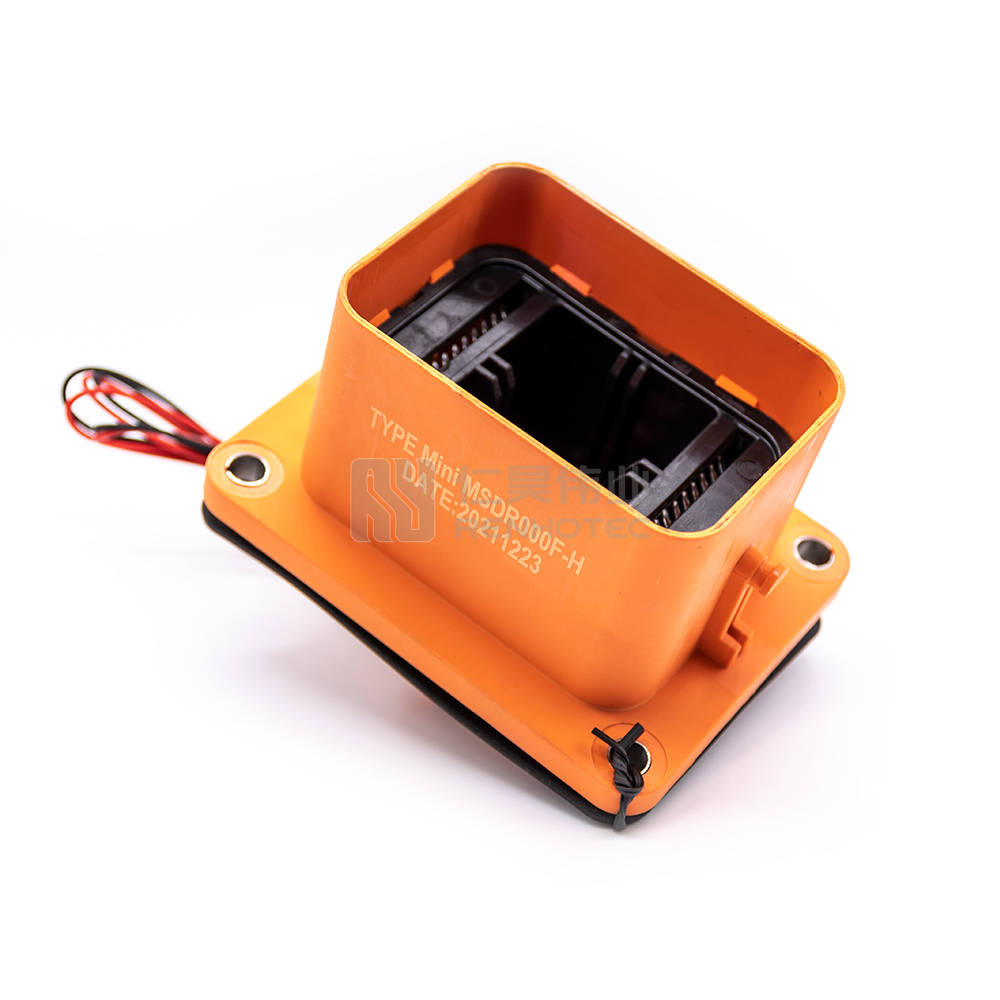

Automotive Connectors MINI MSD Receptacle Front Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Discover an efficient solution for automotive connectivity with the MINI MSD Receptacle Front Mount connector. Offering seamless front mount installation, this connector is designed for high performance and durability in automotive applications.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    Number of Positions2
    UsageAutomotive Electronics
    Contact TerminationCrimp
    ColorOrange

    Mechanical

    Locking MethodSecondary Locking
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Electrical

    Rated VoltageDC750V/AC800V
    Rated Current200A-400A
    Electrical ProtectionIP2XB
    ShieldingShielded

    Material

    Shell MaterialNylon
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
