Products > HVIL Series Connector > Automotive Connectors MINI MSD Receptacle Front Mount

NI4-0-H400-2NYA-S03A

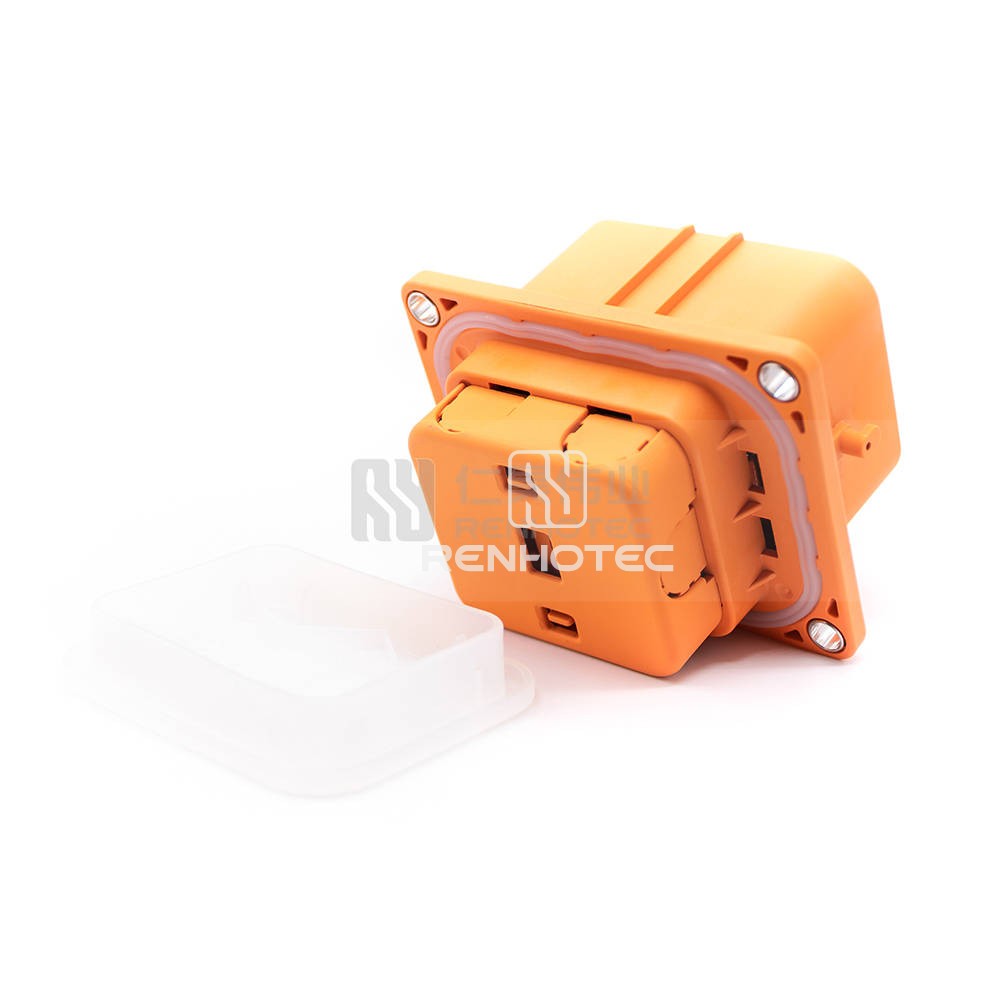

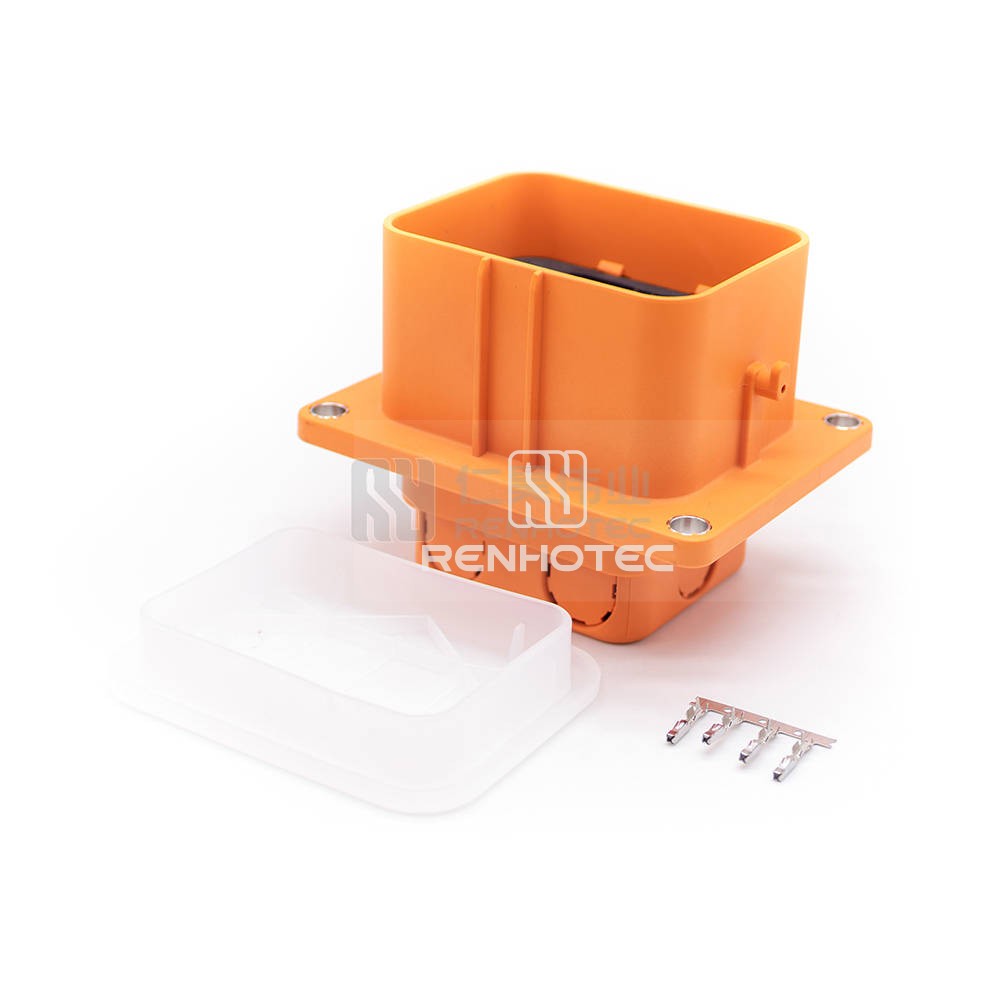

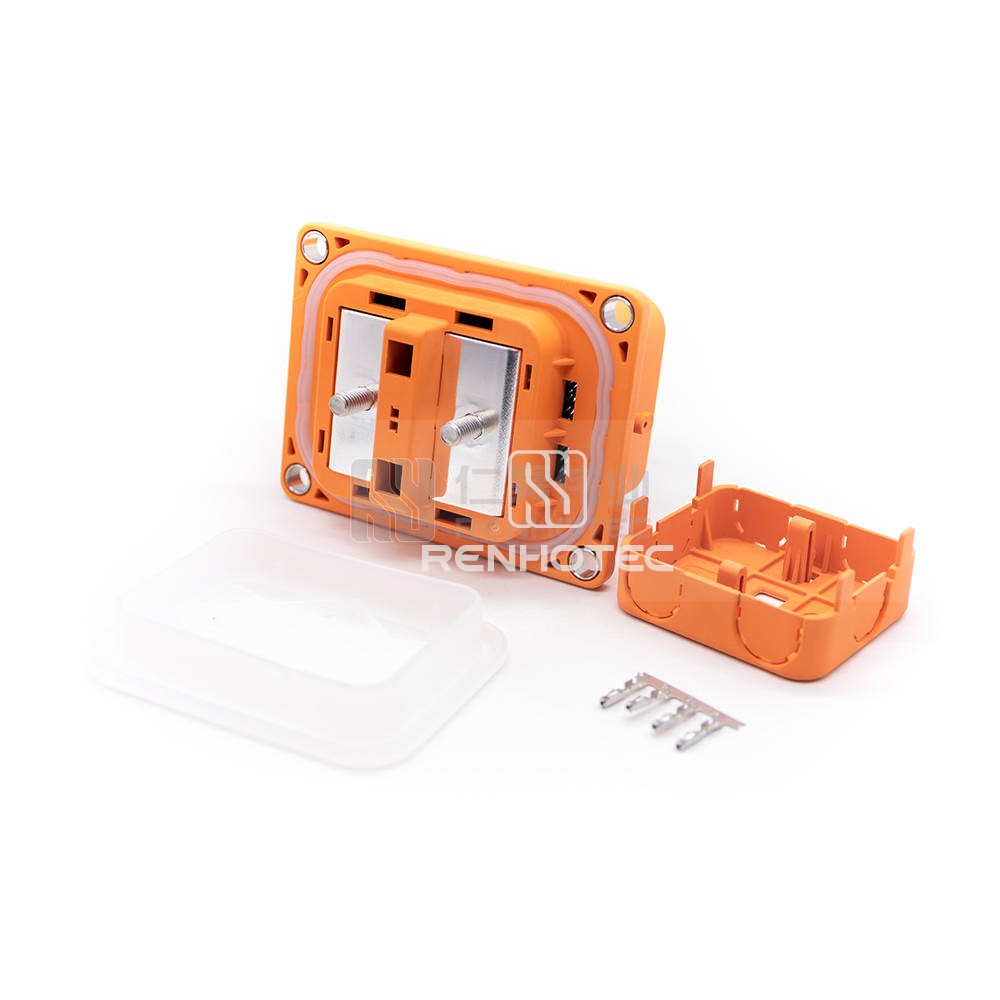

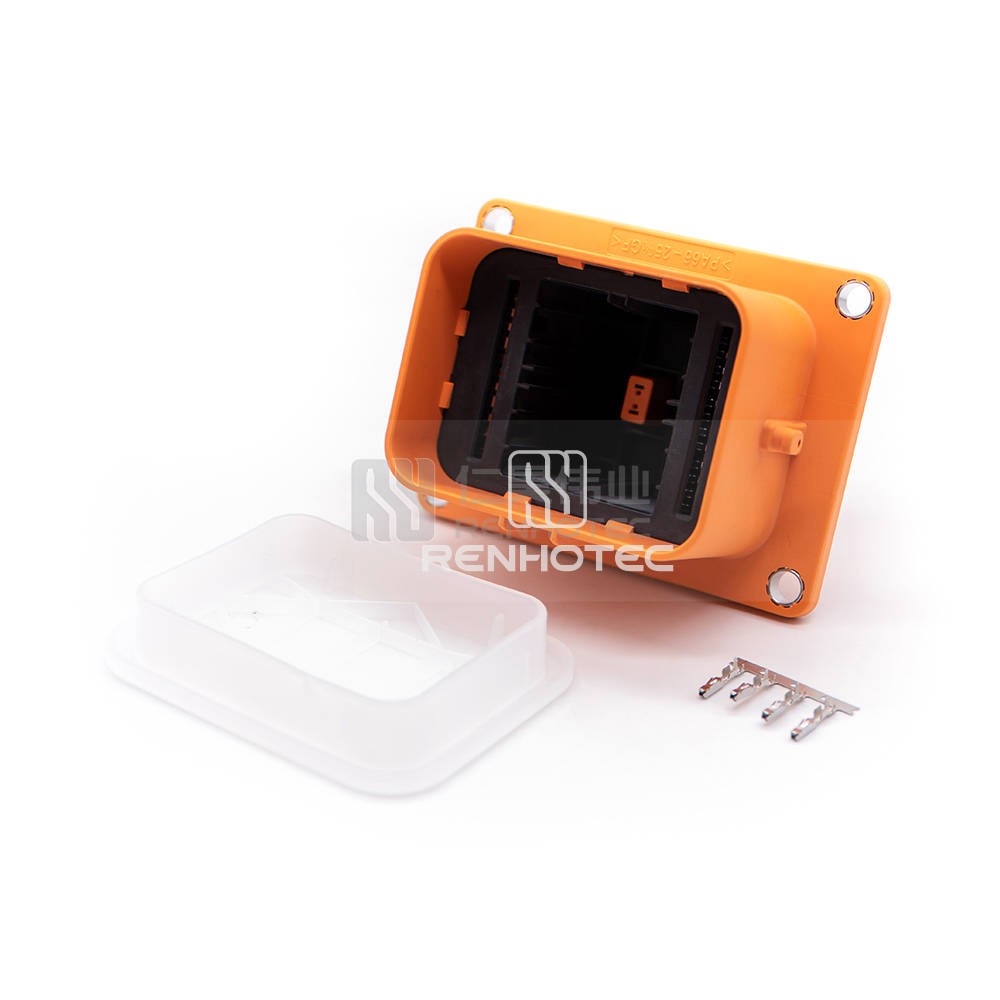

Automotive Connectors MINI MSD Receptacle Front Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This front mount MINI MSD receptacle automotive connector offers high quality and reliable connection. Ideal for automotive applications, this product ensures secure and efficient electrical connectivity.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    Number of Positions2
    UsageAutomotive Electronics
    Contact TerminationCrimp
    KeyN
    ColorOrange

    Mechanical

    Locking MethodSecondary Locking
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Electrical

    Rated Voltage690V/700V
    Rated Current200A-400A
    Electrical ProtectionIP2XB
    ShieldingShielded

    Material

    Shell MaterialNylon
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
